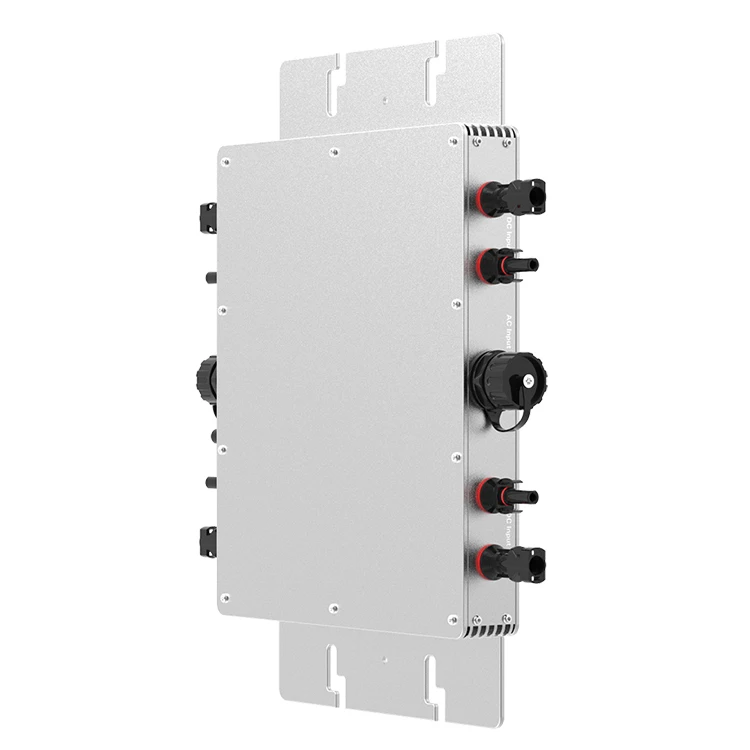

Price Wholesale Price New Inversor Home Solar Panel Microinverters Supplier 2000W 2000 W Mirco Inverter
- Category: >>>
- Supplier: Zhejiang Tu-Poly Trade Co. ltd.
Share on (1600832968258):
Product Overview
Description
Product Description
The inverter and the battery can form an independent power supply system. The load of the equipment and the time of use must be determined according to the output power of the inverter and the capacity of the battery. The inverter can't charge the battery. If you need to charge the battery, you need to choose the UPS inverter with charging function, or buy another charger.
Technical Specifications
WVC series communication products adopt a waterproof streamlined design, which can better provide heat dissipation for the equipment. The built-in maximum power point tracking engine (MPPT) can better capture the changes in light, even in rainy weather, and it can capture and collect sunlight to the greatest extent. The inverter is compatible with a variety of conventional solar panels with an open circuit voltage of 22~60V, and through technical means, the panel can exert its best performance.

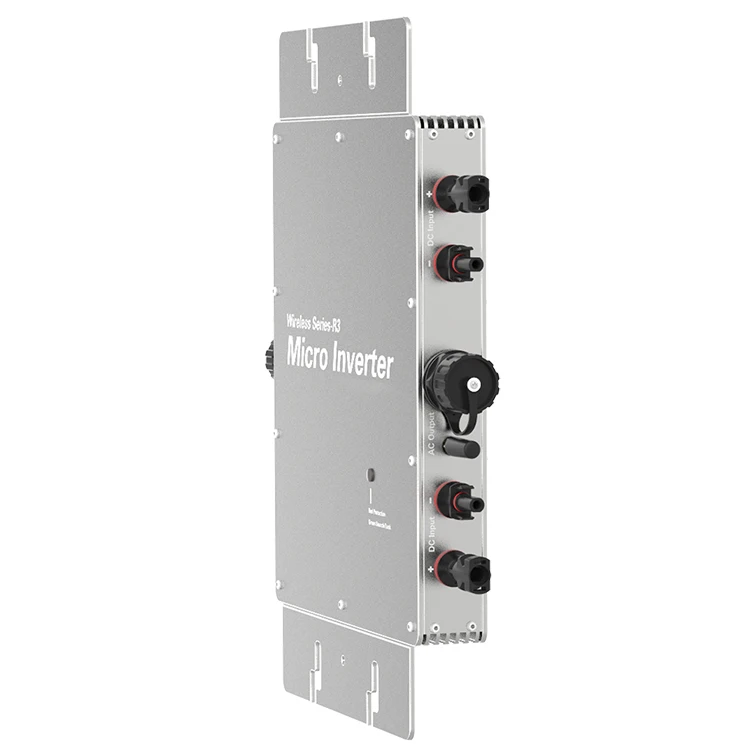

MICRO INVERTER
WVC-300/WVC-350/WVC-600/WVC-700
WVC-1200/WVC-1400/WVC-1600
WVC-2000/WVC-2400/WVC-2800
WVC-1200/WVC-1400/WVC-1600
WVC-2000/WVC-2400/WVC-2800
FEATURES
* High efficiency MPPT
* Independent high frequency modulation and grid connection

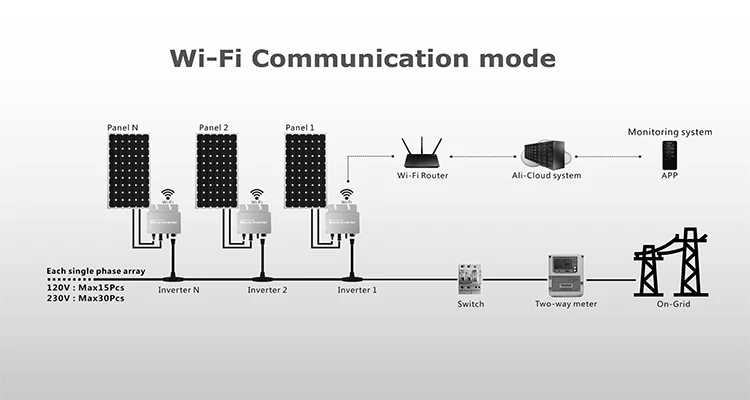

* Cloud intelligent IoT monitoring multiple inverters stacked
* MicroChip CPU
* LLC power chip management
* Acid and alkali resistance
* IP65 waterproof design
* Cloud intelligent IoT monitoring multiple inverters stacked
* MicroChip CPU
* LLC power chip management
* Acid and alkali resistance
* IP65 waterproof design
model | WVC-2000(R3) | |||
Maximum input power | 4*6250W | |||
Output voltage mode | 120V/230V automatic switching | |||
Solar panel open circuit voltage range | 30-54V | |||
Peak power tracking voltage | 22-60V | |||
Min/Max starting voltage | 22-60V | |||
Maximum DC short circuit current | 4*23A | |||
Maximum input working current | 4*20A | |||
Output parameters | @120V | @230V | ||
Peak output power | 2200Watt | 2200Watt | ||
Rated output power | 2000Watt | 2000Watt | ||
Rated output current | 16.6A | 8.7A | ||
Rated voltage range | 80-160VAC | 180-280VAC | ||
Rated frequency range | 48-51Hz/58-61Hz | 48-51Hz/58-61Hz | ||
Power Factor | >99% | >99% | ||
Number of circuit connections per string | 3 sets (single phase) | 6 sets (single phase) | ||
Output efficiency | @120V | @230V | ||
Static MPPT efficiency | 99.5% | 99.5% | ||
Maximum output efficiency | 95% | 95% | ||
Power loss at night | <1w | <1w | ||
Total harmonic distortion | <5% | <5% | ||
Appearance and technical characteristics | ||||
range of working temperature | -40 ℃ to +65 ℃ | |||
Size(mm) | 370*300*42 | |||
net weight | 3.38kg | |||
waterproof level | IP65 | |||
Cooling method | Self-cooling | |||

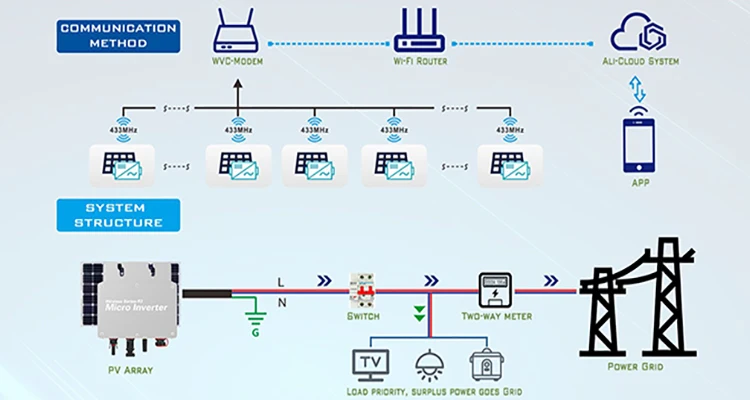

Communication mode | 433Mhz communication mode | |||
Power transmission mode | Reverse transmission, load priority | |||
surveillance system | Mobile App | |||
Electromagnetic Compatibility | EN50081.Party EN50082.Party 1 | |||
Grid disturbance | EN61000-3-2 Safety Regulation 62109 | |||
Grid detection | DIN VDE 0126 | |||
certificate | CE, CEC, appearance patent | |||
Product Display

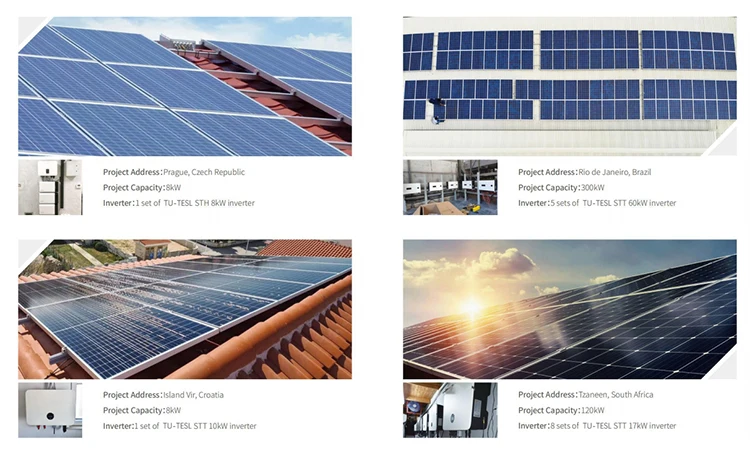

Project Cases
Why Choose Us
TU-POLY COMPANY
Founded in 2008, Zhejiang Tu-Poly Trade Co.,ltd. is a subsidiary of Henghe Precision Industry Co., Ltd. It has a high-tech research and development team. Its production workshop exceeds 8,000 square meters. It is a high-tech enterprise specializing in the design, research and development, production and sales of inverter power products. At present, we have obtained more than 30 technical patents and more than 10 software copyrights.

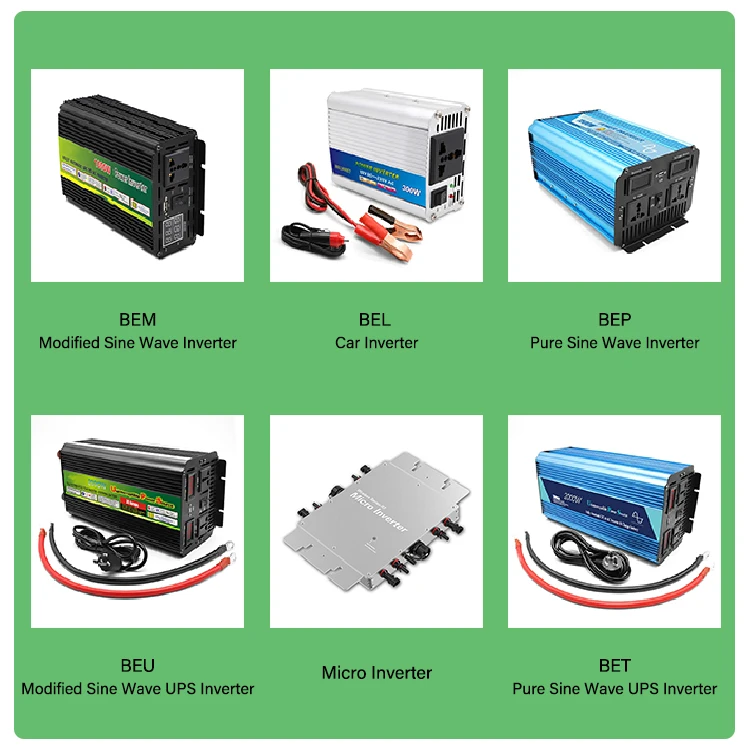

Our company is dedicated to different types of inverters including Solar inverters (Grid-tie inverters, Stand-alone inverters, Intelligent hybrid inverters), Battery backup inverters and vehicle-carried inverters and Micro inverters and so on.
Complete Specification
Each type of inverters has wide power range for you to choose.Micro inverter (<1.5kw), single/three phase string inverter (1-125kw), hybrid inverters (3-60kw), AC-coupled inverters (3-33kw), ESS (All in One), Battery,Accessories and etc. are available for now. For others, they are ready to be released.
One-stop Service
We are experienced in matching inverters with suitable solar panels, brackets, accessories......and providing you with a systematic solution.
TU-TESL INVERTER
Great Benefits
German technology heritage guarantees product quality, reliability, safety and high efficiency, and China-based production delivers cost-performance.Customers can greatly benefit from our as “Made in Germany” quality at a cost-efficient price.
Proven Reliability
Our strict quality control system comply with ISO9001:2008,ISO14001:2004,and grid safety regulation of VDE-AR-N4105, VDE0126-11+A1, AS4777, UTE, ENEL, RD1663, G83/2, G59/2, G59/3, IEC61727, IEC62116, MEA, PEA, NB/T32004-2013, etc. All key components are from best-known suppliers and every inverter is tested thoroughly before shipment-Function test, burn-in test, and grid-tied running test to ensure the long-term performance of our products.
You May Like
Packing ＆ Delivery
FAQ
Q: Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
Q: What's the delivery time?
A:The time of delivery is usually around 1 month(1*40FT as usual). We can send out in 7 days, if it has stock.
Q: What is your payment terms?
A:Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble
Q: Can you quote me the best price?
A: We need more information about your demands, such as the power/material/Qty/etc, then We can suggest the suitable type and quote the best price for you.
A: We need more information about your demands, such as the power/material/Qty/etc, then We can suggest the suitable type and quote the best price for you.
Q: Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
Q: What’s your payment?
A: 1) 100% T/T in advance
2) 30% in advance, 70% of remainingby T/T before shipment.
3) Irrevocable L/C at sight
