Chongqing Scope BK5000 FL4 B/G/U/V Filter Fluorescence Microscope Binocular Trinocular Model
- Category: >>>
- Supplier: Chongqing Scope Instrument Co. Ltd.
Share on (1600833010619):
Product Overview
Description

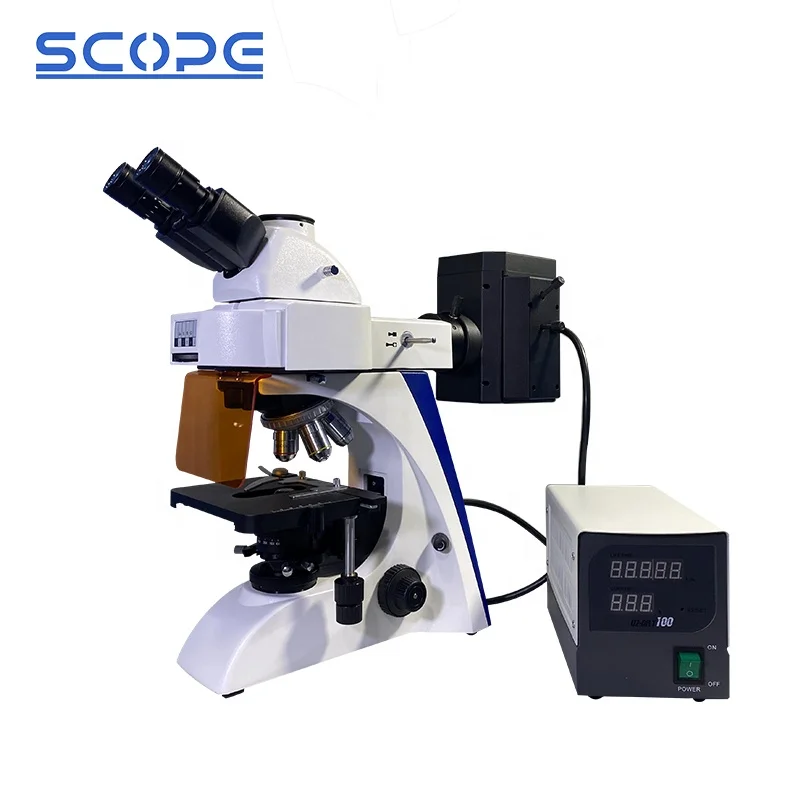

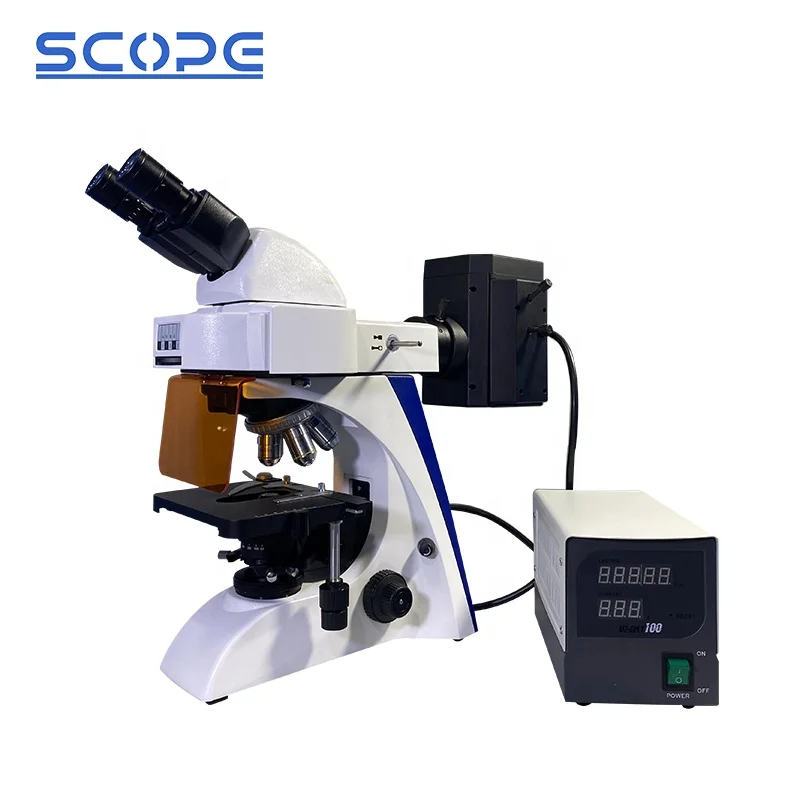

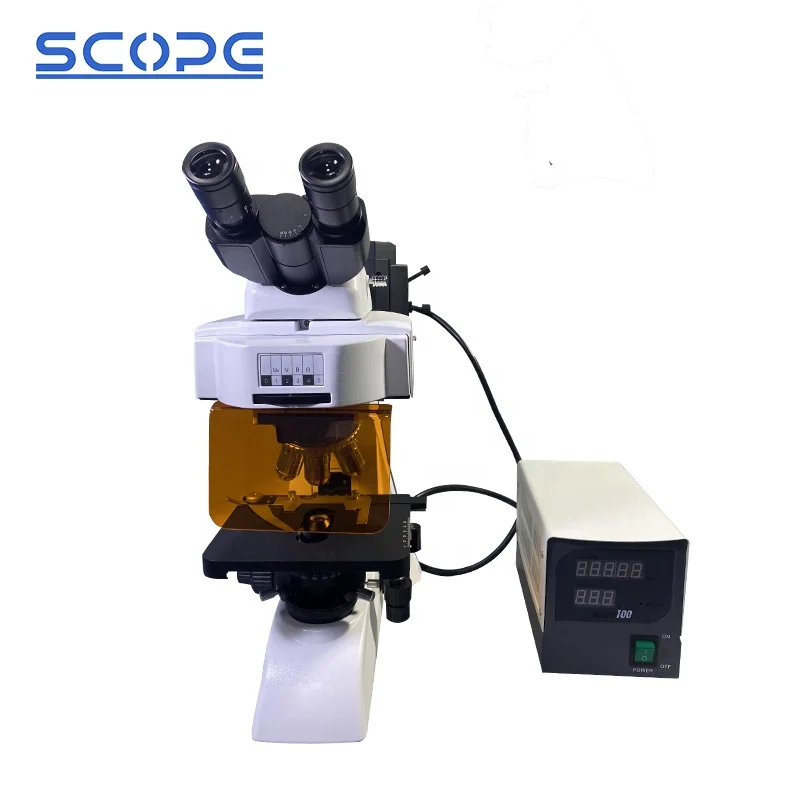

BK5000-FL4 Fluorescence Microscope
This model is four filter unit fluorescence microscope. A fluorescence microscope is a device that uses ultraviolet light as a light source to illuminate the object being tested, causing it to emit fluorescence, and then observe the shape and location of the object under the microscope.

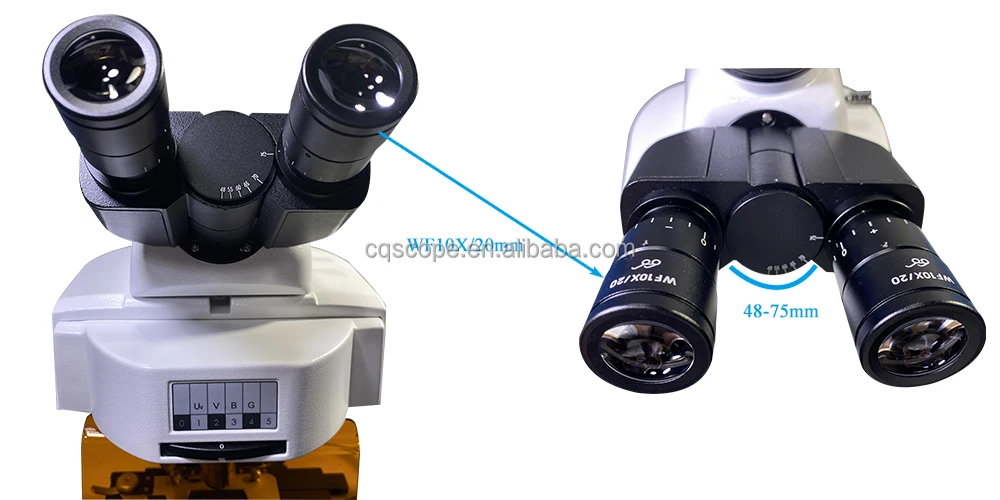

Head
We supply binocular model and trinocular model. Trinocular head can be used with digital camera that can deal with LCD tablet.
They are all inclined 30°, and rotate 360°.
The BK5000 -FL4 microscope is equipped with 10X/20mm eyepiece. If you need reticule and point, need to communicate with our salesman.
Interpupilary distance is 48-75mm.

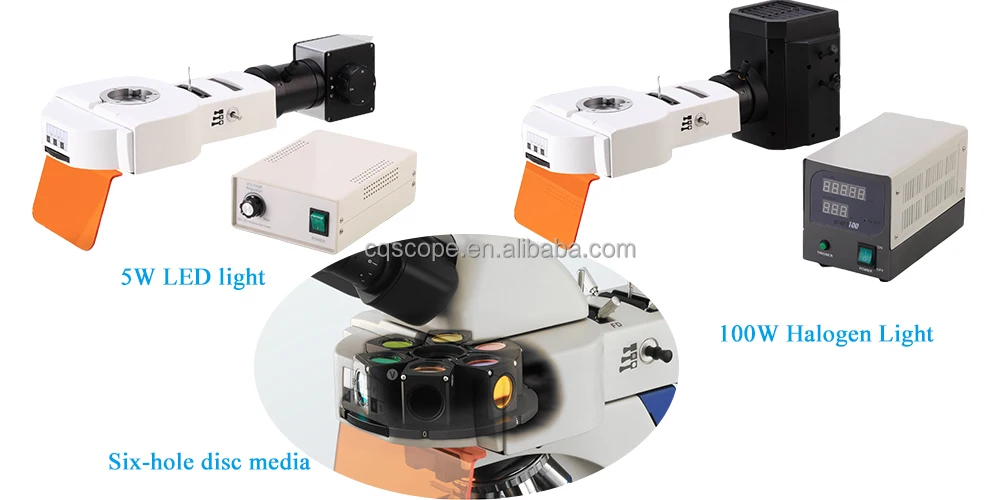

Fluorescence Unit
The fluorescence device uses a six-hole turntable device, and 4 sets of fluorescent color filters, blue, green, ultraviolet, violet.
There are two options for light source, mercury lamp and LED lamp.

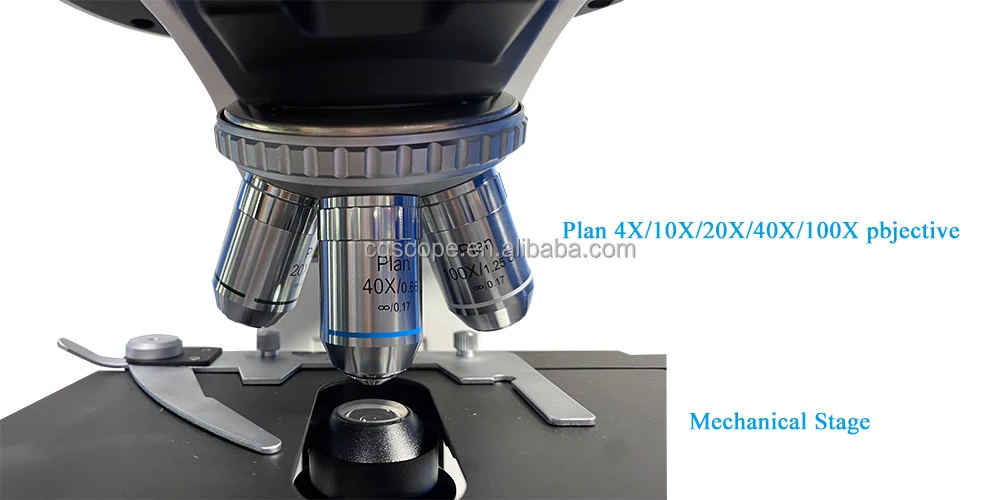

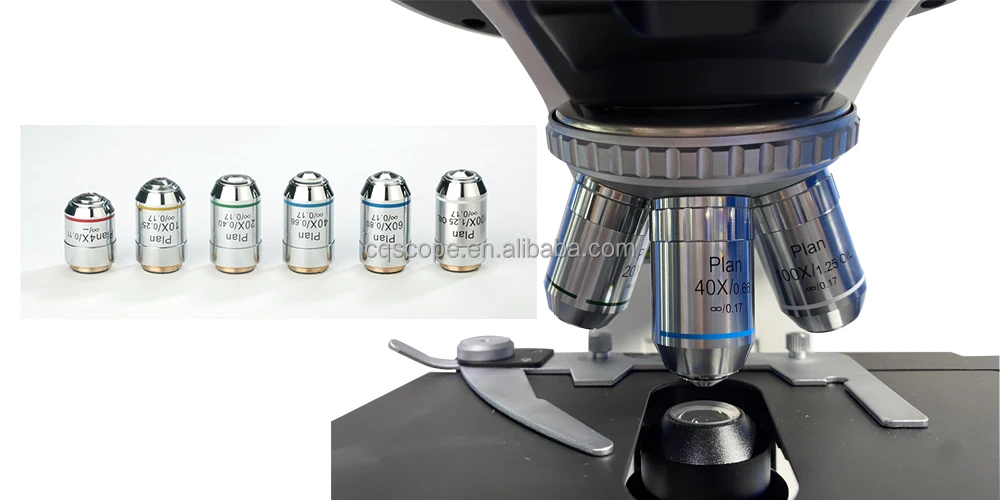

Objective & Stage

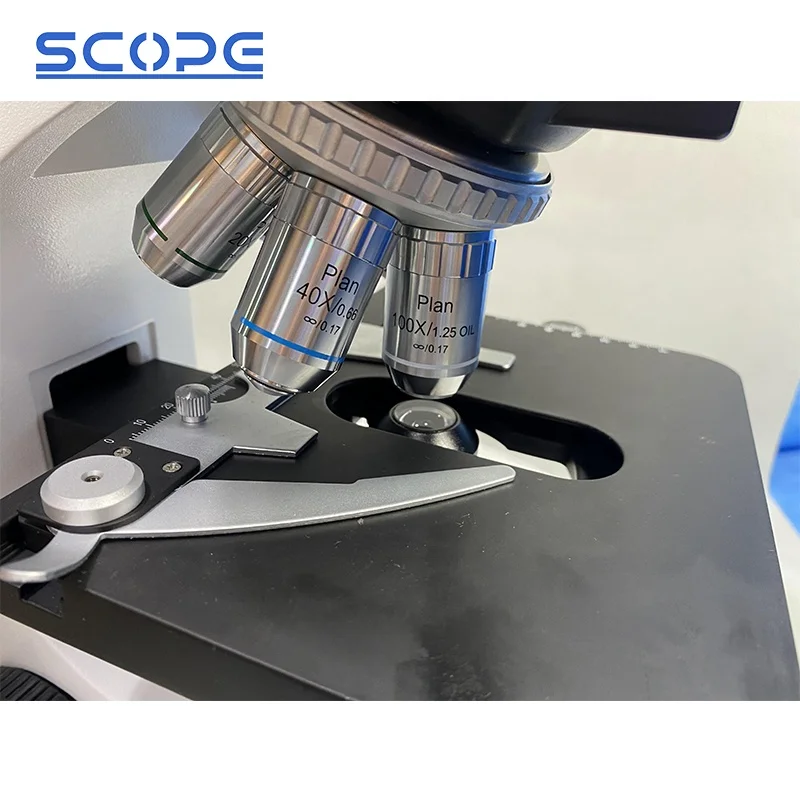

The standard objectives are 4X/10X/20X/40X/100X. Also supply specilize Professional fluorescence microscope objectives are also provided for better observation.
The size of mechanical stage is 175*145mm. The X-Y travel range is 77*52mm

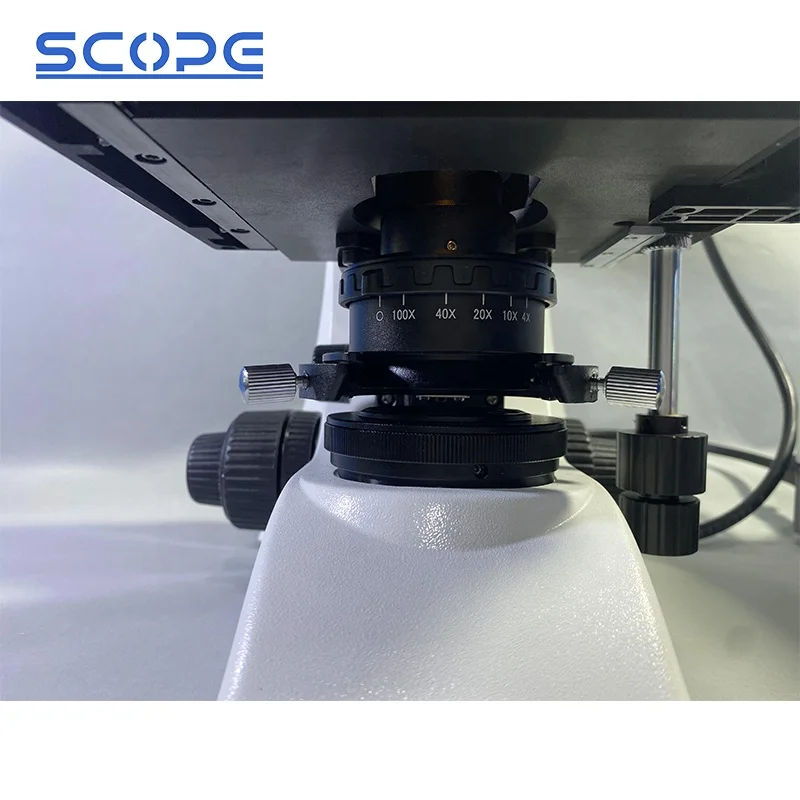

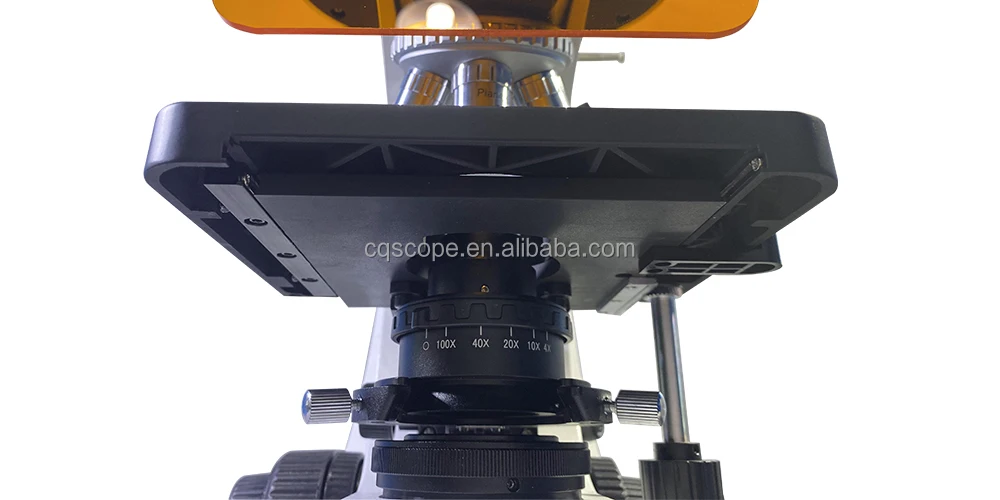

Condenser & Focus Knob
The BK5000-FL4 fluorescence microscope used N.A.1.25 Abbe condenser.
Coaxial coarse and fine focusing knob makes the image clearer and easy to adjust.
BK5000-FL Fluorescence Microscsope Equipment Outfits | ||
Item | Specification | |
Eyepiece | WF10x/-20mm(23.2mm) | |
Infinity Plan Objective | Plan 4X/10X/20X(S)/40X(S)/100X(S,Oil) | |
Seidentopf Binocular Head | Inclined 30°, Rotated 360° Interpupilary Distance 48-75mm | |
Nosepiece | Quintuple | |
Mechanical Stage | Stage size175mm*145mm, Travel: 78mm*55mm Coaxial coarse and fine focusing knobs Two slide holder | |
Condenser | Abbe N.A.1.25 with iris diaphragm | |
Fluorescence attachment | Epi Fluorescence Unit(six-hole disc media which can be fixed with Uv/V/B/G and another filters), 100W mercury Lamp | |
Koehler Illumination | 3W-LED Illumination, wide voltage input: 110V-240v, field diaphragm, center adjustable | |
Filter | Blue | |
Packing Size | 542mm*265mm*355mm | |
Weight | 12KGS(Gross), 10KGS(Net) | |
Optional | ||
Infinity Plan Objective | Plan 2.5X/60x(S)/100X(S,W) | |
Infinity Plan Semi Apochromatic Objective | UPlanFLN 10X/20X/40X/100X | |
Seidentopf Trinocular Head | Inclined 30°, rotated 360°, Interpupilary Distance 48-75mm Light Distribution 0:100/80:20 | |
C-mount | 1X/0.5X/0.75X C-mount (Focus Adjustable) | |
Imaging System | 3MP digital microscope camera | |
5MP digital microscope camera | ||
12MP digital microscope camera | ||
9.7inches LCD tablet camera (Built-in 5MP camera) | ||
Mechanical Stage | Integrated Stage Stage Size: 182mm*140mm, Travel: 77mm*52mm Two Slide Holder | |
Condenser | Swing-out Condenser, N.A 0.9/0.13 with iris diaphragm | |
Koehler Illumination | 12V/20W Halogen Lamp | |
6V/30W Halogen Lamp | ||
Filter | Green/Amber/ Grey | |
Fluorescence attachment | Epi Fluorescence Unit(six-hole disc media which can be fixed with Uv/V/B/G), 5W-LED Fluorescence lamp | |
Phase Contrast Unit | Quintuple hole turret 10X/20X/40X/100X phase contrast objective | |
Independent Slot 10X/20X/40X/100X phase contrast objective | ||
Dark Field Unit | Dark field condenser(dry), apply to 4X-40X objective | |
Dark field condenser(wet),apply to 4X-40X objective Note: Using wet dark field condenser must add oil immersion | ||
Polarizing Attachment | Analyzer/ Polarizer | |
