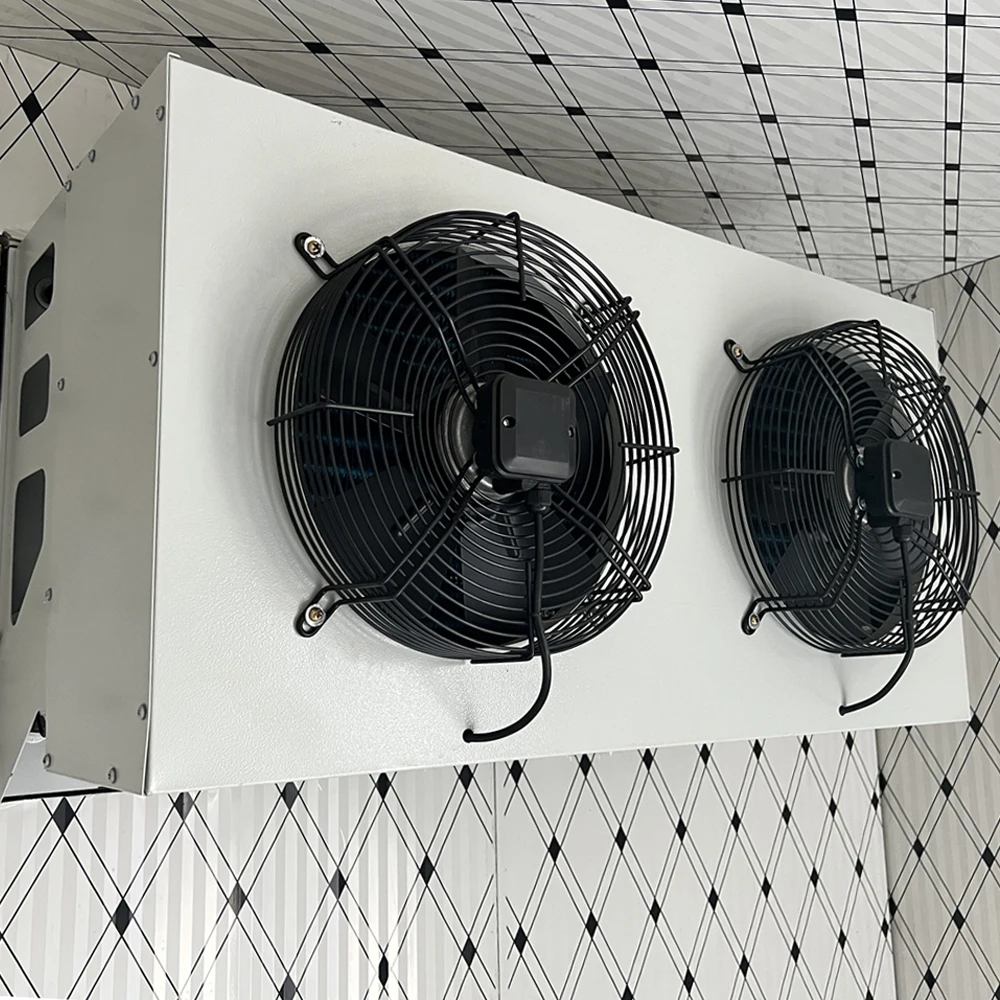

Condensing Unit Mono Block Compressor Condensing Unit Refrigeration Condensing Unit

Product Overview

Description



Product introduction:

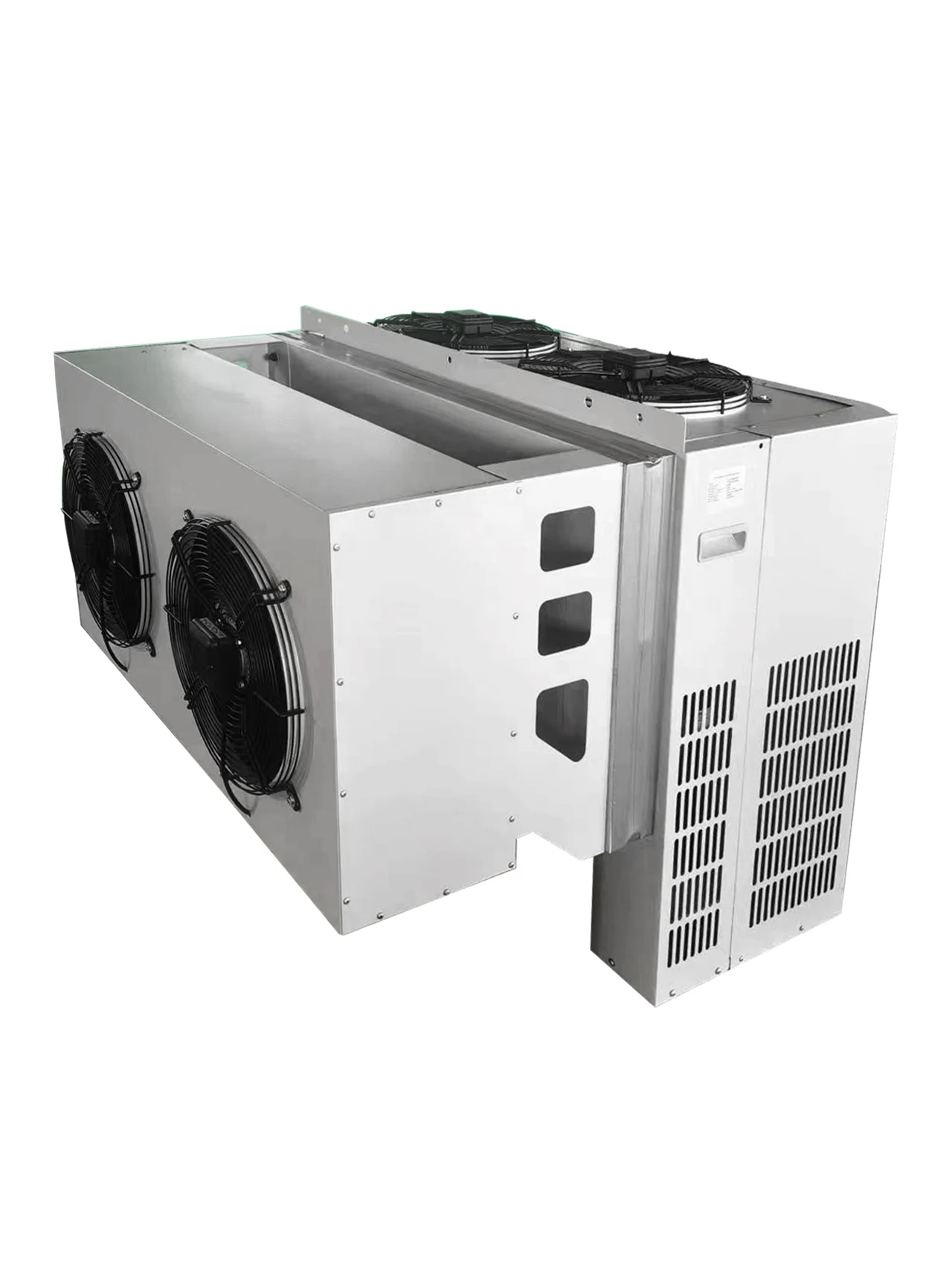

    DC inverter solar monoblock condensing unit with AC/DC universal performance (AC 220V/50Hz/60Hz or 310V DC input), the unit adopts SANYO DC inverter compressor, variable frequency drive, and carel control board, carel Electronic expansion valve, carel pressure sensor, carel temperature sensor, carel liquid crystal display controller, Danfoss sight glass and other international famous brand accessories. The unit achieves energy savings of 30%-50% compared to the same power fixed frequency compressor.

Main Characteristics And Advantages Of Our DC Inverter Monoblock:

• Easy to install and reduces installation costs;


• System powered by Ac and Dc combined- can be powered by 310v dc or 220v Ac power supply;


• User friendly Chinese /English display, enabling easy navigation and setting of parameters;


• Multiple protection functions such as: High and low voltage, High and low Pressure;


• The operating frequency of the compressor varies between 15-120 hz and the system adjusts its speed based on the room temperature and the temperature set point;


• The system boasts the latest in energy efficient components such as: electronic expansion valve, DC fan motors, fan speed control, hot gas defrosting instead of electric heaters, intelligent defrosting initiating defrost only when required compared to regular timed defrosts and finally the DC inverter compressor, all combined to reduce energy costs by 30%-50% depending on its application;


• Accurate temperature control and minimal temperature fluctuation range;


• The electronic expansion valve works perfectly with the compressor to make the unit work in an efficient operation;


• The system has inbuilt temperature set points allowing the frequency of the compressor to reduce as the temperature of the room arrives closer to its set point making it very energy efficient;


• Supports advanced LOT platform for remote monitoring;

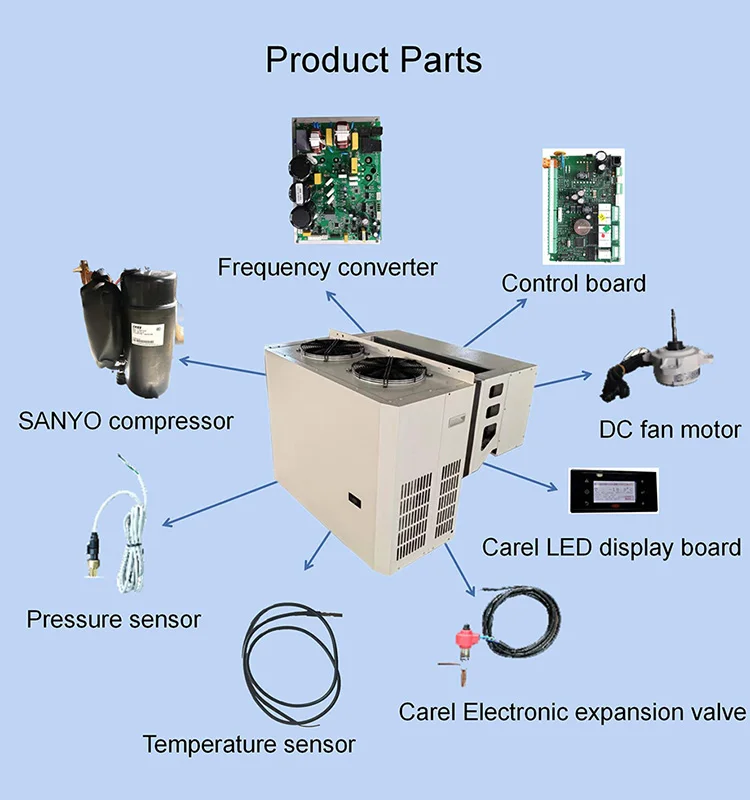

Main system configuration(3HP)
Inverter compressor	SANYO(Japan brand)
Variable frequency driver	Zhouju(Chinese brand)
Control Board	Carel(Italian brand)
Electronic expansion valve	Carel(Italian brand)
Pressure Sensor	Carel(Italian brand)
Temperature Sensor	Carel(Italian brand)
Liquid crystal display controller	Carel(Italian brand)
DC fan	Jingma(Chinese brand)
Sight glass	Danfoss(Denmark brand)
Liquid receiver	HPEOK(Chinese brand)
Suction accumulator	HPEOK(Chinese brand)

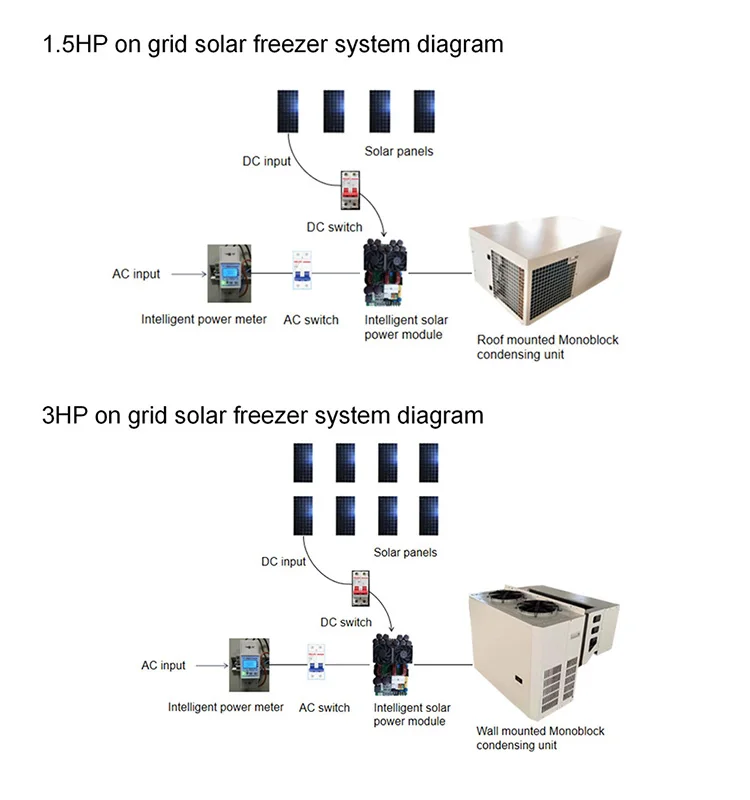

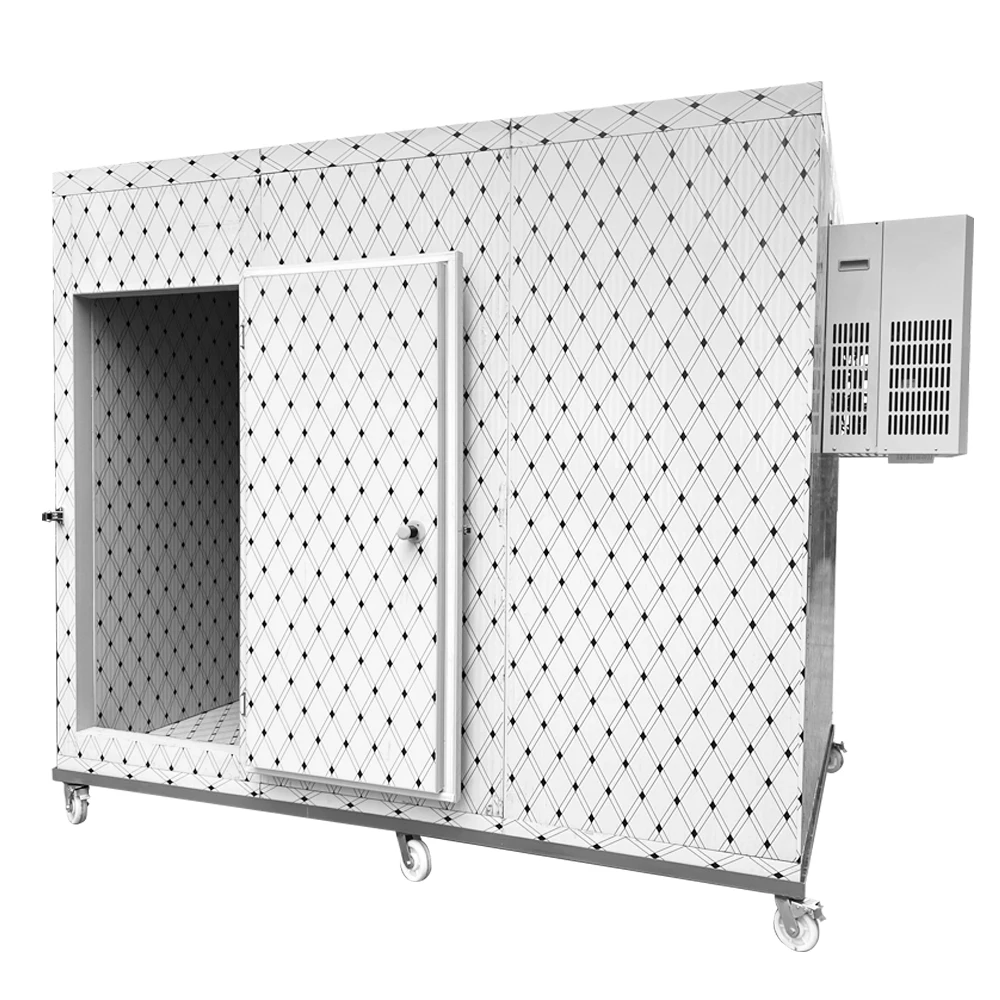

 10m³ and 20m³ size standardized solar cold room system







FAQ:

Q1:Are you a factory or a trading company?

A1:We have factory which produce refrigeration products.

Q2:What is the MOQ?

A2:One set

Q3:What is your warranty?

A3:One year for refrigeration products.

Q4:Can you provide OEM/ODM service?

A4:Yes,we can provide OEM/ODM service and make logo for you.

Q5:Can the product be customized according to specifications?

A5:You can tell me the size and use temperature of the cold room you want, then I can recommend the thickness of the cold room and the machine used for you.

Q6:What is your payment term?

A6:T/T,PayPal,Western union,L/C etc.

Q7:Can I visit your factory?

A7:Yes,we welcome you visit our factory and look foward to communicate with you face to face.
