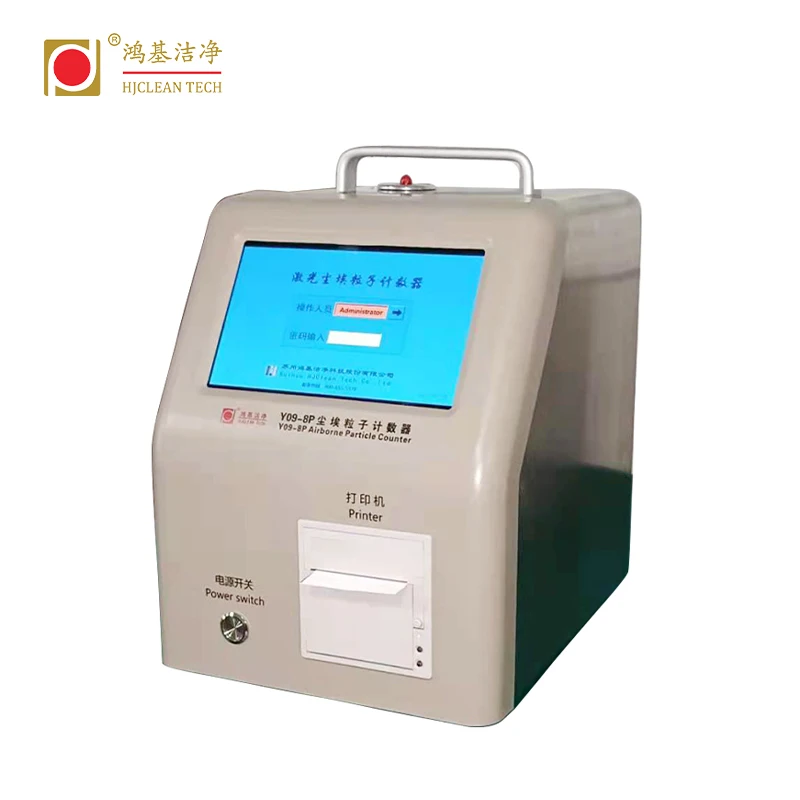

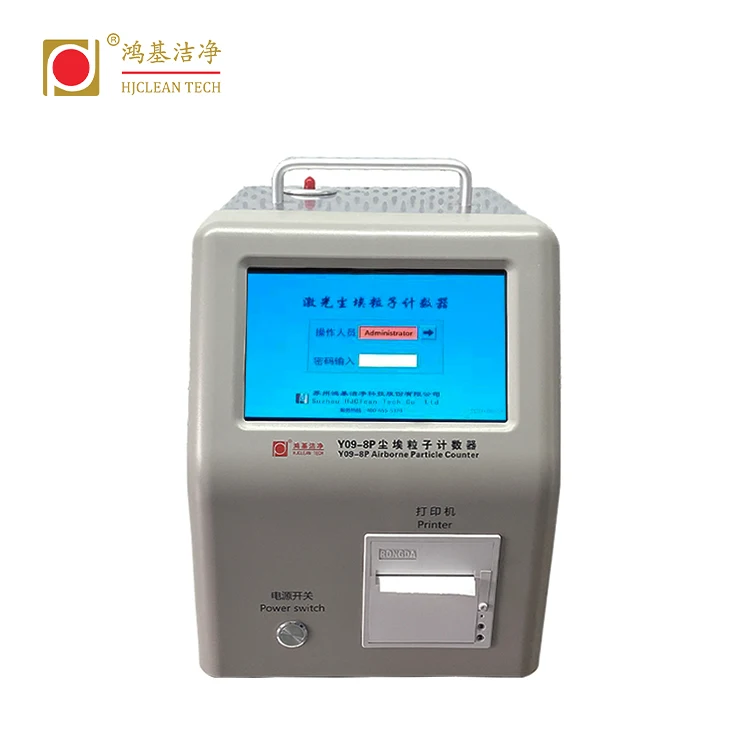

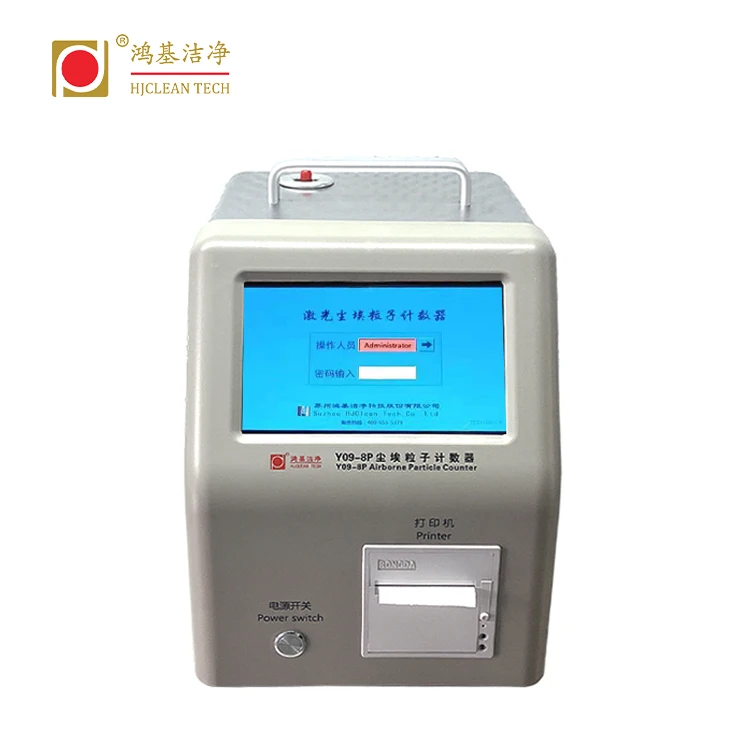

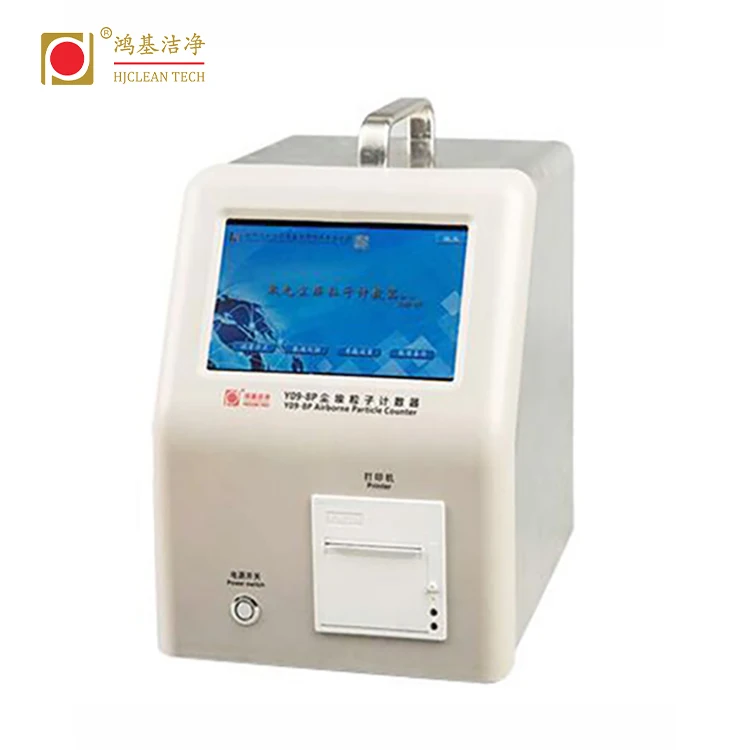

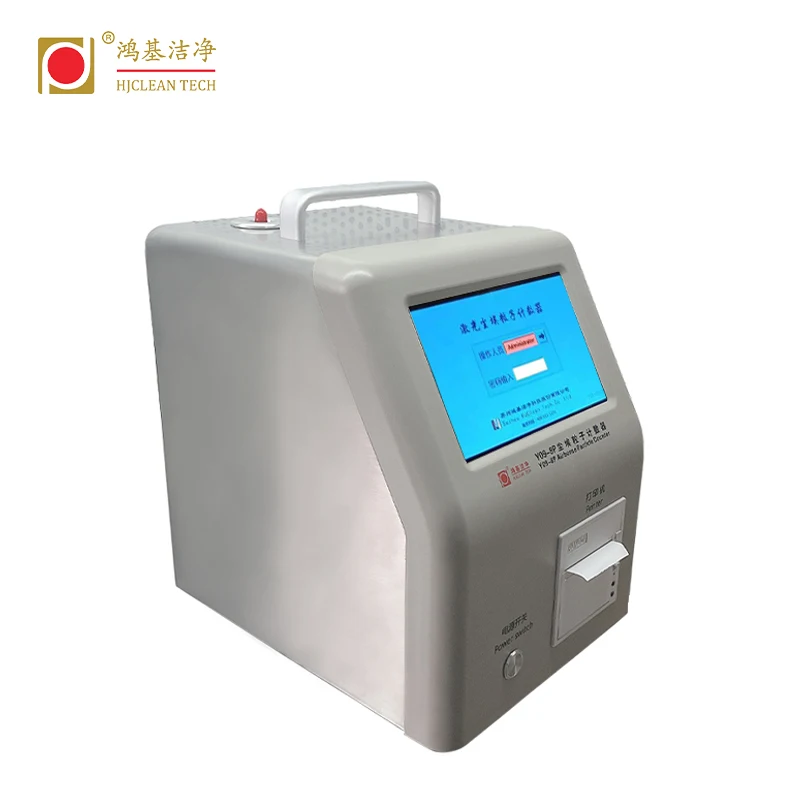

Wholesale clean room air laser airborne particle counter dust particle counter
- Category: >>>
- Supplier: Suzhou Hjclean Tech Co. Ltd.
Share on (1600833046771):
Product Overview
Description
Product Description
product introduction]:The laser dust particle counter is used to measure and analyze the size and quantity of dust particles in a unit volume of air in a clean environment, and is a testing instrument to determine the cleanliness level of the clean environment according to the standard.
[product application]: It is widely used in the inspection of clean workshops in medical and health, optics, chemistry, food, cosmetics, electronics, biological products, aerospace and other companies.
[product application]: It is widely used in the inspection of clean workshops in medical and health, optics, chemistry, food, cosmetics, electronics, biological products, aerospace and other companies.
Main characters.
1.Sampling flow rate:28.3L/min
2.Touch panel control system
3.m³/ft³ Unit selection
4.60000 samples data storage
5.ISO/GMP/209E Standard optional
6.Three levels of password management permissions
7.Computerized verification
8.USB export and real-time printing
9.Count report according with GMP/ISO14644/209E ISO21501-4
2.Touch panel control system
3.m³/ft³ Unit selection
4.60000 samples data storage
5.ISO/GMP/209E Standard optional
6.Three levels of password management permissions
7.Computerized verification
8.USB export and real-time printing
9.Count report according with GMP/ISO14644/209E ISO21501-4
Main characters.
1.Sampling flow rate:28.3L/min
2.Touch panel control system
3.m³/ft³ Unit selection
4.60000 samples data storage
5.ISO/GMP/209E Standard optional
6.Three levels of password management permissions 7.Computerized verification
8.USB export and real-time printing
9.Count report according with GMP/ISO14644/209E ISO21501-4
Main characters.
1.Sampling flow rate:100L/min
2.Build-in test time delay
3.Touch panel control system
4.work unit:M3/100L
5.60000 samples data storage
6.Three levels of password management permissions
7.Computerized verification
8.USB export and real-time printing
9.Count report according with GMP/ISO14644/209E，ISO21501-4
2.Build-in test time delay
3.Touch panel control system
4.work unit:M3/100L
5.60000 samples data storage
6.Three levels of password management permissions
7.Computerized verification
8.USB export and real-time printing
9.Count report according with GMP/ISO14644/209E，ISO21501-4
Main characters.
1.Sampling flow rate:50L/min
2.Build-in test time delay
3.Touch panel control system
4.work unit:M3/50L
5.60000 samples data storage
6.Three levels of password management permissions 7.Computerized verification
8.USB export and real-time printing
9.Count report according with GMP/ISO14644/209E，ISO21501-4
Product parameters
Parameter | Y09-8P | Y09-516D | Y09-5106 | Y09-3056 | |||
Size channels | 0.3、0.5、1.0、3.0、5.0、10(μm ) | 0.5、1.0、2.0、3.0、5.0、10(μm ) | 0.5、1、2、3、5、10(μm ) | 0.3、0.5、1、3、5、10(μm) | |||
Overall dimension | 210 *270 *280mm³ (W *D *H) | ||||||
Display | 800*480 resolution,65k color,Touch panel control system | ||||||
Weight | 5.5kg | 7.5kg | |||||
Rated power consumption | 70W | 90W | 70W | ||||
Power supply | Lithium battery 14.8V | Lithium battery 22.2V | Lithium battery 14.8V | ||||
Teat way | Single, repeat, continuous, caculation, GBmodel（UCL) | ||||||
Flow rate | 100L/min inlet Sampling pump | 50L/min inlet Sampling pump | |||||
Sampling time | 1sec~99min59sec selected | ||||||
Sampling period | 1~99 | ||||||
Zero count | ≤10min | ||||||
Print mode | Build-in Thermal Printer | ||||||
Counting alarm | 0.3,0.5,1.0,5.0 Each channel can set alarm data arbitrarily | 0.5,1.0,5.0 Each channel can set alarm data arbitrarily | 0.3,0.5,1.0,5.0 Each channel can set alarm data arbitrarily | ||||
Max sampling density | 35000/L | ||||||
Continuously working time | 8H | ||||||
Light source and lifetime | Long life laser diode with 3000h MTTF | ||||||
Data storage | 60000/USB | ||||||
Operation envirenment | Temperature:10~35℃,Humidity:20%~75% | ||||||
Optional accessories | SS assistant vehicle | ||||||
Company Profile
About HJClean.
HJClean Tech Co.Ltd., has established in Suzhou where the city is famous of clean room line since 2003. We dedicate ourselves to consulting, researching and design, manufacture and supporting service on clean room technical. Our company owns advanced technology and stronger power on scientific research capabilities . The products what we do includes cleaning equipments,airborne particle monitor, clean room project design and construct etc.And our products are widely used in electron factory, pharmacy factory, precise machinery line and space flight line .
Until now we have owned15 corprights in the airborne particle monitoring field and the copyrights have been used in respective projects over the world.
There is a professional team in Hjclean-tech,leads by 10 senior engineers and senior mechanic.
An experienced site operation team, with an entire unit of advanced monitoring machinery and installing equipments, Imported the advanced
There is a professional team in Hjclean-tech,leads by 10 senior engineers and senior mechanic.
An experienced site operation team, with an entire unit of advanced monitoring machinery and installing equipments, Imported the advanced
