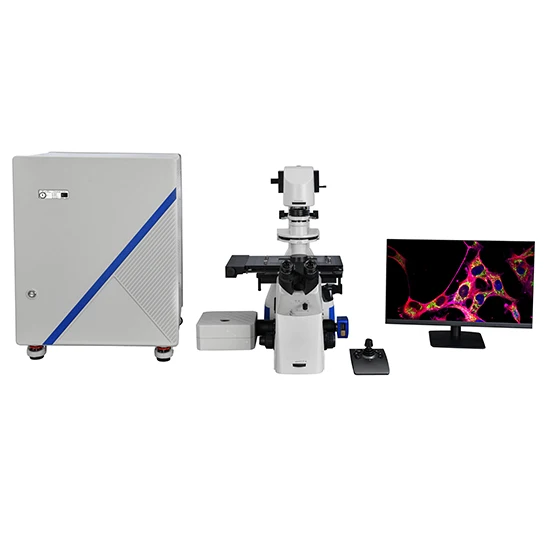

BestScope BCF295 NA0.55 Three Dimensional Image Laser Scanning Confocal Microscopy

Item

Specification

Optical system

NIS60 Infinite optical system(F200)

Laser

Laser 405 nm, 488 nm, 561 nm, 640 nm

Detector

Wavelength: 400-750nm, detector: 3 PMT (photomultiplier tube)

Scanning head

Maximum pixel size: 2048 x 2048
Scanning speed: 2 fps (512 x 512 pixels, bidirectional), 18 fps (512 x 32 pixels, bidirectional)

Pinhole

Round, 6 sizes

Confocal FOV

φ20mm inscribed square

Software

2D display/image processing/analysis

Eyepiece FOV

10×(25mm), EP17.5mm, adjustable diopter -5～+5, interface Φ30

Viewing Head

Siedentopf trinocular viewing head, inclined at 45°, Interpupillary 47-78mm, eyepiece interface Φ30, fixed diopter;
Eyepiece/camera switching: (100/0, 50/50, 0/100); eyepiece/close eyepiece/adjustable Bertrand lens

NIS60 Objective

10× Apochromatic objectives, NA=0.45 WD=4.0 Cover slip=0.17

20× Apochromatic objectives, NA=0.75 WD=1.1 Cover slip=0.17

100× apochromatic objective lens, NA=1.45 WD=0.13 Cover glass=0.17 (Oil)

Nosepiece

Motorized sextuple nosepiece (with expansion slot), M25×0.75

Stage

Motorized control (conventional type): moving range 130 mm x 100 mm (stage size 325 mm x 144 mm), Maximum speed: 50mm/s;
resolution: 0.1μm, repeat accuracy: ±1μm (common type 2.5um), absolute accuracy: ±5μmIt, can be equipped with three special sample
holder adapters such as multi-well plate, 35mm culture dish and slide plate

Condenser

6-hole electric control: NA0.55, WD26; phase contrast (10/20, 40, 60(optional)), DIC (10X, 20X/40X), Empty hole is optional

Focusing system

Coaxial coarse and fine focusing mechanism, stroke: 7mm up and 2mm down; coarse adjustment 2mm/rotation, fine adjustment
0.002mm/rotation; manual and electric control, minimum step 0.02um when electric control

Illumination System

Transmitted Kohler illumination, 10W LED

Epi-illumination: 100W mercury lamp illumination; field of view/aperture diaphragm; 3-hole color filter insert (with ND6 and ND25
filters)
6-hole electric fluorescent turntable (standard for B, G, U); electric fluorescent shutter

Body port

Split ratio: Left: eyepiece = 100:0; right: eyepiece = 80: 20

Intermediate magnification

Manual 1X, 1.5X switching

DIC Plate

10X, 20X, 40X plug-in plate; can be placed in the converter slot

Power control box

Can display objective magnification, fluorescence band, etc.

Power cable

1. Microscope shock-proof table: air cushion type confocal special ≥1200mm×800mm shock-proof table, the panel adopts high
permeability stainless steel plate.
2. Computer workstation: a set of HP workstations or similar performance workstations.
(1) HP Z840/CT Workstation/English OS Windows 7 64bit Professional Edition
(2) CPU: Intel Xeon E5-26434C 3.30 10MB 1600 x 1 or similar performance
(3) RAM: 32GB DDR -1600 ECC or similar performance
(4) HDD: 1TB 7200 RPM SATA 1ST HDD or similar performance
(5) 16X SuperMulti DVDRW SATA 1st ODD or similar performance
(6) Display: 2PCS ≥20 inch LED backlit widescreen IPS LCD displays.
