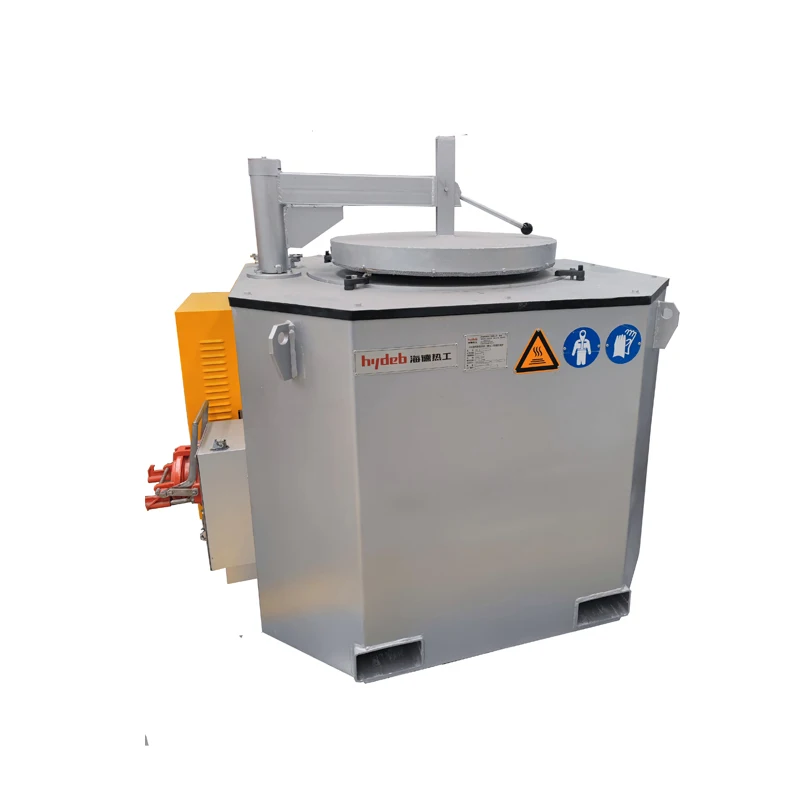

Factory Induction Heating Furnace 1 3tons Aluminum Melting Furnace 1 tons Aluminum Scrap Melting Furnace For Recycled Aluminum
- Category: >>>
- Supplier: Jinan Hydeb Thermal Tech Co. Ltd.
Share on (1600833178129):
Product Overview
Description
Manufacturer Melting Furnace For Aluminum Scrap 1 ton/0.25 ton Induction Furnace Electric/GAS Aluminum Melting

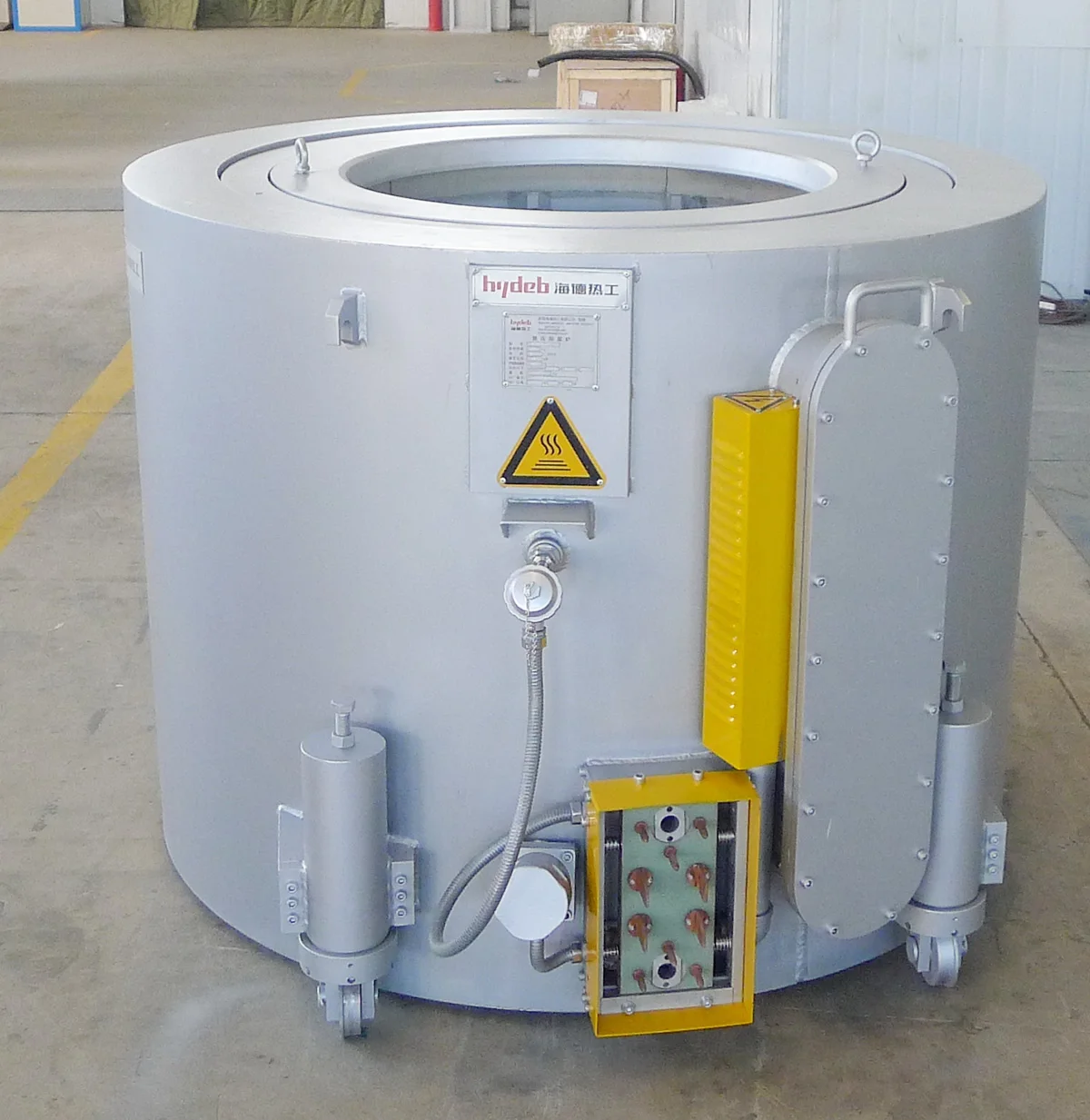

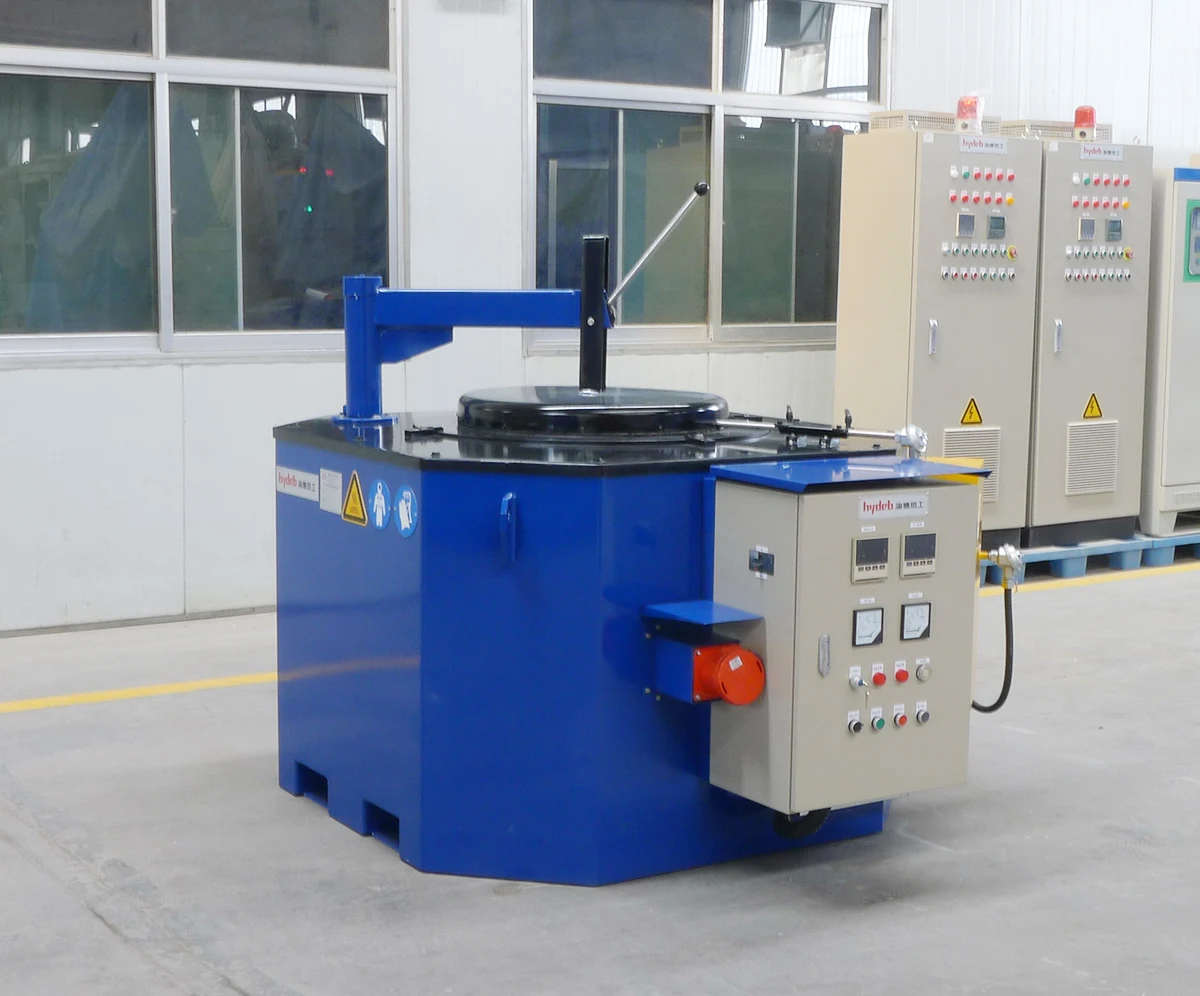

1. Smelting Crucible Furnace Genernal Introduce

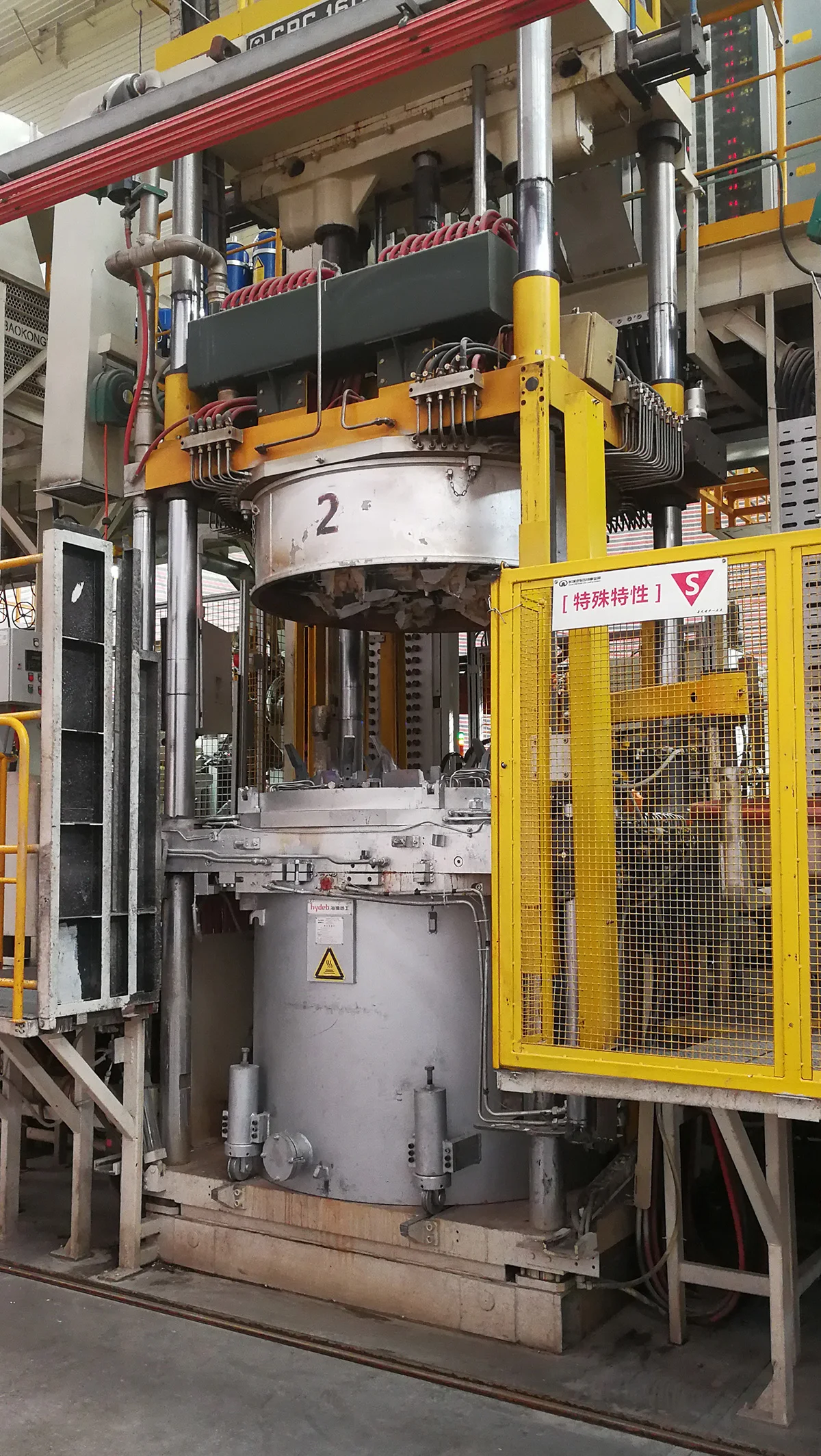

-- Use in all foundries or aluminum die casting area– Smeltery for feeding holding furnaces or for direct casting.
-- Low heat losses through high-quality insulation
-- No exhaust system needed
-- Accurate temperature control Crucible
-- Standard design for the use of graphite crucible
2. Smelting Crucible Furnace Specification Data
SN | Items | Date | Remarks | |
1 | Efficient furnace capacity kg (Al) | 580 | ||
2 | Melting Rate kg/h (Al) | 280 | Inside the crucible there is already have 1/3 molten aluminum. | |
3 | Maximum furnace temperature ℃ | 950 | ||
4 | Precision of molten aluminum temperature control ℃ ≤± 5 | |||
5 | Temperature control mode | PID+Dual temperature control | ||
6 | Crucible type and size mm OD 880, d 350mm, H 1000 | BN800 Morgen | ||
7 | Furnace surface temperature rise ℃ ≤50 | Except for the installation site of the heating tube, the discharge outlet and rising tube | ||
8 | Power Source Voltage V/Frequency HZ | 380/50 | ||
9 | Air Pressure MPa | 0.5-0.7 | ||
3. Smelting Crucible Furnace Types
Type | CRL-300 | CRL-500 | CRL-600 | CRL-800 | CRL-1000 | CRL-1200 |
Capacity | 191KG | 338KG | 515KG | 763KG | 952KG | 1062KG |

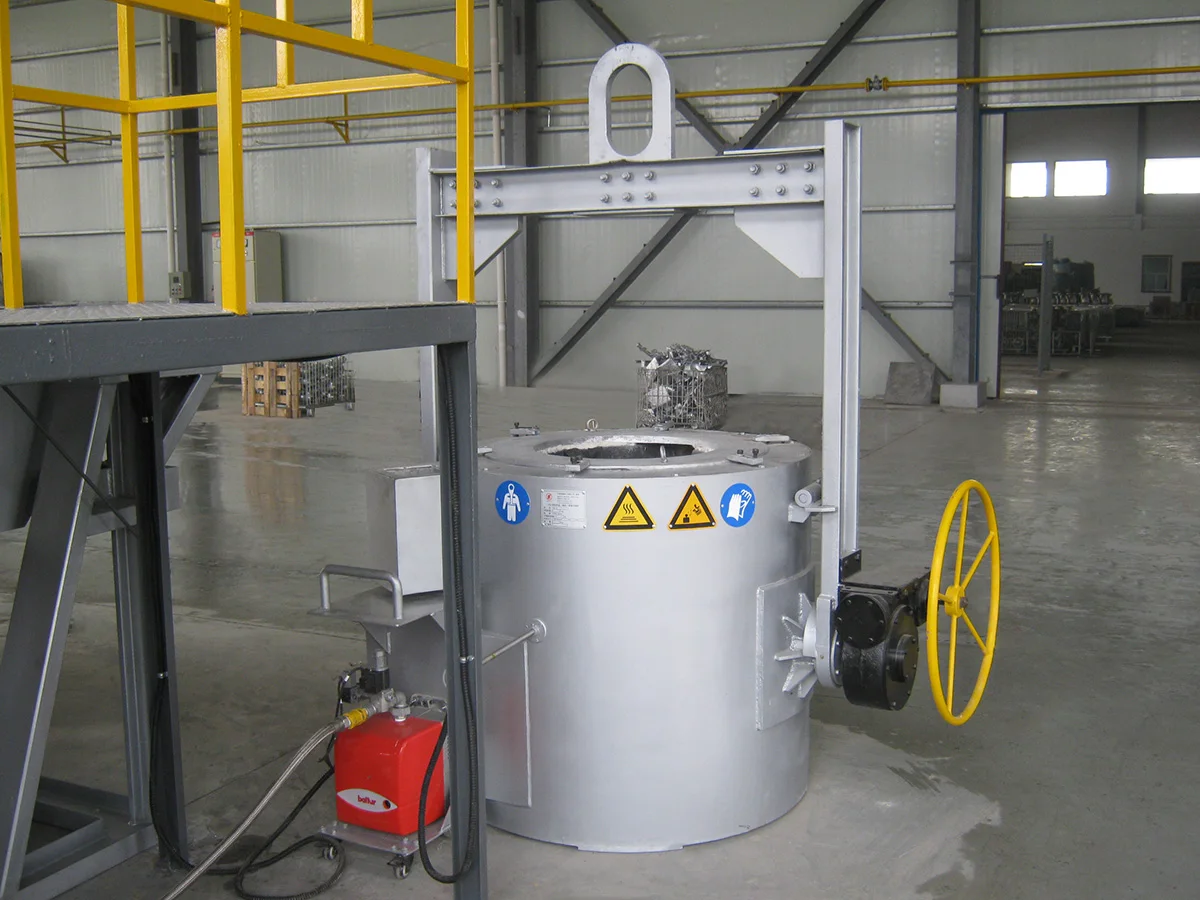

• Natural gas (NG) or LPG is chosen as the fuel.
• The heating speed can be adjusted within a wide range.
• Fully combusted, energy-saving and environment-friendly.
• Suitable for molten aluminum ladles of different heights.
• Equipped with a conventional high-speed gas burner and a self-preheating burner.
• Gas and combustion air pressure detection, abnormal ignition alarm.
• Heating temperature and time are controllable.
• Long open flame ignition function.
• Flame detection function.
