Hot Sales GSM DCS Dual Band Amplifier 900 1800Mhz 4G 3G 2G Cellular Signal Booster Mobile Signal Repeater With antenna
- Category: >>>
- Supplier: Shenzhen Jiangxin Communication Technology Co. Ltd.
Share on (1600833238007):
Product Overview
Description
Products Description
How it works
Outdoor Antenna: Send / Receive wireless signal data to Base station .
Indoor Antenna: Send / Receive wireless signal data to Cell phone.
Signal Booster: Strengthen the received signal.
Indoor Antenna: Send / Receive wireless signal data to Cell phone.
Signal Booster: Strengthen the received signal.

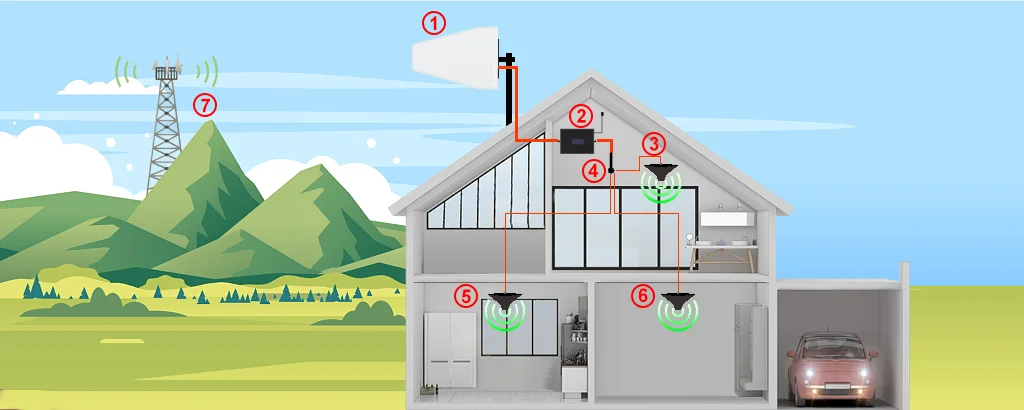

1:Outdoor log antenna 2:Repeater
3:Indoor antenna 4:3 way separator
5:Indoor antenna 6:Indoor antenna
Application Range
The product can be used in mountain areas, urban areas, towns, villages in the city, undergroundwarehouse, basement,underground parking lot without signal area.The function is to draw (absorb)the stable signals outside to the room and then amplify and diffuse the signals to cover the wholeeffective area, so as to provide stable and high-quality signals to the equipment in need of signals
Please note before purchasing
(1). Please confimm that the operator base station frequency band of your SlM card is suitable for the effectivefrequency of this device
(2). Make sure you get a good signal outside your house that you want to amplify.3-5 bar signal can be displayed onyour phone (at least -70dB--90dB is captured).Otherwise, the signal amplifier will not improve your signal
(2). Make sure you get a good signal outside your house that you want to amplify.3-5 bar signal can be displayed onyour phone (at least -70dB--90dB is captured).Otherwise, the signal amplifier will not improve your signal

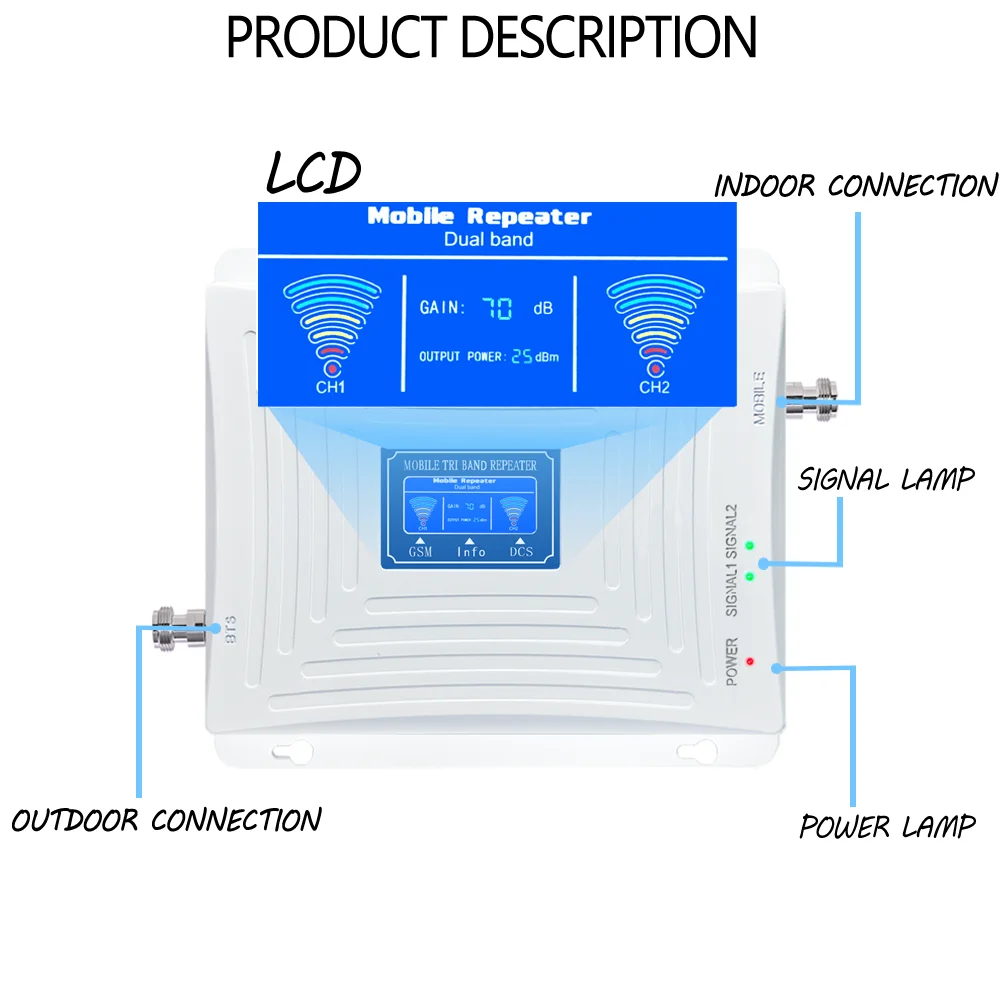

product description
Wide coverage.
The repeater can cover up to 500 square meters when the signal is stable
Can be used by multiple people, no limit on the number of people

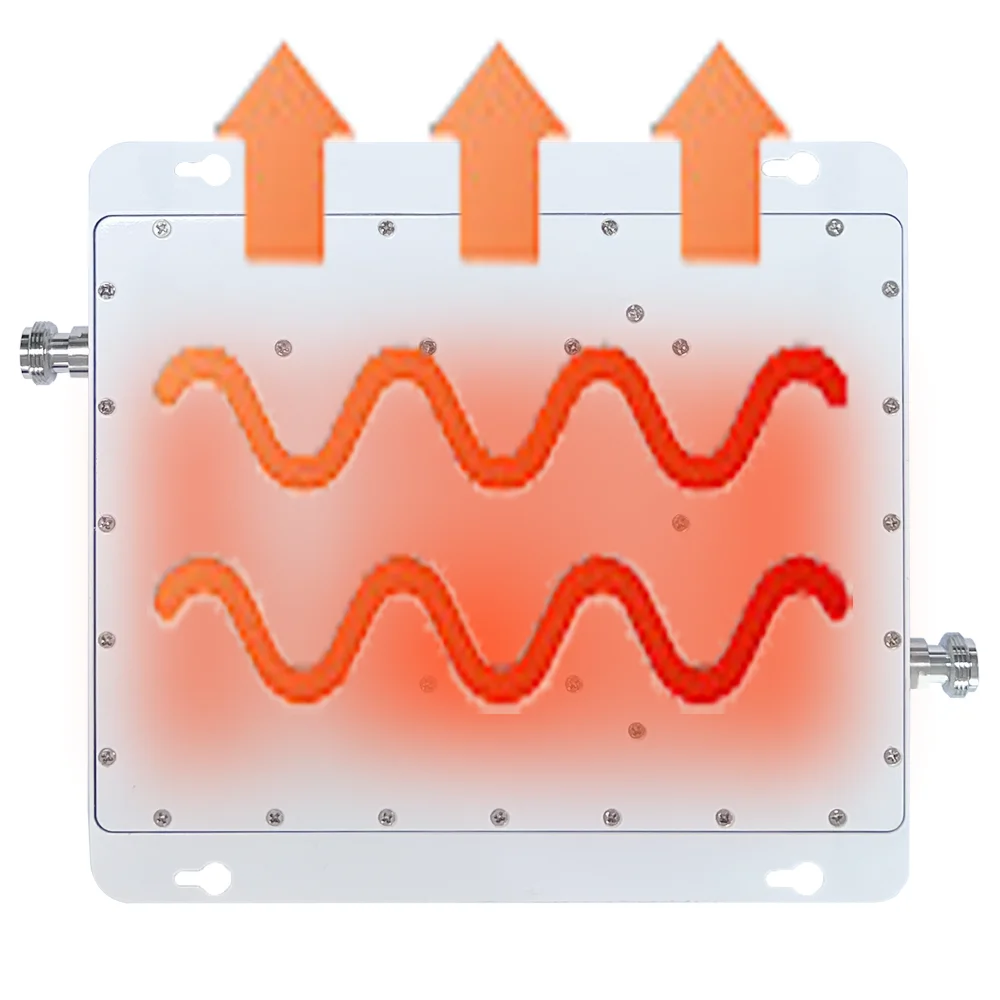

The material is made of aluminum alloy, which can quickly dissipate heat while ensuring the beautiful appearance of the product to make the product last longer
Technique Specification | ||||||
Model No | SS95-GDW | |||||
Parameter data | Uplink | Downlink | ||||
Frequency Range | GSM | 880~915 MHz | 925~960 MHz | |||
DCS | 1710~1785 MHz | 1805~1880 MHz | ||||
Output Power | 18 ±2dBm | 20 ±2dBm | ||||
Gain | 65 dB | 70 dB | ||||
Ripple in Band | ≤3dB | |||||
Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | ||||
1GHz~12.75GHz | ≤ -30 dBm | |||||
Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | ||||
1GHz~12.75GHz | ≤ -30 dBm | |||||
Noise Figure | ≤ 6 dB | |||||
VSWR | ≤2 | |||||
Power Supply | AC:100~240V, 50/ 60Hz;DC:12V 2A | |||||
Power Comsumption | < 10W | |||||
Impedance | 50 ohm | |||||
Mechanical Specification | ||||||
RF Connector | N-Female | |||||

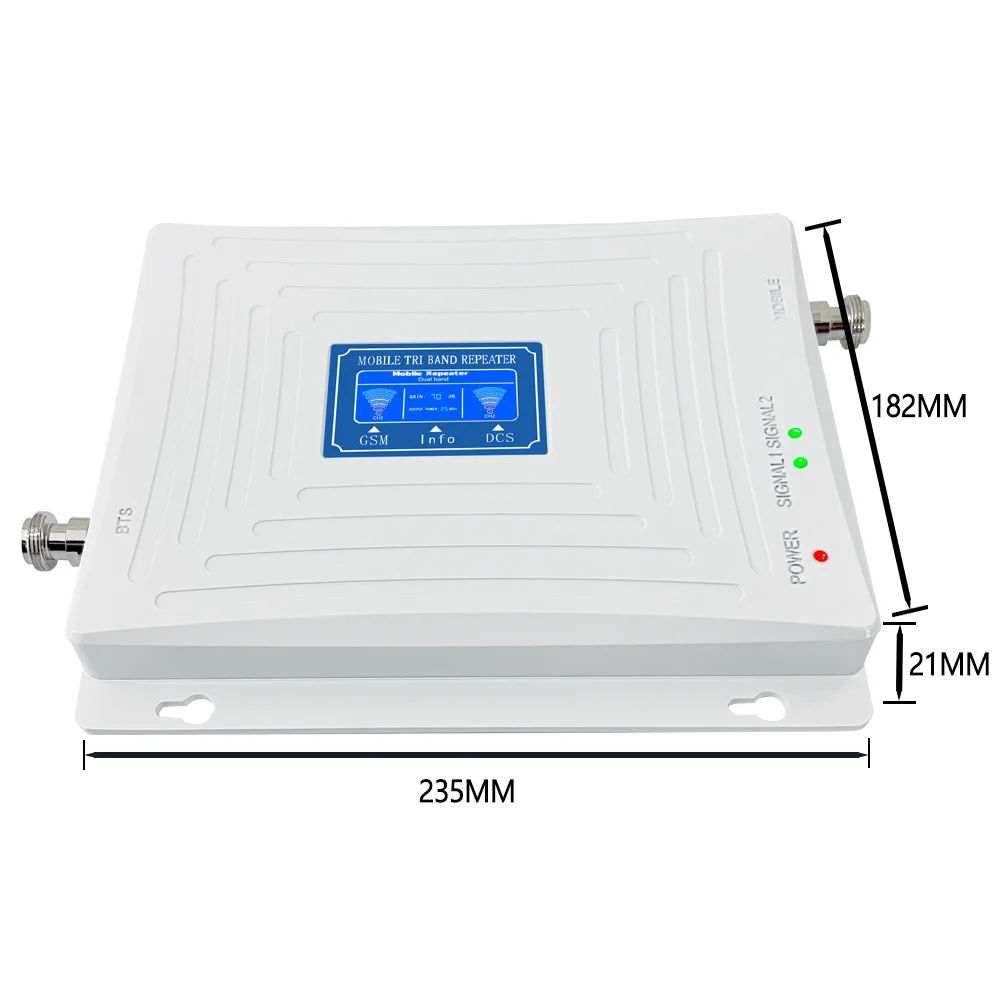

Dimensions (D x W xH ) | 235*182*21(mm) | |||||
Weight | ≤ 1.2Kg | |||||
Operating Temperature | -10℃ ~ 55℃ | |||||
complete set of products

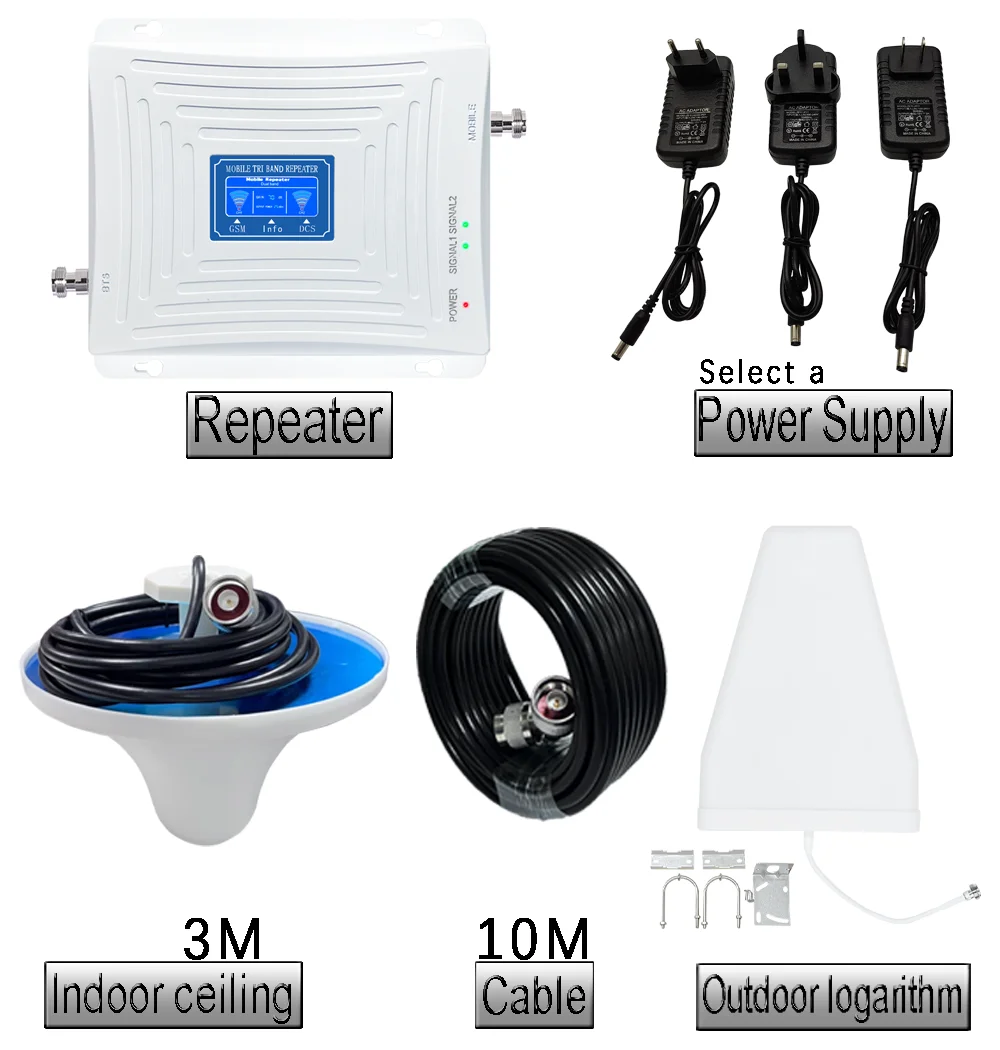

The whole set of products is host + 3M ceiling antenna + outdoor logarithmic antenna + 10M cable + power supply (choose 1 from 3) + manual
Note: If you need other accessories, please select from the picture below and contact customer service.
Other frequencies
Single band
700Mhz、800Mhz、850Mhz、900Mhz、1800mhz、1900mhz、2100mhz、1700mhz、2600mhz.
Dual band
900/1800MHz、900/2100MHz、850/1800MHz、850/1900MHz、850/900MHz、1800/2100MHz、1800/2600MHZ、2100/2600MHz、1900/1700MHz.
Tri band
900/1800/2100MHz、900/2100/2600MHz、850/1800/2100MHz、900/1800/2600MHz.、850/1700-2100/1900MHz、800/1800/2100MHz，800/2100/2600MHz.
Quad band
B12(700)/850/1700/1900MHz、850/1700/1900/2600MHz、B28(700)/850/1700/1900MHz、900/1800/2100/2600MHz、800/900/1800/2100MHz、850/900/1800/2100MHz.
Five band.
800/900/1800/2100/2600MHz、850/900/1800/2100/2600MHz、700/850/1700/1900/2600MHz
Note: Frequency band can be customized
Installation steps
Packing&Shipping

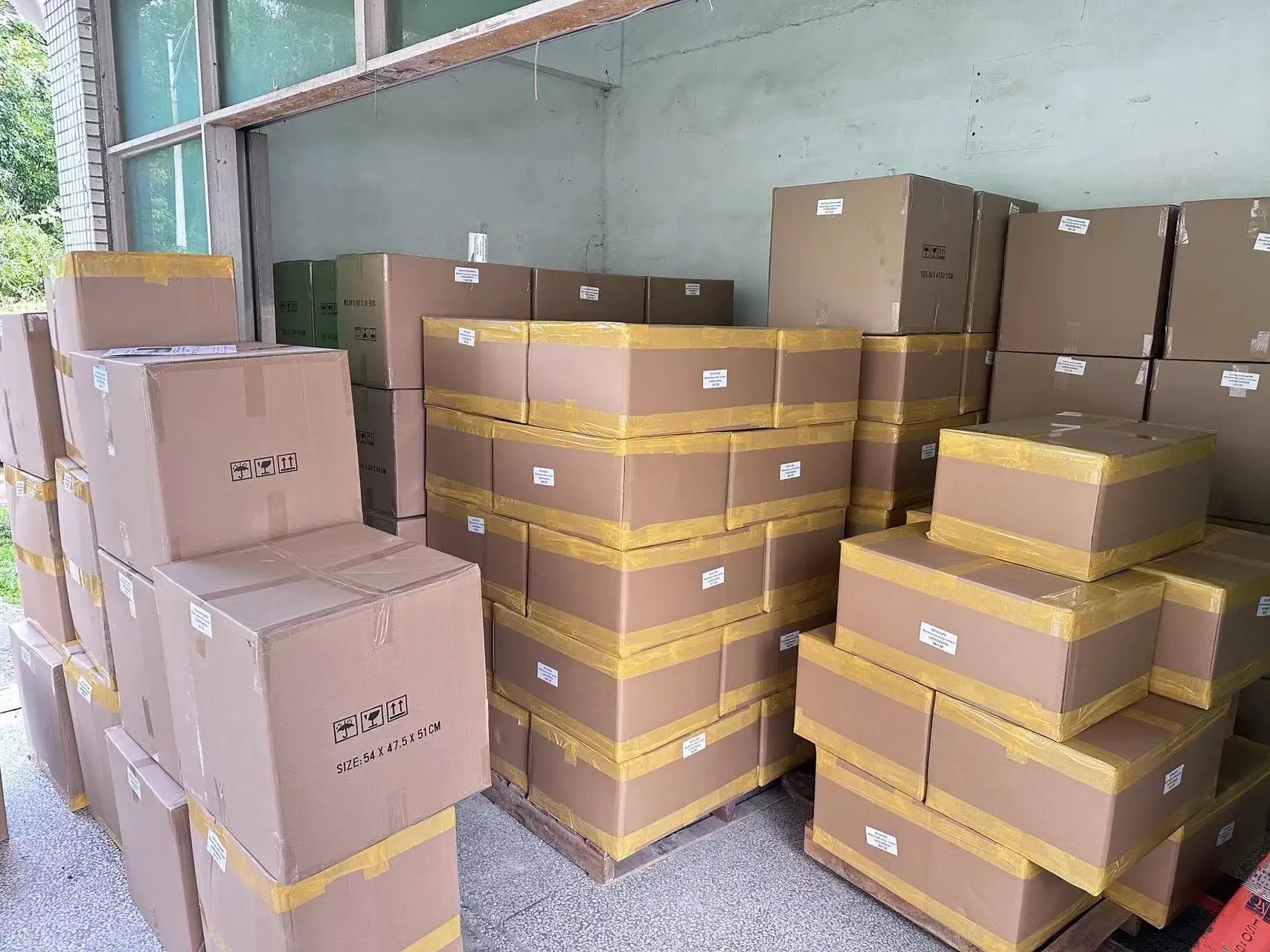

Packaging details: Each signal booster is packaged separately, and neutral carton is used to completely protect the product from damage. 20 boosters are packed into a carton with a size of 64 * 43 * 31cm and a weight of 22kg
Delivery details: within 7 working days after all confirmation.
Mode of transportation: air, land, sea or express.
Company Introduction
The company was founded in 2016 and is located in Shenzhen, China. It is committed to the research and development of mobile phone signal amplification, working hard for the national and even global signal coverage, and reducing the trouble caused by signal blind areas. The company has always adhered to the "credit and people-oriented" business Philosophy, "Science and Technology Innovation, Quality First" management belief, relying on professional technology to quickly lay a solid foundation at home and abroad, and become a well-known brand in the industry.
We are sincerely willing to cooperate with you. let’s win the future together!
contact us
Q：Are you a manufacturer？
A：Yes, we have our own factory in Shenzhen, China. We are a factory specializing in the production and sales of repeaters
Q：Can you accept customization?
A：Yes, we accept customized repeater appearance, frequency, logo pattern, etc...
