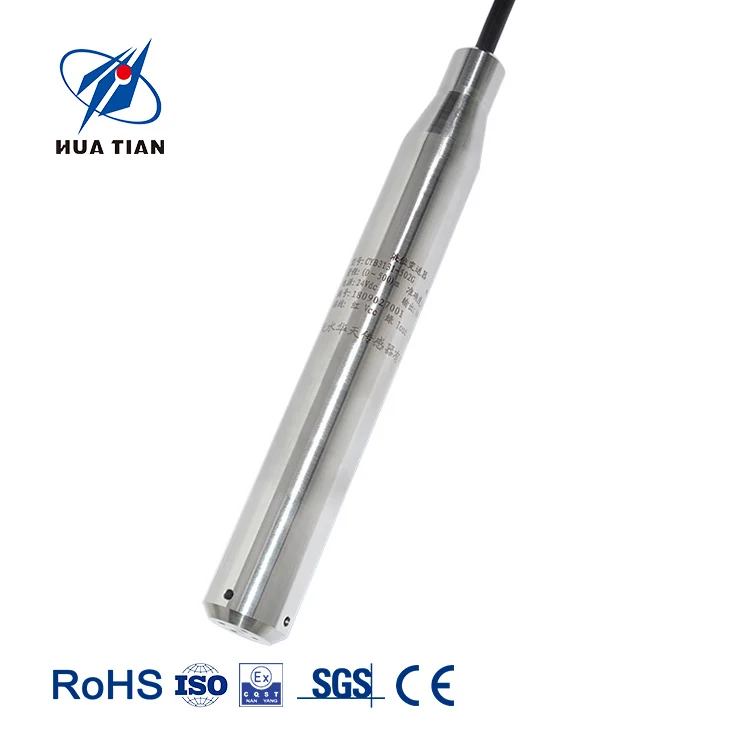

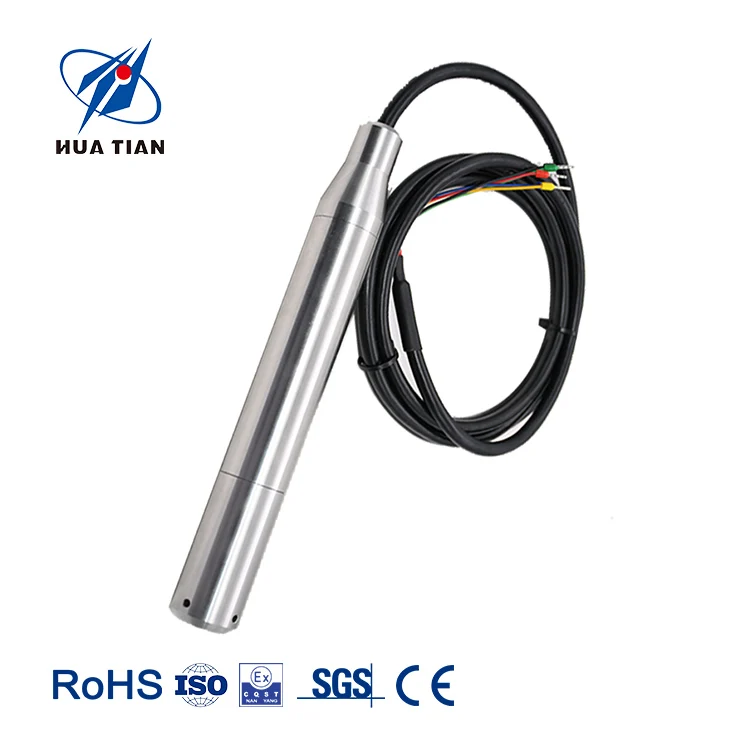

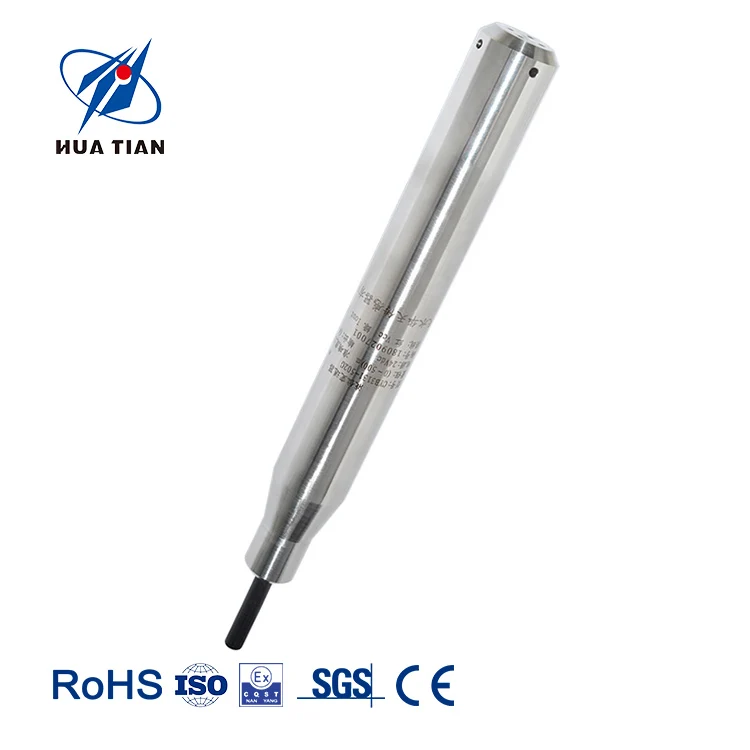

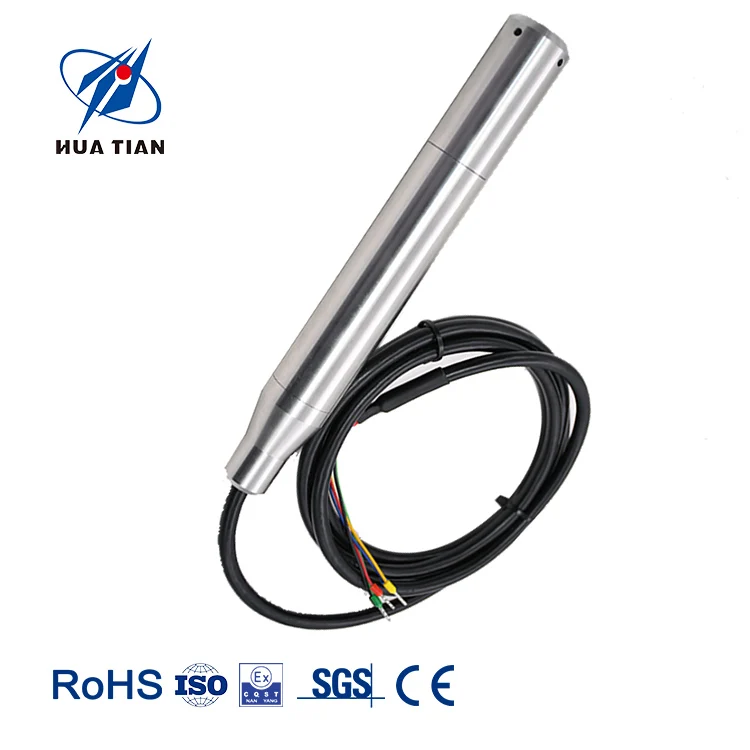

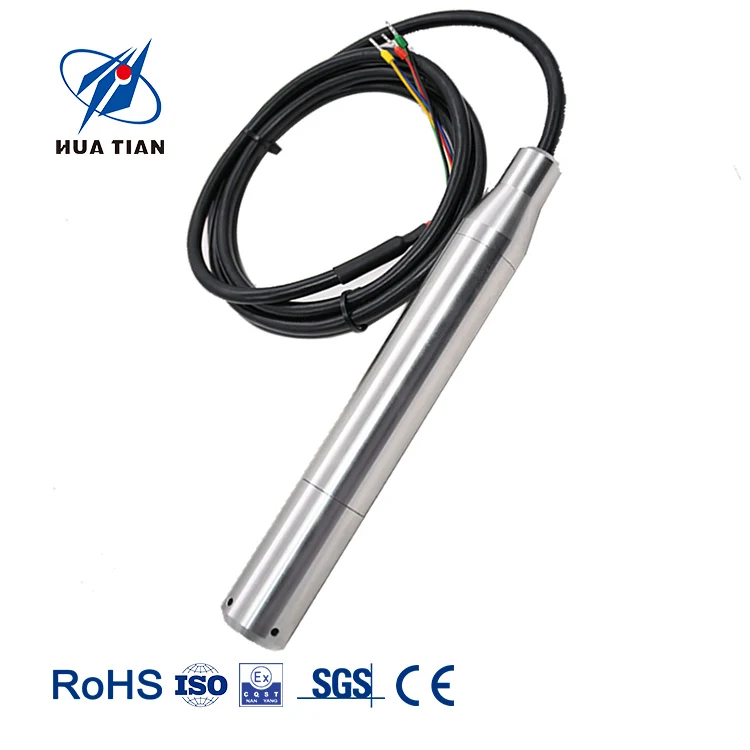

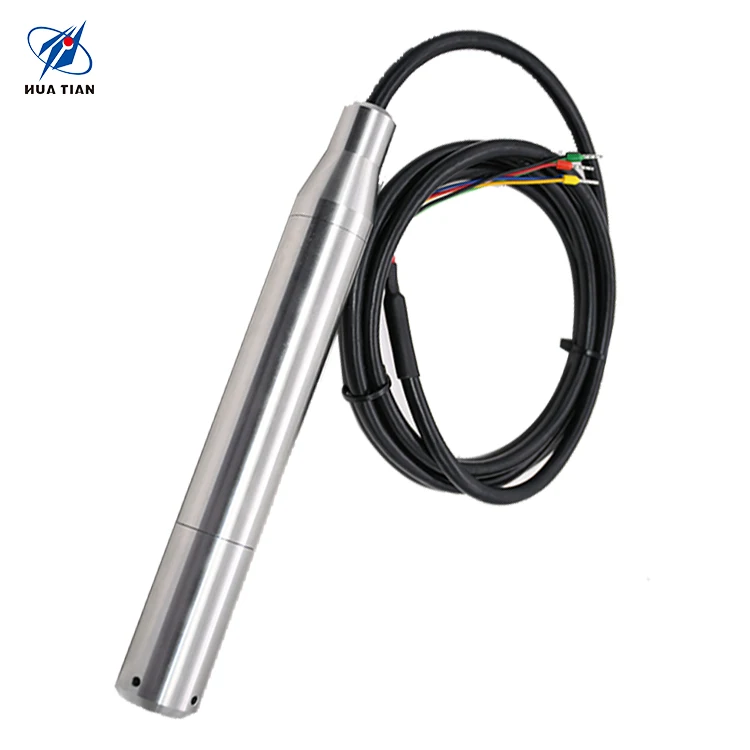

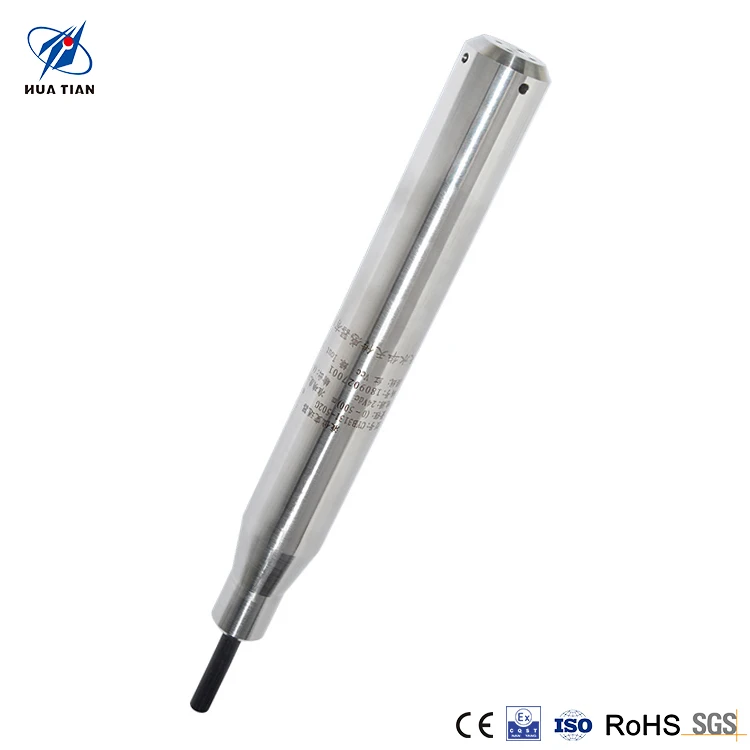

CYB3124 Excellent SS316L fluid measurement 0~10V output rs485 level transmitter
- Category: >>>
- Supplier: Tianshui Huatian Sensor Co. Ltd.
Share on (1600833287311):
Product Overview
Description
CYB3124 Excellent SS316L fluid measurement 0~10V output rs485 level transmitter
Huatian CYB3124 gauge or absolute pressure type liquid and fuel level depth sensors level transmitter price
Product Paramenters
Range | 0m～0.5m…300m | ||
Pressure form | G (gauge pressure) / A (absolute pressure) | ||
Output signal | 4~20mA (Hart protocol could be added) | ||
RS485 | |||
0~10V(range could be customized) | |||
Accuracy | 0.1(customized); 0.25 (typ.); 0.5 (max) | ||
Long-term stability (%FS/year) | ±0.1(typ.) | ±0.2(max) | |
Zero Temperature Drift (%FS/℃) | ±0.02 | ±0.03 | |
Sensitivity Temperature Drift (%FS/℃) | ±0.02 | ±0.03 | |
Compensation Temperature (℃) | 0～50 | -10～65 | |
Working Voltage (VDC) | +12～+30 | ||
Medium Temperature (℃) | -30～+65 | ||
Load resistance (Ω) | Current type: ≤(U-12)/0.02(Ω) | ||
Measuring medium | Liquid compatible with SS316L | ||

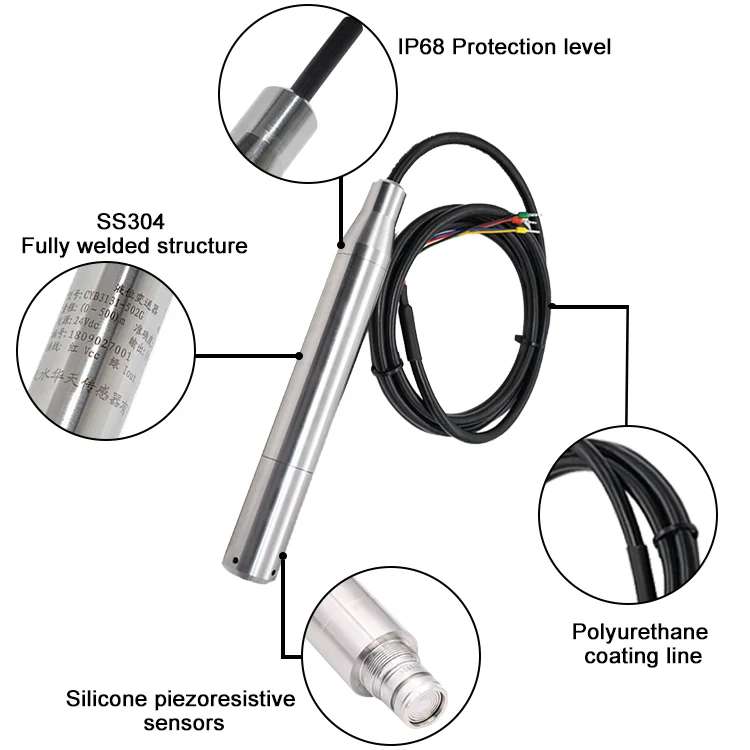

Diaphragm material | SS316L | ||
Shell material | SS304 | ||
Protection level | IP68 | ||
Products Description

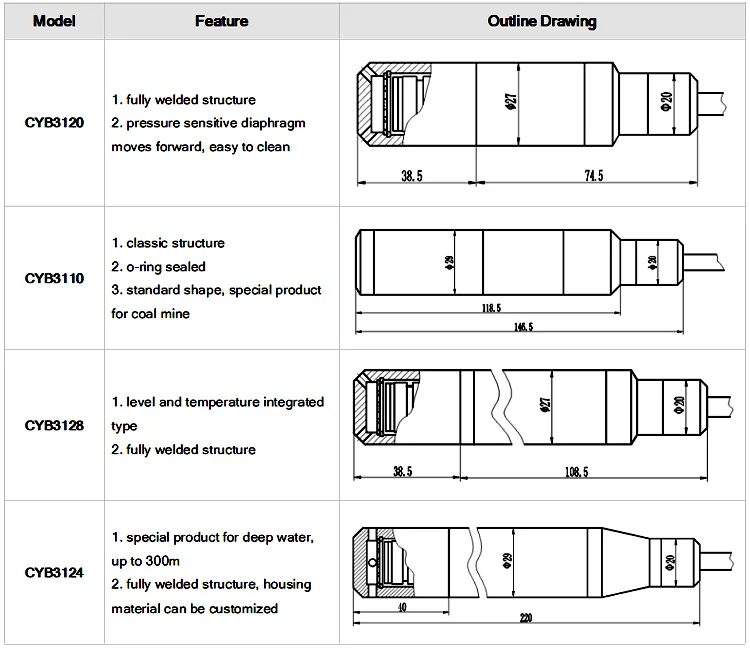

CYB3100 series level transmitter
Core: High-reliability silicone piezoresistive or ceramic capacitors or sapphire sensors
Techniques: Automatic temperature compensation, programmable digital circuit correction and signal conditioning
Standard industrial application output and networking signal
Usages: Coal mine, oil field, petrochemical, environmental protection, medicine, water and other industries

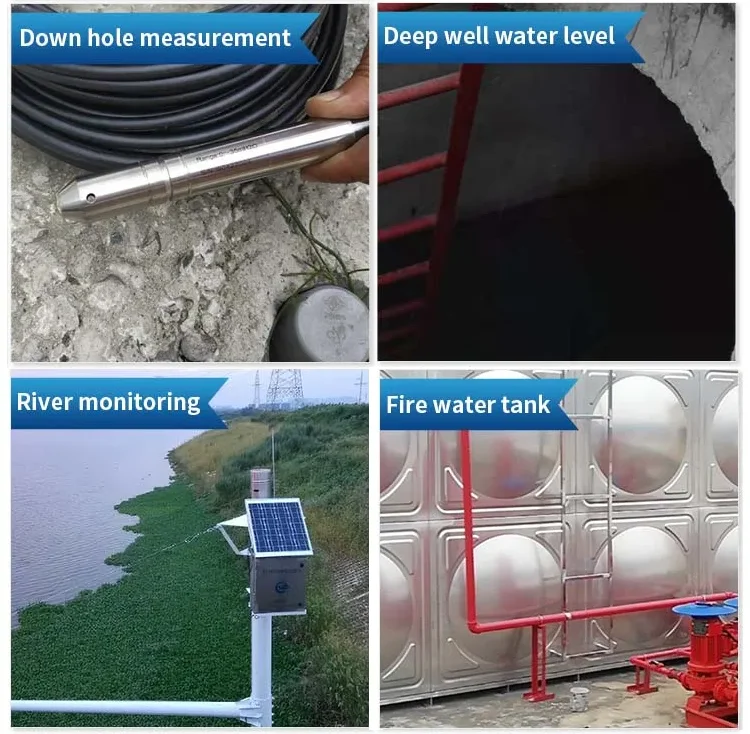

Application
CYB3100 series level transmitter has been widely used in all kinds of fluid measurement users for many years, especially in coal mine, oil field, petrochemical, environmental protection, medicine, water and other industries, for its excellent accuracy and reliability.
Recommend Products
Company Profile
Tianshui Huatian Sensor Co., Ltd.,
High-tech R&D, production, sales and construction of industrial intelligent centralized control
It is one of the earliest enterprises engaged in the R&D and production of pressure sensors and transmitters in China.
* Over 20 national patents, including 5 invention patents
* Over 20 new products have passed the provincial evaluation records
Product categories:
1、MEMS pressure sensor
2、Wireless pressure transmitter
3、Digital intelligent pressure transmitter
4、Special pressure transmitter
Usage: Coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry etc.
