7HP 209CC Certificate Vertical Shaft Gasoline Replacement Engine for Lawn Mower
- Category: >>>
- Supplier: Yancheng Talos Engine Equipment Co. Ltd.
Share on (1600833293191):
Product Overview
Description
Product Description

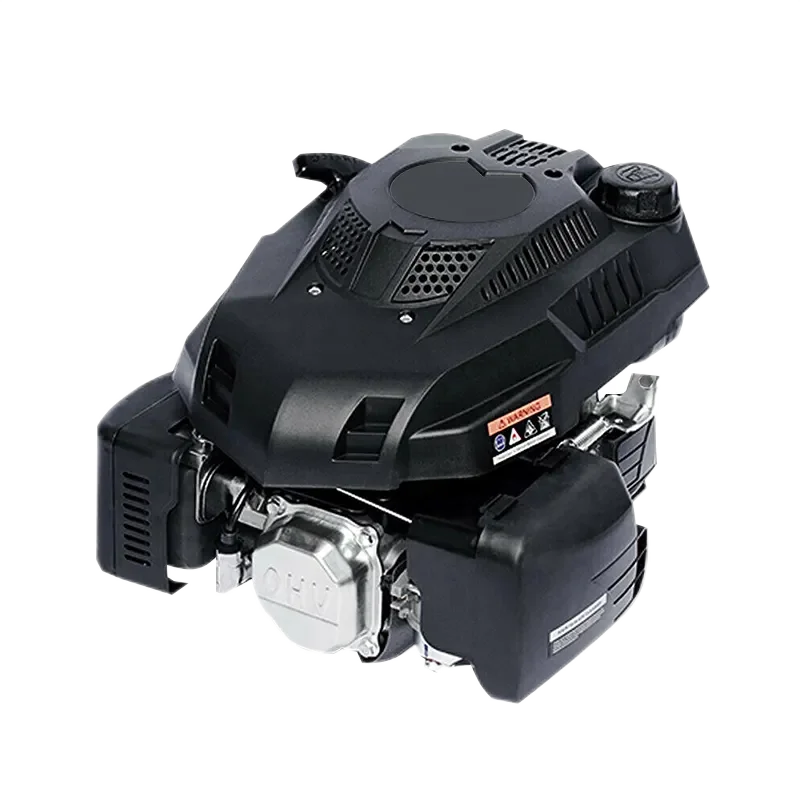

7HP 209CC Vertical Shaft Gasoline Replacement Engine for Lawn Mower
The 209cc OHV Vertical Shaft Engine with net power 4kW(5.4HP)@3600RPM and 11.8N.m@ 2500RPM. It has enough power to run a wide range of equipment, include commercial turf equipment, lawn tractors and riding mowers.This engine often used for lawn mower racing.
OHV design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides long usage life. It is reliable, easy starting and quiet running. Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure.
Specification
Model | TV210 | Engine Type | OHV, Vertical Shaft | ||
Bore x Stroke | 74.5 x 48mm | Displacement | 209cc | ||
Compression Ratio | 8.7 : 1 | Start Type | Recoil Start | ||
Net Torque | 11.8N.m@2500RPM | Idle Speed | 1850±150r/min | ||
Speed | 3600RPM | Rated Output | 4kW@3600RPM | ||
Maximum Output | 4.4kW@3600RPM | Muffler | Yes | ||
Crankshaft | Key type, ⌀25.4mm | Cooling System | Air cooled | ||
Fuel Type | Gasoline | Fuel Tank Capacity | 1.2L | ||
Low Oil Alert | Yes | Low Oil Shutdown | Yes | ||
Oil Capacity | 0.55L | Lubrication System | Splash | ||
Net Weight | 9.5kg | Gross Weight | 11.5kg | ||
Dimension(LxWxH) | 390 × 360 × 265mm | CE/EPA Certificate | Yes | ||
Available Option | PTO shaft | Warranty | 1 Year | ||
Shaft Rotation | (From PTO Shaft Side)\tCounterclockwise | ||||
Application | Lawn mower, high pressure and etc | ||||
Features + Benefits
*OHV design for increased efficiency and optimal power transfer
*High compression ratio for better fuel efficiency
*High compression ratio for better fuel efficiency
*Low vibration from precision-engineered components, double balance shaft, T type piston
*Cast iron cylinder sleeve for extended life
*Cast iron cylinder sleeve for extended life
*Roller type air cleaner with paper air filter for maximum protection
*Tool-less air filter cover for easy access
*Metal cam and forged crankshaft makes engine more reliable and durable
*Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure.
*Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure.
*Primary and Secondary oil filter system provide better lubrication.
*Automotive dipstick makes checking oil levels easy
Detailed Images
Packing & Delivery
Packing & Delivery
Durable carton box or according to demand.
Package dimension(L x W x H): 390 × 360 × 265mm
Gross weight with package: 9.5kg.
Lead time: regular 30 days after got deposit.
