Diesel / Electric / Gasoline Portable Sawmill Log Bandsaw Mill Used For sale
- Category: >>>
- Supplier: Yantai Huike Machinery Co. Ltd.
Share on (1600833333678):
Product Overview
Description
Product Description

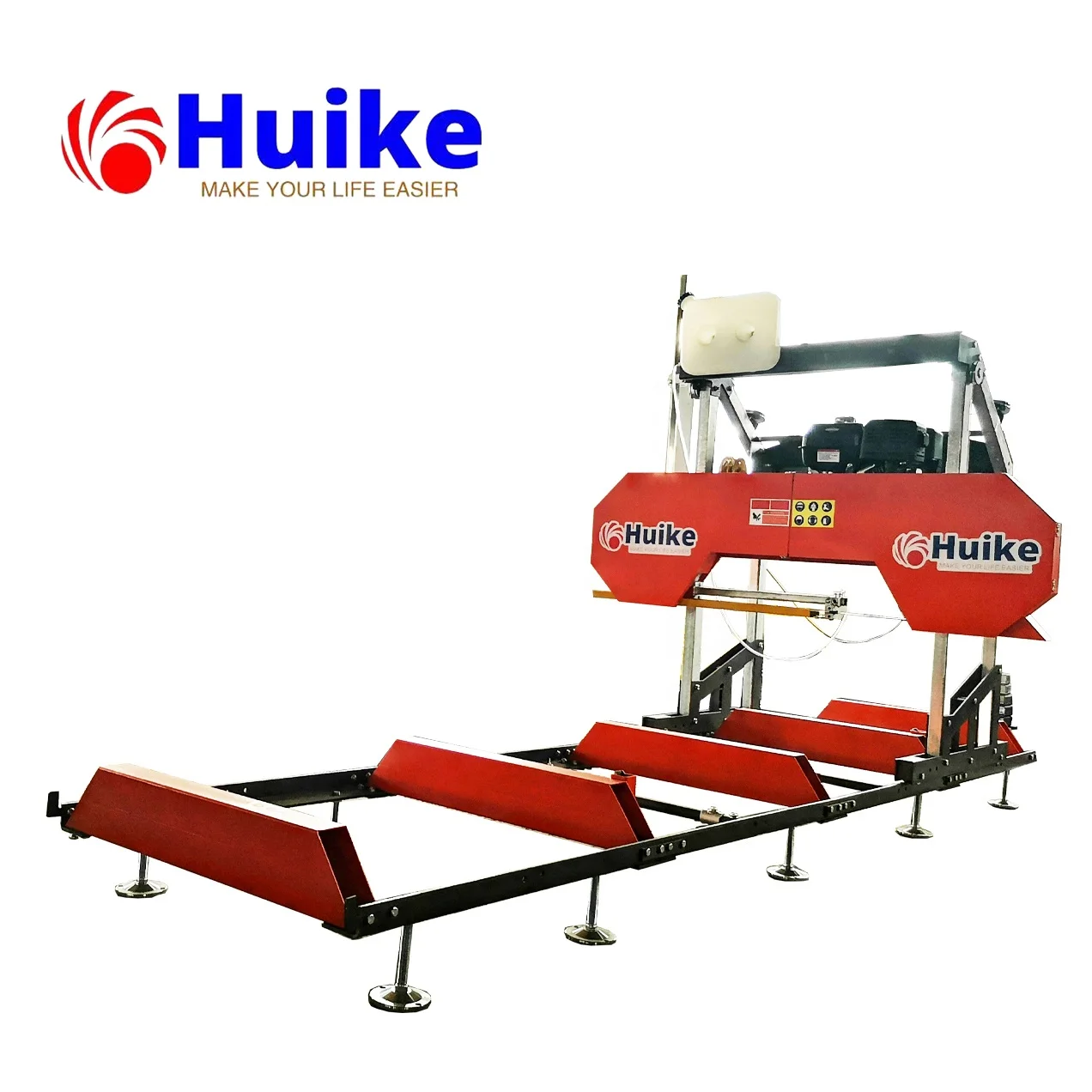

Huike PORTABLE SAWMILL
The reliable bandsaw mill offers sawyers an economical and durable solution to meet their milling needs.
From the powder-coated structure to the reliable Kohler gasoline engine, this mill will exceed your expectations.
The head moves up and down along galvanized steel channel via a very easy to turn hand crank system.
The blade is kept lubricated by utilizing a water drip system. This prevents sap from gumming up your blade.
Advantage:
1. High cutting speed, high cutting efficiency, smooth; high flatness of the cutting plate; high quality of final product, great reduce the lost of sawdust.
From the powder-coated structure to the reliable Kohler gasoline engine, this mill will exceed your expectations.
The head moves up and down along galvanized steel channel via a very easy to turn hand crank system.
The blade is kept lubricated by utilizing a water drip system. This prevents sap from gumming up your blade.
Advantage:
1. High cutting speed, high cutting efficiency, smooth; high flatness of the cutting plate; high quality of final product, great reduce the lost of sawdust.
2. Simple installation, easy operation, labor saving , and high productivity.
3. Manual Operating, Simple , safe and pro-environment.
4. The thickness of processing wood can be adjusted according to your need from 2 mm to 178 mm,
high-precision.
5. Petrol Engine / Electric Motor power supply.
6. Cutting wood diameter up to 790 mm, the max sawing wood length can subject to customer’s requirements.
7. There's no need the professional sawyers, the ordinary workers can operate the machine expertly.
3. Manual Operating, Simple , safe and pro-environment.
4. The thickness of processing wood can be adjusted according to your need from 2 mm to 178 mm,
high-precision.
5. Petrol Engine / Electric Motor power supply.
6. Cutting wood diameter up to 790 mm, the max sawing wood length can subject to customer’s requirements.
7. There's no need the professional sawyers, the ordinary workers can operate the machine expertly.
Specification
Huike HKS Series Portable Band Sawmill | ||||||||
Model | HKS26G | HKS31G | HKS26E | HKS31E | ||||
Power | Gasoline 9HP (LIFAN, Manual start) | Gasoline 15HP (LIFAN, Manual start) | Electric Motor 5.5KW | Electric Motor 7.5KW | ||||
Displacement | 301cc | 420cc | 400V 50HZ 3phase or customized | 400V 50HZ 3phase | ||||
Max Cutting Dia. | 660 mm (26'') | 790 mm (31'') | 660 mm (26'') | 790 mm (31'') | ||||
Max Cutting Thickness | 178 mm (7'') | 178 mm (7'') | 178 mm (7'') | 178 mm (7'') | ||||
Standard Cutting Length | 2794 mm (110'') or customized | 2794 mm (110'') or customized | 2794 mm (110'') or customized | 2794 mm (110'') or customized | ||||
Standard Machine Length | 4064mm (160”) or Customized | 4064mm (160”) or Customized | 4064mm (160”) or Customized | 4064mm (160”) or Customized | ||||
Frame | 4pcs | 4pcs | 4pcs | 4pcs | ||||
Dimension | 4064*1778*1800mm (160”*70”*71”) | 4064*1778*1800mm (160”*70”*71”) | 4064*1778*1800mm (160”*70”*71”) | 4064*1778*1800mm (160”*70”*71”) | ||||
Track size | 4000x900mm (157”x35.4”) | 4000x1030mm (157”x40.5”) | 4000x900mm (157”x35.4”) | 4000x1030mm (157”x40.5”) | ||||
Packing | 2150x580x870mm | 2150x580x870mm | 2150x580x870mm | 2150x580x870mm | ||||
Weight | 415/385kg | 415/385kg | 452/480kg | 452/480kg | ||||
20”/40”HC | 20pcs / 63pcs | 20pcs / 63pcs | 20pcs / 63pcs | 20pcs / 63pcs | ||||
Optional Accessories 1. Electric Start for Lifan Gasoline engine 2. Upgrade 14 HP Kohler(13.5 B&S ) Gasoline Engine Manual start 3. Upgrade 14 HP Kohler(13.5 B&S ) Gasoline Engine Electric start 4. Normal Blade 5. Alloy Saw Blade / Carbide Blade 6. Auto lube system 7. Manual Winch 8. Extension 2 m Track 9. Trailer: 4 m, 6 m 10. 48'' Log Tong 11. Blade sharpener machine 12. Blade setter | ||||||||
Gasoline engine sawmill
Electric motor sawmill
General Introduction
PARTS:
Huike standard sawmill set including 4 m long super track with log rests and micro-leveling legs and saw unit with 9 HP or 15 HP Lifan gasoline engine manual start. The kit includes a spare blade, a manual, and a water tank.
CHOOSE POWER:
9 HP or 15 HP Lifan gasoline engine, manual start
9 HP or 15 HP Lifan gasoline engine, electric start
13.5 B&S gasoline engine, manual start or electric start
14 HP Kohler gasoline engine, manual start or electric start
Other engines are available; contact us for more info.
BLADE GUIDES:
Huike sawmill has strong precision machined and hardened blade guides. Those keep the blade straight, ensuring the best possible sawmilling results. Adjustable blade support keeps the edge's free area short, which will also make a big difference to sawmilling results.
LEVELING FEETS:
Huike sawmill has micro-adjust leveling feet for ground-level stationary sawing to help ensure the mill stays stable for accurate cuts.
SAWDUSTS PORT:
The sawdust port directs sawdust down towards the ground. Better for the work environment.
SUPER TRACK EXTENSIONS:
Standard, your Huike Super Track is 4 m long and mills up 3 m. To mill 4.5 m long logs, add one 2 m long extension. Or, add as many extensions as you want to mill logs of any length. 2 m extension includes leveling feet, and log rests. Ask more about extensions from us.
QUICK LOG DOGS (CLAMPS ):
Huike sawmill comes with quick log dogs. These clamps are easy and fast to use. Log dogs keep log still during the sawmilling process, and you can ensure that you get the best possible results.
AUTO-BLADE LUBE SYSTEM:
Huike automates the blade lubrication system on your sawmill. Water automatically flows when you are using a saw. This saves the blade and improves sawmilling results. Use water whenever you are sawmilling.
TECHICAL DETAILS:
Engine: Lifan 9 HP or 15 HP engine
Start: Manual start (an electric start is an option )
Track: Basic track length is 4.0 m, including log rests, micro-adjusted legs, and quick log dogs. Extensions available, which will be sold 2 m long sets, include all the accessories.
Log length: 4 m track you can sawmill 3 m long logs. 6 m track which includes one extension set, you can sawmill 5 m long logs.
Log diameter: Basic Sawmill set 26 / 31, you can use sawmill logs whose diameter is max. 660mm 26" / 790mm 31’’.
Lubrication: Blade lubrication by water
Blade support: Blade has an adjustable support bar which keeps the blade straight and steady during sawmilling operation
Blade tension: Adjustable tension
Blade size: 3690*34*0.9mm 3960*34*0.9mm
Blade speed: 17m/minute
Blade teeth distance: 22mm
Blade wheel: Diameter 480mm
Size: 4064mm x 1778mm x 1800mm
Track size: 4042mm x 900mm / 4042mm x 1030mm
Sawmill type: Manual ( No motor for movement )
Height adjusts: Manual
Options:
Huike sawmills have many options available.
Engines: 9 HP, 13.5 HP, 14 HP, 15 HP Lifan / Kohler / B&S gasoline engines, with manual or electric start
Electric engine: Huike saw has an electric engine option available for US or EUROPEAN markets;
Tracks: Huike basic super track is 4.0 m long. Extension parts will be sold separately in 2 m sets.
Spare parts: We will provide spare parts from China if needed.
Other sizes: Huike sawmill has many size options available. Please ask us more.

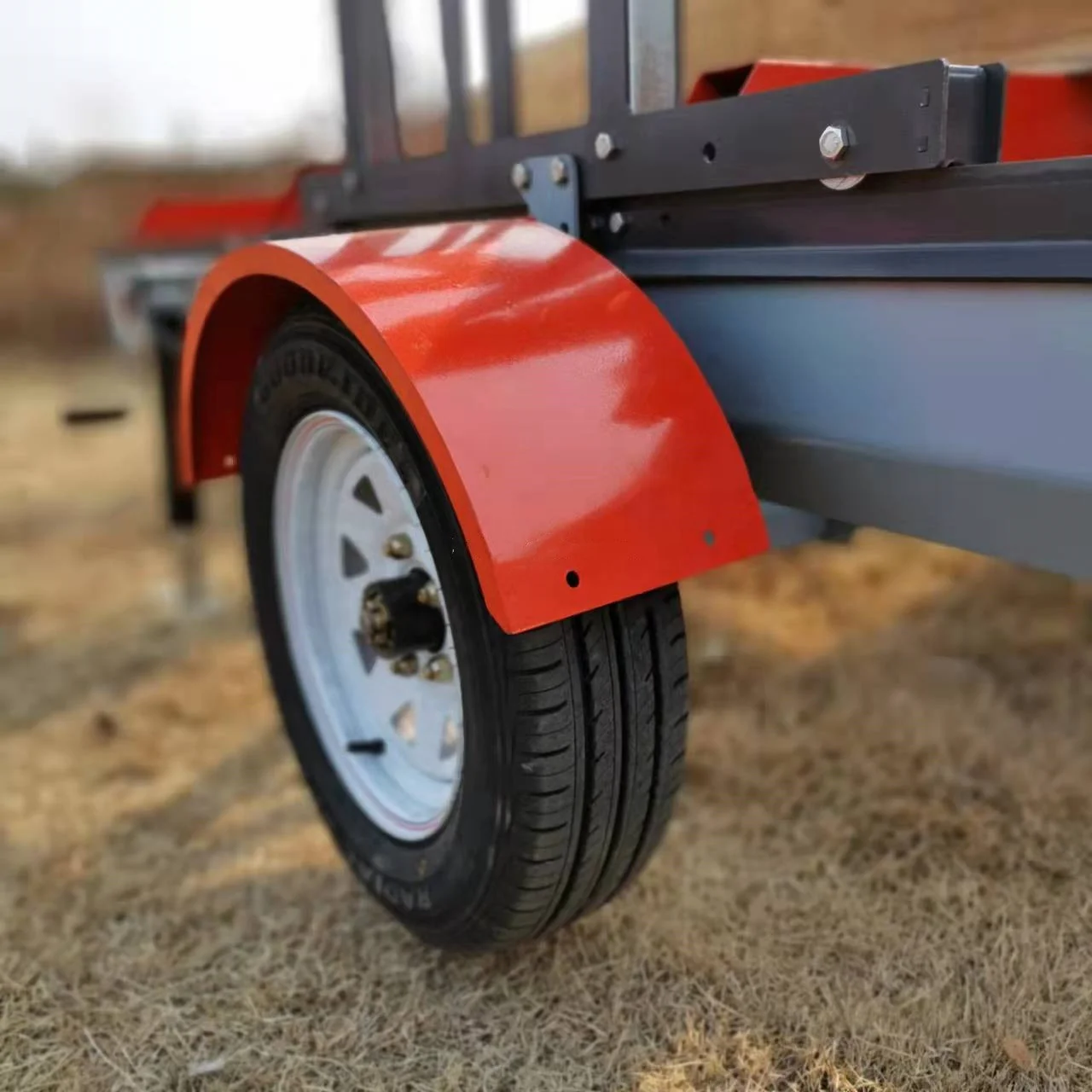

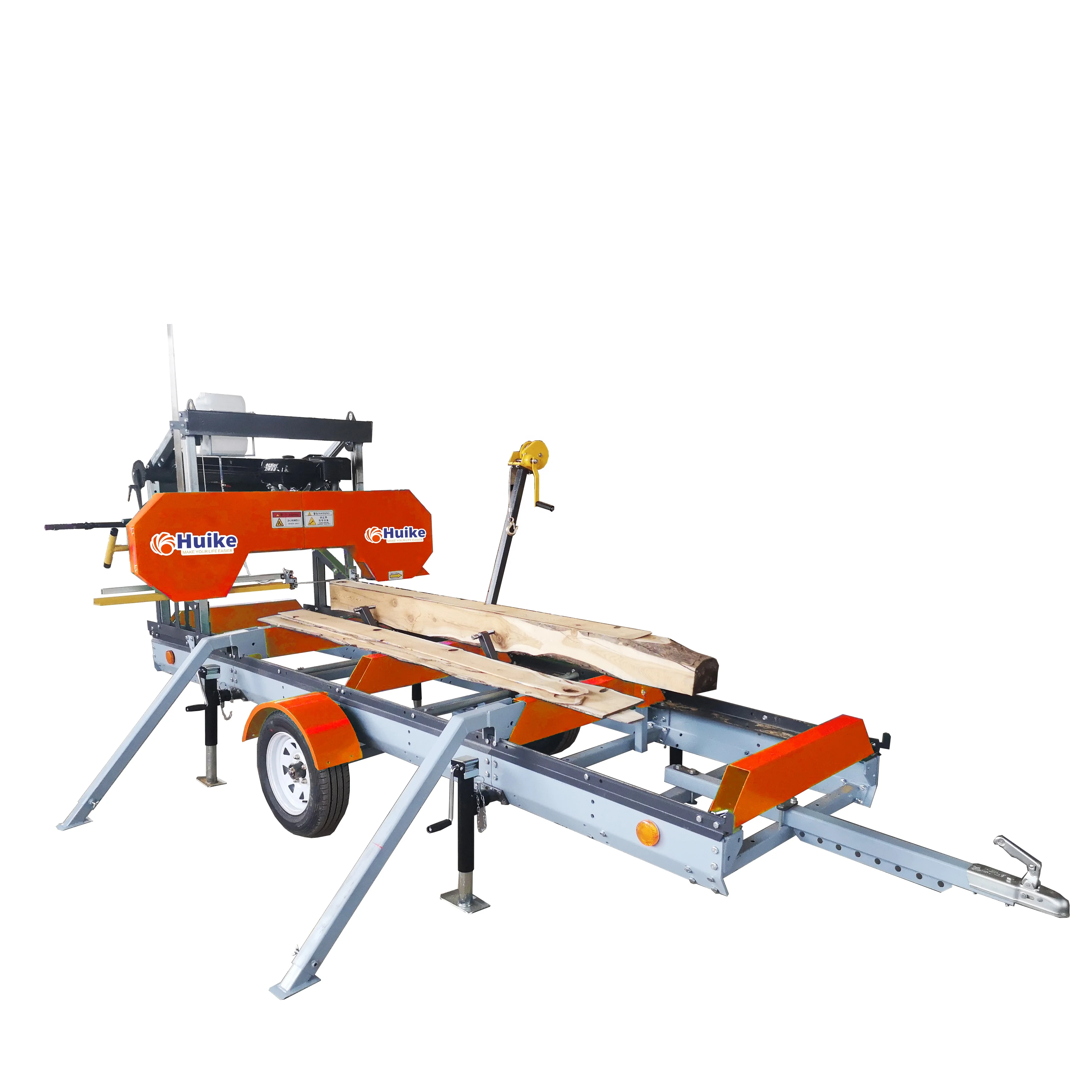

Trailers: Huike sawmill can be equipped with a trailer. One or two axel versions are available.
Other: Huike sawmill has a CE certificate. To our customers, we will provide English service for after-sales issues. We have warehouses in China
OEM Ask for more, we can do it.
Huike standard sawmill set including 4 m long super track with log rests and micro-leveling legs and saw unit with 9 HP or 15 HP Lifan gasoline engine manual start. The kit includes a spare blade, a manual, and a water tank.
CHOOSE POWER:
9 HP or 15 HP Lifan gasoline engine, manual start
9 HP or 15 HP Lifan gasoline engine, electric start
13.5 B&S gasoline engine, manual start or electric start
14 HP Kohler gasoline engine, manual start or electric start
Other engines are available; contact us for more info.
BLADE GUIDES:
Huike sawmill has strong precision machined and hardened blade guides. Those keep the blade straight, ensuring the best possible sawmilling results. Adjustable blade support keeps the edge's free area short, which will also make a big difference to sawmilling results.
LEVELING FEETS:
Huike sawmill has micro-adjust leveling feet for ground-level stationary sawing to help ensure the mill stays stable for accurate cuts.
SAWDUSTS PORT:
The sawdust port directs sawdust down towards the ground. Better for the work environment.
SUPER TRACK EXTENSIONS:
Standard, your Huike Super Track is 4 m long and mills up 3 m. To mill 4.5 m long logs, add one 2 m long extension. Or, add as many extensions as you want to mill logs of any length. 2 m extension includes leveling feet, and log rests. Ask more about extensions from us.
QUICK LOG DOGS (CLAMPS ):
Huike sawmill comes with quick log dogs. These clamps are easy and fast to use. Log dogs keep log still during the sawmilling process, and you can ensure that you get the best possible results.
AUTO-BLADE LUBE SYSTEM:
Huike automates the blade lubrication system on your sawmill. Water automatically flows when you are using a saw. This saves the blade and improves sawmilling results. Use water whenever you are sawmilling.
TECHICAL DETAILS:
Engine: Lifan 9 HP or 15 HP engine
Start: Manual start (an electric start is an option )
Track: Basic track length is 4.0 m, including log rests, micro-adjusted legs, and quick log dogs. Extensions available, which will be sold 2 m long sets, include all the accessories.
Log length: 4 m track you can sawmill 3 m long logs. 6 m track which includes one extension set, you can sawmill 5 m long logs.
Log diameter: Basic Sawmill set 26 / 31, you can use sawmill logs whose diameter is max. 660mm 26" / 790mm 31’’.
Lubrication: Blade lubrication by water
Blade support: Blade has an adjustable support bar which keeps the blade straight and steady during sawmilling operation
Blade tension: Adjustable tension
Blade size: 3690*34*0.9mm 3960*34*0.9mm
Blade speed: 17m/minute
Blade teeth distance: 22mm
Blade wheel: Diameter 480mm
Size: 4064mm x 1778mm x 1800mm
Track size: 4042mm x 900mm / 4042mm x 1030mm
Sawmill type: Manual ( No motor for movement )
Height adjusts: Manual
Options:
Huike sawmills have many options available.
Engines: 9 HP, 13.5 HP, 14 HP, 15 HP Lifan / Kohler / B&S gasoline engines, with manual or electric start
Electric engine: Huike saw has an electric engine option available for US or EUROPEAN markets;
Tracks: Huike basic super track is 4.0 m long. Extension parts will be sold separately in 2 m sets.
Spare parts: We will provide spare parts from China if needed.
Other sizes: Huike sawmill has many size options available. Please ask us more.
Trailers: Huike sawmill can be equipped with a trailer. One or two axel versions are available.
Other: Huike sawmill has a CE certificate. To our customers, we will provide English service for after-sales issues. We have warehouses in China
OEM Ask for more, we can do it.
