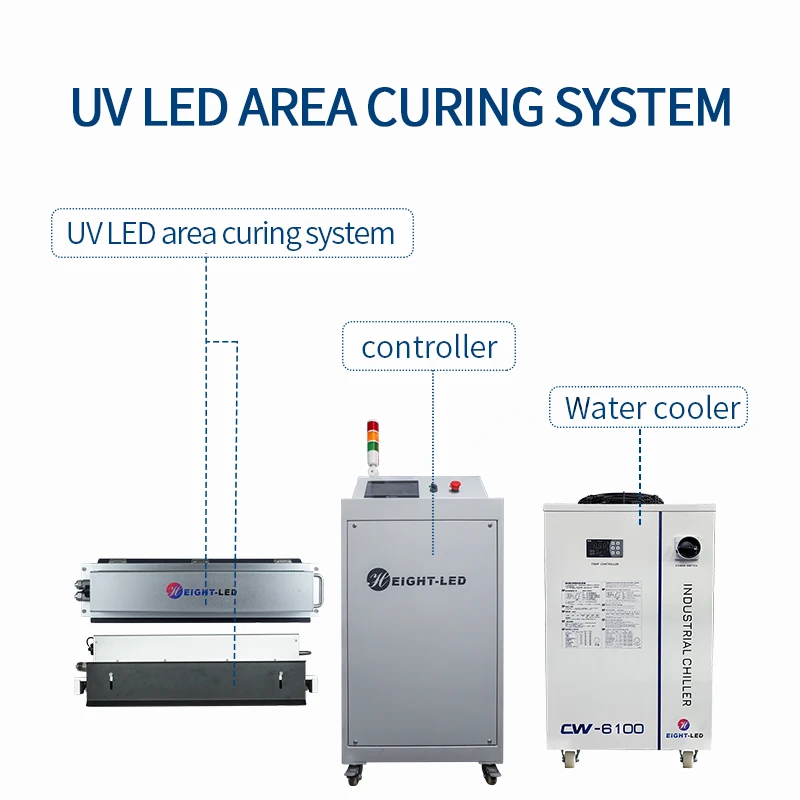

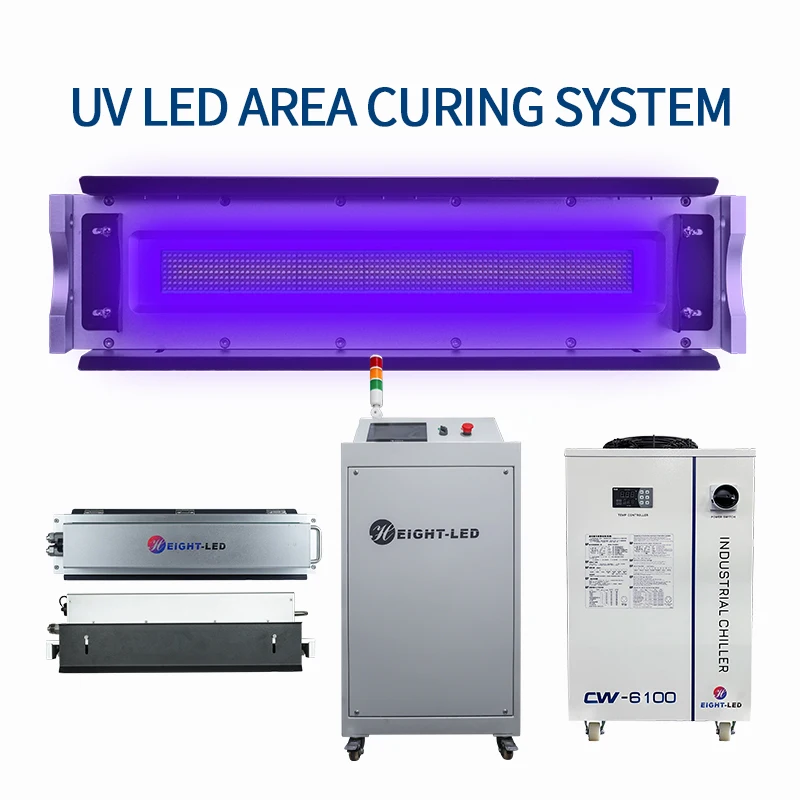

Factory Sale China UV LED Curing System within LED lamp UV printing machine for digital printing

Share on (1600833359780):


Price:$1,099.00 - $4,199.00

Quantity:


Product Overview

Description



Product Description




Specification


Brand
Height-LED
Model
HTJP-II-SE30025-BH
Curing area
350X25mm
Wavelength
 385nm
Optical intensity
26W/cm2
Cooling method
 water cooling
Control style
PLC+HMI
Detection function
Temperature/voltage/current detection
docking signal
Relay short circuit signal
Alarm signal
 Relay short circuit signal
Power adjustment
 digital dimming(1-100%)
Voltage
1P AC110-AC220V(50/60HZ)
Total power consumption
1.3KW
Ambient temperature
 -10℃-50°℃
Relative humidity
 25%-80%RH
Customized service
All parameters can be customized according to customer needs


Packing & Delivery




FAQ


Q1: Why choose Height-LED UV LED curing system?
A: The team has over 10 years combined experience in UV LED curing industry and can meet the requirements of each client.
Q2: What's the application of Height-LED UV LED curing system?
A: Height-LED UV LED curing system can be used for curing UV glue, UV ink, UV adhesive,UV paint,UV varnish and other UV sensitive materials.
Q3: What is the major advantages of UV LED curing system than other UV curing system?
A: Extra-long life, energy saving and environment friendly.
Q4: Which wavelength do I need?
A: It depends on your UV sensitive materials.
Q5: What's the emitting window do I need?
A: It depends on your product's size that need to be cure.
Q6: What's the Peak Irradiance do I need?
A: It depends on your UV sensitive materials and your Production efficiency.
Q7:The common emitting window and Peak Irradiance can not meet my requirements?
A:Do not worry! Any sizes of emitting window and Peak Irradiance can be customized.
Q8: Where is your company located?
A:2/F,Towel B, Sanhe international science and technology
Building, Da Lang Road,Long Hua District, ShenZhen, Guang Dong Province, China.Q9: What's the price?
A: Kindly make a request and tell us your curing area.
