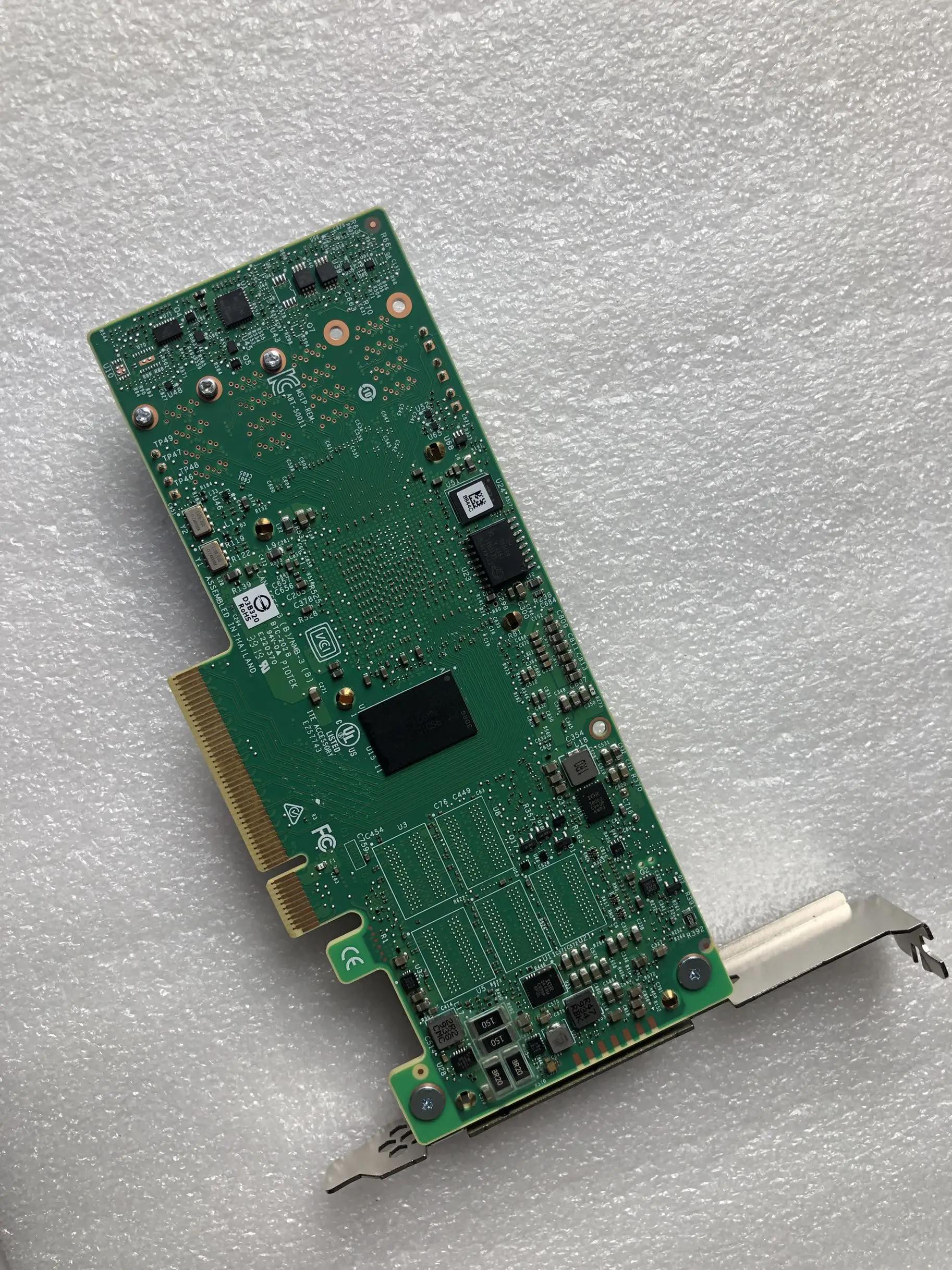

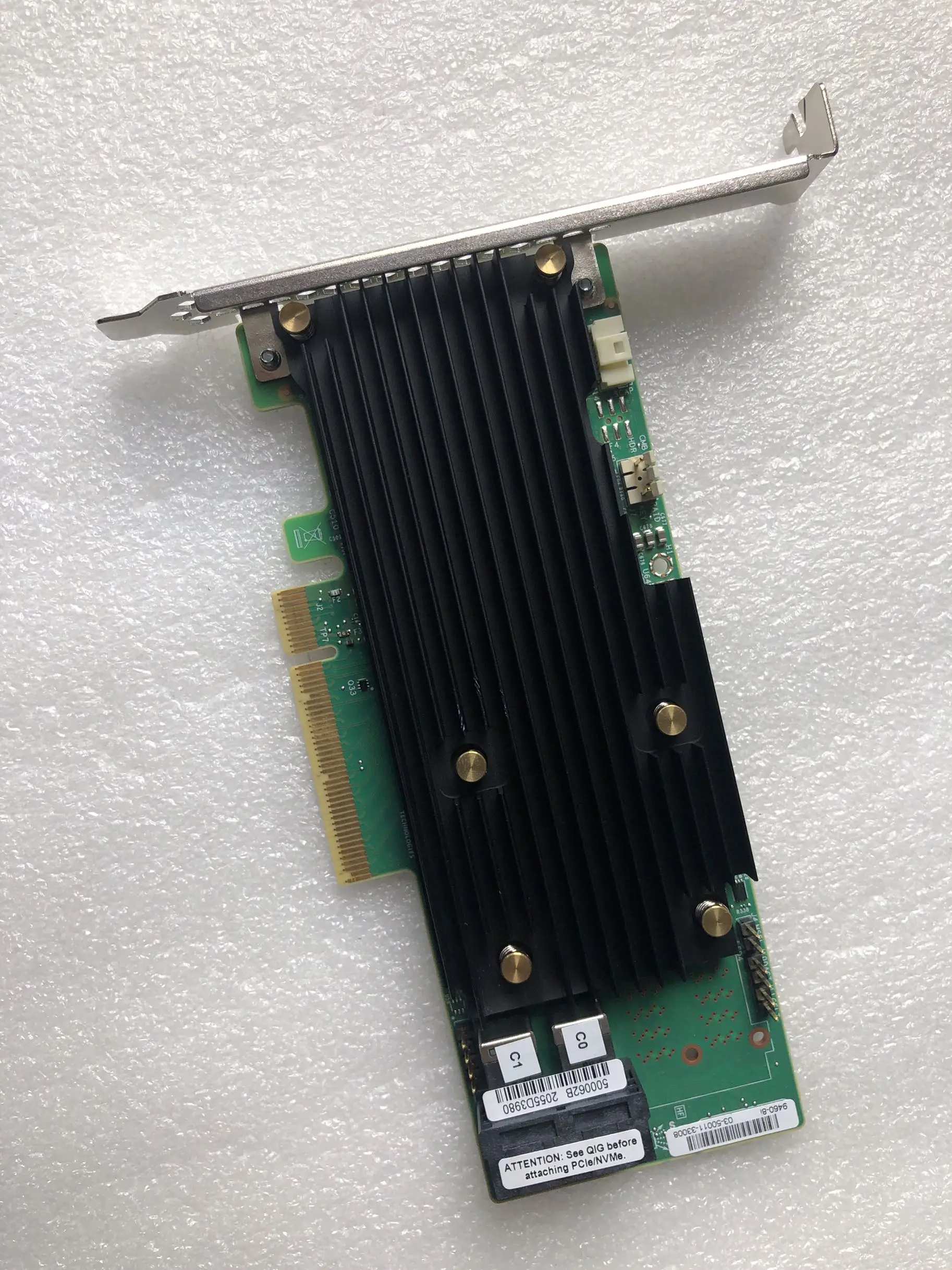

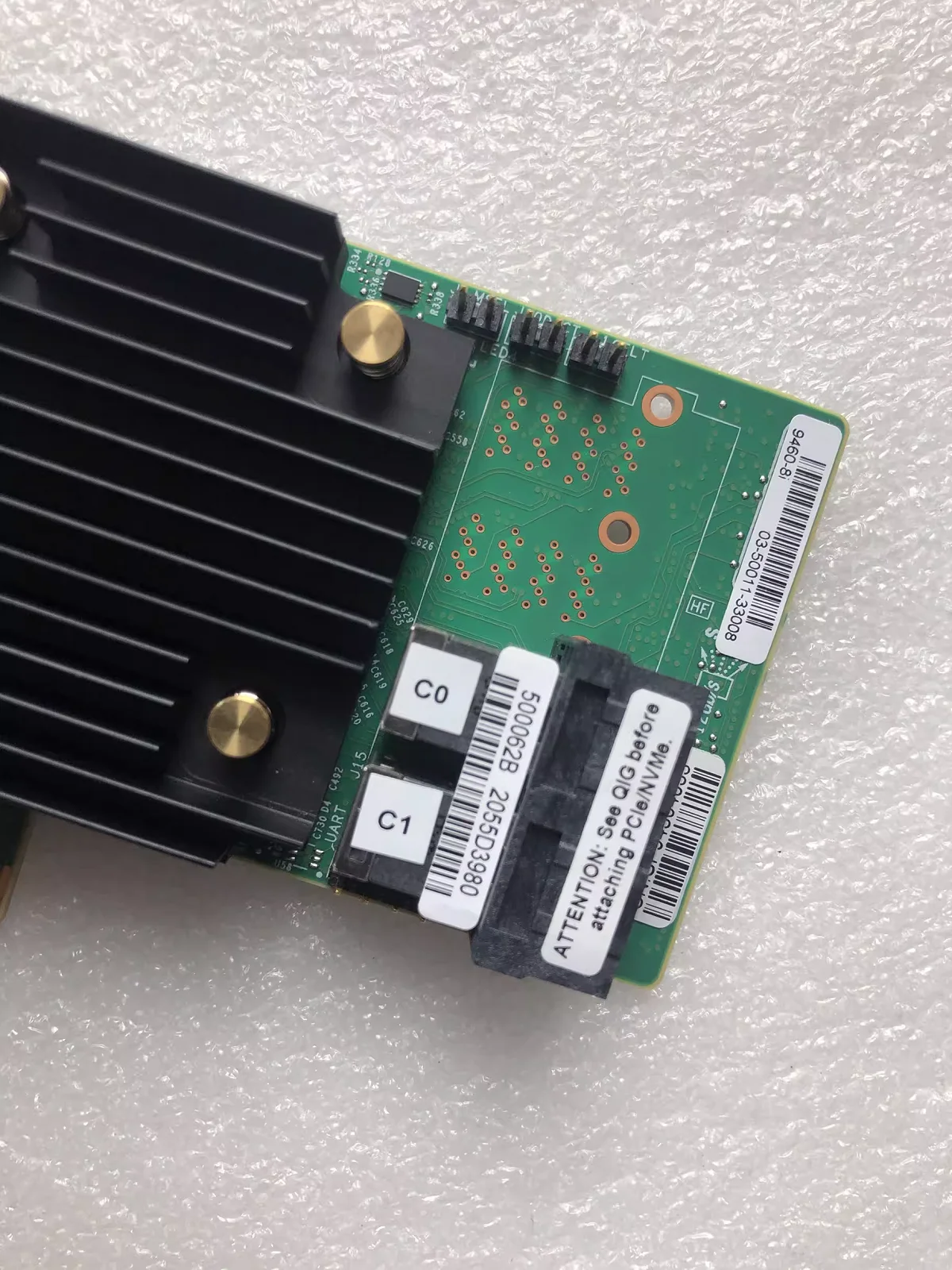

LSI 9460 8i MegaRAID 2GB 12Gb/s SAS/SATA/PCIe controller raid card
- Category: >>>
- Supplier: Beijing Xinqidian Technology Co. Ltd.
Share on (1600833500950):
Product Overview
Description
Product Description
Broadcom MegaRAID 9460-8i
Ensure data protection for performance-hungry applications in high-end servers utilizing internal storage
Apllications
* High-port count SAS/SATA/NVMe controllers for direct attached high connectivity applications
* Tri-Mode connectivity enabling maximum data center fl exibility
* Flexible solutions for cloud computing
* External storage requiring high connectivity SAS/SATA interface for host or drive side connect
* Tri-Mode connectivity enabling maximum data center fl exibility
* Flexible solutions for cloud computing
* External storage requiring high connectivity SAS/SATA interface for host or drive side connect
Key Features
Tri-Mode Storage Interface Ports
* SFF-8680 Bay
* SFF-8680 Bay
* x1 SAS
* x1 SATA
* x2 SAS (Multi Link)
* Two x1 SAS (Dual port using MPIO)
* SFF-8639 (U.2) Bay
* x1 SATA
* x2 SAS (Multi Link)
* Two x1 SAS (Dual port using MPIO)
* SFF-8639 (U.2) Bay
* x2, x4 NVMe
* Supports 12, 6, and 3Gb/s SAS and 6, 3Gb/s SATA data transfer rates
* Supports 12, 6, and 3Gb/s SAS and 6, 3Gb/s SATA data transfer rates
* Up to 8 storage interface PCIe links. Each link supporting x4 or x2* link widths up to 8.0 GT/s (PCIe Gen3) per lane
* SFF-9402 Compliant, Connector Pin-outSFF-8485 Compliant, SGPIO
* RAID levels 0, 1, 5, 6, 10, 50 and 60
* CacheVault flash back-up at power fail
* Supports bad block management
* PCIe 3.1 Host Interface
* PCIe 3.1 Host Interface
* Supports x8, x4, x2, x1 PCIe lanes at a transfer rate up to 8.0 GT/s per lane, full duplex
* Lane and polarity reversal
* Variable PCIe bandwidth negotiation
* Lane and polarity reversal
* Variable PCIe bandwidth negotiation
Product Specification
9460-16i | 9460-8i | 9480-8i8e | 9440-8i | ||||
Ports | 16 internal | 8 internal | 8 internal/8 external | 8 internal | |||
Connectors | Four (x4) SFF-8643 | Two (x4) SFF-8643 | Two (x4) SFF-8643, Two (x4) SFF-8644 | Two SFF-8643 | |||
Storage Interface Support | SAS, SATA, PCIe (NVMe) | ||||||
Max PCIe (NVMe) Direct Attach Devices | Four x4, Eight x2 | Two x4, Four x2 | Two x4, Four x2 (internal only) | Two x4, Two x2 (Direct Attached Only) | |||
Max Devices Per Controller | SAS/SATA: 240 NVMe: 24 | SAS/SATA: 240 NVMe: 24 | SAS/SATA: 240 NVMe: 24 | SAS/SATA: 63 NVMe: 2 | |||
Cache Memory | 4 GB 2133MHz DDR4 SDRAM | 2 GB 2133MHz DDR4 SDRAM | 4 GB 2133MHz DDR4 SDRAM | N/A | |||
I/O Processor / SAS Controller | SAS3516 | SAS3508 | SAS3516 | SAS3408 | |||
Host Bus Type | PCIe 3.1 x8 | PCIe 3.1 x8 | PCIe 3.1 x8 | PCIe 3.1 x8 | |||
Cache Protection | CacheVault CVPM05 | CacheVault CVPM05 | CacheVault CVPM05 | N/A | |||
Physical Dimensions | 6.127″ x 2.712″ (155.65 mm x 68.90 mm) | 6.127″ x 2.712″ (155.65 mm x 68.90 mm) | 6.600″ x 2.712″ ( 167.65mm x 68.90mm) | 6.127″ x 2.712″ (155.65 mm x 68.90 mm) | |||
Typical Power | 17.02W | 14.16W | 17.71W | 10.05W | |||
Airflow | 250LFM at 55°C | 250LFM at 55°C | 250LFM at 55@C | 200LFM at 55@C | |||
