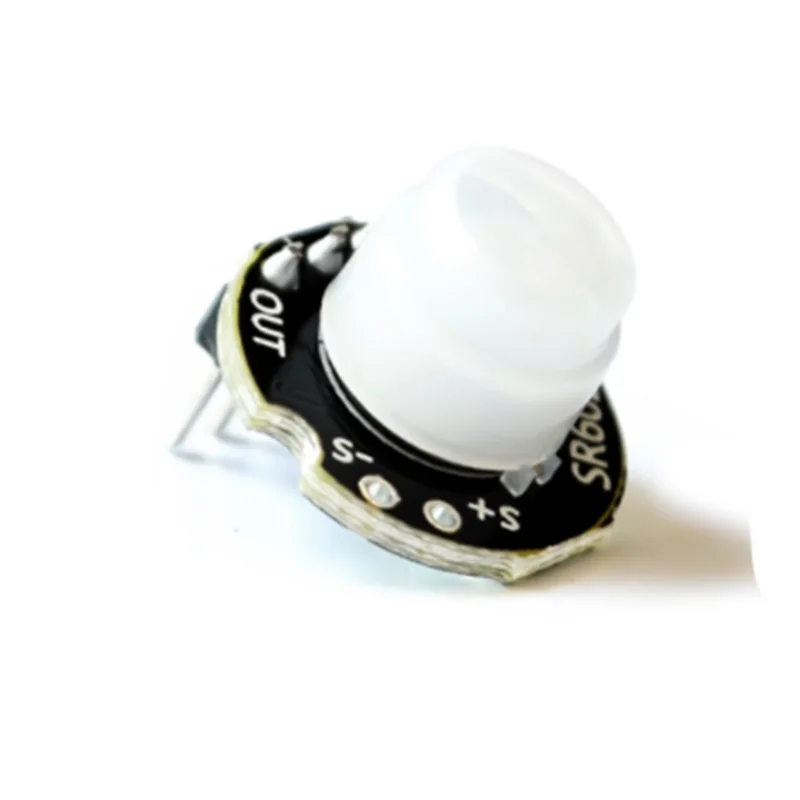

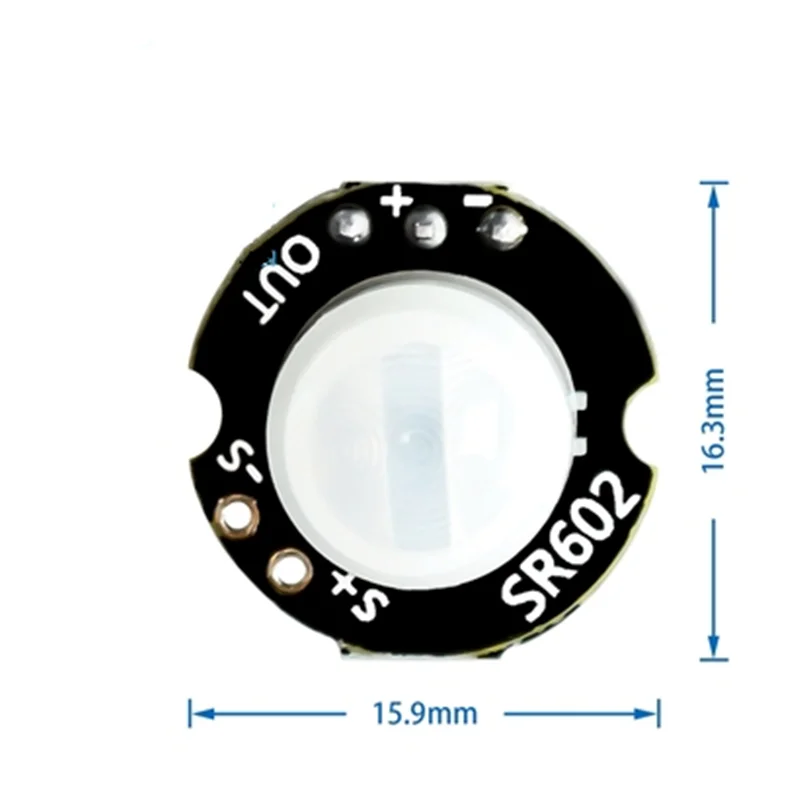

SR602 Human Body sensor module pyroelectric human body infrared sensor

 Miniature SR602 small human body infrared sensor module pyroelectric probe inductive switch sensor PI Module SR602

Working parameters:

Pyroelectric human infrared sensor module, model: SR-602

Induction distance: 5 m maximum; Recommend 0-3.5 M.

Output: high, H = 3.3V, L = 0V

Power supply DC: 3.3V-15V

Static current: 20uA

Features and uses:

The module has high sensitivity, fast response speed, low static power consumption, small size and easy to install and install.

Lens, pin head has been welded, power supply can be provided without debugging. Can be used for body sensor light, alarm, safety,

Access control on demand imaging, agriculture, forestry and mining automation equipment.

Key points:

1. The high level output time of this product can be adjusted from 2.5 seconds to 1 hour, and the output time is set before delivery.

It is 2.5 seconds, and if you need to replace it, you can replace a chip resistor. Read the resistance values corresponding to typical delay times.

See the related table below.

2. Block time, 2 seconds, not adjustable.

3. The factory is defined as repeatable and cannot be changed.

4. The supply voltage of the module is 3.3V to 15V, and the limit voltage is 2.8V to 18V.

5. The output sequence of the module is: output high level for 2 seconds after power-on, and then change to low level and enter standby state

State. If the delay time changes, the time for the module to output high level after power-on will increase correspondingly, which can be understood as

The start-up time will increase after the power enters normal working state.

6. After the installation of photosensitive elements, it does not work during the day, but works at night, without photosensitive elements, and works all day long (there is no photodiode on the module, please buy it separately if necessary. Recommended: Ordinary F3 photodiode)

The optical sensor is not installed.
