Product Overview


Product Description

 Takstar WPM-200 In Ear Stage UHF Wireless Monitor System 780-805 MHz for studio recording/on-stage monitoring ( transmitter + receivers+ TS2260 earphones+ US plug)

Takstar WPM-200 UHF Wireless Audio System Receiver LCD Display 6 Selectable Channels 50m Transmission with In-Ear Headphones 780-805 MHz
It will comes with a US plug,if you are EU customer and can not use,please use your own EU plug or buy a plug changer.

For Shipping Reason,the AA battery is not included,pls note that and buy it at local store.

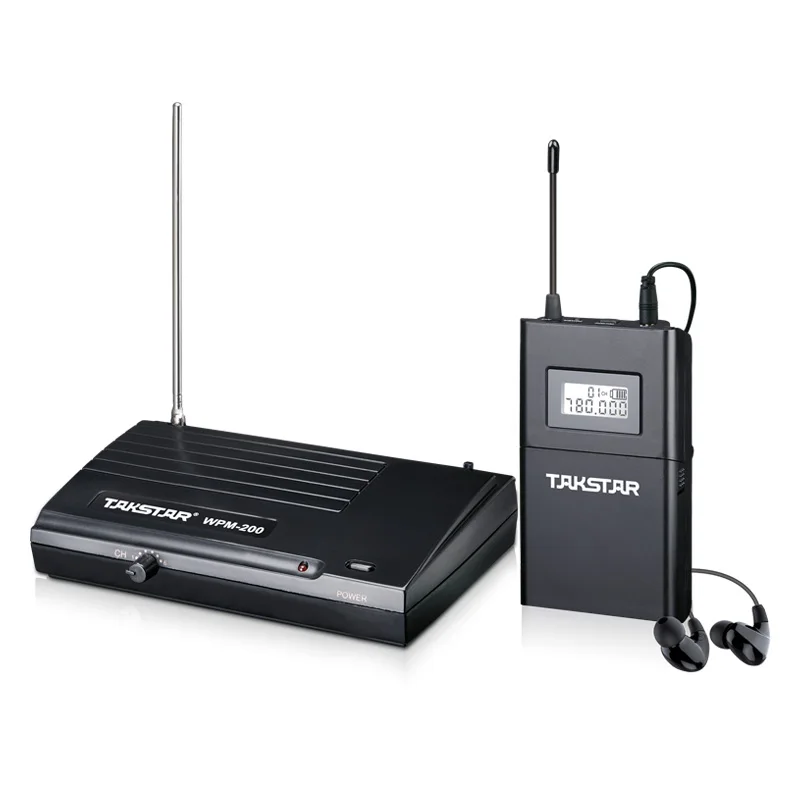

Takstar wireless monitor system WPM-200 is also known as a set of UHF wireless audio transmission system. The UHF monitor system comes with a pair of TS-2260 monitor earphones, a transmitter, and a receiver. The receiver is powered by two AA batteries and working up to 30 hours. The transmitter works fairly well and produces no delay in live monitoring as long as the received is within the 50 meters operation area.

The whole set is designed to be light, compact, and portable, allowing motions during audio monitoring. WMP-200 is the ideal monitor system for live performances, on-stage monitoring, studio monitoring

, exhibition, lecture and public event audio monitoring.


1. UHF frequency band and PLL frequency synthesized technology for stable working performance.
2. 6 selectable channels.
3. Powered by 2pcs AA batteries, low power consumption design for long playtime up to 30 hours.

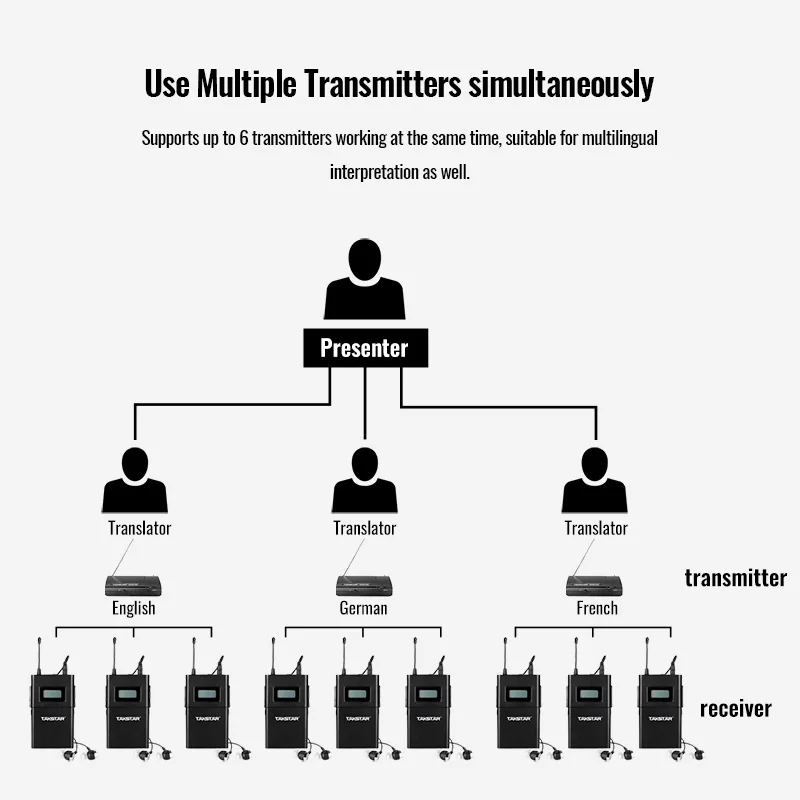

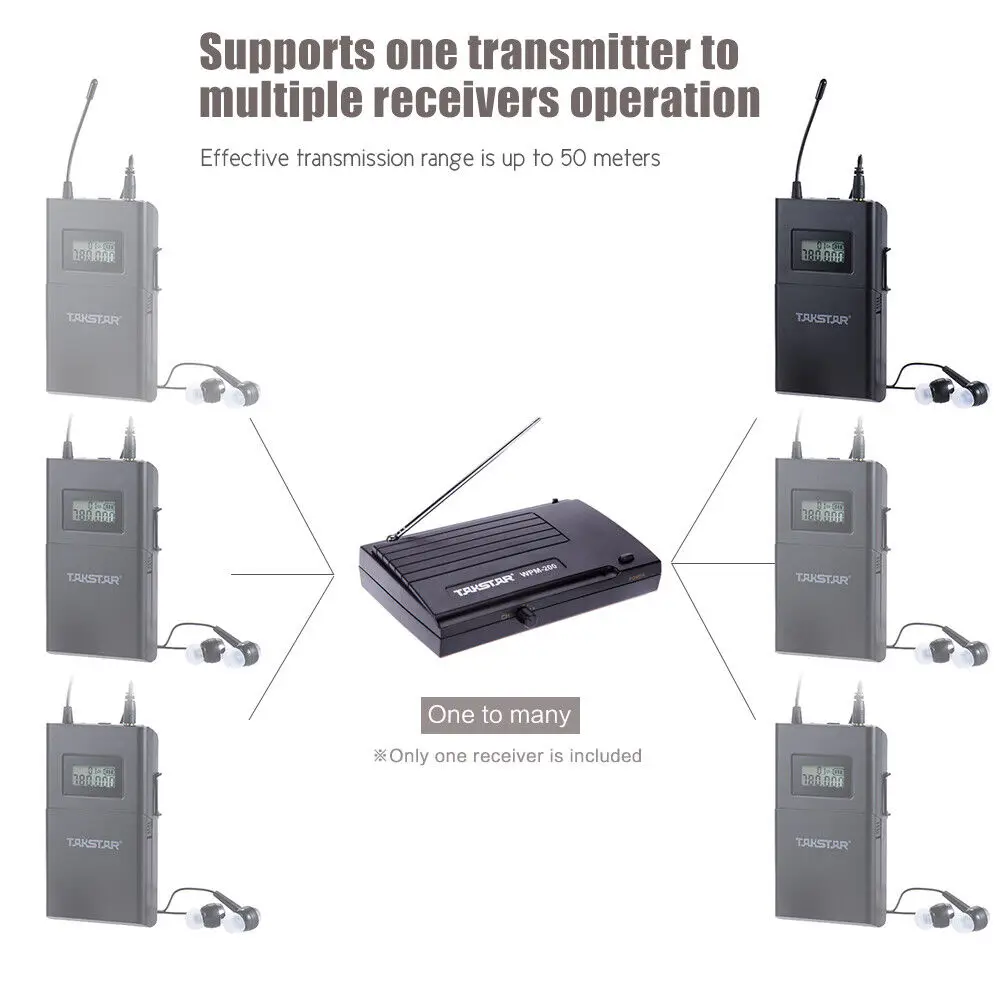

4. Multiple sets of receivers can be operated with a single transmitter within the operating range.

5. Dynamic expansion circuitry for high S/N ratio.
6. Complex anti-interference circuit for using 4-6sets at the same time without mutual interference.

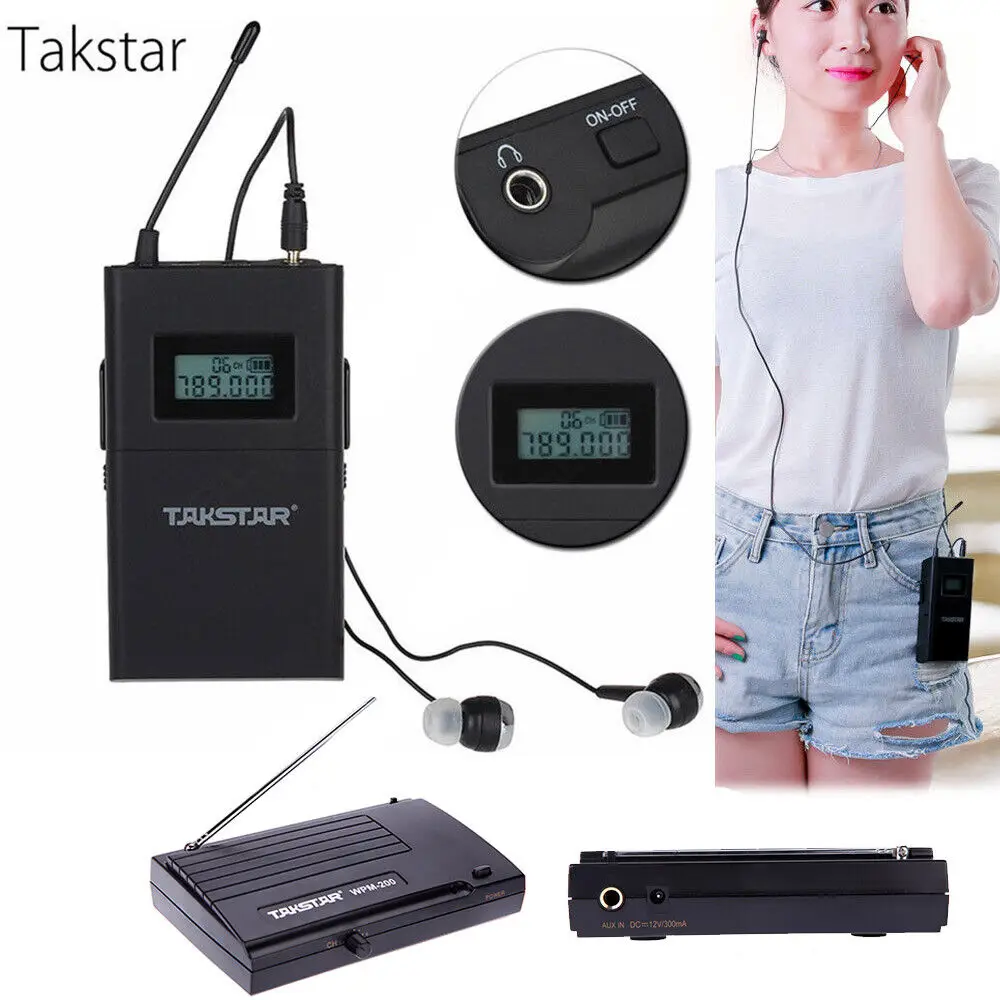

7. Receiver LCD displays frequency, channel and battery level.


Transmitting Frequency: 780-805MHz
Operation Current: 80mA ± 10mA
Power Supply: DC12V/300mA
Operation Range: 50m
Transmitting Power: ≤10dBm
Transmitter Size: 150 × 105 × 35mm
Transmitter Weight: 175g


Receive Working Voltage: DC3V / two AA batteries
Receive Operating Current: 50mA ± 20mA
Frequency Response: 60Hz-18KHz
Signal To Noise Ratio: >50dB (A+)
Receive Sensitivity: 3uV(SINAD>12dB)
Receiving Frequency Range: 780-805MHz
Stereo Resolution: >42dB
Receiver Size: 110 × 62 × 20mm
Receiver Weight: 90g

750+1000.jpgwpm-200 monitor system.jpg_20230131143331.jpg_20230131143248.jpg



Company Information

Established in 1995, Takstar is a leading manufacturer in the electro-acoustic industry. The company devotes itself to providing you with the best possible audio processing solutions.
Our product range has since grown into a diverse array of professional microphones, headphone sets, voice amplifiers and integrated applications. This way, we help the user fulfill their dream of enjoying high-quality entertainment and become their trustworthy partner for innovative technology and top-level products. Being of international reputation and market influence, we combine R&D, design, manufacturing, sales and service on our mission to assure continuous development of the industry.
Takstar’s production base boasts up to 210,000 sq. meters with 2,500 employees, complete processing workshops and highly advanced equipment.


Packaging & Shipping

 Package Contents:
1× Receiver
1× Transmitter
1× Earplugs
1× 3.5mm to 6.3mm Plug
1× 3.5mm to 6.3mm Audio Cable
1× 3.5mm to RCA Connecting Cable
1× User Manual
