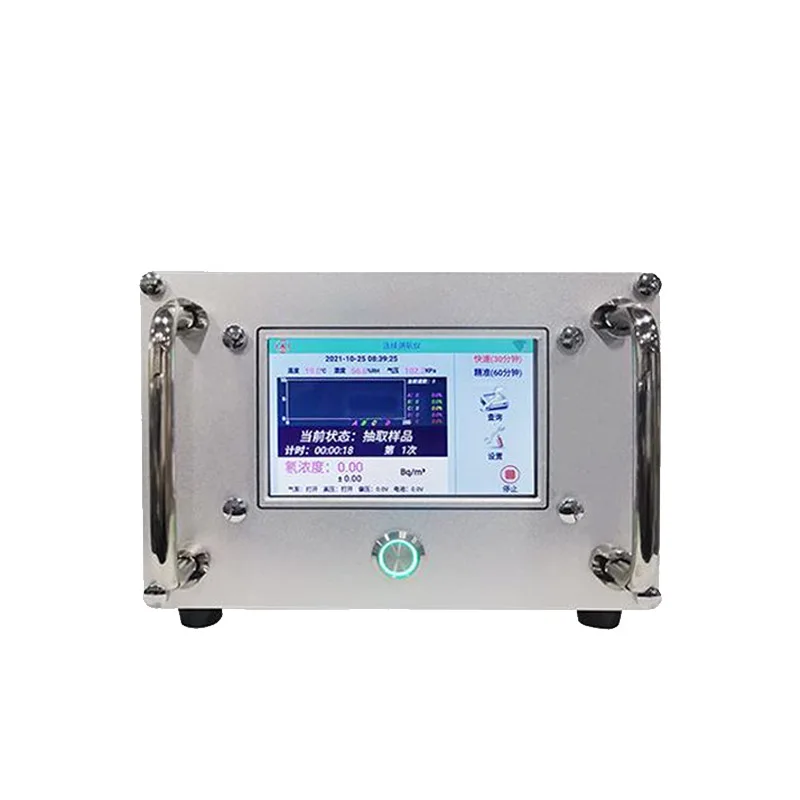

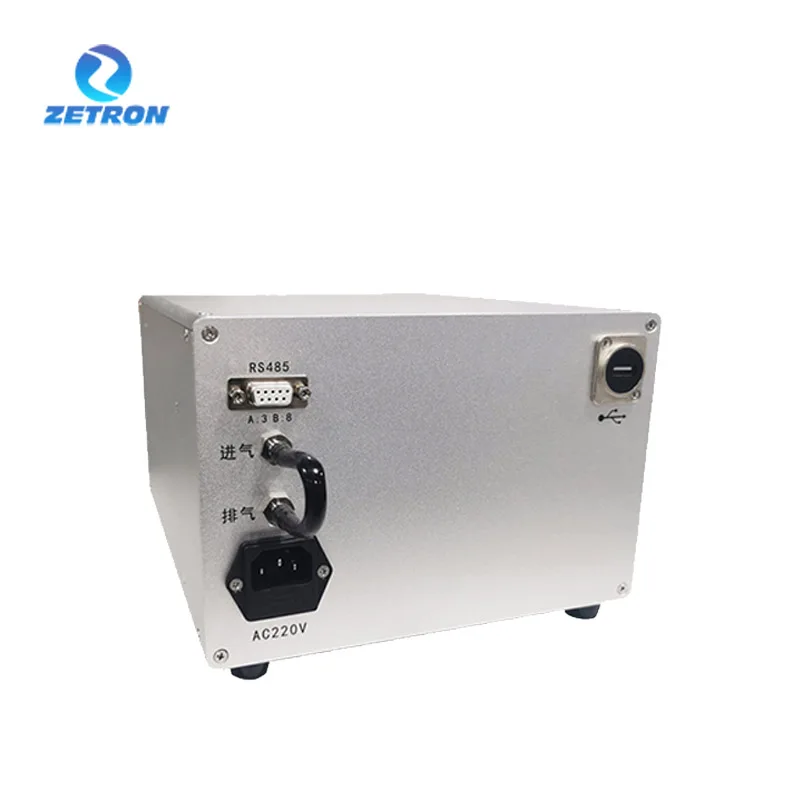

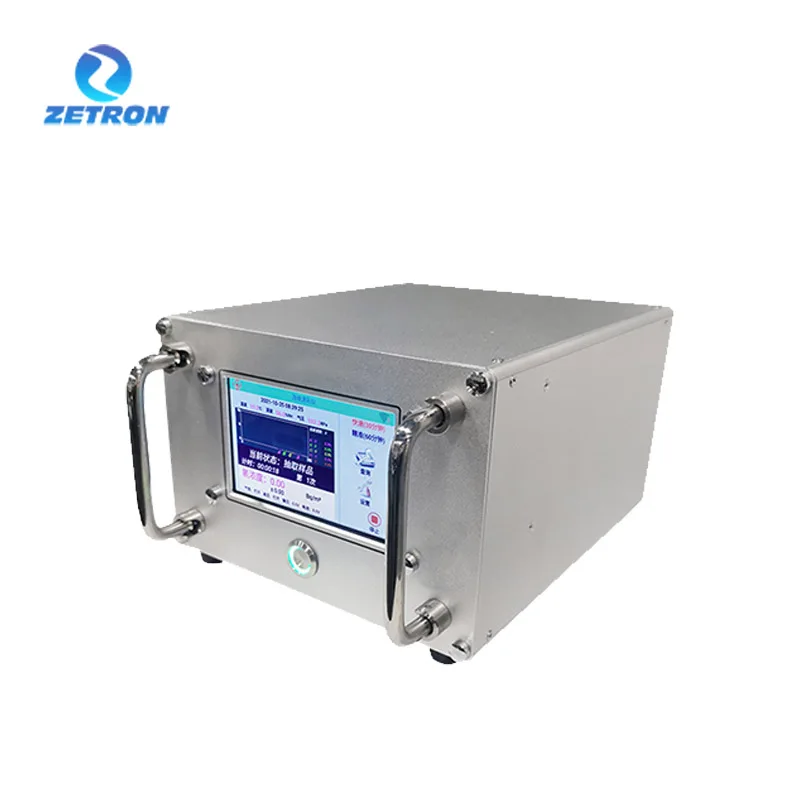

Zetron MIC600 RD Continuous Online Environmental Testing Radon Gas Monitor
- Category: >>>
- Supplier: Beijing Zetron Technology Co. Ltd.
Share on (1600833601975):
Product Overview
Description
overview
Online Radon Gas Detector MIC600-RD
Product Feature
1. Using pump suction electrostatic collection α energy spectrum analysis method.
2. The detector adopts the advanced technology of passivation ion implantation of planar silicon (PIPS),
which has high sensitivity, high signal-to-noise ratio, low leakage current, and durable.
3. Good resolution of α energy spectrum, real-time display of measurement atlas, alpha energy spectrum
supports up to 4096 channels.
4. Based on industrial-grade high-performance CORTEX architecture microcontroller design, using
multi-task software design, high operating efficiency, stable and reliable.
5. Industrial grade 5.0-inch touch screen, resolution 800×480, brightness adjustable.
6. Short measurement period, fast recovery, and quick response to changes in radon concentration.
7. Constant humidity measurement and temperature and humidity compensation measurement for drying
tube are optional.
8.Automatic measurement of temperature, humidity and atmospheric pressure.
9. The instrument can be upgraded remotely or offline, which is convenient for maintenance.
10. Built-in printer, which can print measurement results quickly and in real time.
11. Built-in storage space can store up to 200,000 measurement and energy spectrum data after expansion
12. Low power consumption, built-in lithium-ion battery, support 20h battery life, expandable.
2. The detector adopts the advanced technology of passivation ion implantation of planar silicon (PIPS),
which has high sensitivity, high signal-to-noise ratio, low leakage current, and durable.
3. Good resolution of α energy spectrum, real-time display of measurement atlas, alpha energy spectrum
supports up to 4096 channels.
4. Based on industrial-grade high-performance CORTEX architecture microcontroller design, using
multi-task software design, high operating efficiency, stable and reliable.
5. Industrial grade 5.0-inch touch screen, resolution 800×480, brightness adjustable.
6. Short measurement period, fast recovery, and quick response to changes in radon concentration.
7. Constant humidity measurement and temperature and humidity compensation measurement for drying
tube are optional.
8.Automatic measurement of temperature, humidity and atmospheric pressure.
9. The instrument can be upgraded remotely or offline, which is convenient for maintenance.
10. Built-in printer, which can print measurement results quickly and in real time.
11. Built-in storage space can store up to 200,000 measurement and energy spectrum data after expansion
12. Low power consumption, built-in lithium-ion battery, support 20h battery life, expandable.
Product Paramenters
Detection items Data Display: Color LCD | Rn-222 (Radon) |
Detector: | PIPS semiconductor detector |
Measuring range | Radon in Air : 1~1000000Bq/m³ |
Radon in Soil: 100~1000000Bq/m³ | |
Radon in Water : 0.002~1000.000Bq/L | |
Measurement method | alpha energy spectrum measurement |
Temperature | -10 ~ 50℃, accuracy ±1℃ |
Humidity | relative humidity ≤90%, accuracy ±3%R |
Measurement Combined Uncertainty | ≤20% (when the radon concentration is not less than 200Bq/m³) |
Measurement Time | 15-60min, can be set |
Storage | Flash (data in 1month) |
Communication: | RS485 |
Battery life | 20 hours of continuous operation |
Host size | 280X220X145mm |
Weight | about 10kg |
Application Scenes
Nuclear structure analysis, Nuclear power, Environmental testing, environmental monitoring, Inspection and quarantine, biomedical astrophysics, chemistry, geology, archaeology, metallurgy, material analysis.
