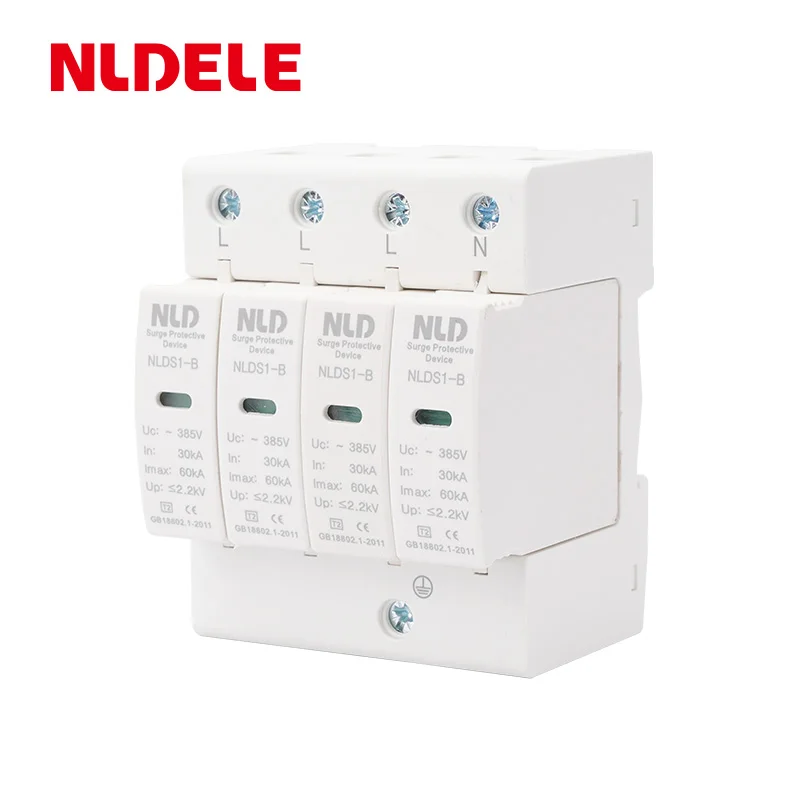

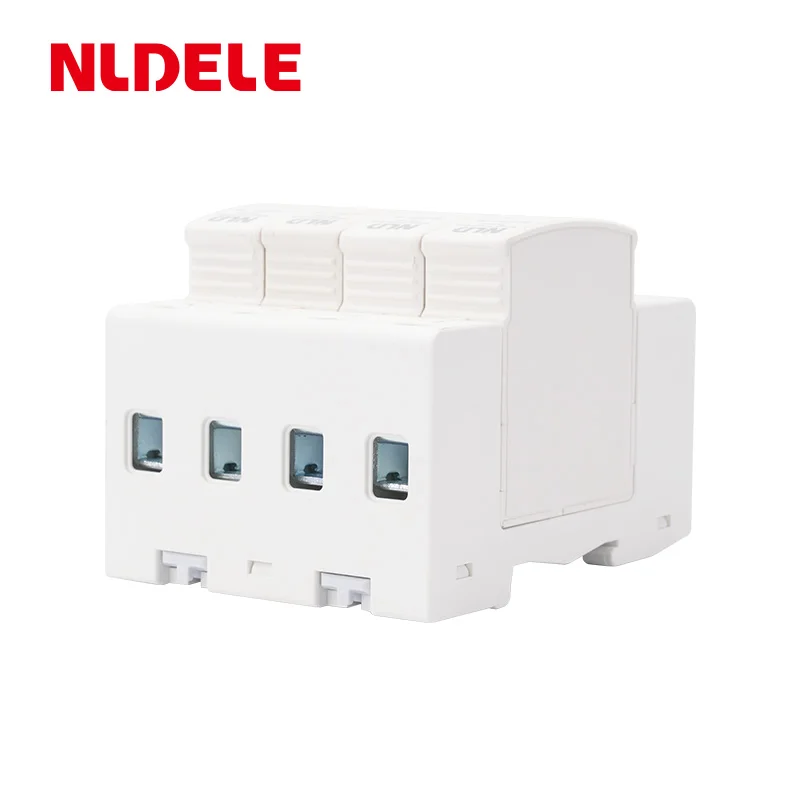

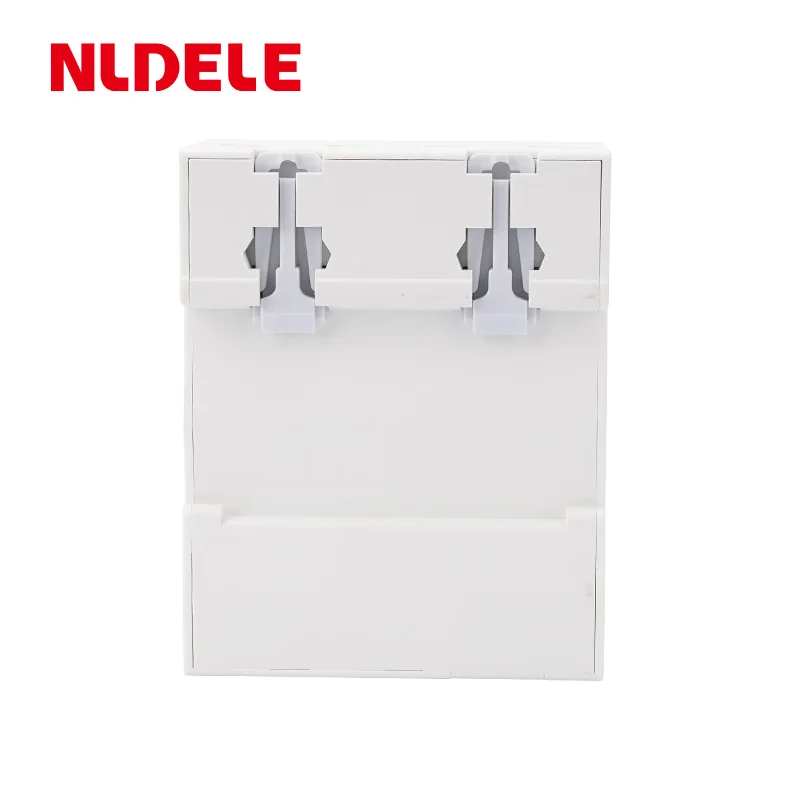

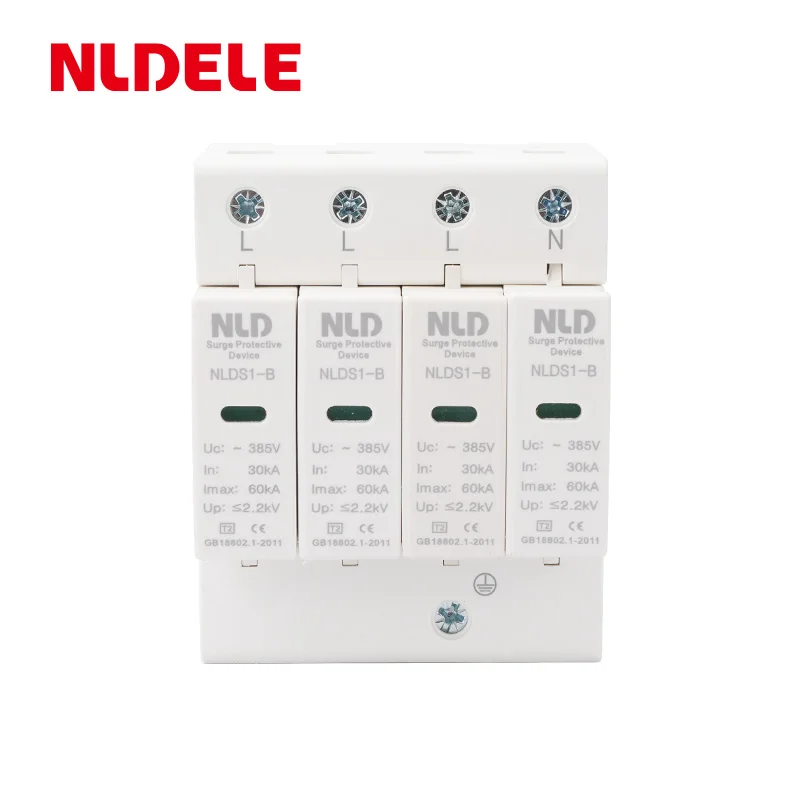

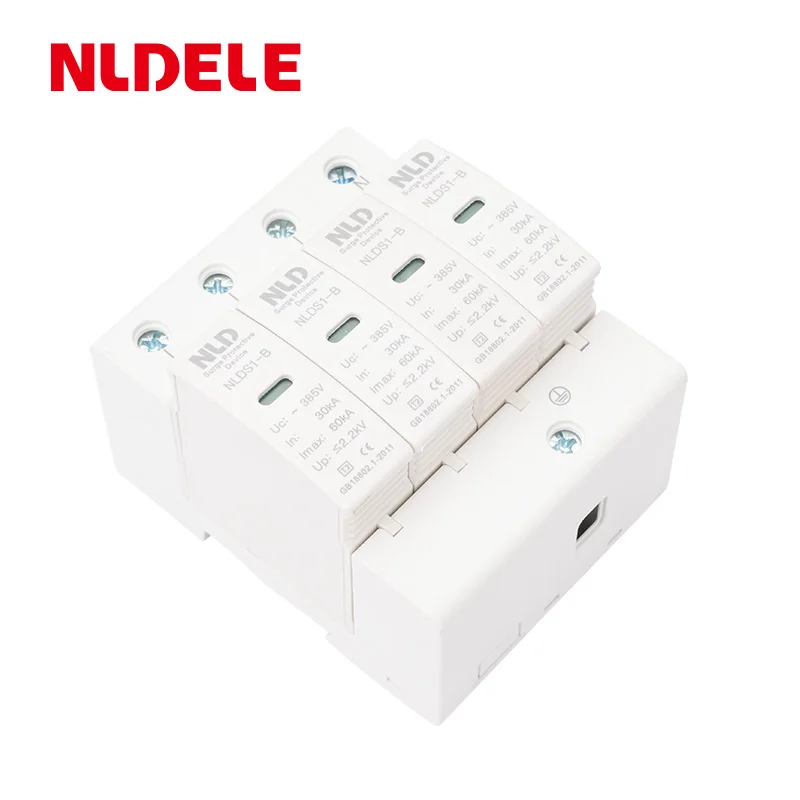

Solar PV AC DC 20kA 4P 1000V surge protector protection arrester surge protector device SPD For House
- Category: >>>
- Supplier: Northland Electric Co. Ltd.
Share on (1600833604773):
Product Overview
Description
Details Images
High Quality Surge Protector 4 Pole SPD 20kA Lightning Protection Solar Surge Protection Device Protector
Products Description
Surge Arrester Application
NLDS1 Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).
These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection.
Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side),
especially if the line routing is external and long.
High energy MOVs equipped with specific thermal disconnectors and related failure indicators.
Surge Arrester Features:
1. Indicator window is obvious (green is OK, red indicates failure)
2. Fully enclosed terminal
3. The shell is made of PC flame retardant material, fire insulation
4. Replaceable module
These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection.
Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side),
especially if the line routing is external and long.
High energy MOVs equipped with specific thermal disconnectors and related failure indicators.
Surge Arrester Features:
1. Indicator window is obvious (green is OK, red indicates failure)
2. Fully enclosed terminal
3. The shell is made of PC flame retardant material, fire insulation
4. Replaceable module
Product Paramenters
Maximum Continuous Operating Voltage | Uc | 275V or 385V |
Nominal Discharge Current(8/20μs) | ln | 20kA |
Maximum Discharge Current(8/20μs) | Imax | 40kA |
Voltage Protection Level | Up | ≤1.5kV |
Response Time | tA | ≤25ns |
Max. backup fuse | 125A gL/Gg | |
TOV Voltage | 355v/5sec | |
Operating Temperature range | -40°to+80° | |
Cross-sectional area | 4mm²-35mm² | |
Mounting on | 35mm DIN rail | |
Enclosure material | UL94-V0 | |
Test standards | IEC 61643-1; GB 18802.1; YD/T 1235.1 |
