best batteries for solar power 5kw 15kw hybrid solar system with solar power energy storage battery 48V 100ah 200ah 24v 400ah
- Category: >>>
- Supplier: Shenzhen CBT Enterprise Co. Ltd.
Share on (1600833654638):
Product Overview
Description
Click To Follow Us ,You Will Get Some Gifts,New Product Information And Live Show Notifications And Our Store Promotion For The
Products Description
LIFEPO4 BATTERY 48V 100ah 200ah 300Ah lithium-ion battery 15kwh 51.2V 300Ah lithium ion batteries.

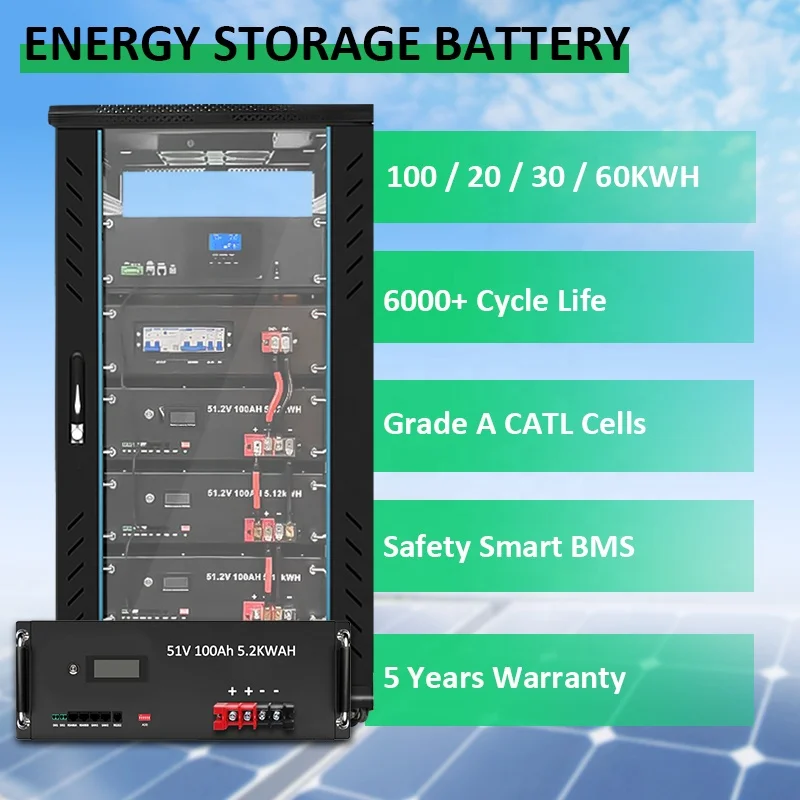

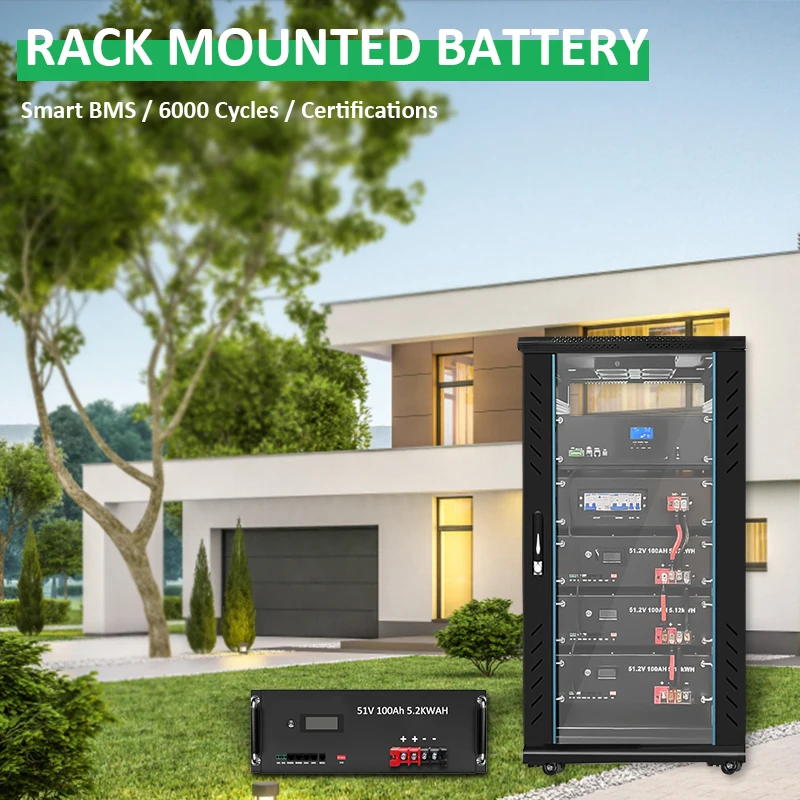

CBTPOWER Solar Power Energy Storage Lifepo4 Battery
Feature
Top brand cells such as CATL/BYD , grade A quality
Cells cycle times 6000 cycles, 5 years warranty, 10-15 years life design

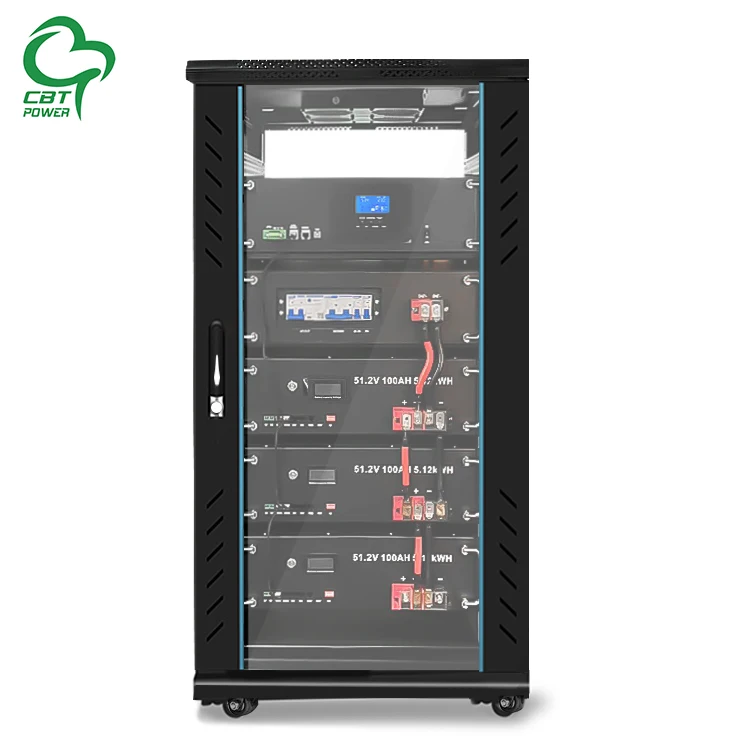

Modular & Stacked Design for easy installation and expansion
High density, small size and weight
Big charge and discharge current, suitable for solar storage system
Smart BMS can communicate with Different Brand of Hybrid Solar Inverter
With maximum 1~5A cell equalizer, can balance all cells in short time.

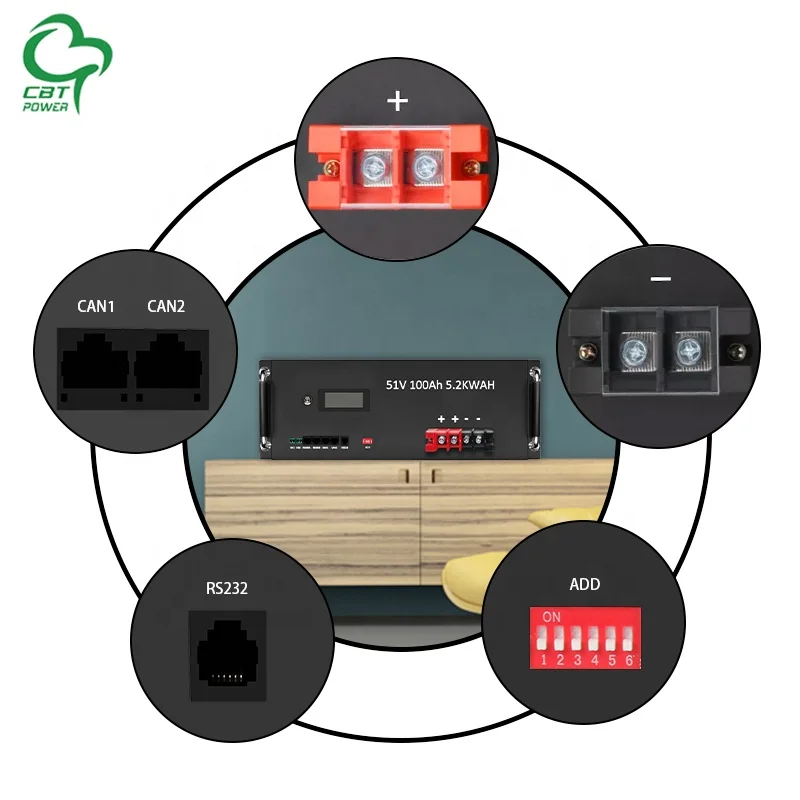

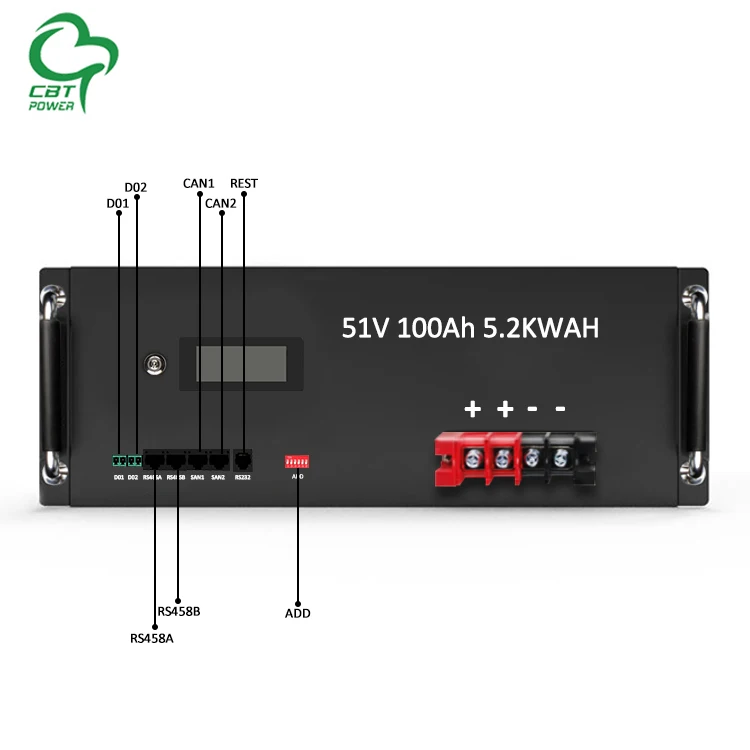

LCD display with communication port(CAN/RS485/RS232) .
All around protection
power system, Medical electronics, Commercial finance,Security communications, Transportation logistics and so on
Cells cycle times 6000 cycles, 5 years warranty, 10-15 years life design
Modular & Stacked Design for easy installation and expansion
High density, small size and weight
Big charge and discharge current, suitable for solar storage system
Smart BMS can communicate with Different Brand of Hybrid Solar Inverter
With maximum 1~5A cell equalizer, can balance all cells in short time.
LCD display with communication port(CAN/RS485/RS232) .
All around protection

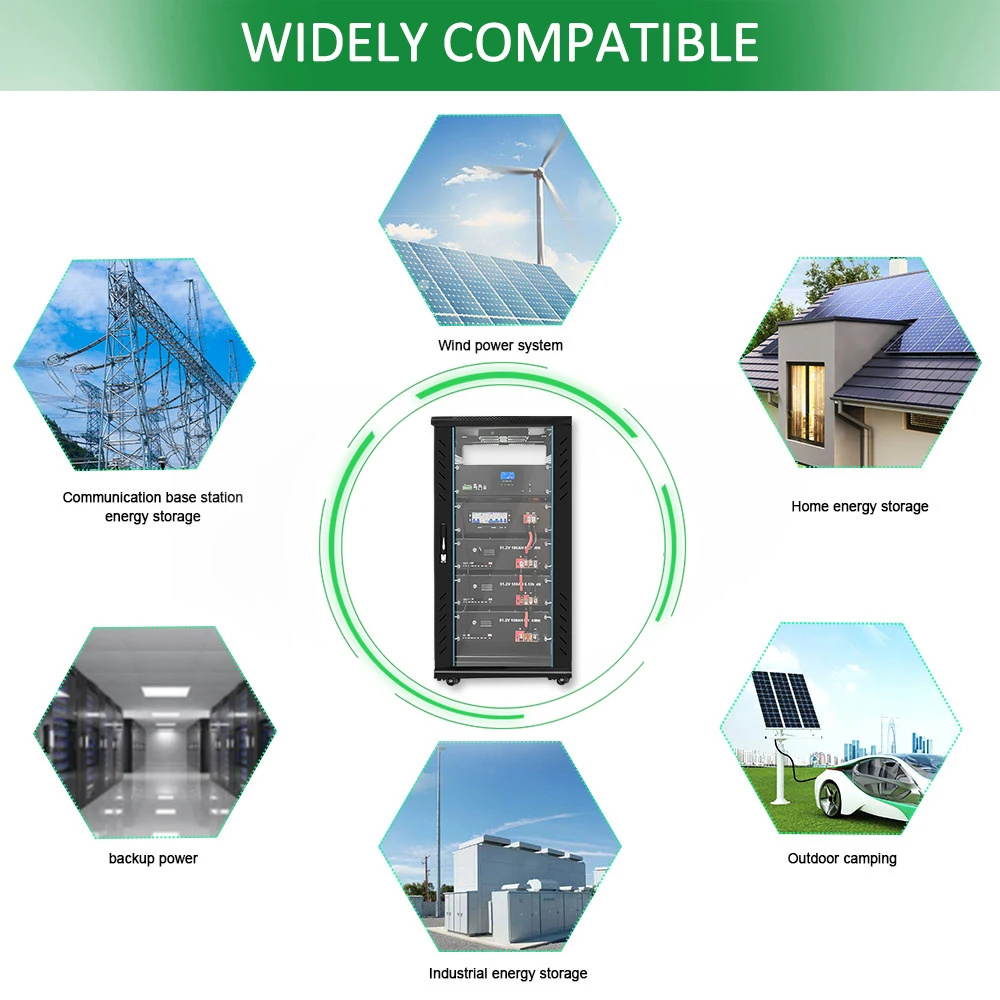

Application
Storage solar system, UPS power bank, Inverter power bank, Railway power bank, Telecommunicationpower system, Medical electronics, Commercial finance,Security communications, Transportation logistics and so on
Service | OEM/ODM |
Warranty | 5Years |

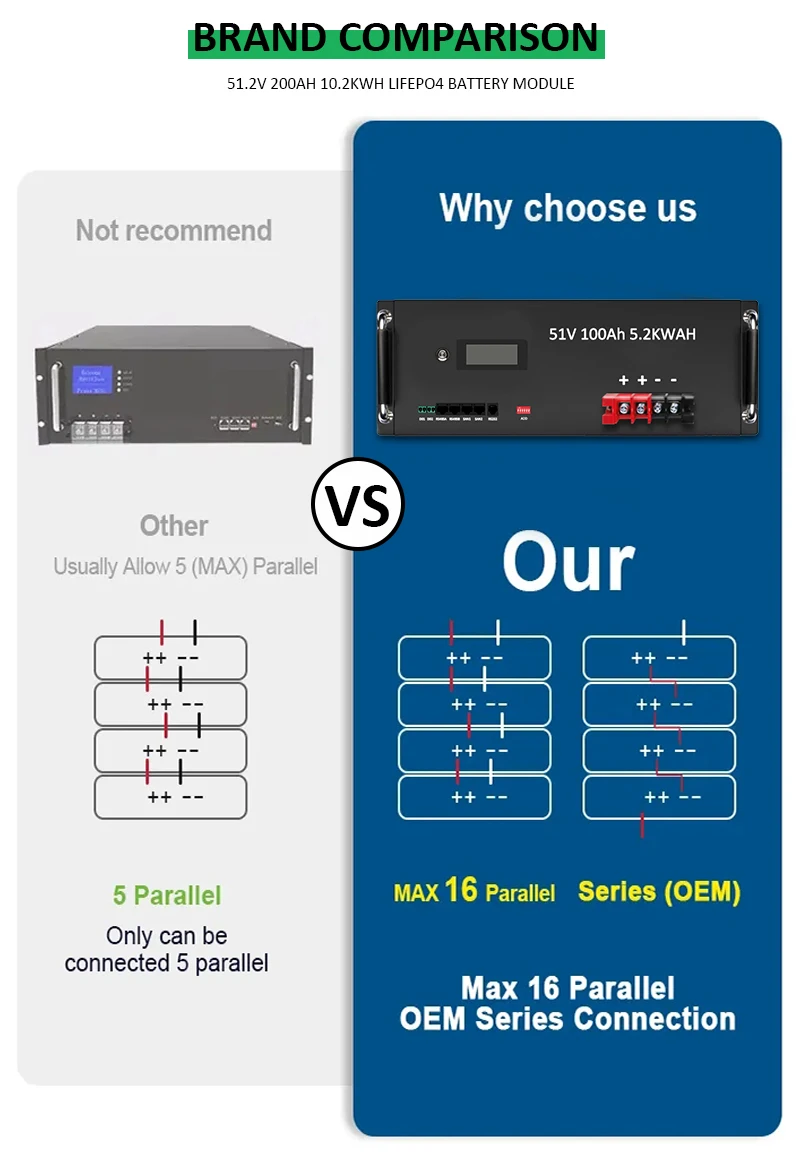

Parallel | Max 32 Parallel |
Cycle Life | 6000+ |
Energy | 15Kwh |
Nominal Voltage | 48V/51.2V |
Maximum Charging Current | 200A (1C) |
Maximum Dicharge Current | 200A (1C) |
Battery Configation | 16S1P |
Built-in BMS | Smart 16S 200A |
Battery Case | Stainless Steel Case |
Components | 16 Cells+BMS+Metal Case |
Certification | MSDS, CE, UN38.3, RoHS, FCC, EMC |
oltage | 48 /51.2V | 48 /51.2V | 48 /51.2V | 48 /51.2V | 48/51.2V | 48 /51.2V | 48/51.2V | ||||||
Capacity | 50Ah | 100Ah | 150Ah | 200Ah | 230Ah | 280Ah | 300Ah | ||||||
Energy | 2.4kWh/2.56kWh | 4.8kWh/51.2kWh | 7.2kWh/7.68kWh | 9.6kWh/10.24kWh | 11.04kWh/11.77Wh | 13.44kWh/14.336Wh | 14.4kWh/15.36kWh | ||||||
Cut off discharge Voltage | 42V/45V | ||||||||||||
Max.charging and discharging current | 50A/75A | 50A/100A | 100A/150A | 150A/200A | 150A/200A | 150A/200A | 150A/200A | ||||||
Resistance | ≤10mΩ | ||||||||||||
Life time(25°C) | 10 years | 10 years | |||||||||||
Life cycles(80% DOD, 25°C) | 6000 Cycles | ||||||||||||
Short Circuit Protection Time | 200us | ||||||||||||

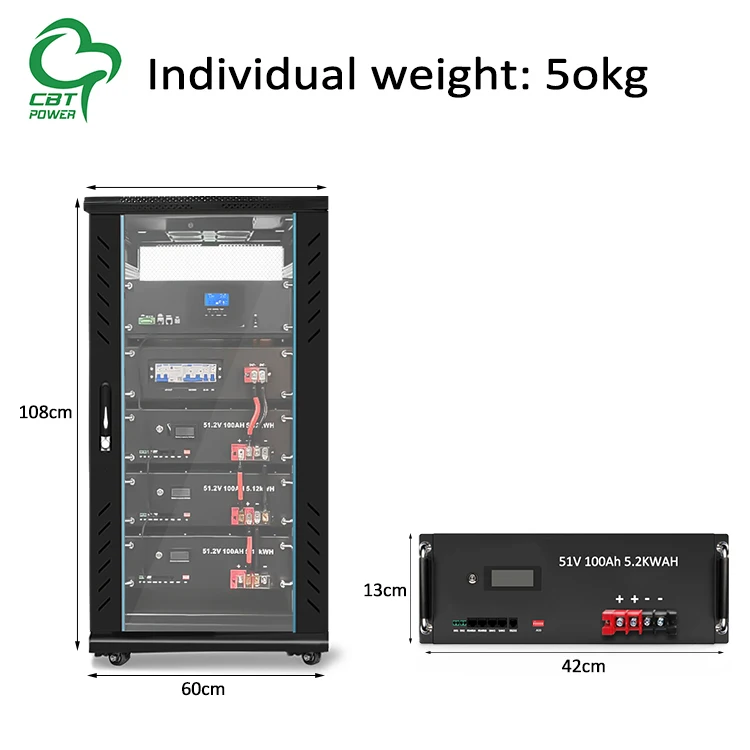

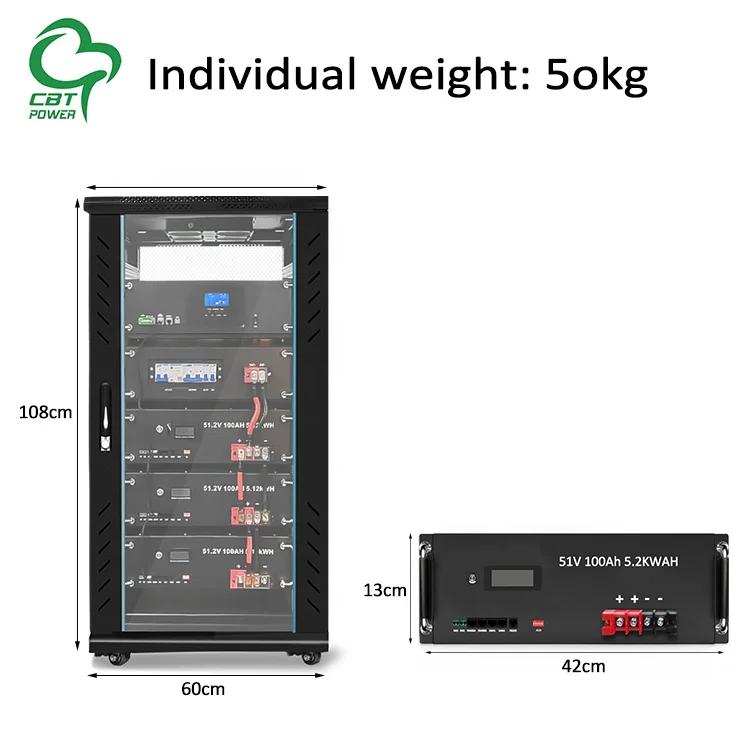

Dimensions(L×W×H)mm | 483*450*133mm | 570*410*160mm | 483*750*133mm | 600*530*279mm | 482*400*177 | 483*750*240mm/ | 483*750*240mm | ||||||
Weight | 26kg/27kg | 50Kg/52Kg | 59KG/61KG | 80KG/87KG | 85KG/89KG | 106KG/115KG | 111KG/115KG | ||||||
Communication | R232+R485+CAN | UL,IEC, UN38.3, ROHS,CE | |||||||||||
Communication Terminal | Inverter/Blue tooth | ||||||||||||
Charge Temperature | 0°C -55°C | ||||||||||||
Discharge Temperature | -20°C -60°C | ||||||||||||
Precautions
* No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging
should be stopped.
* Please check the orientation of the positive and negative terminals before packaging.
* Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuit.
* When not in use for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50% SOC, charge and discharge
once every 3 months).
* Do not place the battery in direct sunlight or a heat source.
* Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.
Prohibited matters
Do not charge beyond the maximum charging rate.
Do not disassemble or modify the battery.
Do not throw or hit the battery.
Do not pierce the battery with sharp objects (such as nails, knives, pens, electric drills).
Do not mix with other types of batteries or modular units.
Do not excessively squeeze the battery during use.
Do not place the battery in a high temperature greater than 60°C.
Do not use conductive materials to connect the positive and negative terminals (such as metals, wires).
Very Important! About delivery and transportation Time&Please note:
1,The battery (especially the high-power battery you purchased) is a special commodity, the terms of transportation are very
strict, all logistics companies in China, including China Post, UPS, FedEx, DHL, are unable to directly transport electricity
Pool,
2,So we have shipped your order. Once the battery arrives in Europe or the US, we will declare the import at European or US
customs. When the battery goes through European or US customs, we will ship it to you via UPS or FedEx. So the UPS number we
provide will not be updated until the battery is over. This is a normal phenomenon.Secondly, we will help you solve the customs
clearance problem.
3,Delivery takes 30-45 working days. Generally, 35-45 working days later, the package will arrive at the transfer station. After
the customs clearance is completed, the package will be picked up and delivered, and the logistics information will be updated.
Once the shipping number is updated, you can receive the goods within 3-5 days at most.
If we can't find the updated information after delivery, and the transportation time is still within the time we promised, please
don't bring up a dispute
* No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging
should be stopped.
* Please check the orientation of the positive and negative terminals before packaging.
* Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuit.
* When not in use for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50% SOC, charge and discharge
once every 3 months).
* Do not place the battery in direct sunlight or a heat source.
* Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.
Prohibited matters
Do not charge beyond the maximum charging rate.
Do not disassemble or modify the battery.
Do not throw or hit the battery.
Do not pierce the battery with sharp objects (such as nails, knives, pens, electric drills).
Do not mix with other types of batteries or modular units.
Do not excessively squeeze the battery during use.
Do not place the battery in a high temperature greater than 60°C.
Do not use conductive materials to connect the positive and negative terminals (such as metals, wires).
Very Important! About delivery and transportation Time&Please note:
1,The battery (especially the high-power battery you purchased) is a special commodity, the terms of transportation are very
strict, all logistics companies in China, including China Post, UPS, FedEx, DHL, are unable to directly transport electricity
Pool,
2,So we have shipped your order. Once the battery arrives in Europe or the US, we will declare the import at European or US
customs. When the battery goes through European or US customs, we will ship it to you via UPS or FedEx. So the UPS number we
provide will not be updated until the battery is over. This is a normal phenomenon.Secondly, we will help you solve the customs
clearance problem.
3,Delivery takes 30-45 working days. Generally, 35-45 working days later, the package will arrive at the transfer station. After
the customs clearance is completed, the package will be picked up and delivered, and the logistics information will be updated.
Once the shipping number is updated, you can receive the goods within 3-5 days at most.
If we can't find the updated information after delivery, and the transportation time is still within the time we promised, please
don't bring up a dispute
Recommend Products
Company Profile
Established in 2004, Shenzhen CBT Enterprise Co. Ltd is a one-stop-power solution manufacturer in Shenzhen,
China. CBT researches and produces all kinds of batteries, chargers and adapters for power storage and solar
battery system, power tool, E-bike, electric wheelchair, laptop and Notebook. CBT locates in Shenzhen and Jiangsu China,Shenzhen
office more than 2000m³,Jiangsu factory covers an area of 55000m³.
Creative, Belief, Technology is our mission. CBT keeps focus on advanced and latest technology in battery field.
Panasonic-Sanyo, Samsung-SDI are all our main partners in our supply system. We mostly use Toshiba, TI,
Fairchild, Maxim, Seiko for PCBA design. Fully ISO9001：2015 certified by SGS, CBT has set up complete quality
control system to make quality product, timely shipment and customer satisfactions. Our R&D team with 30 engineers
ensures high efficiency and quality development. CBT has own Molding Dept. and Injection Dept. to make sure
high quality hardware. The monthly capacity is over 500,000 articles by equipped production line and skilled workers.
Europe, North America are our main market. Besides these, we also accept OEM and ODM battery and charger
for all kinds of industrial and consumer devices.
China. CBT researches and produces all kinds of batteries, chargers and adapters for power storage and solar
battery system, power tool, E-bike, electric wheelchair, laptop and Notebook. CBT locates in Shenzhen and Jiangsu China,Shenzhen
office more than 2000m³,Jiangsu factory covers an area of 55000m³.
Creative, Belief, Technology is our mission. CBT keeps focus on advanced and latest technology in battery field.
Panasonic-Sanyo, Samsung-SDI are all our main partners in our supply system. We mostly use Toshiba, TI,
Fairchild, Maxim, Seiko for PCBA design. Fully ISO9001：2015 certified by SGS, CBT has set up complete quality
control system to make quality product, timely shipment and customer satisfactions. Our R&D team with 30 engineers
ensures high efficiency and quality development. CBT has own Molding Dept. and Injection Dept. to make sure
high quality hardware. The monthly capacity is over 500,000 articles by equipped production line and skilled workers.
Europe, North America are our main market. Besides these, we also accept OEM and ODM battery and charger
for all kinds of industrial and consumer devices.
Certifications
FAQ
Q. Are you factory?
A. Yes, we are a factory.
Q. What t's the minimum quantity?
A. No MOQ request,we are accept order with any quantity.
Q. What Certifications do you have?
A. We have CE, RoHS, MSDS, FCC, SGS certifications.
Q. Are your products safe?
A. Our products are environmentally friendly and designed as anti-explosive, anti-leakage, anti-scald and anti-short circuit.
Q. What are your terms of delivery?
A. We offer EXW, FOB and CIF.
Q. How do you deliver your products?
A. We work with DHL, UPS, FEDEX, TNT. We suggest to deliver samples and small quantity orders via DHL, UPS, FEDEX, TNT and big
quantity orders via shipping by the sea.
Q. Do you make custom products?
A. Yes, we offer OEM/ODM solutions for our customers.
Q. How long does it take for the production?
A. Around 10-25 days.
A. Yes, we are a factory.
Q. What t's the minimum quantity?
A. No MOQ request,we are accept order with any quantity.
Q. What Certifications do you have?
A. We have CE, RoHS, MSDS, FCC, SGS certifications.
Q. Are your products safe?
A. Our products are environmentally friendly and designed as anti-explosive, anti-leakage, anti-scald and anti-short circuit.
Q. What are your terms of delivery?
A. We offer EXW, FOB and CIF.
Q. How do you deliver your products?
A. We work with DHL, UPS, FEDEX, TNT. We suggest to deliver samples and small quantity orders via DHL, UPS, FEDEX, TNT and big
quantity orders via shipping by the sea.
Q. Do you make custom products?
A. Yes, we offer OEM/ODM solutions for our customers.
Q. How long does it take for the production?
A. Around 10-25 days.
