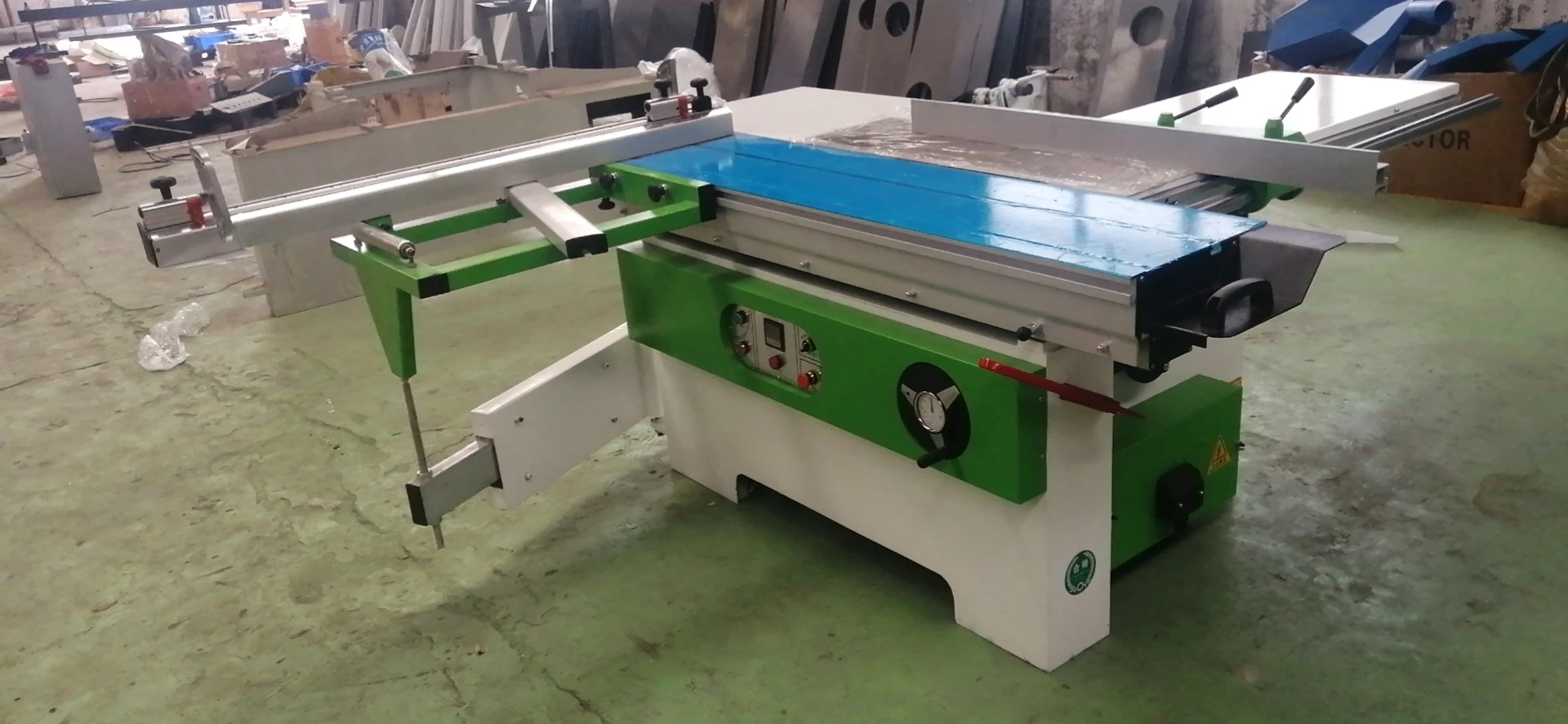

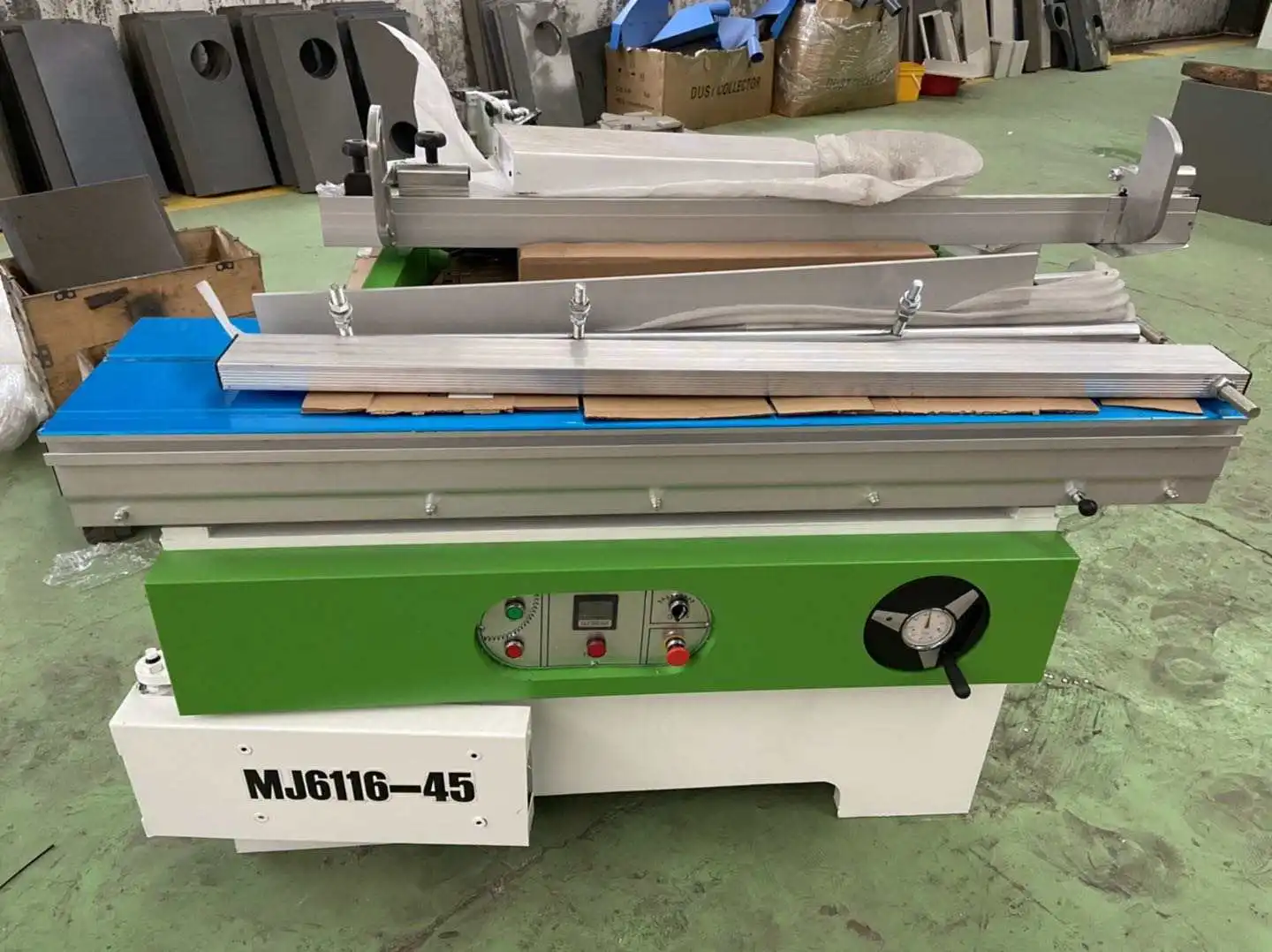

1.6m Sliding Table Saw Machine Cutting Plug in board
1.6m Sliding Table Saw Machine Cutting Plug-in board
1.6m Sliding Table Saw Machine Cutting Plug-in board
1.6m Sliding Table Saw Machine Cutting Plug-in board
1.6m Sliding Table Saw Machine Cutting Plug-in board
1.6m Sliding Table Saw Machine Cutting Plug-in board
1.6m Sliding Table Saw Machine Cutting Plug-in board

1.6m Sliding Table Saw Machine Cutting Plug in board

Share on (1600833683209):


Price:$1,600.00 - $1,800.00

Quantity:


Product Overview

Description



Product Description

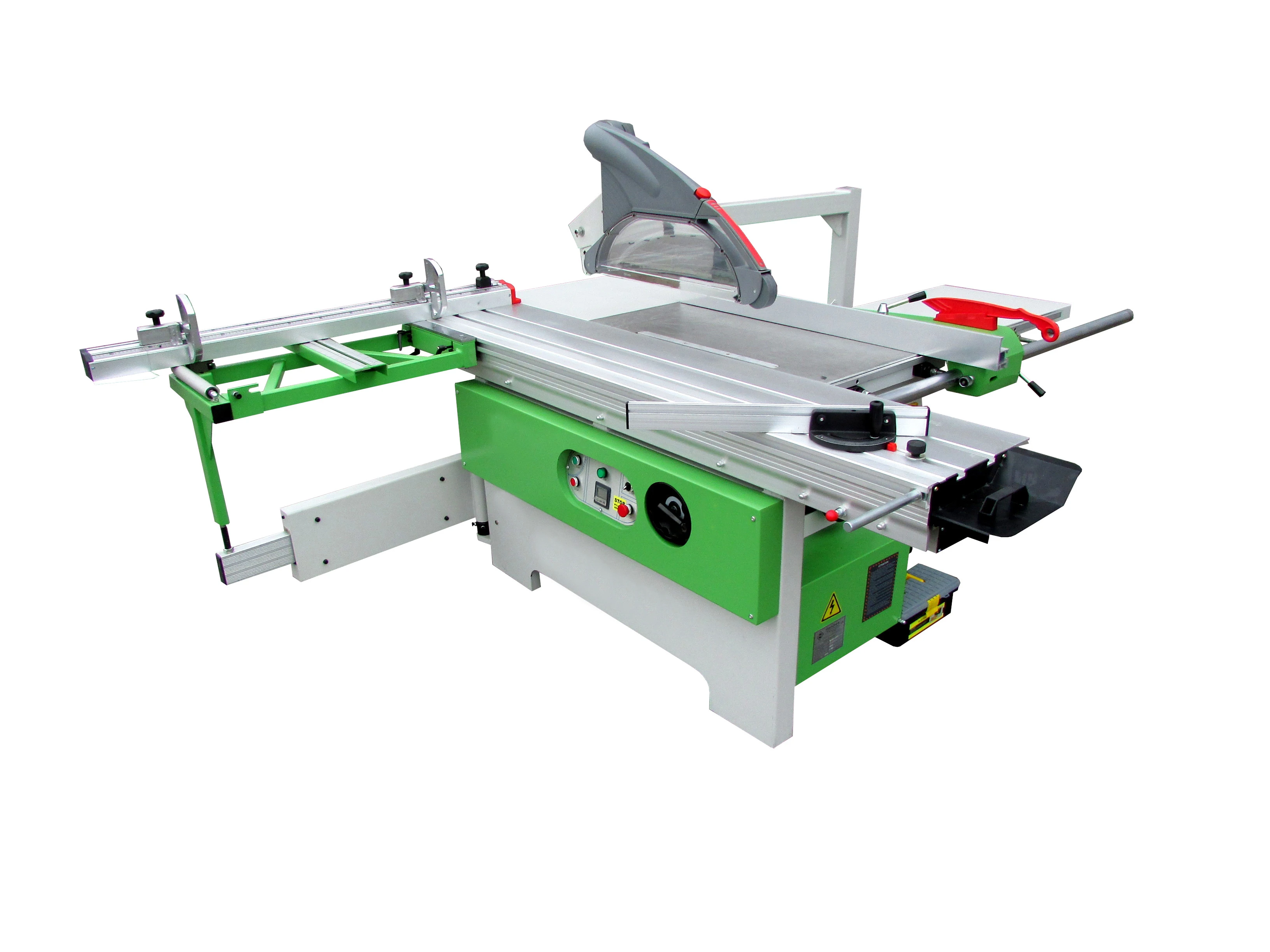

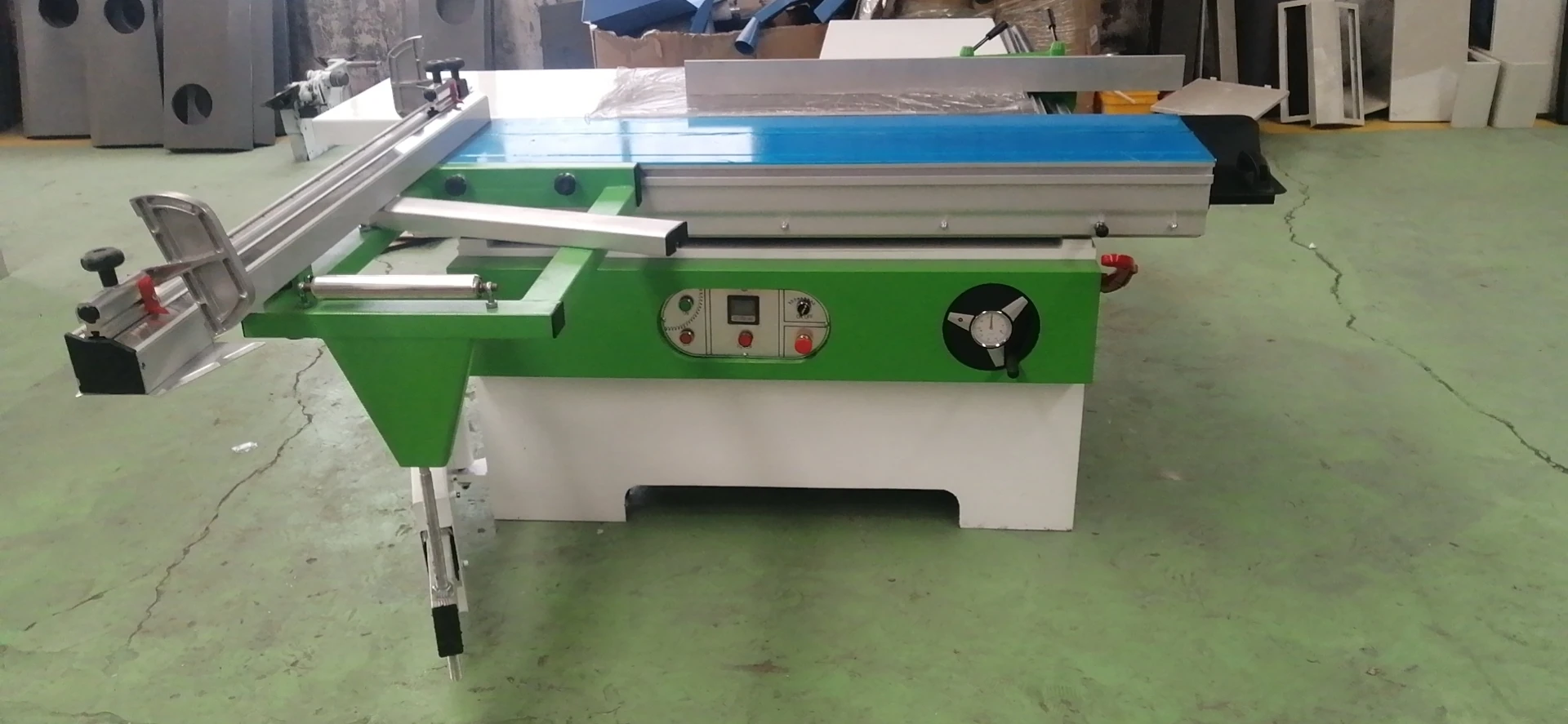

1.6m Sliding Table Saw Machine Cutting Plug-in board




Specification


Content
Value
Table Size
1600*375mm(optional)
Main Blade Diameter
300*30mm
Scoring Blade Diameter
120*20mm
Rip Cut Capacity
1300mm
Cross Cut Capacity
1600mm
Max. Cutting Depth
80mm@90°, 57mm@45°
Saw Body Length
2000mm
Main Blade Speed
4000/6000rpm
Scoring Blade Speed
8500rpm
Motor Power
4kw
Net Weight
500kgs

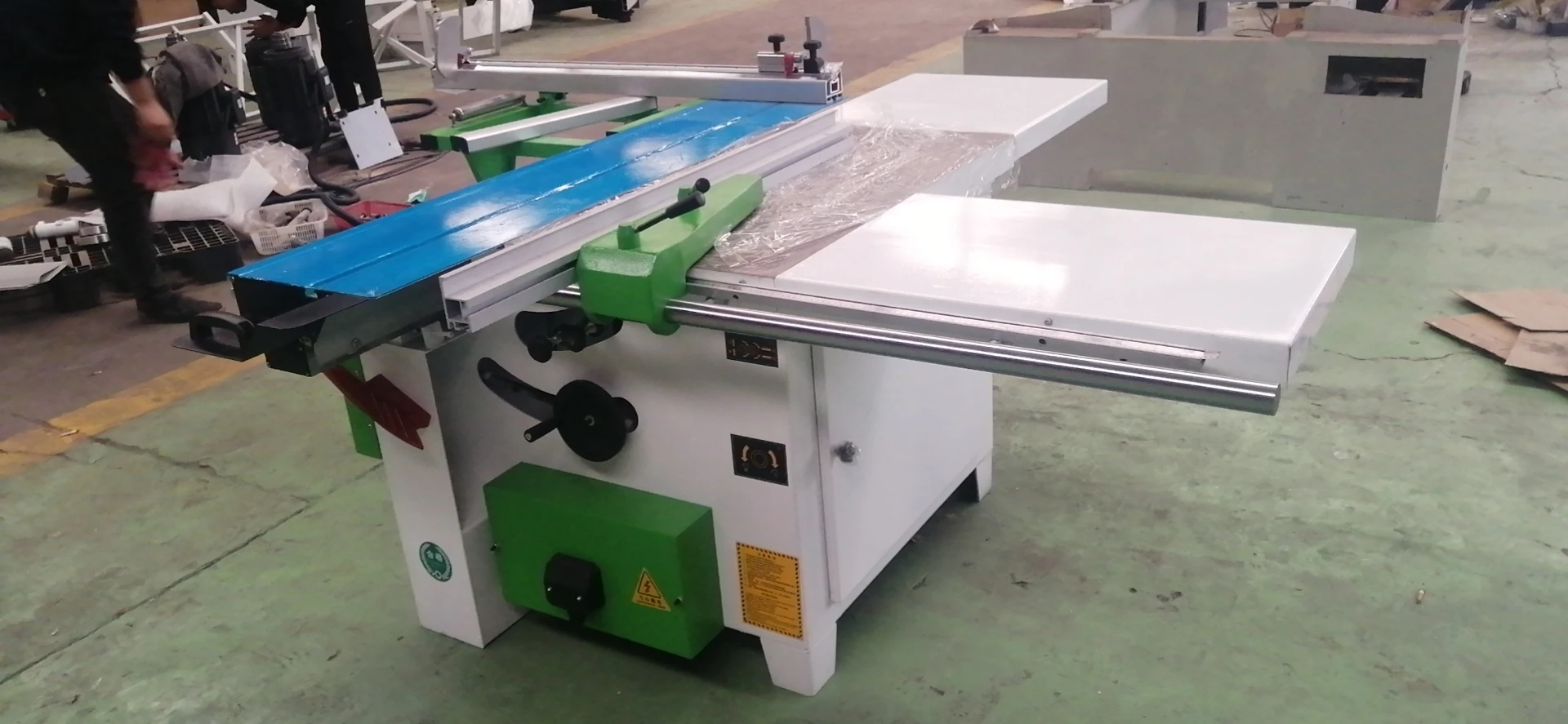

Details Images

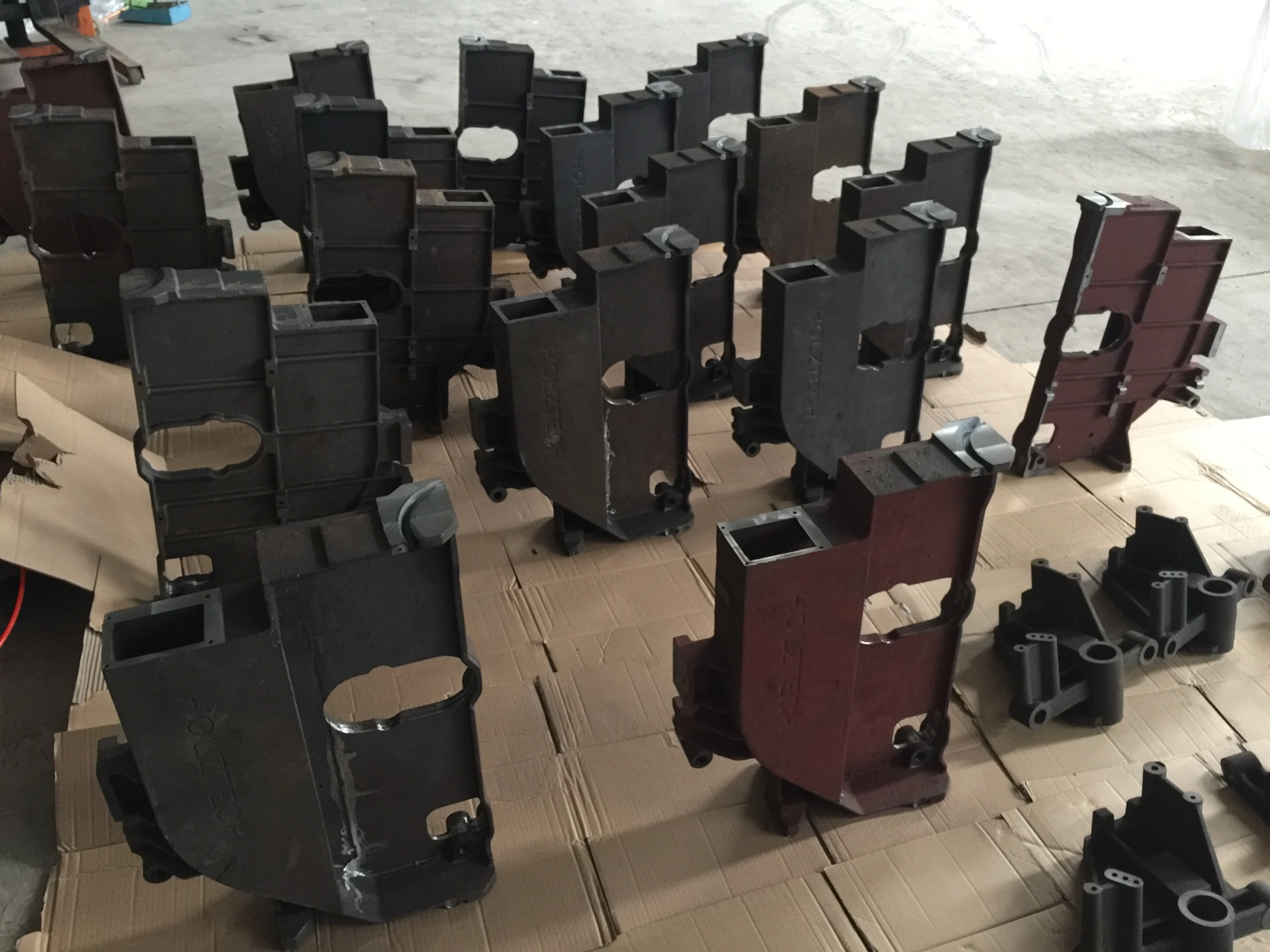

Cast Parts with Our Logo HOLZTECH






Parts with Good Quality


SKF bearings
Altendorf carriage with double layers
Copper wire motor with standard power 5.5kw and 1.1kw


Chrome-plating treatment on all steel parts to avoid rust
Special riving knife which can move together with the saw blade
Multi groove belt pulleys instead of V-belt pulleys, to run smoothly with low noise.


Pulleys after correcting to reduce running vibration.
Microcomputer Measuring System to correct the pulley accuracy less than 0.3 g.mm/kg.
Electrostatic powder spraying to improve coating corrosion resistant capacity higher and smoother.

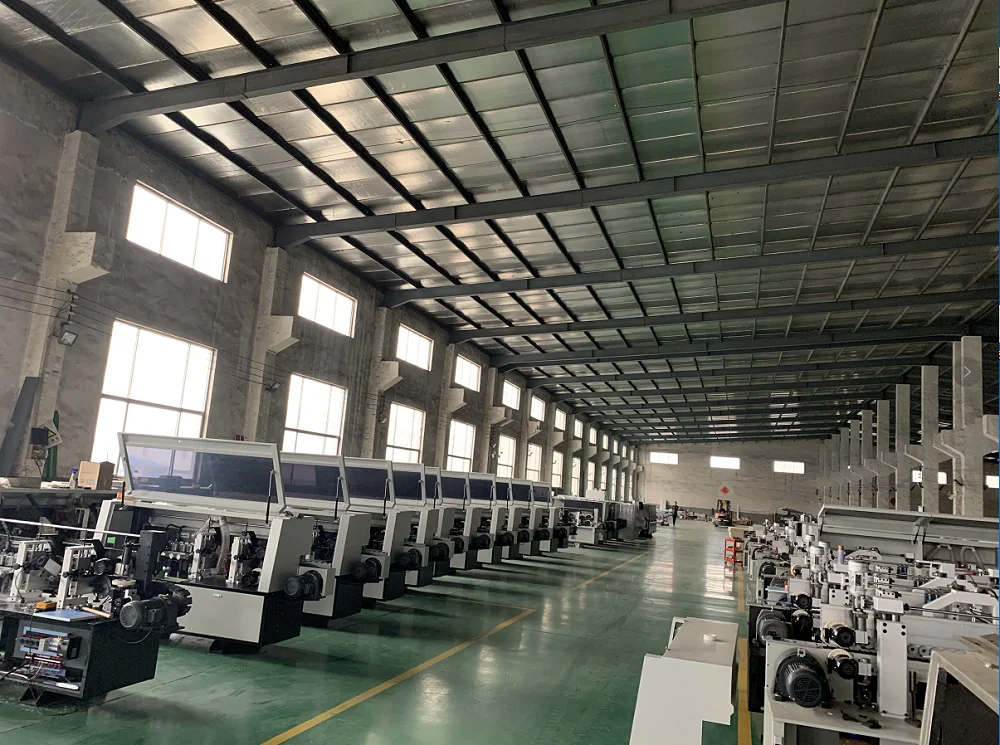

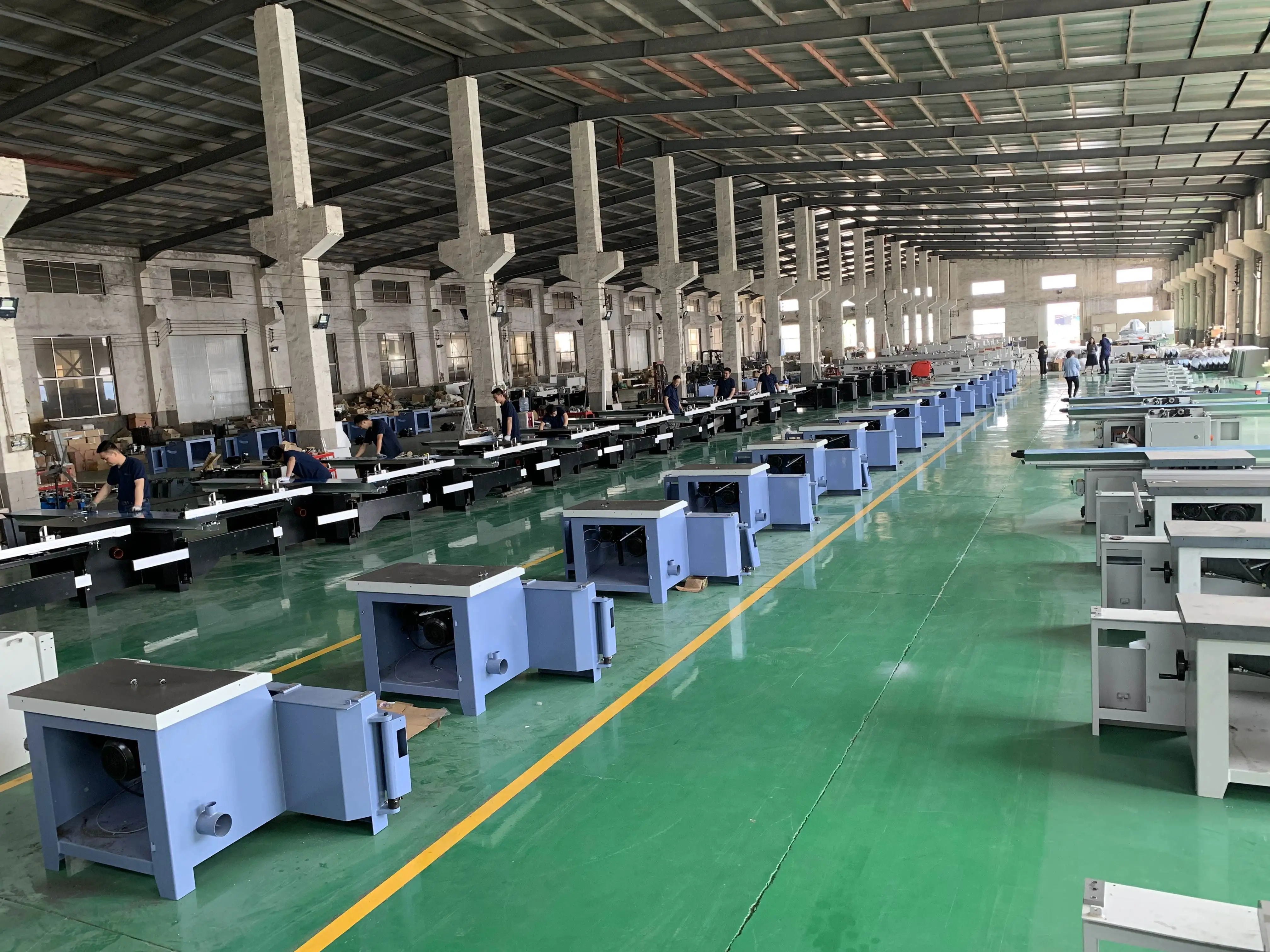

Assembly Room






Packing & Delivery
