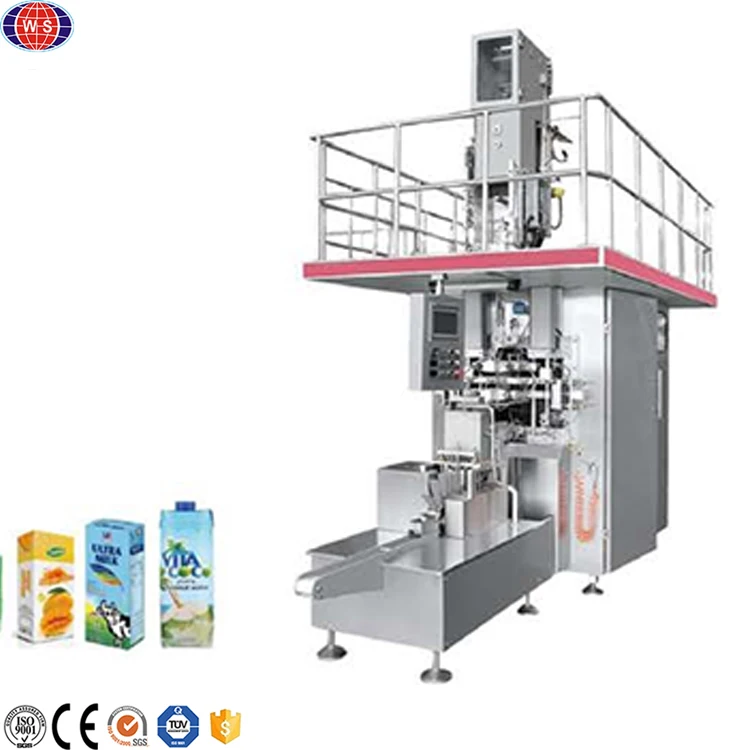

Juice Liquid Filling Machine Automatic Milk Juice Water Aseptic Brick Carton Filling Packaging Machine is applicable for aseptic packing of liquid milk and non-soda drink, fruit juice, coffee, plant protein drink, tea beverage, fruit wine etc, gravity flow type liquid food that have been carried out after UHT sterilization, the whole machine is made of stainless steel. All the core parts are made of world first class brand products, it can automatically complete the paper feeding, sterilizing, filling and forming. The packing form is paper and aluminum laminated brick shape.


Name
Aseptic filling machine
Model
GC-Z-V5-6000 (100S)
Filling material:
Liquid food, such as milk, yogurt, juice, soymilk and tea beverage and etc.
PH: 2.5~8.0
Viscosity: below 3500mPa.s
Capacity:
7500 packs/hour
Filling volume:
100S: 100ml ±1.5%
Outline dimension:
5195mm (L)*3206mm(W)*3722mm(H)
Entrance dimension:
2200mm(W)*3500mm(H)
Weight:
5000kg
Power supply:
380V±10% (3φ) 50Hz
Electricity consumption:
Total power: 35kw
Pre-heating: 20kw, sterilizing: 24kw, producing: 26kw, cleaning: 2.2kw
Air consumption:
1200±100L/min (0.6~0.7Mpa), after drying and water and oil free air should be used
Connection format and caliber: screw thread caliber 1/2, tube with 1/4 inch interface
Softened water consumption:
15L/min (0.3~0.45Mpa, below 20℃), high quality water with hardness lower than 17 （density: 170ppm）and chloride density lower than
30ppm
Connection format and caliber: screw thread caliber 1/2, tube with 1/4 inch interface
Steam consumption:
2.5kg/h (130±5℃, 0.17±0.03Mpa), steam should be filtered by device and conformed to the food grade
Connection format and caliber: G1/2 screw thread connection
H2O2 consumption:
0.6~1.0L/H (Density: 30~50%), food grade
Lubrication oil consumption:
0.015L/H
Operating system:
Human-company interface
Printing device:
Without
Discharging conveyor belt:
Teeth chain
Temperature of filling material:
15~25℃
Connection format and caliber:
Side of material input: 2s SMS standard thread
Side of material output: 2s SMS standard thread
Filling pressure:
50~150±10KPa (mechanical pontoon), 50~350±100Kpa (flow rate adjusting valve)
Shape of container:
Brick
Format of container:
100S：
86mm(H)*32mm(W)*47mm(L)
Type of packaging
Roll paper
Width: 100S：162 mm
Environment temperature:
19.4~25℃
Pressure of filling room:
＞1.3mmAg


Product Display








Company Profile










Our Certification






Packaging And Shipping






FAQ




Are you a manufacturer or a trading company?
A: We are manufacturer
Where is your factory in shanghai?
A:We are in fengxian district,shanghai
Do you do part of the equipment or the whole project?
A: We specialize in turnkey engineering of the whole production line
Do you provide drawings and plant design?
A:Yes, of course.
Do you have an installation team?
A:We have a professional installation team abroad
How long is the equipment warranty period?
A:Usually a year
Can you provide product certificates?
A: Sure
