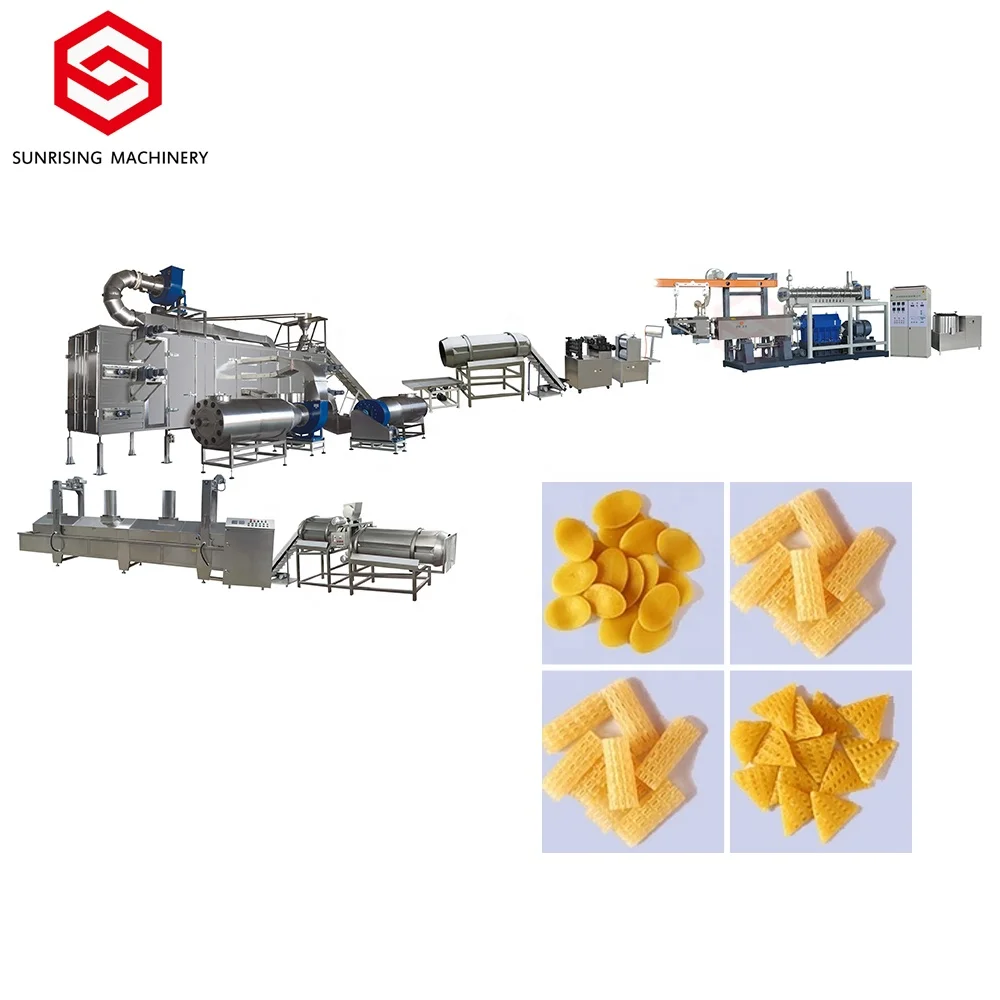

2D 3D Snack Pellets/ Panipuri Golgappa/fryums Making Machine
- Category: >>>
- Supplier: Jinan Sunrising Machinery Co. Ltd.
Share on (1600833713269):
Product Overview
Description
Products Description
Name | Fully automatic extruder Indian 2d 3d snack food pellet pani puri making machine |
Raw Material | wheat flour, potato starch, potato flour, corn starch, cassava starch, etc |
Products | Produce 3D pellet, waved chips, potato chips, shrimp chips and so on. |
Energy | Electricity gas fuel |
Machine Material | Stainless steel 201 304 or according to customer's request |
Feature | Easy to operate and maintain,Perfect after-sales service |

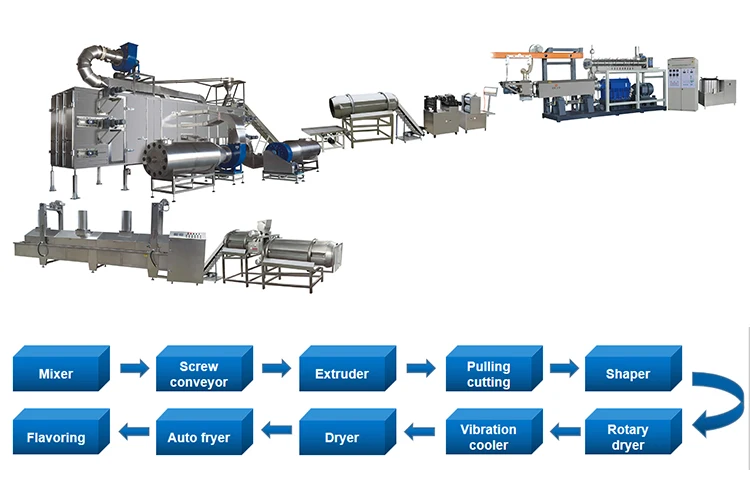

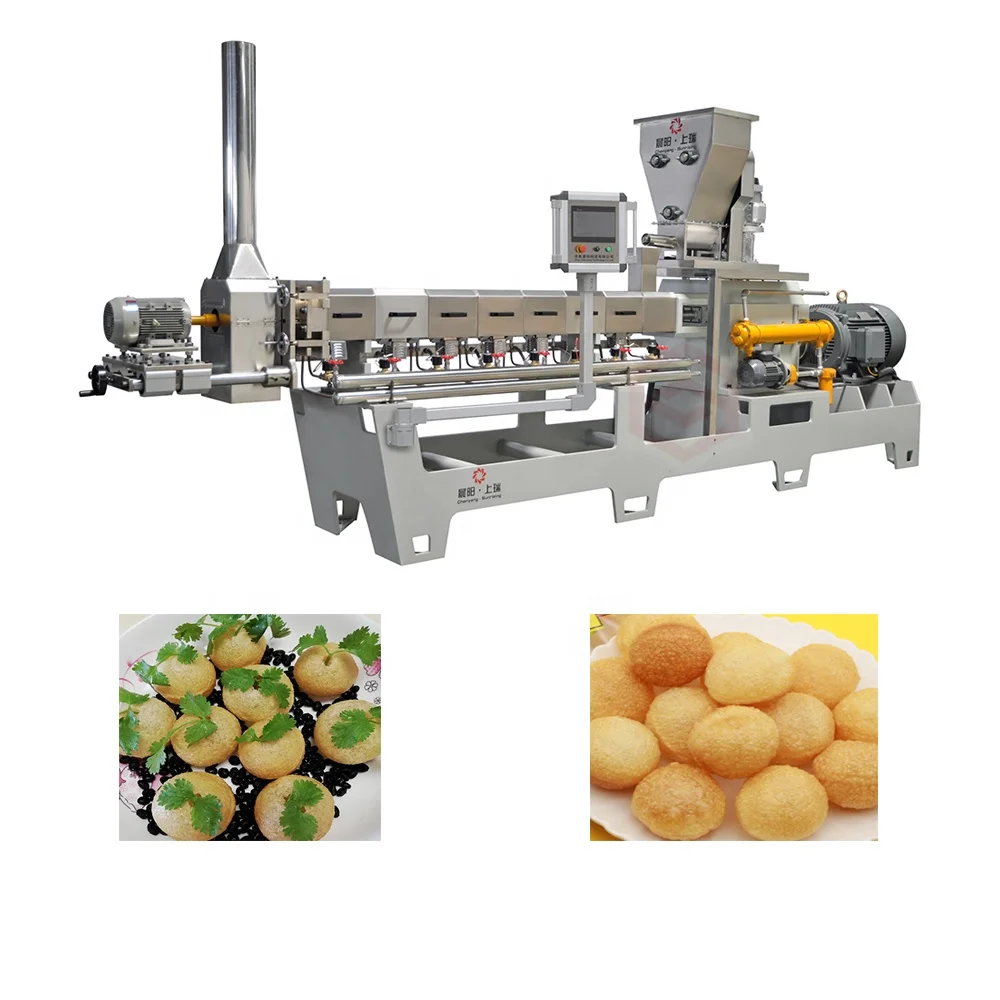

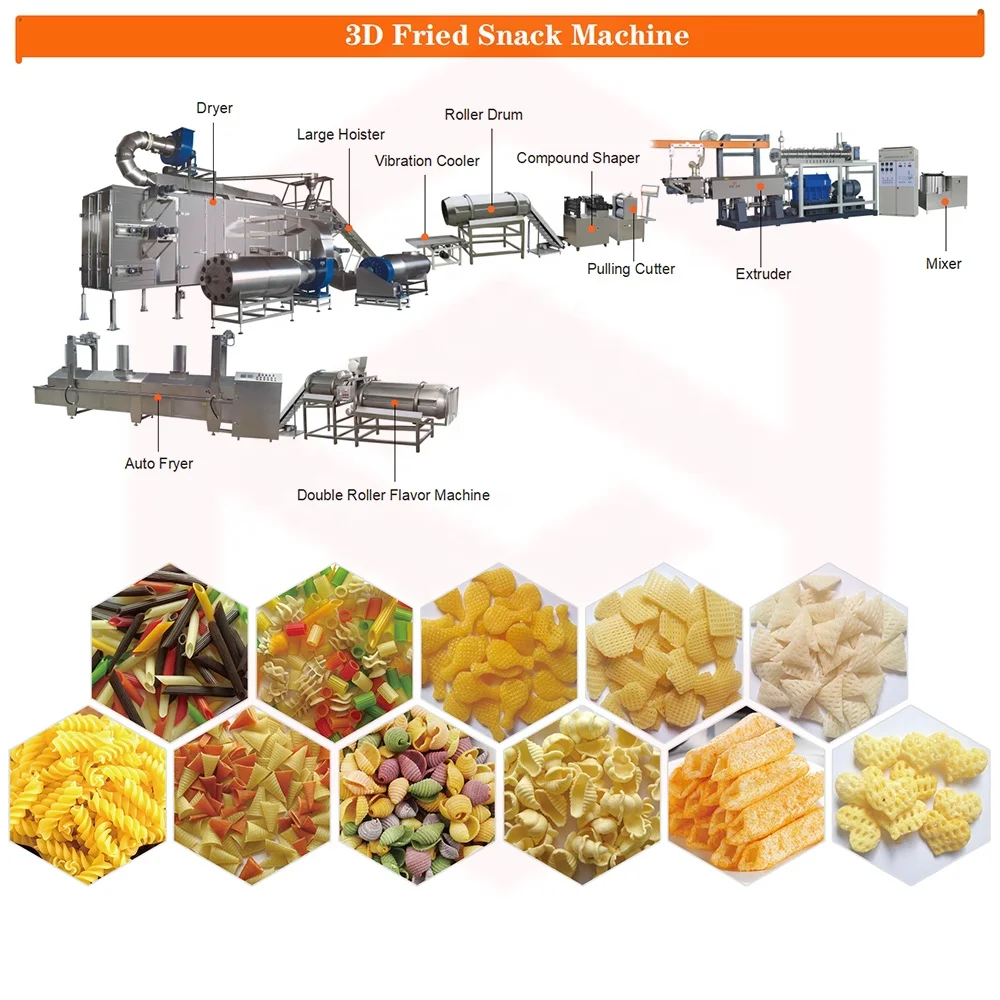

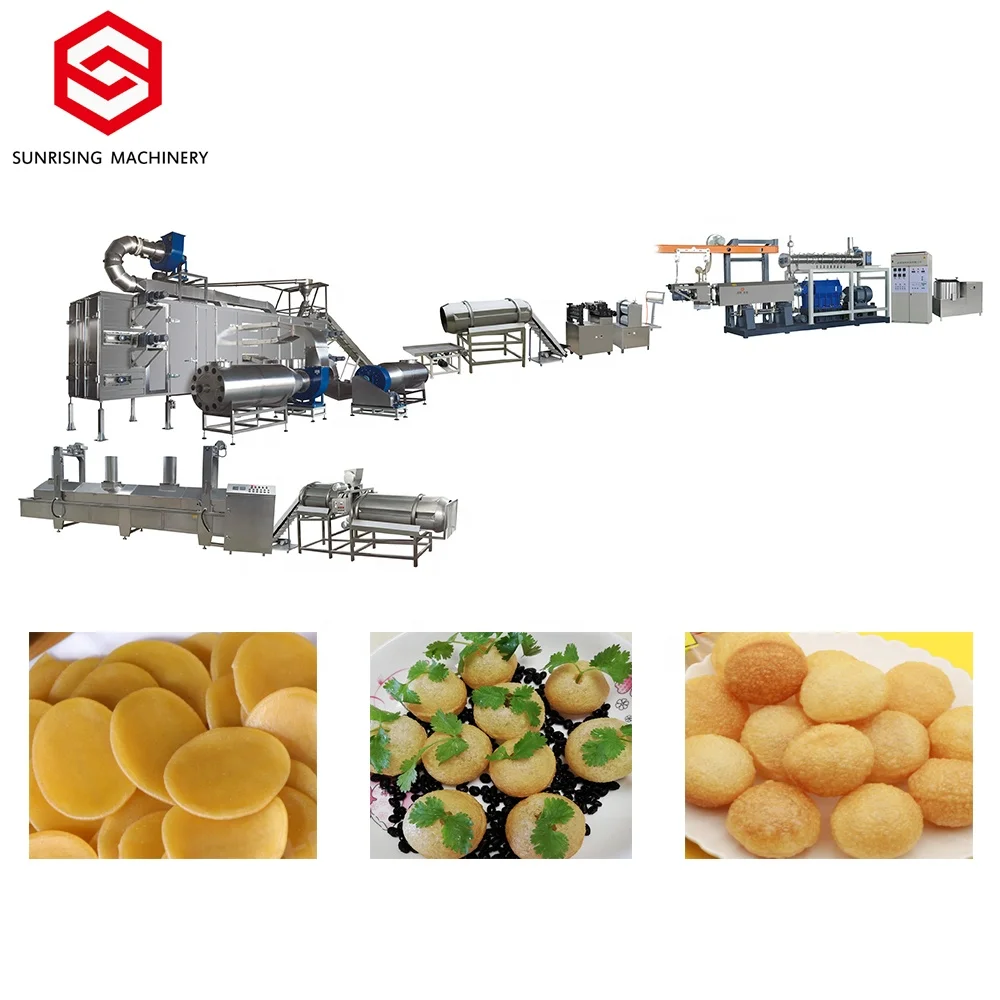

Introduction of 2d 3d snack food making machine:

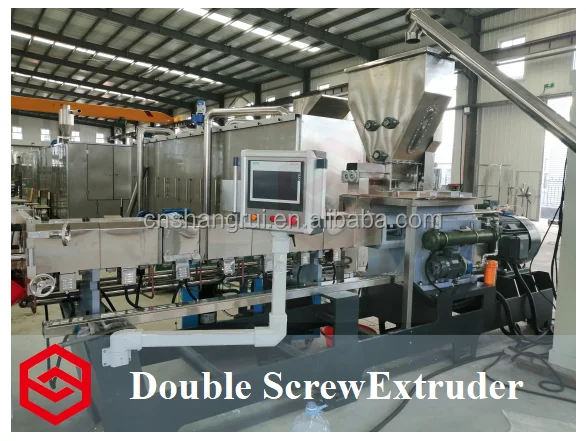

This processing line uses double screw extruding technique to replace the traditional steam boiling process with high efficiency and no pollution without a boiler. The raw material can be total wheat flour, or mixing with corn powder, rice powder, or others. By changing the mould, the products can be in different shapes. The products are crispy and less oil. This line has features of continuous working, stable performance, and reasonable design.Equipment Parameters:
Model | Main Motor Power | Output | Size |
SR100 | 30kw | 100-120kg/h | 36000*1200*2000mm |
SR57 | 22-55kw | 100-150kg/h | 36000*1200*2000mm |
SR75 | 55-75kw | 200-300kg/h | 38000*1200*2000mm |
Samples:
Equipment Display
Name | Big Mixer | Small Mixer |
Installed Power | 7.5kw | 4kw |
Power Consumption | 6 kw | 3.2kw |
Output | 600kg/h | 400kg/h |
Size | 1.4x0.7x1.4m | 1.0x0.6x1.2m |
Energy | Electricity | Electricity |
Main Accessories | Function |
Anti-blocking feeder | Makes sure the even feeding and stable discharge of materials. |
Double shaft preconditioner | Enables the materials stay longer in the preconditioner and evenness in precondtioning, improves the precure degree and increases the capacity. |
Gearbox | Processed by internationally advanced process technology, ensuring the machines run in long time without malfunction. |
Lubrication and cooling system | Adopts refined filtration forced cooling, creating best working conditions for the bearings. |
The feeding system | Adopts double spiral forced feeding, feeding uniformly and widely. |
The screw | Segmented combined screw, suitable for a wide range of raw materials. With self-cleaning function. |
The rotary cutting device | Adopts a suspended mold (knife) assembly and a linear bearing tool adjusting device to adjust the tool safely, accurately and quickly. |

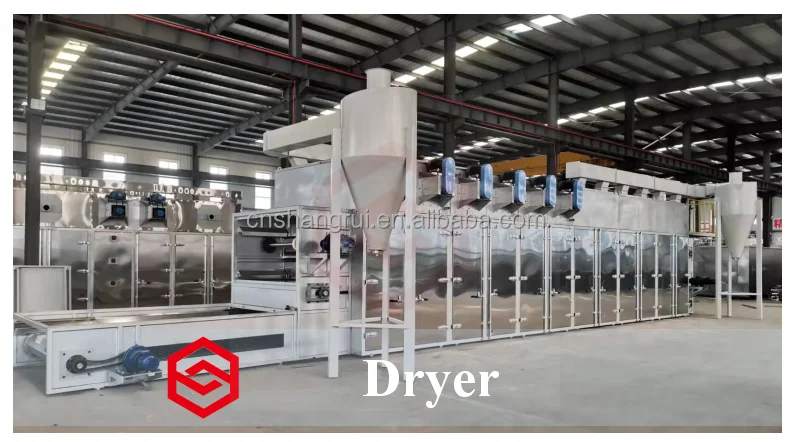

Key highlights of Sunrising dryer：
◆ Unique structure, high utilization rate of heat energy, high efficiency,environmental protection and energy saving;
◆ Circulation drying process, the moisture difference of the dried product is small, and the drying
effect is good.
◆ Horizontal overall layout, simple structure, reliable control, convenient and intuitive operation.
◆ The frequency motor controls the speed of the mesh belt, and the drying quality can be adjusted
flexibly.
◆ The food contact part is all stainless steel, corrosion resistant.
◆ Energy can be gas heating and steam heating.
effect is good.
◆ Horizontal overall layout, simple structure, reliable control, convenient and intuitive operation.
◆ The frequency motor controls the speed of the mesh belt, and the drying quality can be adjusted
flexibly.
◆ The food contact part is all stainless steel, corrosion resistant.
◆ Energy can be gas heating and steam heating.

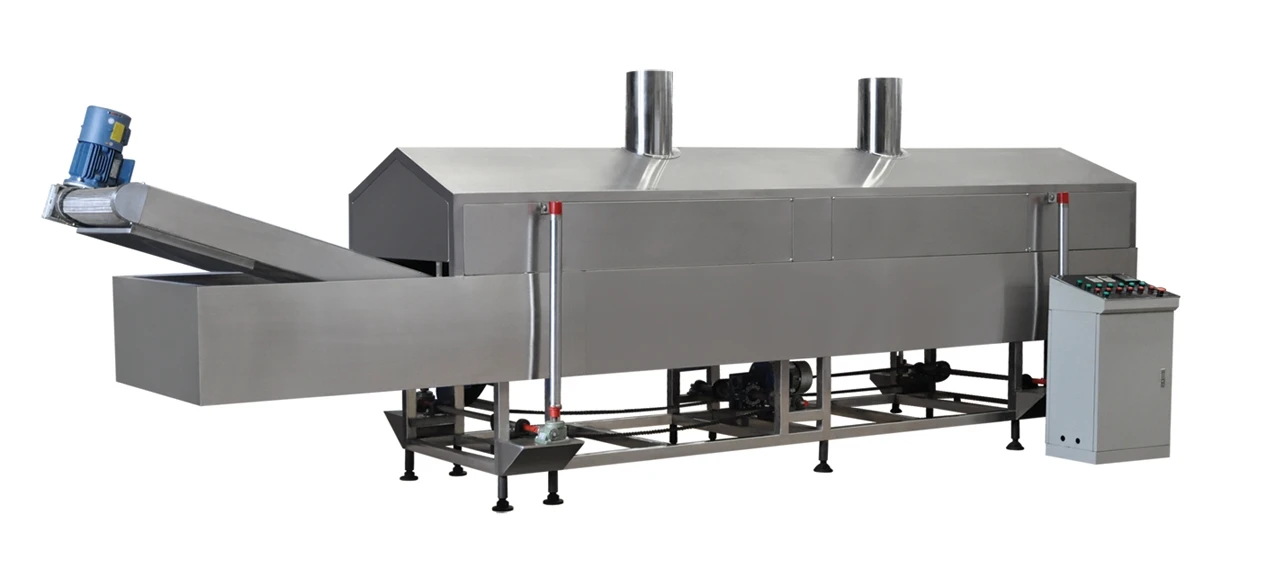

Model | Electric(gas/diesel) consumption | Heating temperature | Output | Dimension |
CY-F continuous fryer(electric) | 60kw/h | 250°C | 300kg/h | 3000x1200x2100mm |
CY-FII continuous fryer(electric) | 96kw/h | 250°C | 400-500kg/h | 4000x1300x2200mm |
CY-LG continuous fryer(gas/diesel) | 6-20.5m³/h(gas) 7-15kg/h(diesel) | 250°C | 300kg/h | 3000x1200x2100mm |
CY-LGIIcontinuous fryer(gas/diesel) | 35m³/h(gas) 8-41kg/h (diesel) | 250°C | 400-500kg/h | 4000x1300x2200mm |
Advantages of Machine
1). All equipment are made of stainless steel.
2). The whole line fully continuous and automatic.
3). Our company provide basic formula according to your require.
4). Supply different size mould free of charge.
5). Packing machine could be supplied to work with the whole production line (depending on your demand).
2). The whole line fully continuous and automatic.
3). Our company provide basic formula according to your require.
4). Supply different size mould free of charge.
5). Packing machine could be supplied to work with the whole production line (depending on your demand).
Recommend Products
Our services
Pre-sale service
A. Provide free technical consulting services.
B.Provide reasonable quotations.
C.Free design and selection according to customer requirements.
C.Free design and selection according to customer requirements.
Sale of services
A.Free project planning and design services;
B. Free debugging of equipment until everything is functional;
C. Free management of equipment long distance shipping.
After-sales services
A.Free training of equipment maintenance and operating;
B. Free new production techniques and formulas;
C.Provide 1 year complete warranty and life-time maintenance service
C.Provide 1 year complete warranty and life-time maintenance service

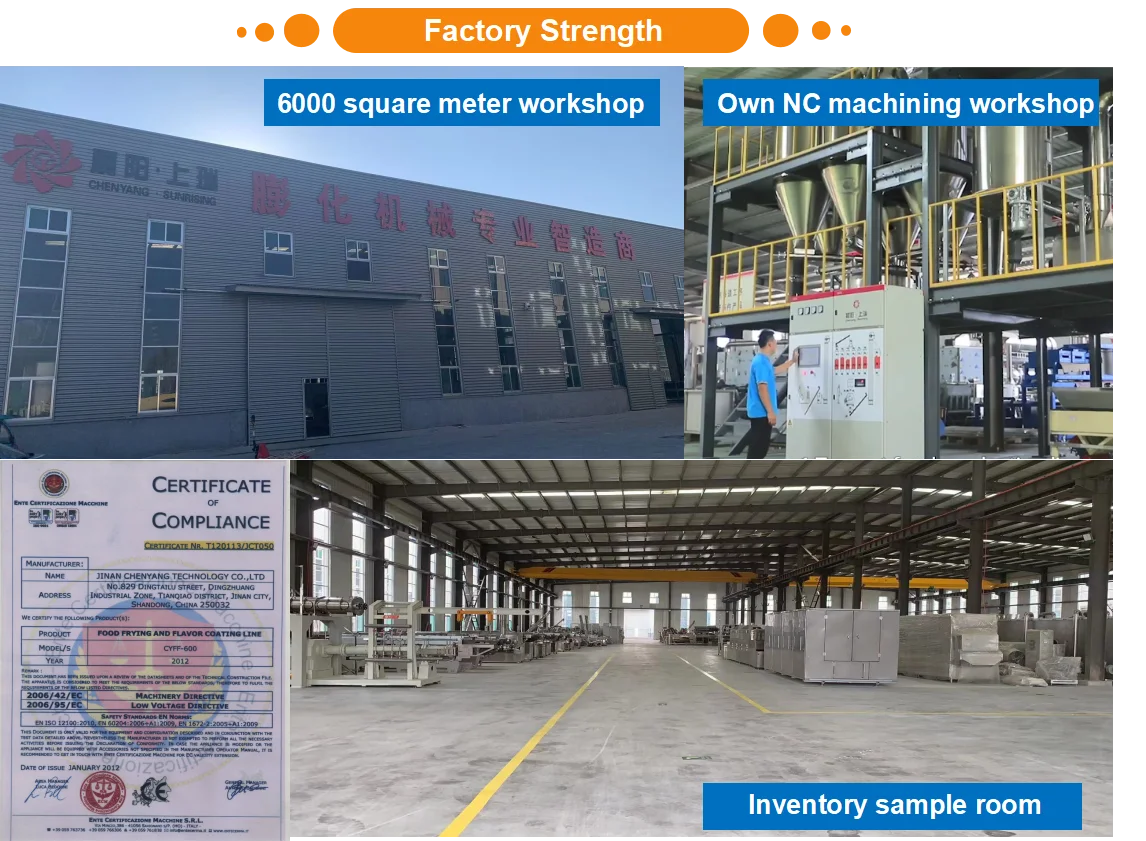

Company & Certifications

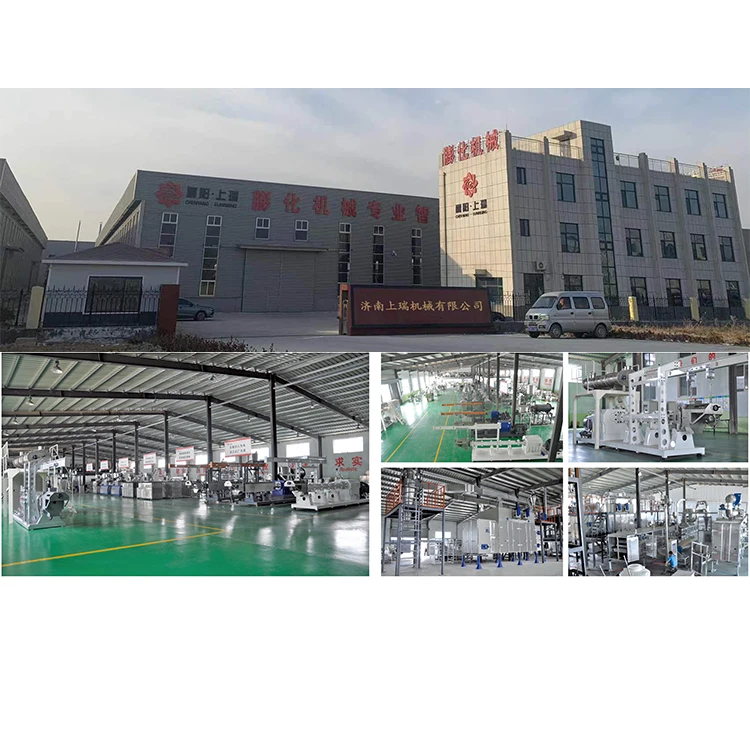

About Jinan Sunrising Machinery Co.,ltd
Jinan Sunrising Machinery Co.,ltd is a professional manufacturer and the model company for advanced and high quality extrusion food machinery in this field. Our company congregates an expert team with ten years experiences in the extrusion machinery industry, not only working hard to constantly researching extrusion technology, but also exploring food processes in order to benefit our clients producing creative food.

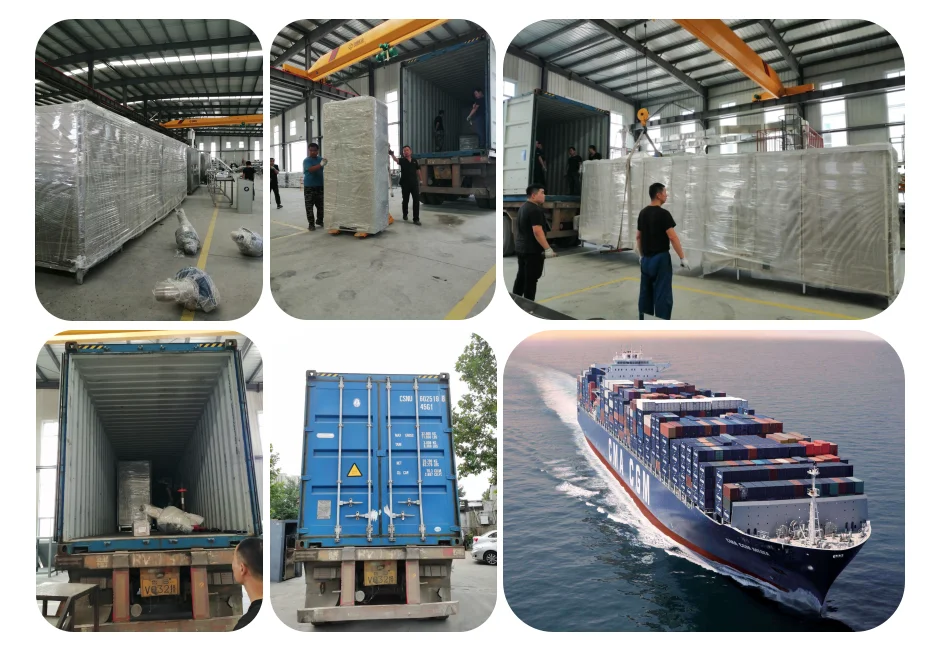

Packing and Delivery
For extruder Indian 2d 3d snack food pellet pani puri making machine
* Inside package is plastic film, outside is wooden or plywood case.
(the production packaging based on the customers' need)
* Only plastic film nude packing with wooden pallet.
* We can supply fumigation package and certificate.
* Shipping, train, express or upon clients' demands.
(the production packaging based on the customers' need)
* Only plastic film nude packing with wooden pallet.
* We can supply fumigation package and certificate.
* Shipping, train, express or upon clients' demands.
Customer and Exhibition
As a professional pani puri making machine manufacturer,Jinan Sunrising Machinery Co,.Ltd has exported with ce certification to more than 80 countries and regions, such as South Africa, India, Malaysia, Indonesia, Brazil and so on. Some customers become our agents in their area. We hope to have long friendly business relationship with more customers from all over the world in the future.
FAQ
1. Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit our factory and check it.
2. Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.
3. Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
4.Q: If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ and so on.
5.Q:Do you supply packing machine?
A: We have long-term cooperation packing machine supplier, we will help to contact them.
A: we are a manufacturer, welcome to visit our factory and check it.
2. Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.
3. Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
4.Q: If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ and so on.
5.Q:Do you supply packing machine?
A: We have long-term cooperation packing machine supplier, we will help to contact them.
