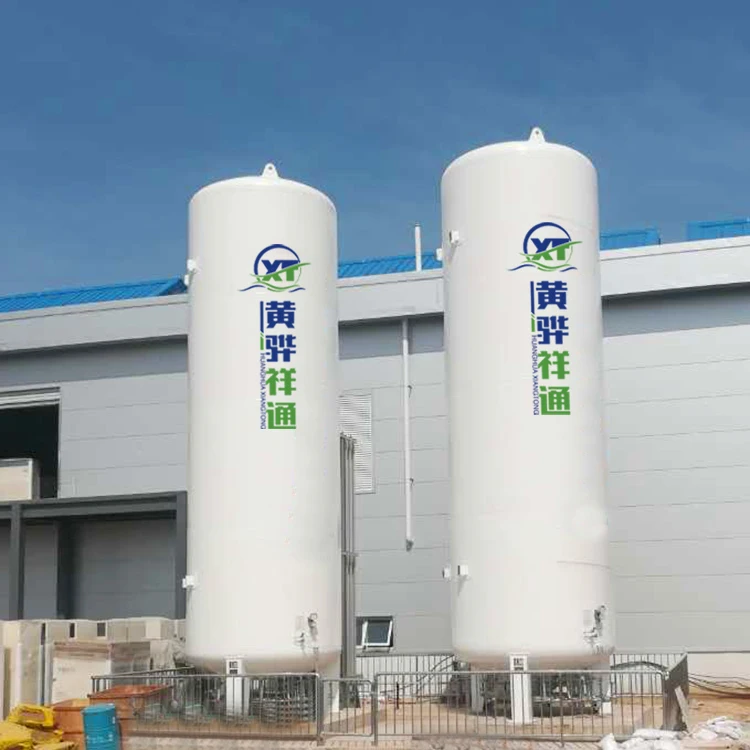

  • 20m3 1.6 mpa Vertical Cryogenic Liquid Oxygen/Carbon Dioxide/Nitrogen Storage Tank Pressure Vessel
20m3 1.6 mpa Vertical Cryogenic Liquid Oxygen/Carbon Dioxide/Nitrogen Storage Tank Pressure Vessel
20m3 1.6 mpa Vertical Cryogenic Liquid Oxygen/Carbon Dioxide/Nitrogen Storage Tank Pressure Vessel
20m3 1.6 mpa Vertical Cryogenic Liquid Oxygen/Carbon Dioxide/Nitrogen Storage Tank Pressure Vessel
20m3 1.6 mpa Vertical Cryogenic Liquid Oxygen/Carbon Dioxide/Nitrogen Storage Tank Pressure Vessel
20m3 1.6 mpa Vertical Cryogenic Liquid Oxygen/Carbon Dioxide/Nitrogen Storage Tank Pressure Vessel
20m3 1.6 mpa Vertical Cryogenic Liquid Oxygen/Carbon Dioxide/Nitrogen Storage Tank Pressure Vessel
20m3 1.6 mpa Vertical Cryogenic Liquid Oxygen/Carbon Dioxide/Nitrogen Storage Tank Pressure Vessel

20m3 1.6 mpa Vertical Cryogenic Liquid Oxygen/Carbon Dioxide/Nitrogen Storage Tank Pressure Vessel

Share on (1600833726339):


Price:US$14,800.00 - US$15,000.00

Quantity:


Product Overview

Description



Product Overview


Cryogenic Liquid tank
The Tank Container International Standard Tank is a stainless steel pressure vessel that is mounted in a secured outer frame. Most of the tank body is made of 316 stainless steel. Most tanks have steam or electric heating, inert gas protection, pressure relief and other optional equipment for fluid handling and handling.


FEATURES AT A GLANCE


Liquefied gases are used in a wide range of applications, including
metal processing,
medical technology,
electronics,
water treatment,
energy generation
and the food industry.
Today, more and more of these industrial gases are being delivered to customers in liquid form at cryogenic temperatures, enabling them to be stored on site for later use.




PRODUCT SPECIFICATIONS


LIQUIDCRYOGENID TANK PARAMETER
Model
Working Ptessure(Mpa)
Working Medium
Volume(m3)
Weight(kg)
Outside Size(mm)
5/0.8
0.8
LOX/LN2/LAR
5
4160
Φ1900*5115
10/0.8
10
6015
Φ2200*6035
15/0.8
15
8196
Φ2300*7730
20/0.8
20
9715
Φ2600*7655
30/0.8
30
13270
Φ2600*10605
50/0.8
50
21725
Φ3200*11670
100/0.8
100
43386
Φ3600*16550
150/0.8
150
61500
Φ3800*22000
200/0.8
200
76800
Φ4000*25300
5/1.6
1.6
5
4650
Φ1900*5115
10/1.6
10
6850
Φ2200*6035
15/1.6
15
9780
Φ2300*7730
20/1.6
20
11450
Φ2600*7655
30/1.6
30
15790
Φ2600*10605
50/1.6
50
26500
Φ3200*11670
100/1.6
100
53300
Φ3600*16550
5/2.16
2.16
LCO2
5
5200
Φ1900*5115
10/2.16
10
7860
Φ2200*6030
15/2.16
15
10087
Φ2400*7020
20/2.16
20
12740
Φ2500*8120
30/2.16
30
17165
Φ2900*8550
50/2.16
50
28644
Φ3100*11500
100/2.16
100
57550
Φ3500*16450
150/2.16
150
82460
Φ3900*19000


NITROUS OXIDE STORAGE TANK PARAMETER
Model
Working Pressure(Mpa)
Working Medium
Volume(m3)
Weight(kg)
Outside Size(mm)
5/2.16
2.16
Liquid Ethylene
5
5200
Φ1900*5115
10/2.16
10
7860
Φ2200*6030
15/2.16
15
10087
Φ2400*7020
20/2.16
20
12740
Φ2500*8120
30/2.16
30
17165
Φ2900*8550
50/2.16
50
28644
Φ3100*11500
100/2.16
100
57550
Φ3500*16450
150/2.16
150
82460
Φ3900*19000


PRODUCT CONFIGURATION










Why Choose Us




1. Our product range is comprehensive, meeting the needs of most customers, and we strive to provide the most comprehensive cost-effectiveness;
2. Products chosen to match the high quality demanded by our customers;
3. We keep our promises and if we cannot we will let you know;
4. Our experience and technical expertise often results in customer referrals;
5. We care how our customers view us and feel about us today decides our success of failure tomorrow.
6.To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Our Company




Main products:
1. Gas products: Helium gas, hydrogen gas, Carbon oxide( CO2), ect;
2. All kind of high pressure gas cylinder and welded gas cylinders;
Oxygen Cylinder( GB 5099/ ISO 9809-3/ DOT/ EN standard gas cylinders)
3. Acetylene Gas cylinder;
4. Dewar Flask: 175L 195L 495L capacity liquid tanks.

Mission:
To deliver top quality products, technical expertise and service in order to achieve total customer satisfaction by providing a best value supply package.


FAQ


Any questions or demand , pls feel free to contact with us.
