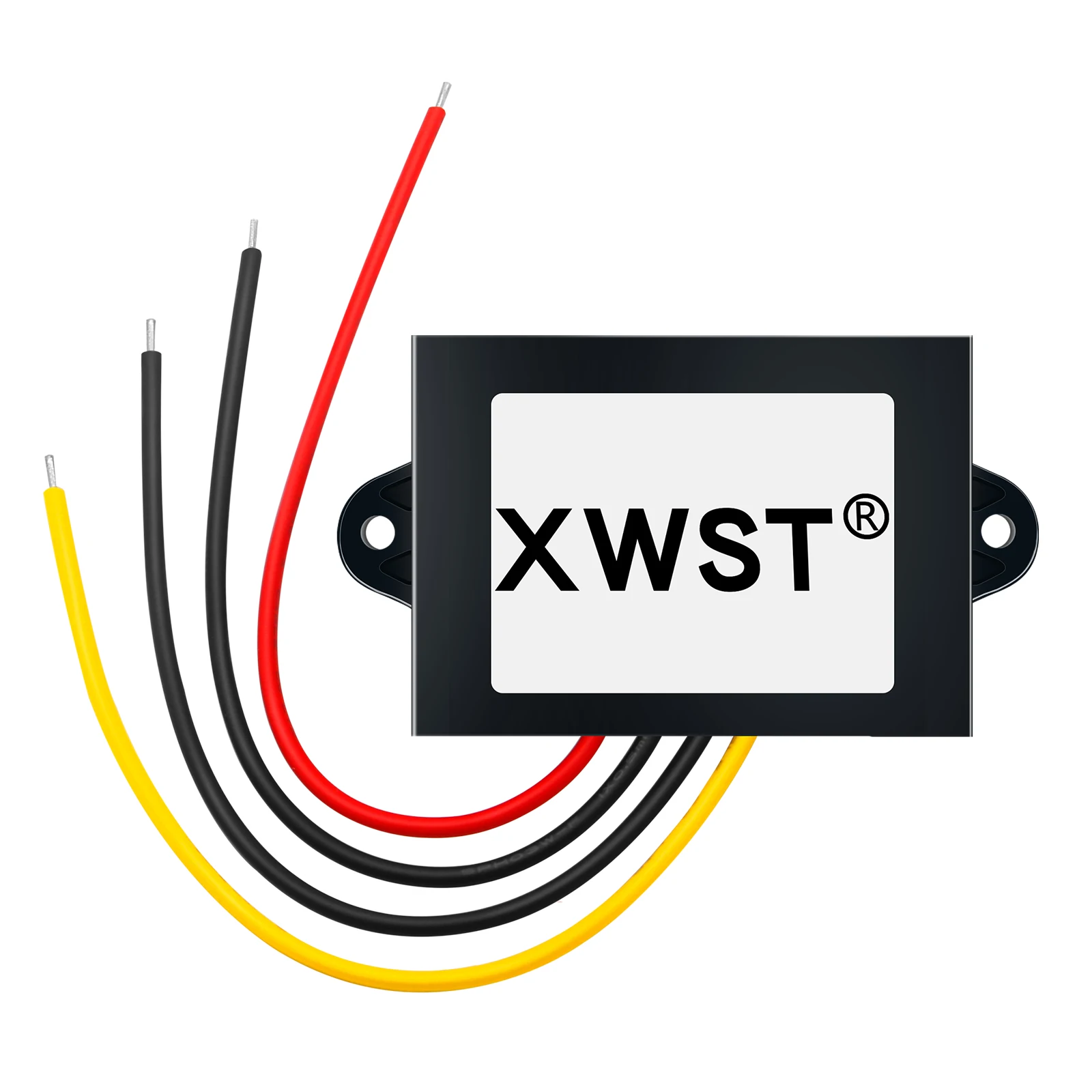

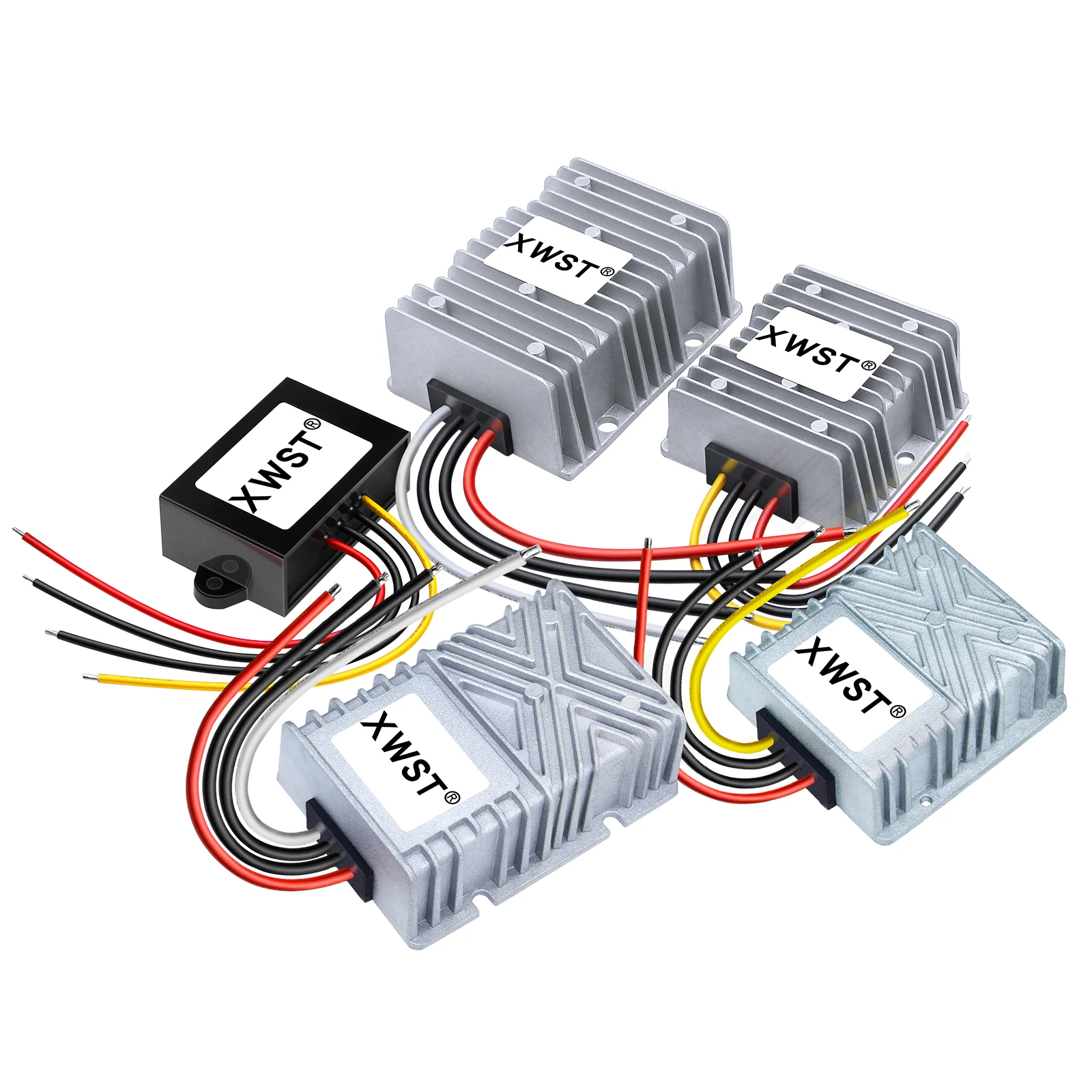

DC 30 90V to 24V dc step down Converter 36V 48V 60V 72V to 24V duck Module Dc Transformer Voltage
- Category: >>>
- Supplier: Huizhou Xinwei Technology Co. Ltd.
Share on (1600833742948):
Product Overview
Description
Company Profile
Features：
1. Design meeting RoHS / CE
2. High efficiency: 93%
3. Non-isolated between input and output
4. High reliability internal capacitor: NCC & NICHICON
5. 100% full load burn-in test
6. Short circuit, Over load, Over temperature protections and automatic recovery work

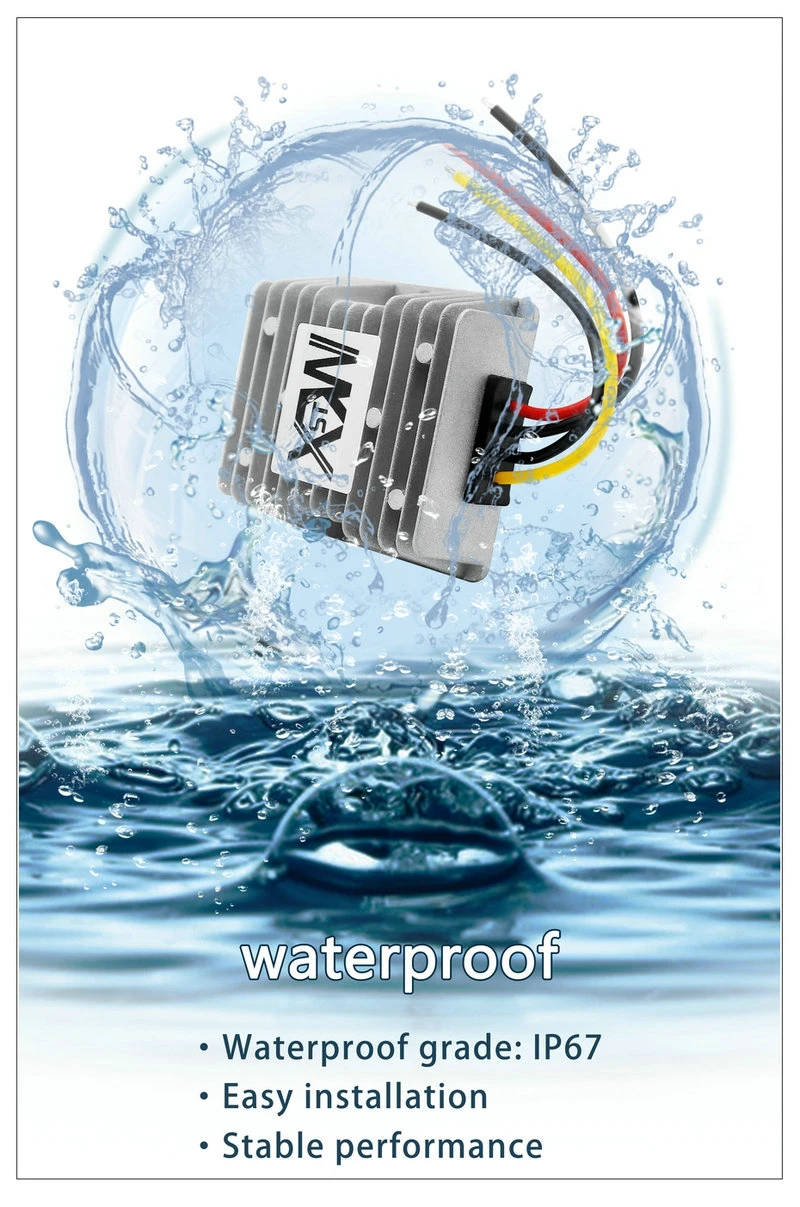

7. Waterproof level IP67
8. Ultra compact size, light weight , high reliability
9.1 year warranty, lifetime up to 100,000 hours
Important Notice: 1. This power supply cannot be used to charge the battery. If you want to charge the battery, please contact
customer service
2. The input has no reverse connection protection, please connect carefully
2. High efficiency: 93%
3. Non-isolated between input and output
4. High reliability internal capacitor: NCC & NICHICON
5. 100% full load burn-in test
6. Short circuit, Over load, Over temperature protections and automatic recovery work
7. Waterproof level IP67
8. Ultra compact size, light weight , high reliability
9.1 year warranty, lifetime up to 100,000 hours
Important Notice: 1. This power supply cannot be used to charge the battery. If you want to charge the battery, please contact
customer service
2. The input has no reverse connection protection, please connect carefully
Specification
Product Name | DC to DC Buck Converter |
Model No. | XW-3090-24-24W~528W |
Module Properties | Non-isolated Module |
Rectification | Synchronous Rectification |
Input Voltage | DC 24V36V48V60V72V85v |
Input Voltage Range | DC 30-90V |
Output Voltage | DC 24V |
Output Current | 1A / 1.5A / 3A / 5A / 8A / 12A / 15A/ 18A / 20A/ 22A |
Output Power | 24W / 36W / 72W / 120W/ 192W / 288W / 360W/ 432W/ 480W / 528W |
Conversion Efficiency | >93% |
Cable Length | 13-14cm |
Ripple (Full load test) | 40mV |
No-load current | (1-5A)3.5mA; (6-25A)25mA |
Working Temperature | -40~80℃ ( If ambient temperature exceeds 40°C, lower power use, or to enhance heat dissipation) |
Waterproof Rating | IP67 |
Protection | Over-current /Over-voltage/Over-heat/Short-circuit Waterproof, Anti-shock , Anti-dust protection |

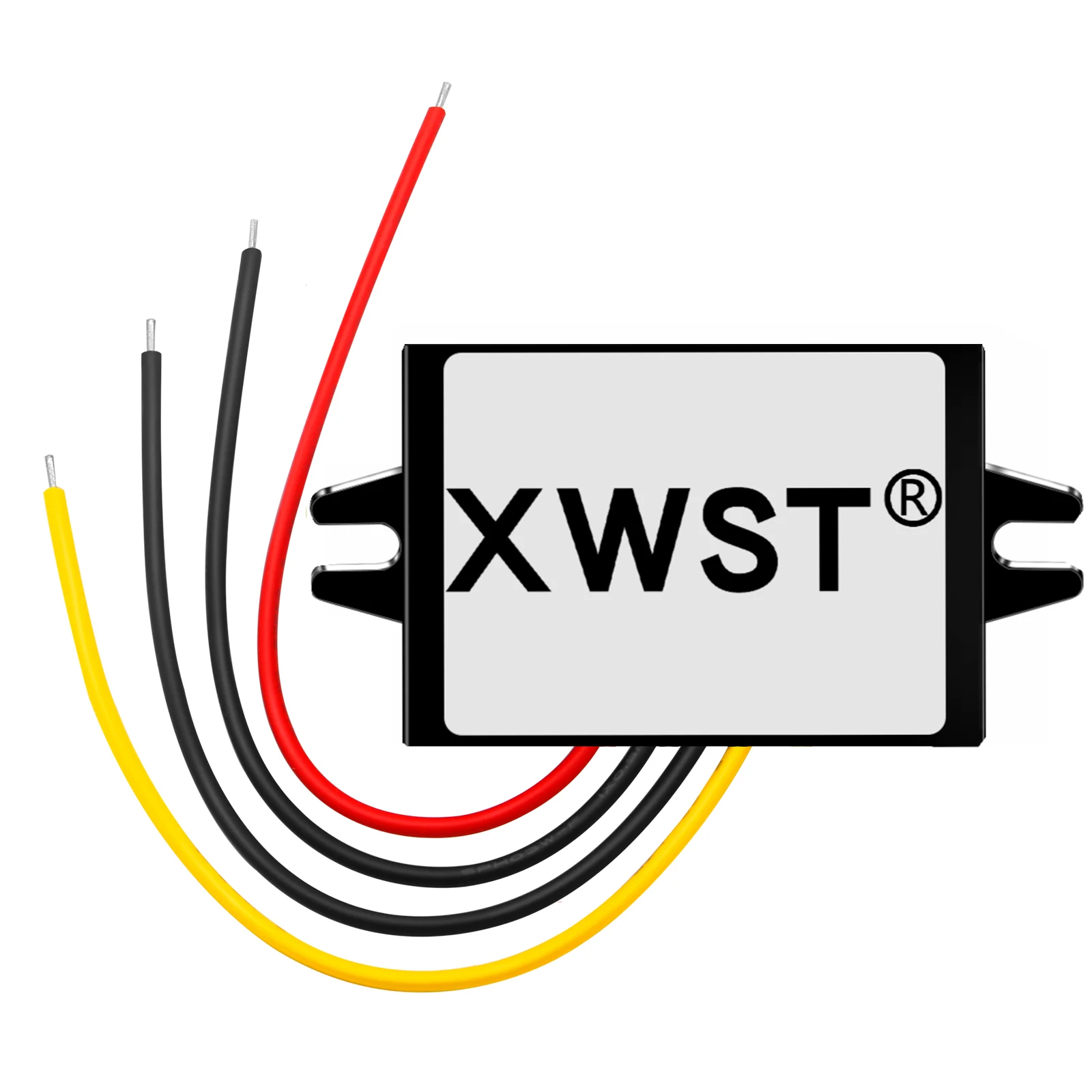

Output 1-1.5A | ABS Plastic 46*32*18mm, 50g, Anti-static Bag |

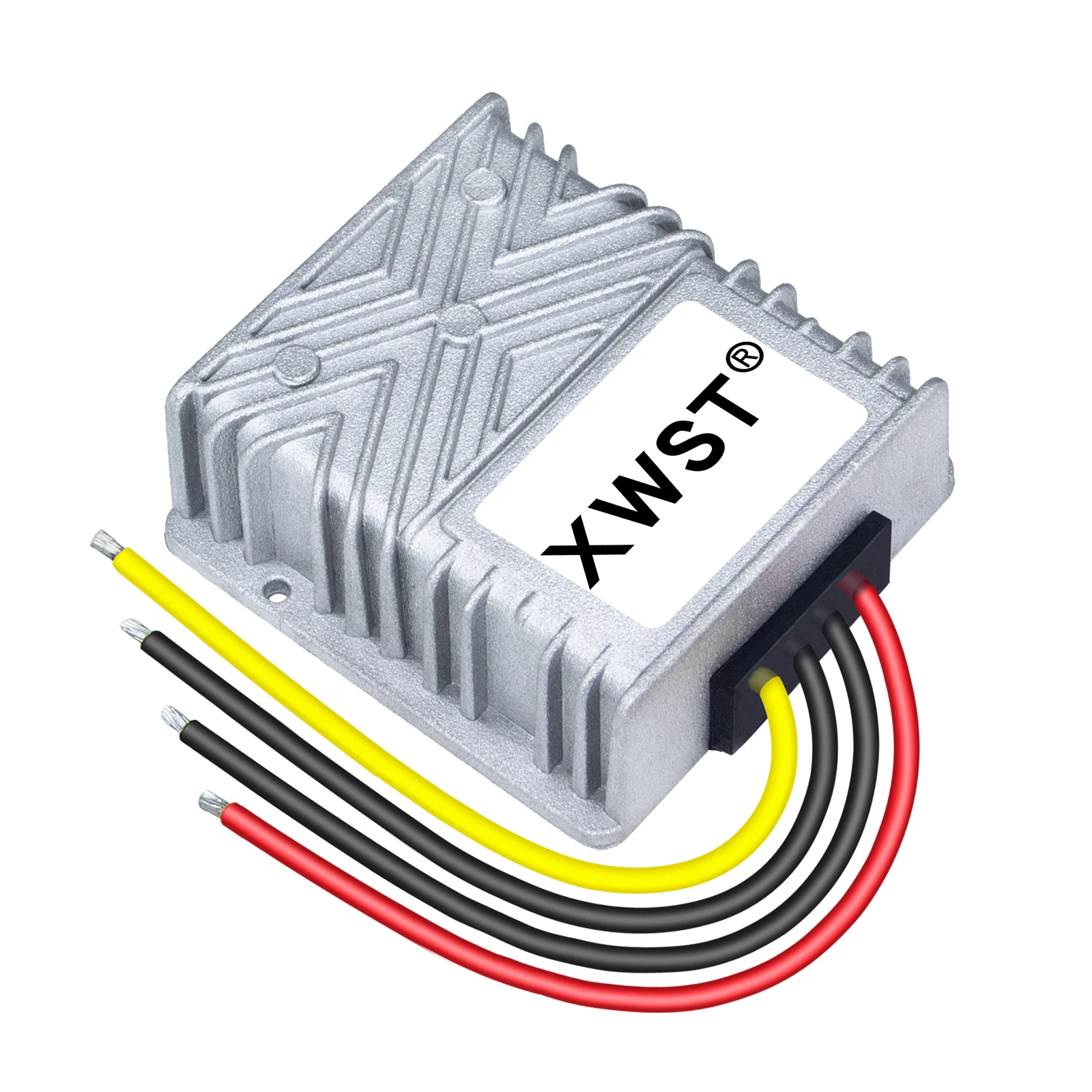

Output 3-5A | Aluminum 74*74*32mm, 260g, Anti-static Bag |
Output 18-22A | Aluminum 100*80*39mm, 550g, White Box |

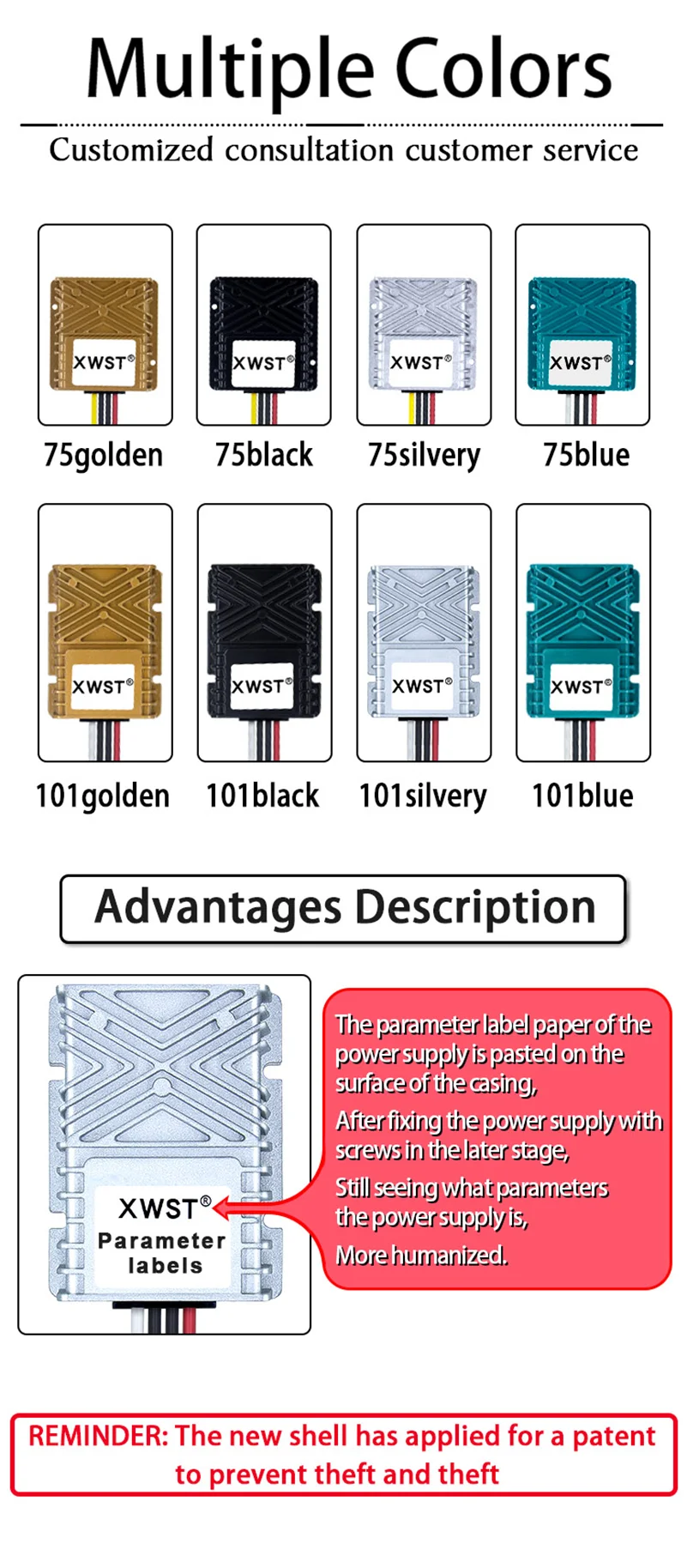

75 Black Size /Packing | 75*73*27mm, 280g, Anti-static Bag |
101 Back Size /Packing | 101*78*36mm, 530g, White Box |
Warranty | 12 months |
