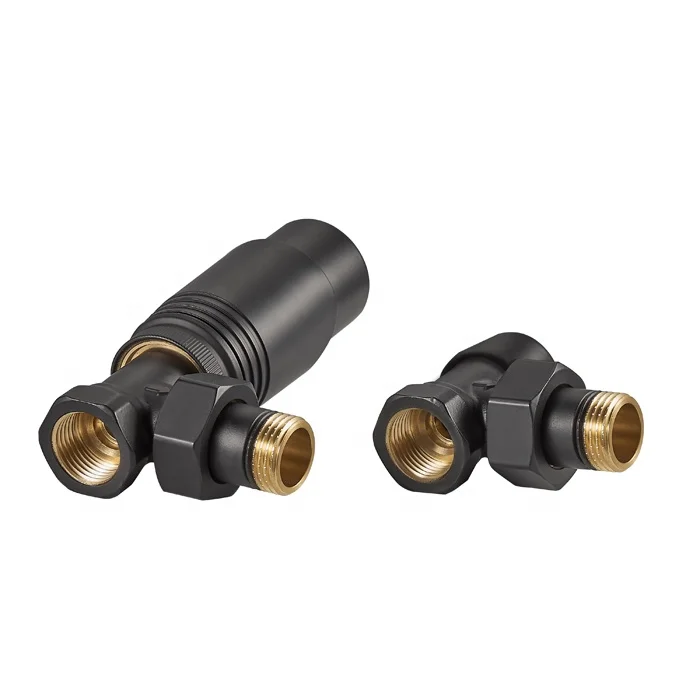

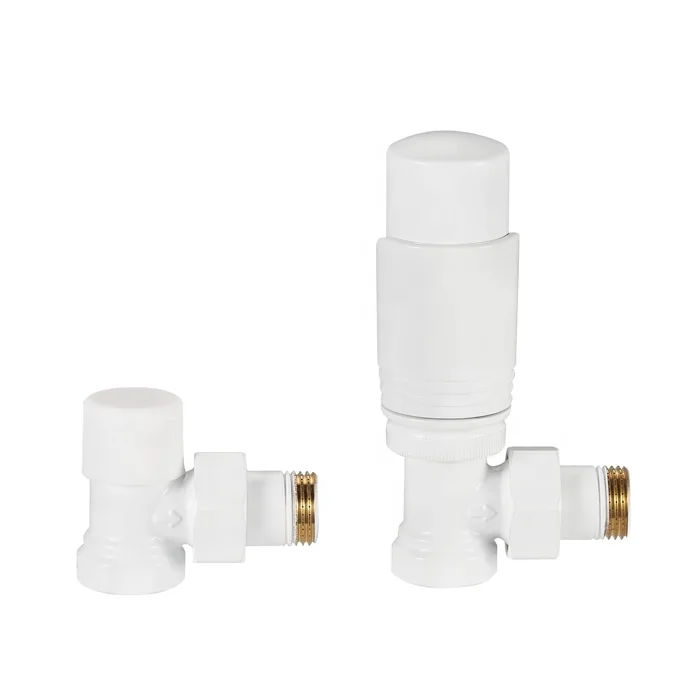

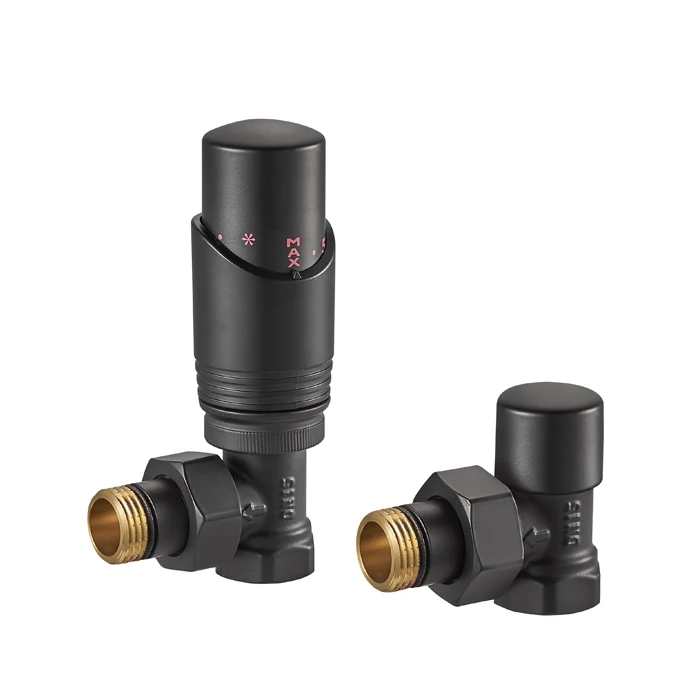

Deluxe Thermostatic radiator valve brass Angled Valves for Heating radiator BJ12001 J
- Category: >>>
- Supplier: Yuhuan Beijinsi Fluid Control Technology Co. Ltd.
Share on (1600833758540):
Product Overview
Description
Product details

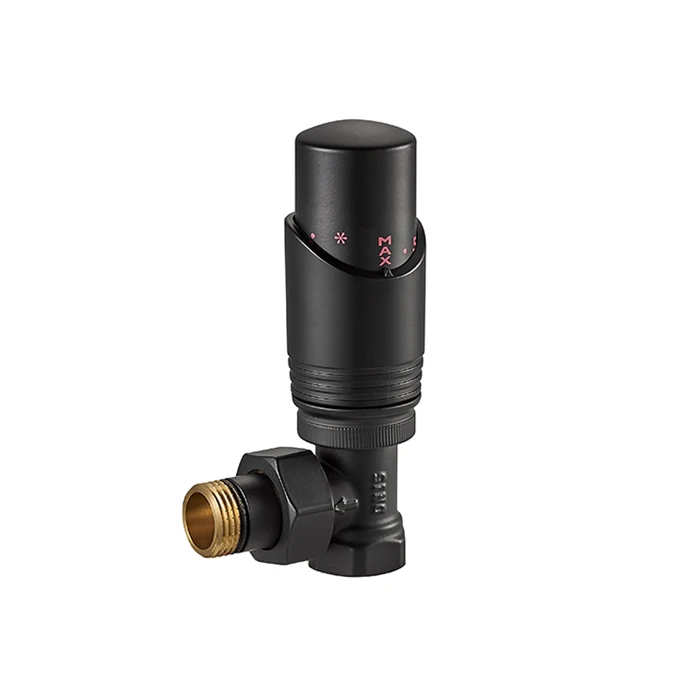

Descriptions | TRV Chrome Angled Thermostatic Radiator Valve |
Model No. | BJ12001-J |
Material | Brass H58-3 or CW617N |
Processing | Forging, CNC Machining |
Size | G1/2'' G3/4" |
Color | White RAL 9016/Anthracite RAL7016/Chrome |
Working Medium | Hot/Cold Water |
Range of Temperature Adjustment | 0 ~ 28℃ |
Range of Scale | 0 ~ 5 |
Max Working Pressure | 10 bar |
Max Pressure Difference | 0.6bar |
Max Working Temperature | 50℃ |
Max Medium Temperature | ≤ 100℃ |
Influence of Pressure Difference | 0.4K |
Influence of Temperature Difference | 0.5K |
Test Standard | EN215 |
Material Details for Each Part | Brass Body, Brass Cartridge, Copper Sensor Element, Brass Nut&Cap, SUS631-17-7H Spring, ABS Cover |
FEATURES & ADVANTAGES
>> High precision machining, top quality polish and chrome/paint finish
>> 3 colors for more match options-Chrome/White/Anthracite
>> Forging process, 100% leakage test to eliminate the possibility of leakage
>> Sensitive Thermostat Head according to EN215 make the temperature change
simple, easy & reliable

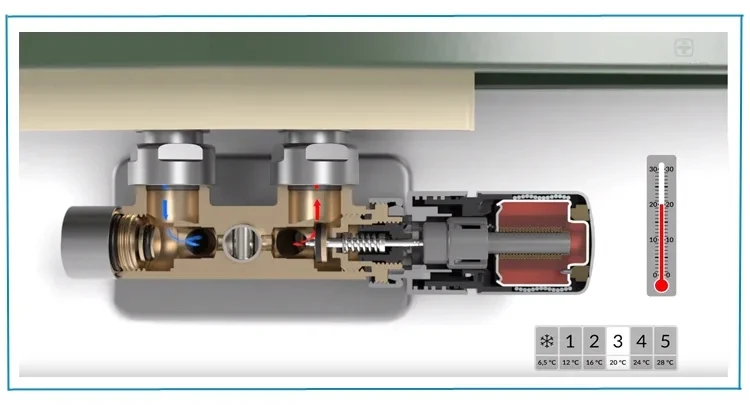

THERMOSTAT WORKING PRINCIPLES
The sensor element of BEIJINSI thermostats consist of a liquid filled metal capsule with an immersed below and integral push rod. A temperature fluctuation leads to an alteration of volume of the liquid which entails a length modification of the immersed below. Then the valve is closed and opened by the push rod.
ADVANTAGES OF BEIJINS THERMOSTAT HEAD
1. Adopts Germany imported sensor element, which can detect the temperature change sensitive, lifetime is longer.
2. The Japan imported stainless steel spring SUS631-17-7H makes the resilience better, and lifetime can reach to 100000 times.
3. Professional engineered designed and produced, to give out excellent and reliable performance.
4. Test according to EN215 standard.

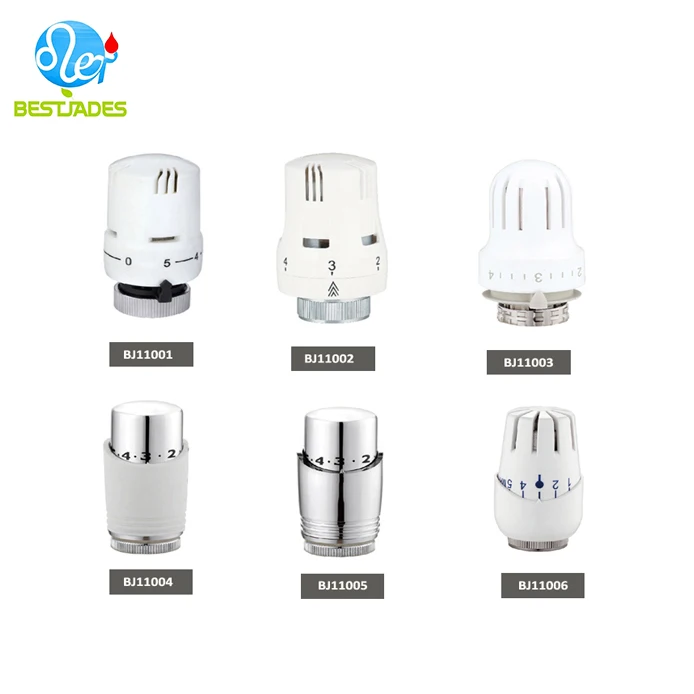

More Options for Thermostat Head
Manufacturing Technique
