Price:$14.00 - $16.00

Quantity:


Product Overview

Description

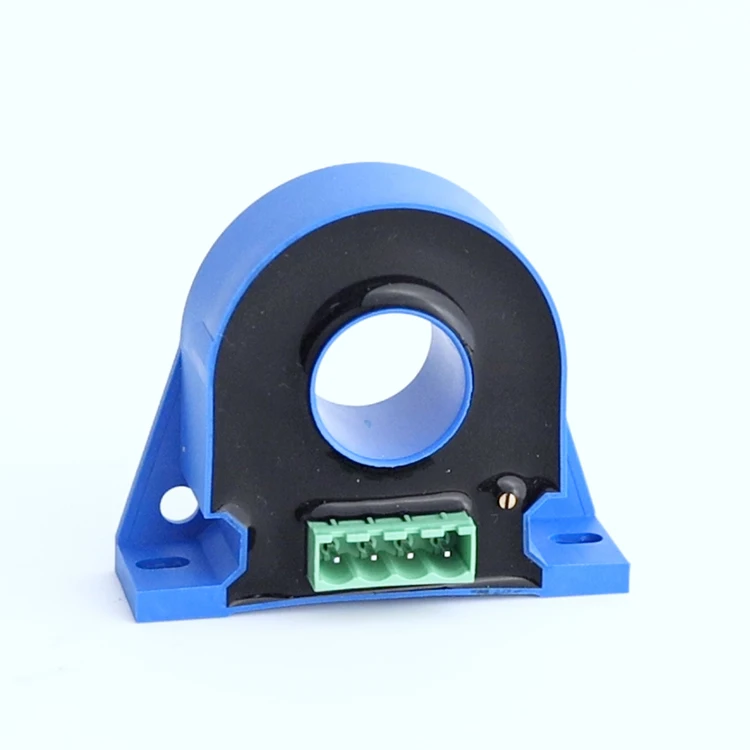

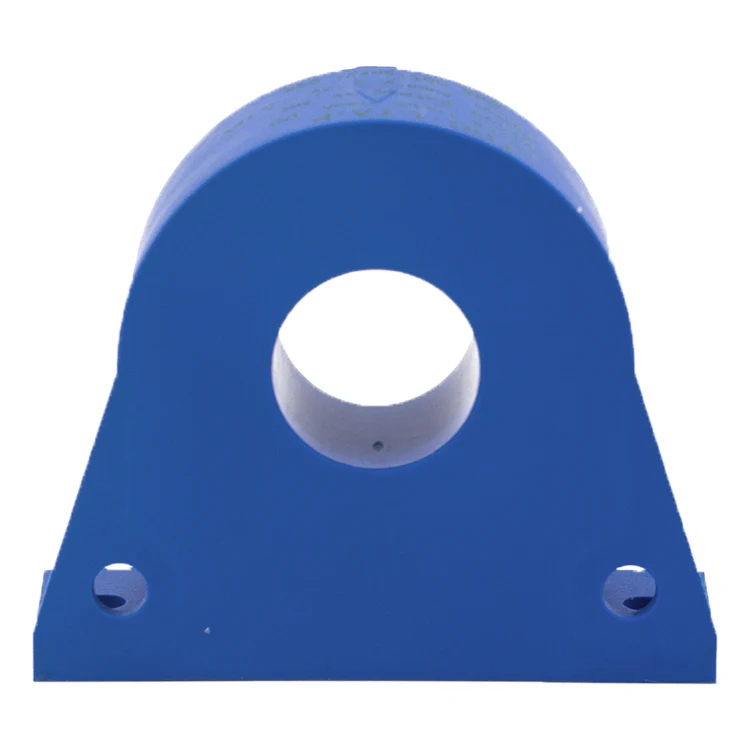

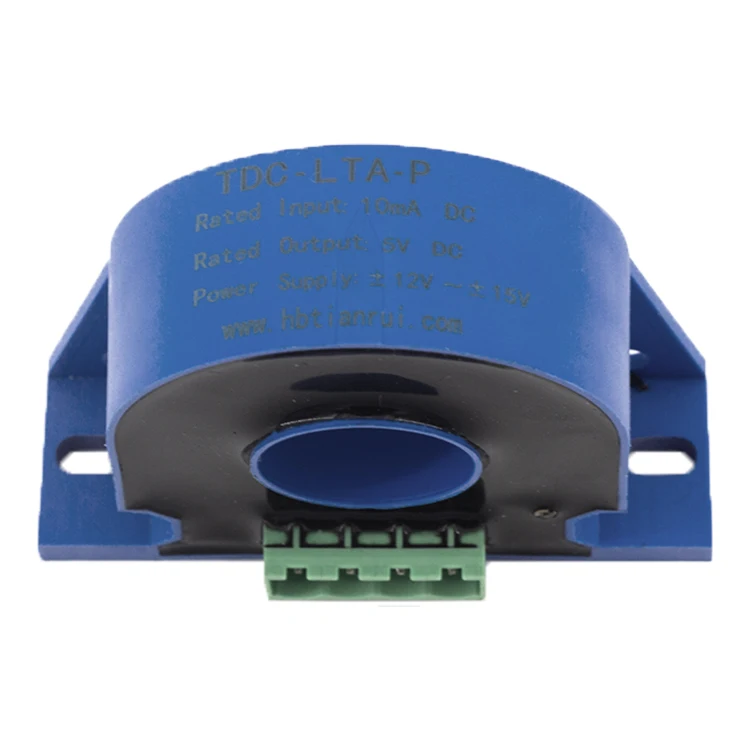

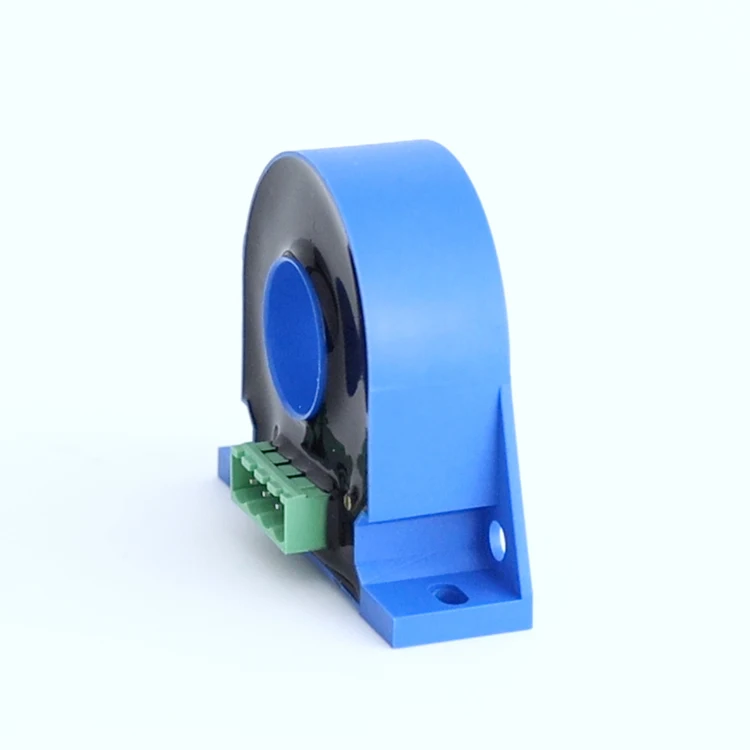

DC Leakage Current Sensor


Technical Parameter
Specification
10mA/5V
50mA/5V
200mA/5V
Unit
Ipn
Primary Rated Input Current (DC)
10
50
200
mA
Ip
Primary Current Measurement Range
0～15
0～75
0～300
mA
Vsn
Secondary rated output voltage(DC)
5
V
Vc
The Power Supply Voltage
±12～15(±5%)
V
Ic
Current Consumption
＜30
mA
Vd
Insulation Voltage
Between primary and secondary circuits:2.5kV/50Hz/1min

εL
Linearity
＜1
%FS
X
Precision
TA=25℃:≤±0.5
%
V0
Offset Voltage
TA=25℃:≤±50
mV
Vot
Offset Voltage Temperature Drift
Ip =0 TA =-40～+80℃:≤±1.5
mV/℃
Tr
Response Time
≤120
mS
Ta
Working Temperature
-40～+80
℃
Ts
Storage Temperature
-45～+85
℃
RL
Load Resistance
TA=25℃:≥10
kΩ




PRODUCT OVERWIEW

A new type of current sensor developed by applying the principle of magnetic modulation. The primary current is compensated by the
current generated by the internal oscillator to achieve the balance of the magnetic field. At this time, the secondary voltage can
accurately reflect the primary current.



Product Features
1.Small current measurement performance is stable

2.Excellent accuracy, good linearity

3.Wide measuring range and strong overload capacity

4.Perforated structure, no insertion loss




Scope of Application
1.The signal system 2.Line detection 3. Leakage Monitoring System 4.Current difference measurement

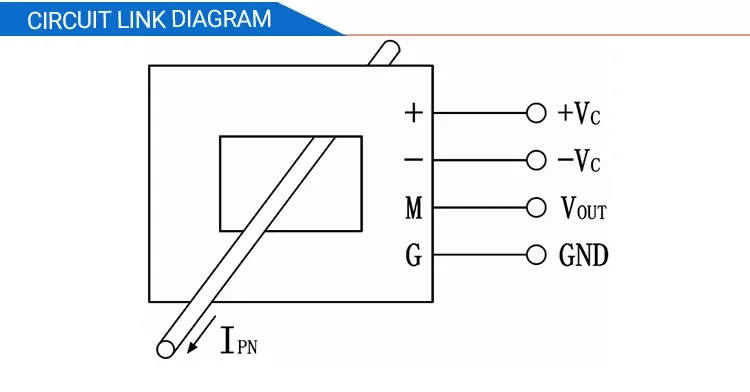

Note:
IpN:Primary current input direction
+ :Positive 12V/15V power supply
- :Negative 12V/15V power supply
M :Secondary signal output
G :Power ground
OFS:Zero adjustment
