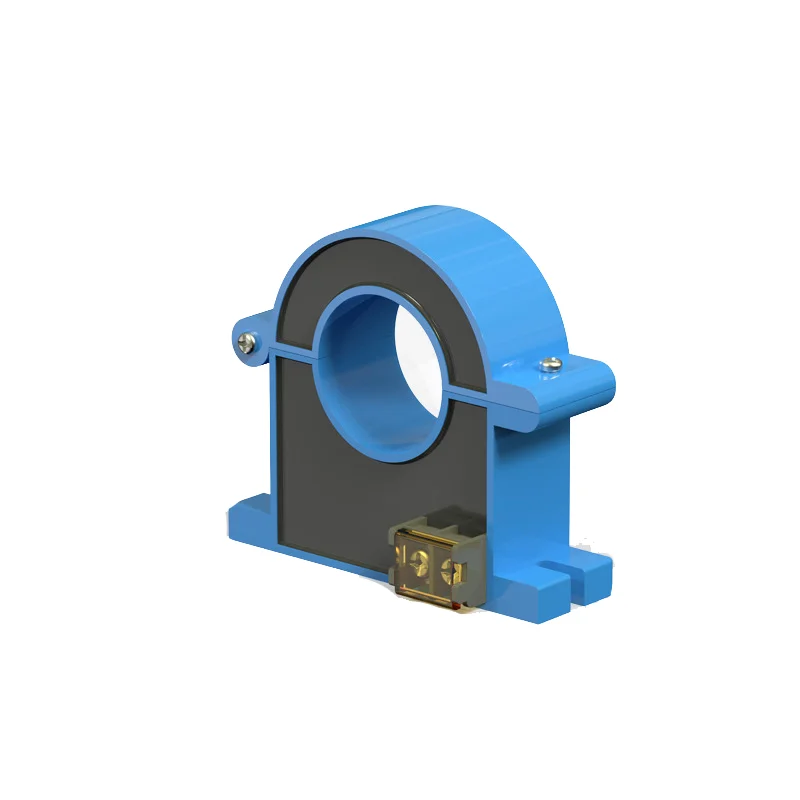

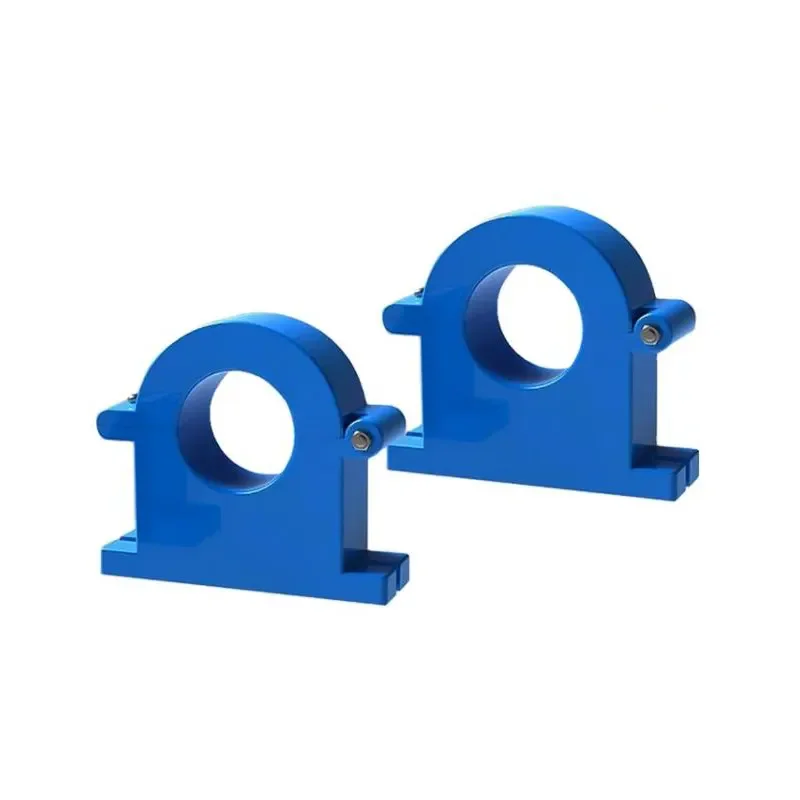

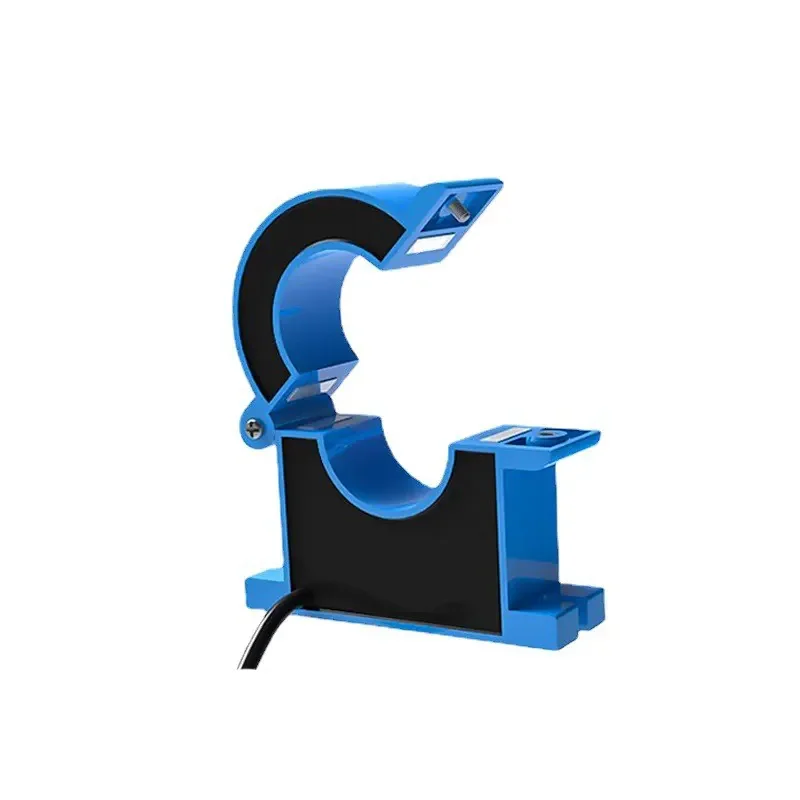

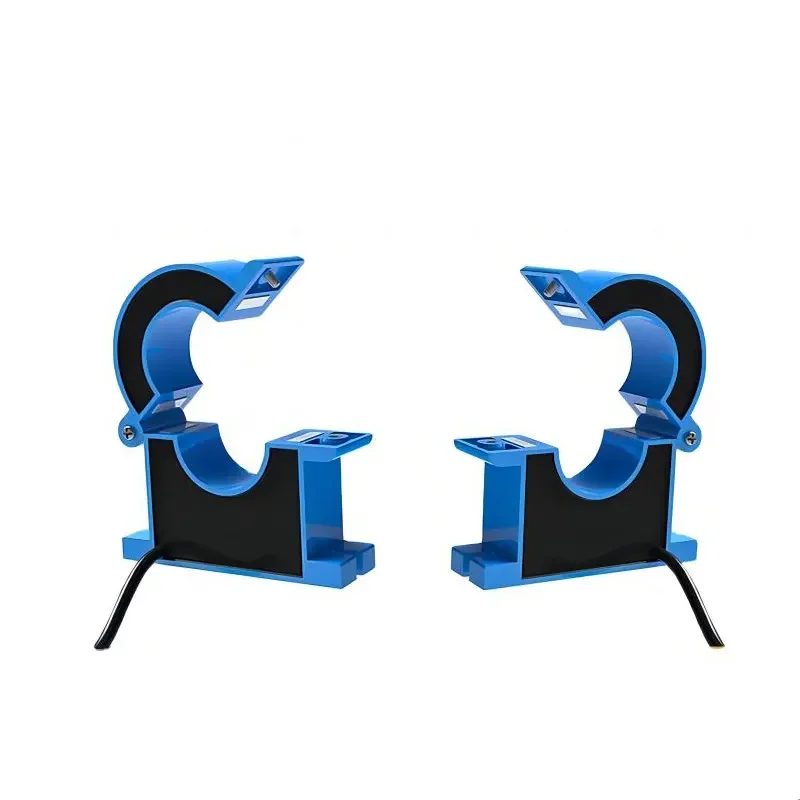

Open Close Current Transformer CTK series 100A 600A/5A Curent CT for fire prevention and leakage system current sensor
Open Close Current Transformer CTK series 100A 600A/5A Curent CT for fire prevention and leakage system current sensor
Open Close Current Transformer CTK series 100A 600A/5A Curent CT for fire prevention and leakage system current sensor
Open Close Current Transformer CTK series 100A 600A/5A Curent CT for fire prevention and leakage system current sensor
Open Close Current Transformer CTK series 100A 600A/5A Curent CT for fire prevention and leakage system current sensor
Open Close Current Transformer CTK series 100A 600A/5A Curent CT for fire prevention and leakage system current sensor
Open Close Current Transformer CTK series 100A 600A/5A Curent CT for fire prevention and leakage system current sensor

Open Close Current Transformer CTK series 100A 600A/5A Curent CT for fire prevention and leakage system current sensor

Share on (1600833791387):


Price:

Quantity:


Product Overview

Description



Product Description




Product overview

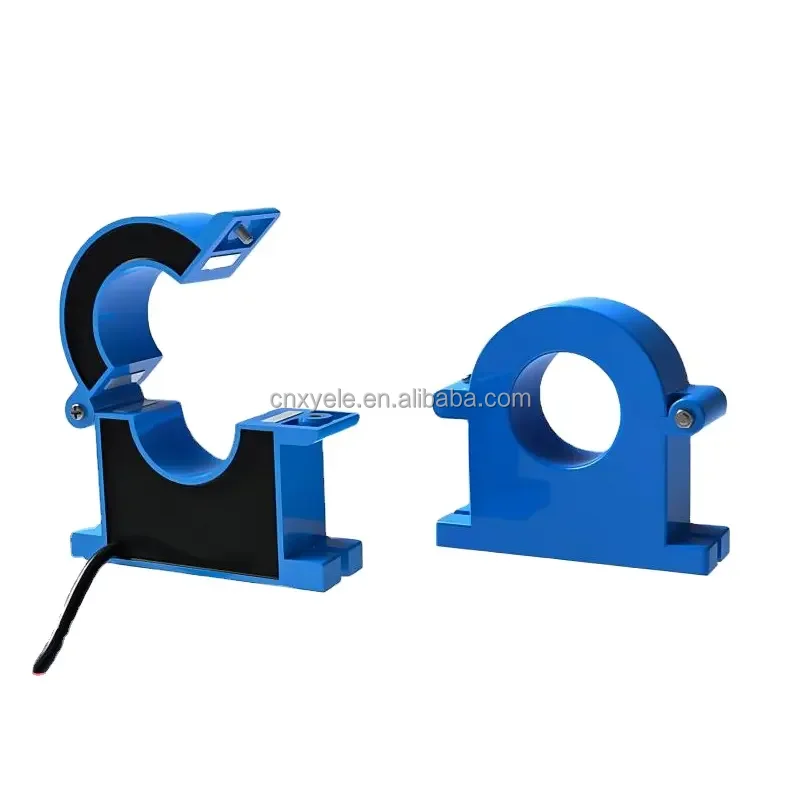

The open - close current transformer is improved on the basis of the traditional one. It is made of free open and close type, which can be installed and disassembled quickly without power failure and continuous line. It is easy to operate. This series of products have wide measuring range, rated primary current range: 5~630A, rated secondary current range: 0~5A, electrorheological ratio range up to 500:1~ 10,000:1, orderly production process flow, to ensure its accuracy level, reliability and other technical requirements. This product conforms to GB/T20840.1.2 standard.

Product features
1. Snap structure, good linearity and high sensitivity
2. High permeability silicon steel with good linearity and high sensitivity
3. Internal epoxy resin casting, good stability, light weight, easy installation

Scope of application
It is suitable for rural power grid reconstruction, electrical fire monitoring, fire prevention and leakage system, intelligent power system, power measurement, power quality analysis and electrical equipment signal acquisition, power demand side management of lighting equipment, motor, power device and other equipment, small current grounding system, electromagnetic relay protection, microcomputer protection, intelligent power, environmental protection monitoring, etc.


Specification


Electrical parameters
Mechanical parameters
Working frequency
50~2KHz
Shell
ABS, Flame retardant grade 94-V0
Rated input
5A~2000A
Skeleton
PBT
Measurement range
10%In~130%In
Iron core
Silicon steel
Rated output
0.333VIAC or 0-5A
Internal structure
Clasp
Ratio difference
≤±0.1%
Construction plan
Band fixation
The difference between the two
≤±10
Working temperature
-12℃~+75℃
Dielectric strength
2.5KV/1mA/1min
Ambient humidity
≤85%
Insulation resistance
DC500V/1000MΩ/min
Connection mode
PVC tricolor 1.5m twisted pair

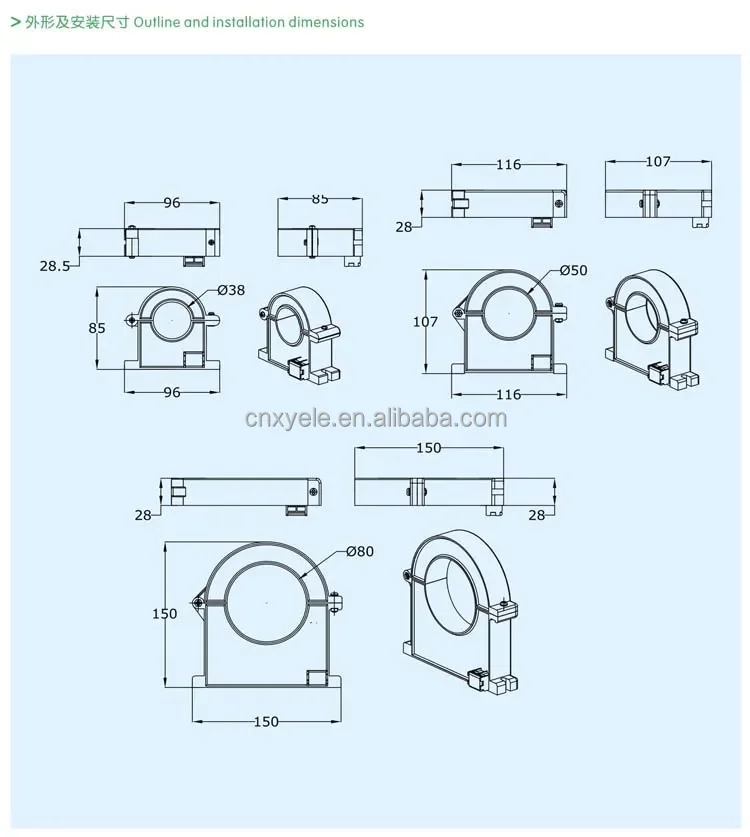

Outline and installation diamensions




Packing & Delivery




Company Profile








Yueqing Xingyang Electronic Co., Ltd. (CNXY for short) is an enterprise specialized in the design, production and sale of electric equipment. Our company has an office located in the largest manufacturing base of electric equipment - Wenzhou, which is called "the Electric Equipment Capital of China".

CNXY has five specialized branches and over 300 specialized cooperative partners. CNXY, an ISO9001 certified enterprise, has modern production lines and high quality control equipment, with scientific administration, professional engineers, well trained teams and technicians and skilled workers.

Now CNXY has five design and production bases in Hong Kong, Taiwan area, Singapore, Turkey and Wenzhou (China Mainland) respectively, 28 sales organizations around the world and more than 50 holding member enterprises.

CNXY products include low-voltage apparatuses, welding equipment, instruments and meters, photoelectron products, electrical products for construction, automobile apparatus and industrial automatic equipment. Our products are sold to more than 100 countries and regions. All the export products have passed CE certification and some products have passed several international certifications like RoHS, TUV, UL, KEMA, SIRIM and so on.

Your Success, Our Glory
Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
