JingPing All in One Commercial Kitchen Exhaust Hood Oil Fume Purification Machine with UV Filter
- Category: Range Hoods >>>
- Supplier: Sichuan Jingping Environmental Protection Equipment Co. Ltd.
Share on (1600833795157):
Product Overview
Description
PRODUCT INTRODUCTION

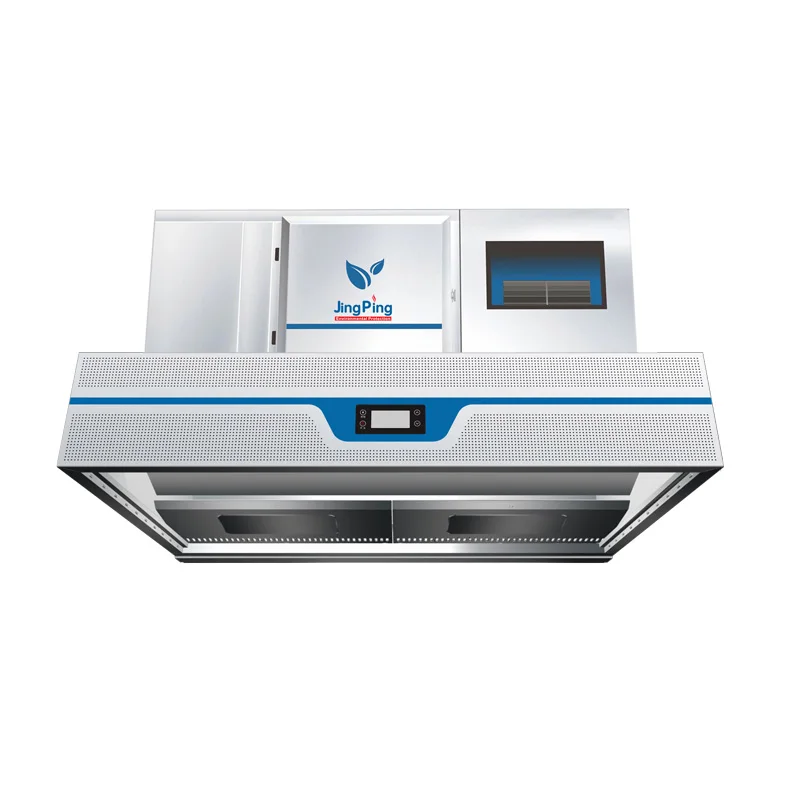

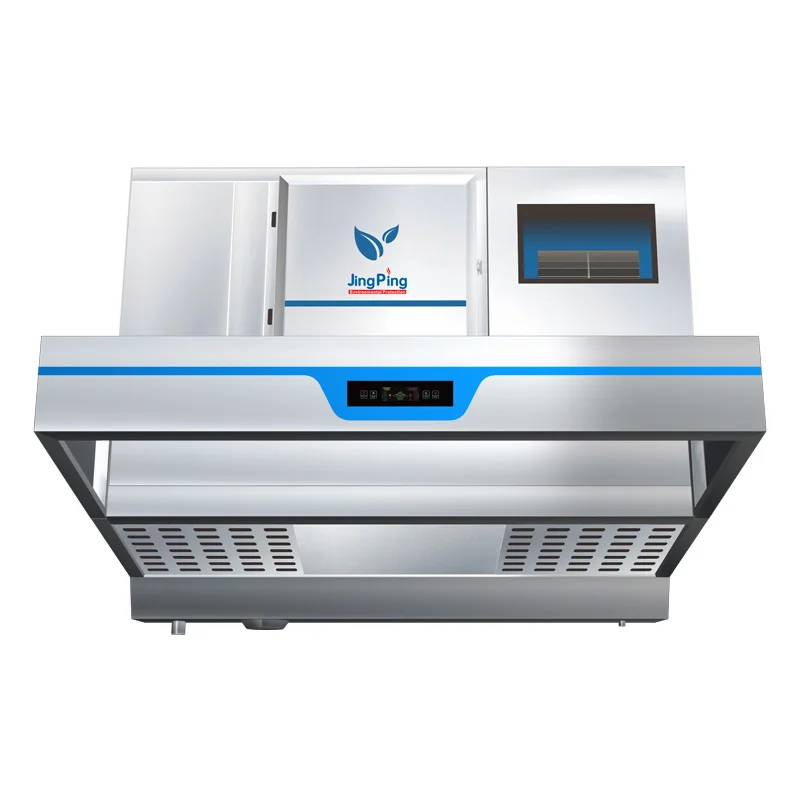

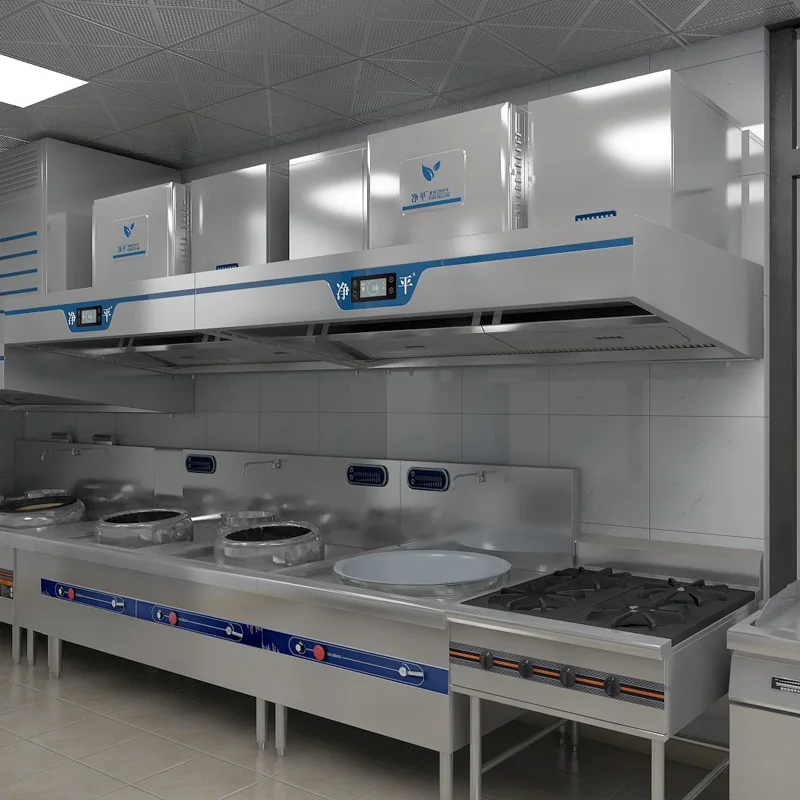

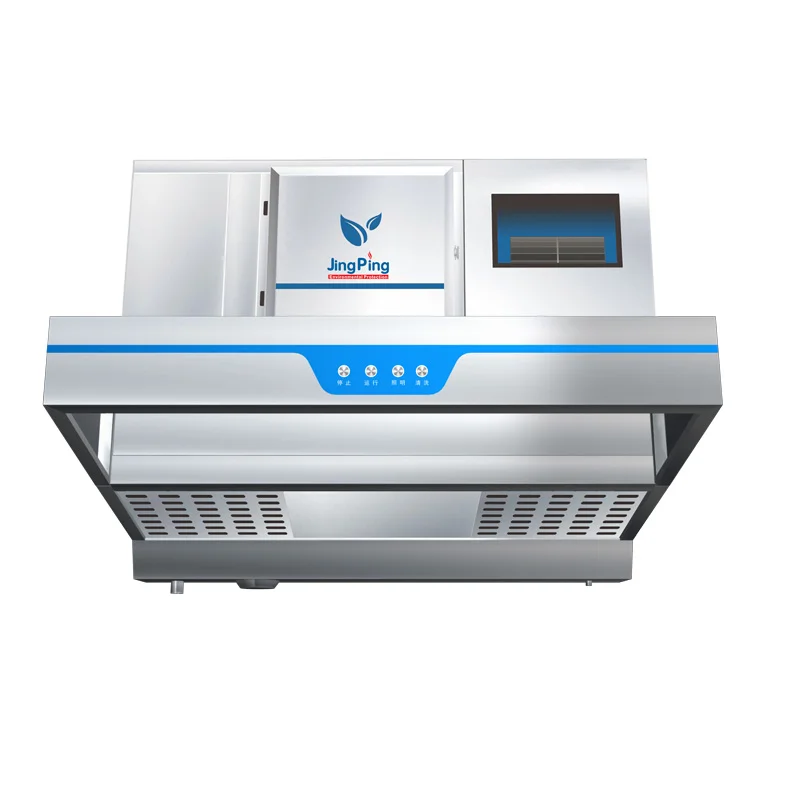

JingPing All-in-One Commercial Kitchen Exhaust Hood Oil Fume Purification Machine with UV Filter
JingPing kitchen hood systems are designed to remove hot air, steam, and smoke, we use filters to remove grease and food particles. Restaurant ventilation regulations require that commercial kitchens use proper venting systems that are in line with local codes.
Kitchen exhaust hoods are made to remove combustion products and fumes caused by cooking equipment and then recirculate clean air back into the kitchen. Without the appropriate hood system above a commercial range or fryer, grease collects above the cooking equipment and becomes a fire hazard. Our collection of kitchen hood products includes condensate hoods that are designed to remove hot air and steam caused by dish machines, as well as ventless hood systems that can be used in small kitchens that cannot support a traditional hood system.
Kitchen exhaust hoods are made to remove combustion products and fumes caused by cooking equipment and then recirculate clean air back into the kitchen. Without the appropriate hood system above a commercial range or fryer, grease collects above the cooking equipment and becomes a fire hazard. Our collection of kitchen hood products includes condensate hoods that are designed to remove hot air and steam caused by dish machines, as well as ventless hood systems that can be used in small kitchens that cannot support a traditional hood system.

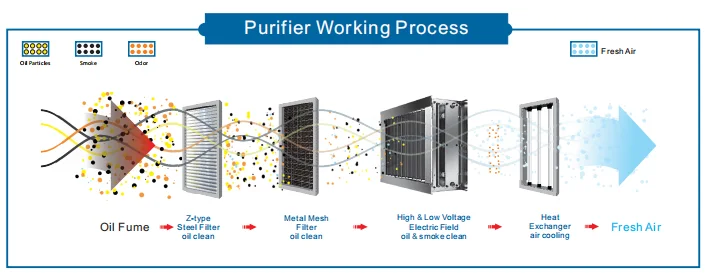

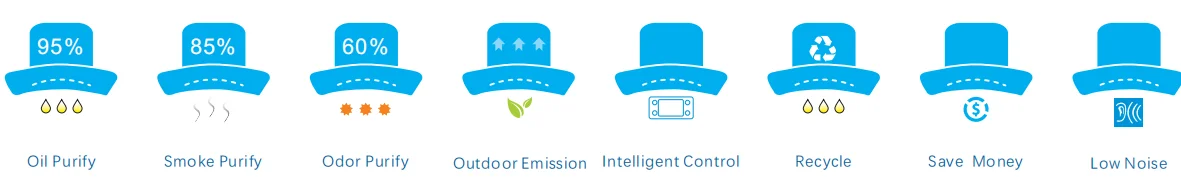

FOUR STAGE FILTRATION
REMOVE GREASE, SMOKE & ODORS
UV LIGHT FOR AIR PURIFICATION
INTELLIGENT CONTROL SYSTEM
95% PURIFICATION RATE DIRECT OUTDOOR EIMISSION
NO MORE DUCTS/PIPES
Level One：Z-type Steel Fliter to remove 60% large particles of the oil particles will be condensed, and separated out under gravity.
Level Two Dynamic Filter Fan to deal with large oil particles again. Under negative pressure air flow in the body, the
dynamic filter fan will rotate in high speed, and the large oil particles can be captured by centrifugal force, and then saved in oil tank. This process can purify about 78% of the oil particles>5μm.
Level Three: Metal Mesh Filter is made of uses multi-layer stainless steel corrugated wire mesh, which can remove
65% large oil particles from level two.
Level Two Dynamic Filter Fan to deal with large oil particles again. Under negative pressure air flow in the body, the
dynamic filter fan will rotate in high speed, and the large oil particles can be captured by centrifugal force, and then saved in oil tank. This process can purify about 78% of the oil particles>5μm.
Level Three: Metal Mesh Filter is made of uses multi-layer stainless steel corrugated wire mesh, which can remove
65% large oil particles from level two.

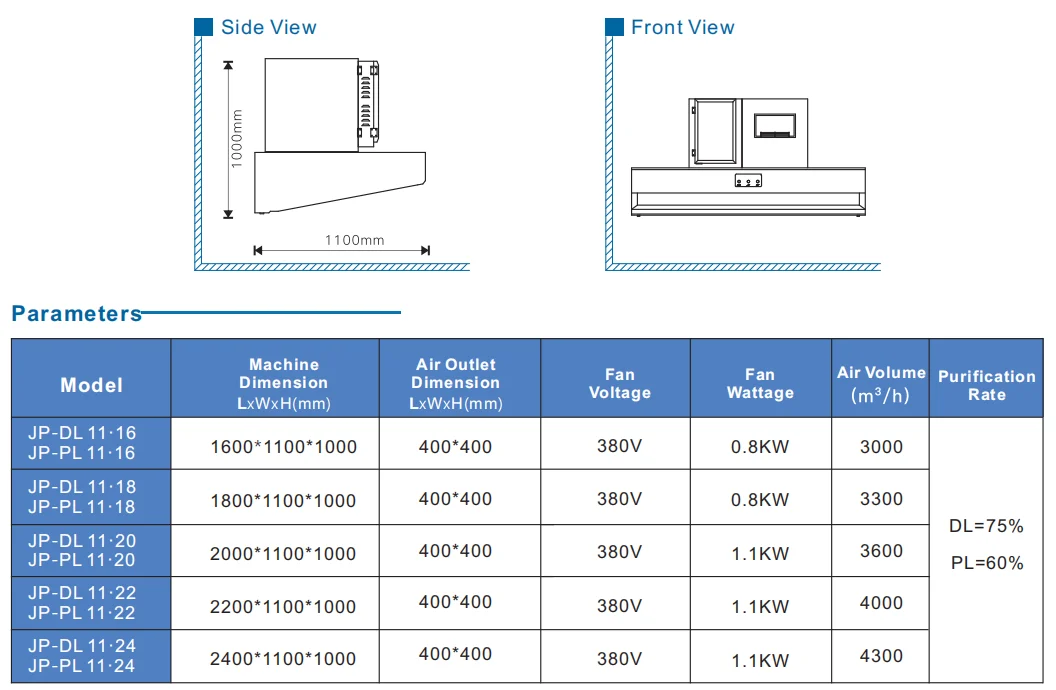

PRODUCT SPECIFICATIONS
Ventless hood systems allow you to operate commercial cooking equipment without a traditional hood system. These units can be installed in almost any space and are beneficial for buildings that don’t have built-in ductwork or vents. Their filtration system remove the grease, smoke and odors and release fresh air to the environment under emission standards.
These ductless hoods are a practical alternative to traditional hoods and ventilation systems. They work by filtering air and
recirculating it without the need for outside venting, which makes them useful for historical buildings or other spaces that don’t have access to a duct work system. Our selection of commercial use ventless hoods come in a variety of sizes to accommodate different pieces of equipment.
These ductless hoods are a practical alternative to traditional hoods and ventilation systems. They work by filtering air and
recirculating it without the need for outside venting, which makes them useful for historical buildings or other spaces that don’t have access to a duct work system. Our selection of commercial use ventless hoods come in a variety of sizes to accommodate different pieces of equipment.
Name | JingPing All-in-One Commercial Kitchen Exhaust Hood Oil Fume Purification Machine with UV Filter |
Model | JP-DL13.18 |
Machine Dimension | L1800*W1300*H1000mm |
Air Outlet Dimension | 400*400mm |
Fan Voltage | 380V |
Fan Power | 0.8KW |
Air Volume | 3600m3/h |
Filtration Rate | 80% |
Filter | Dynamic Filter, Z Type Filter |
Material | Stainless Steel 201/304 |
Installation | Wall mounted |
Application | Small and medium-sized restaurants, canteens Stoves with medium air volume, width≤1.0 meter Stoves for steamed & stewed food |
COMPANY PROFILE
JingPing Environmental Protection Co., Ltd is a professional manufacturer of Integrated Oil Fume Purification Machines, which are the most advanced All-In-One Commercial Range Hood on the market. With maximum eight layer filtration process, it can reach up to 99% purification rate by removing grease, oil, smoke and odors in addition to heat & moisture. After purification and filtration process, the fresh air just comes out from the air outlet. There will be NO MORE DUCTS required in your kitchen!
Founded in 1999 and with 24 years development, JingPing now has became the largest Integrated Oil Fume Purification Machine manufacturer in China. JingPing has purchased a large number of advanced intelligent production equipment, including CNC laser cutting machines, CNC punching machines, bending processing machines, welding robots etc. and set up an advanced and modern factory in Suining City, Sichuan Province with over 45000sqm area covered. With over 300 workers, JingPing can produce 5000sets various type commercial range hoods monthly, and our annual sales turnover reaches 50millions US dollars. Our products have been exported to Malaysia, Singapore, India, Vietnam, Germany, Italy and many other countries.
To ensure our quality, JingPing has obtained many certificates such as ISO9001 International Quality System Certification,
ISO14001 Environment Management Certification, and IS045001 Occupational Health and Safety Certification, Meanwhile, JingPing has gained more than 60 national patents, which makes our products more competitive in the market.
JingPing adheres to the management policy of "Quality for Survival, Innovation for Development, Cooperation for Win-win".
JingPing is seeking to provide a Smoke-free Kitchen to our client.
Founded in 1999 and with 24 years development, JingPing now has became the largest Integrated Oil Fume Purification Machine manufacturer in China. JingPing has purchased a large number of advanced intelligent production equipment, including CNC laser cutting machines, CNC punching machines, bending processing machines, welding robots etc. and set up an advanced and modern factory in Suining City, Sichuan Province with over 45000sqm area covered. With over 300 workers, JingPing can produce 5000sets various type commercial range hoods monthly, and our annual sales turnover reaches 50millions US dollars. Our products have been exported to Malaysia, Singapore, India, Vietnam, Germany, Italy and many other countries.
To ensure our quality, JingPing has obtained many certificates such as ISO9001 International Quality System Certification,
ISO14001 Environment Management Certification, and IS045001 Occupational Health and Safety Certification, Meanwhile, JingPing has gained more than 60 national patents, which makes our products more competitive in the market.
JingPing adheres to the management policy of "Quality for Survival, Innovation for Development, Cooperation for Win-win".
JingPing is seeking to provide a Smoke-free Kitchen to our client.
Choose JingPing, choose a better life.
New Factory in Suining City, Sichuan Province
45000sqm Working Area with Modern Equipments
JingPing Sales Team at the Exhibition
200 Experienced Workers & 100 Management Staff
CERTIFICATIONS
ISO9001
ISO4001
ISO45001
CE
PROJECTS
FAQ
Q1：Are you a factory or trading company?
A1：We are a manufacturer for over 24 years. Our company has committed to making contribution to environmental proteciton. We sincerely welcome you visit our factory at any time. We located in Suining City, Sichuan Provice, within one hours to Chengdu airport.
Q2：What are your main products?
A2：We mainly manufacture Integrated Oil Fume Purification Machines and Mini Oil Fume Purifiers. Both are for commercial kitchens, mostly in hotels, shools, resturants.
Q3：What is your MOQ?
A3：We welcome one-unit trial.
A3：We welcome one-unit trial.
Q4：What is your delivery time?
A4：5-7 days for samples and 10-15 days for bulk.
A4：5-7 days for samples and 10-15 days for bulk.
Q5：Can you do custom made?
A5：Yes, we can do both OEM/ODM and custom made. We can also offer design for your projects.
A5：Yes, we can do both OEM/ODM and custom made. We can also offer design for your projects.
