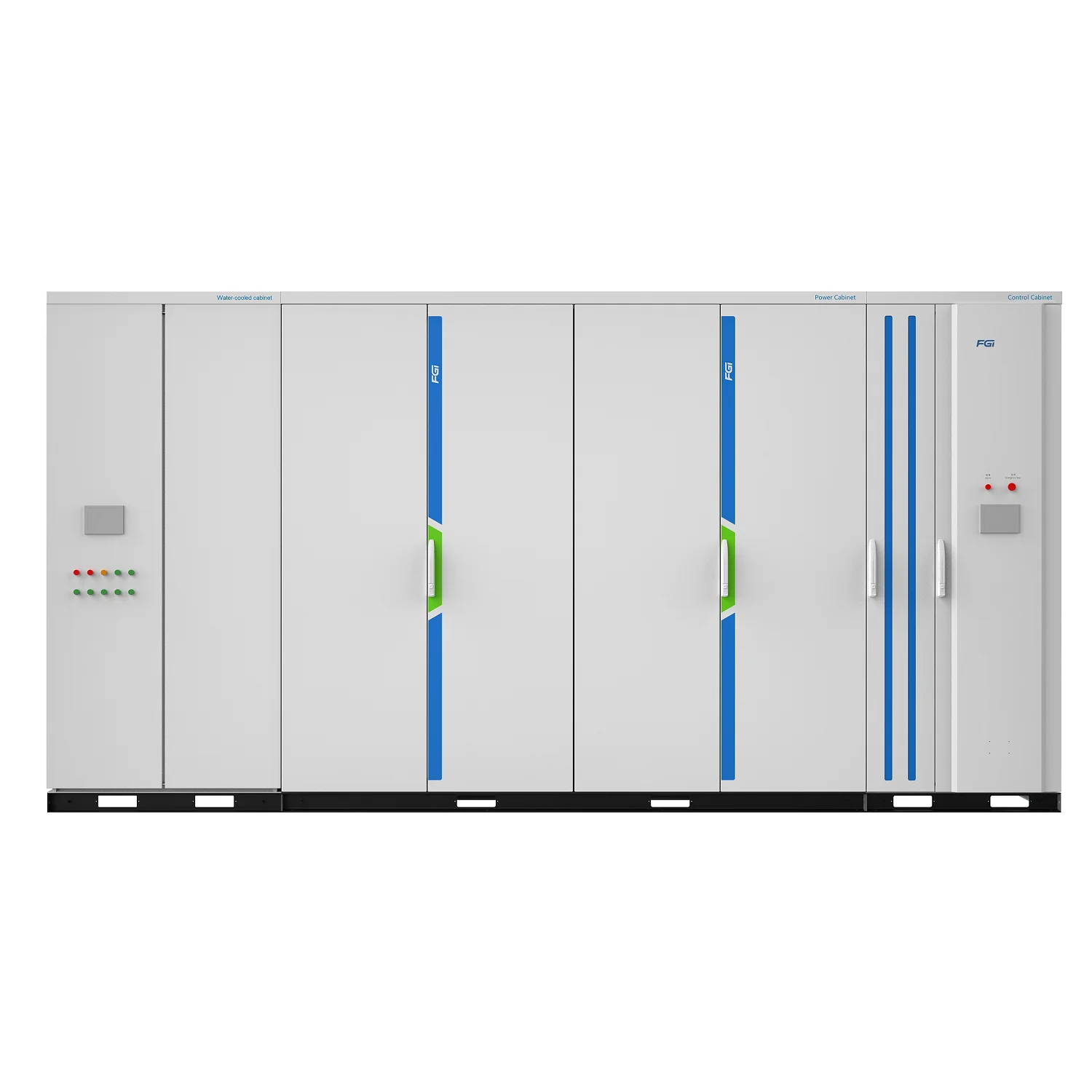

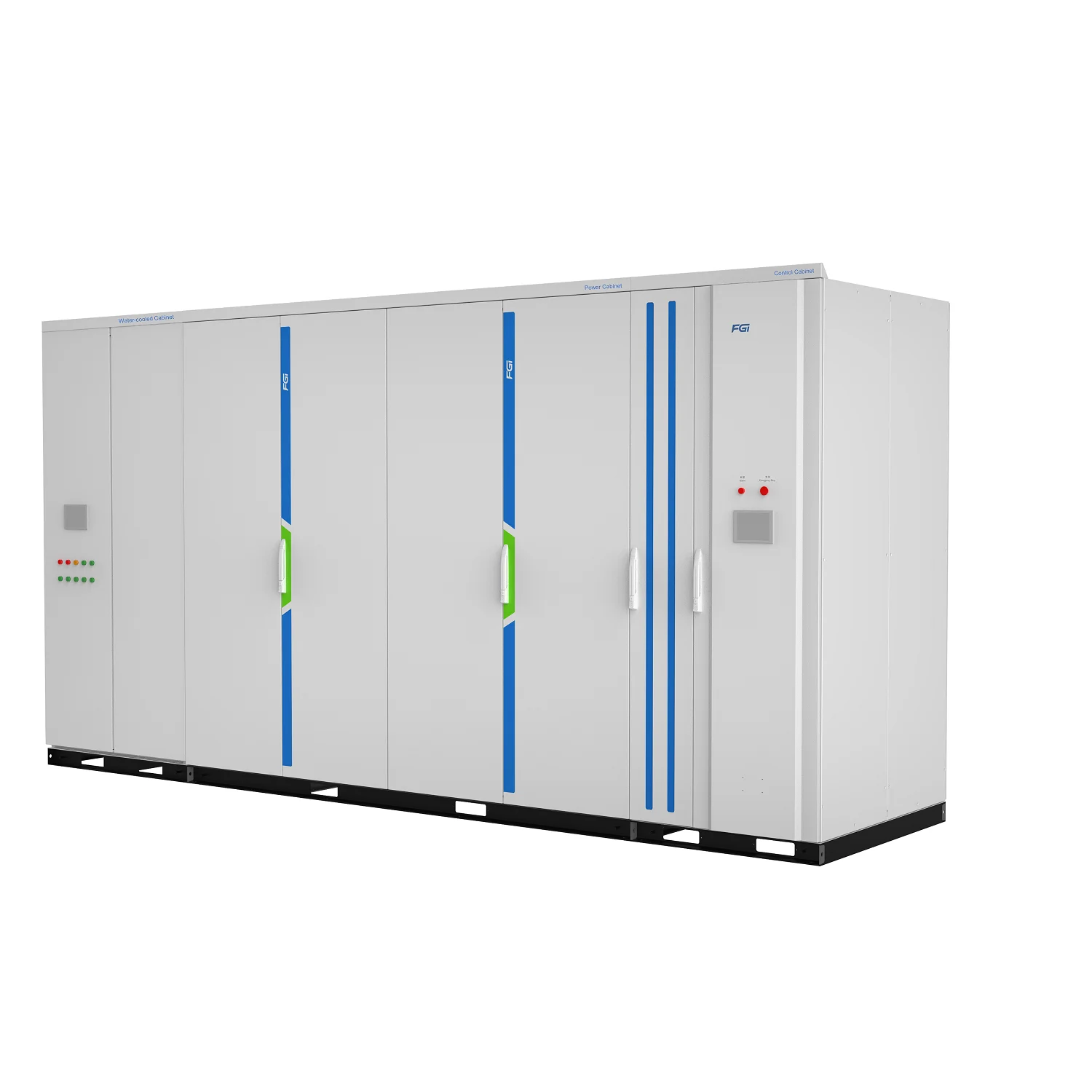

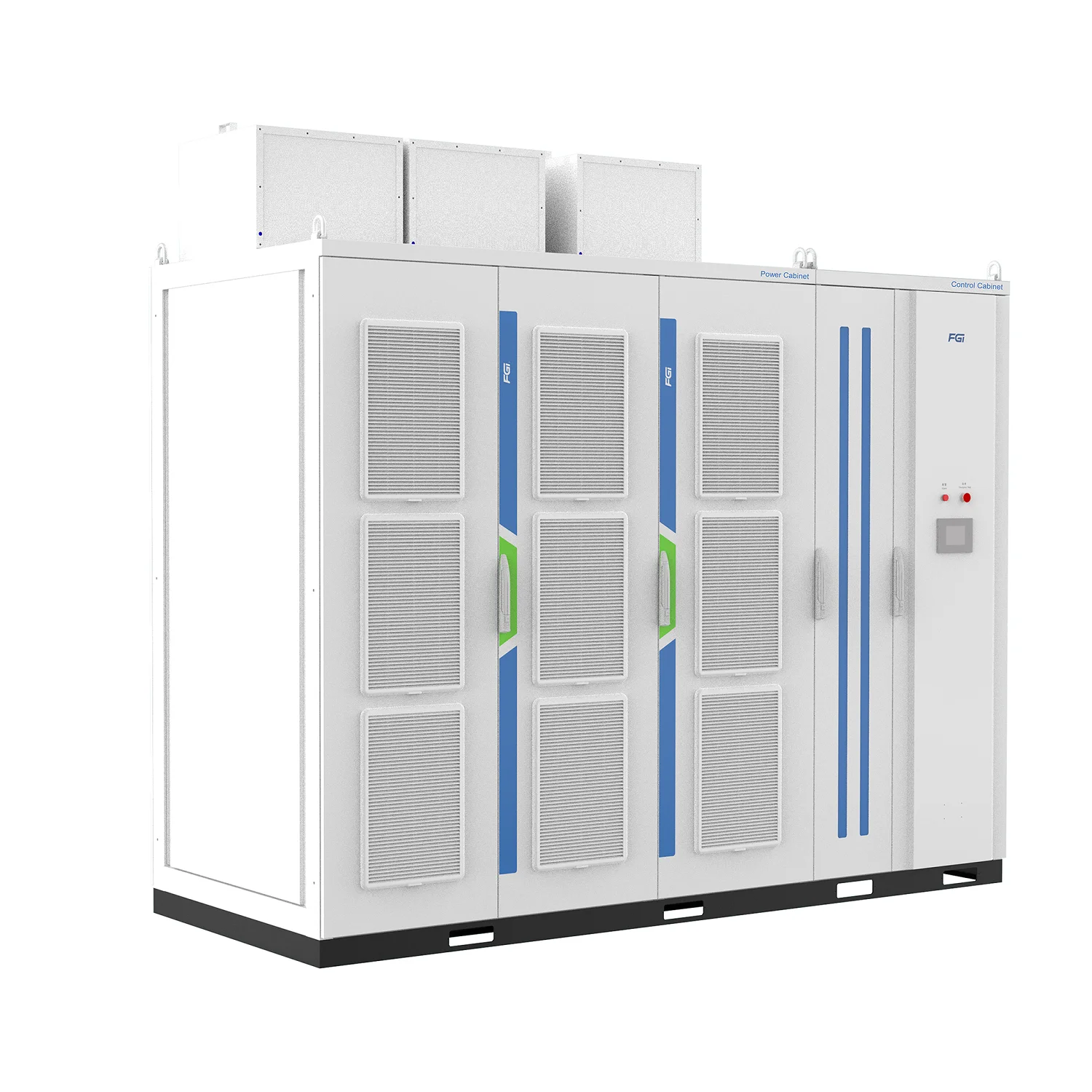

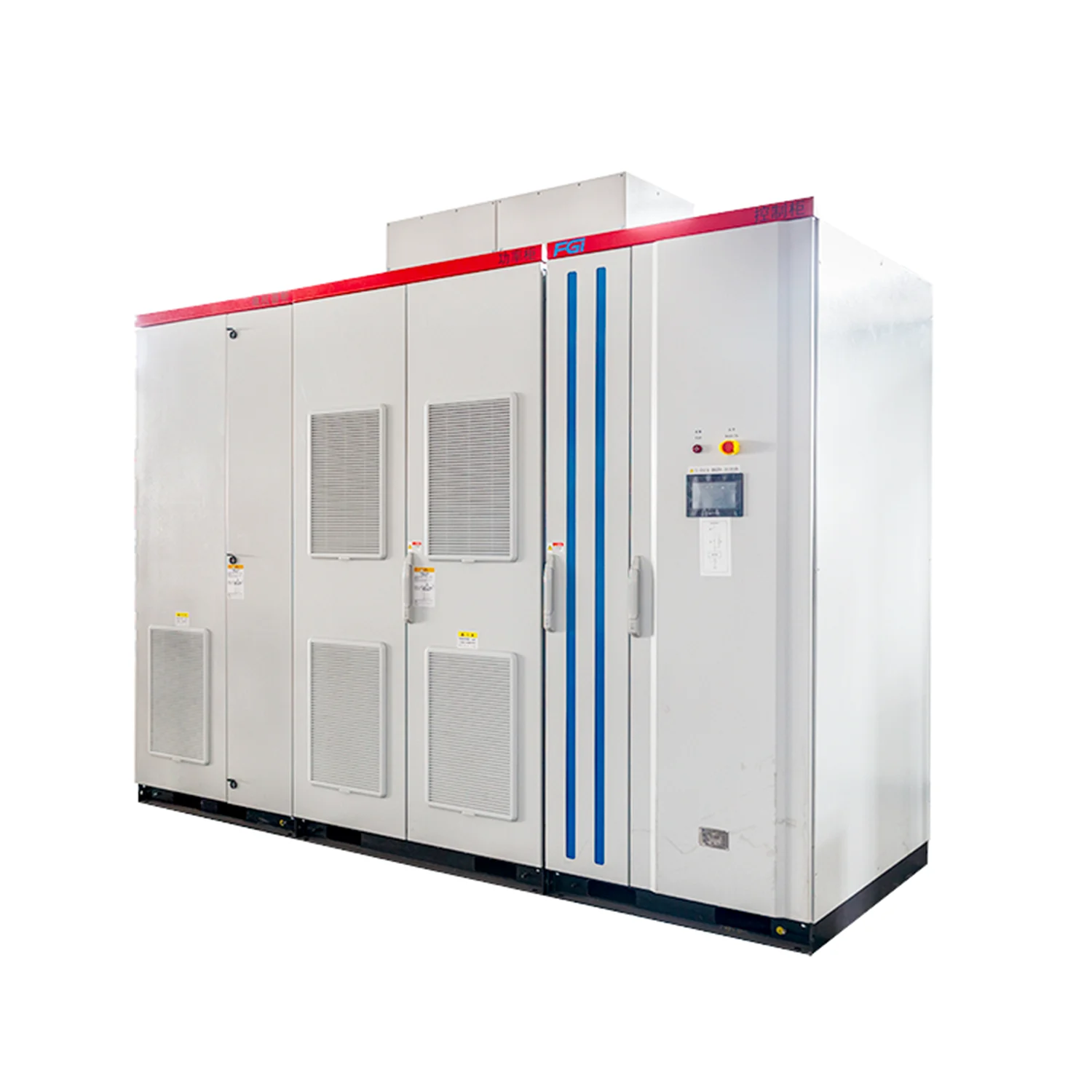

Most Popular FGI Small Installation Space 1Phase High Voltage SVG Static Var Generator for Transformers use
- Category: >>>
- Supplier: Fgi Science And Technology Co. Ltd.
Share on (1600833832563):
Product Overview
Description
Product Description
As one of the professional and high quality STATCOM manufacturers, The FGI high voltage Static Var Generator (SVG) has more than 20 years of experience in R&D, FGI has developed and manufactured high voltage dynamic reactive power compensation device Static Synchronous Compensator (STATCOM) in 2006 to improve grid stability, increase transmission capacity, eliminate reactive shock, filter out harmonics and balance three-phase power grid.
FDSVG series as the static synchronous var compensator can be widely used in petrochemical, power system, metallurgy, electrified railway, urban construction and other industries, for various asynchronous motors, transformers, thyristor converters, inverters, and other equipment to provide high-quality, high-reliability reactive power compensation and filtering solutions.

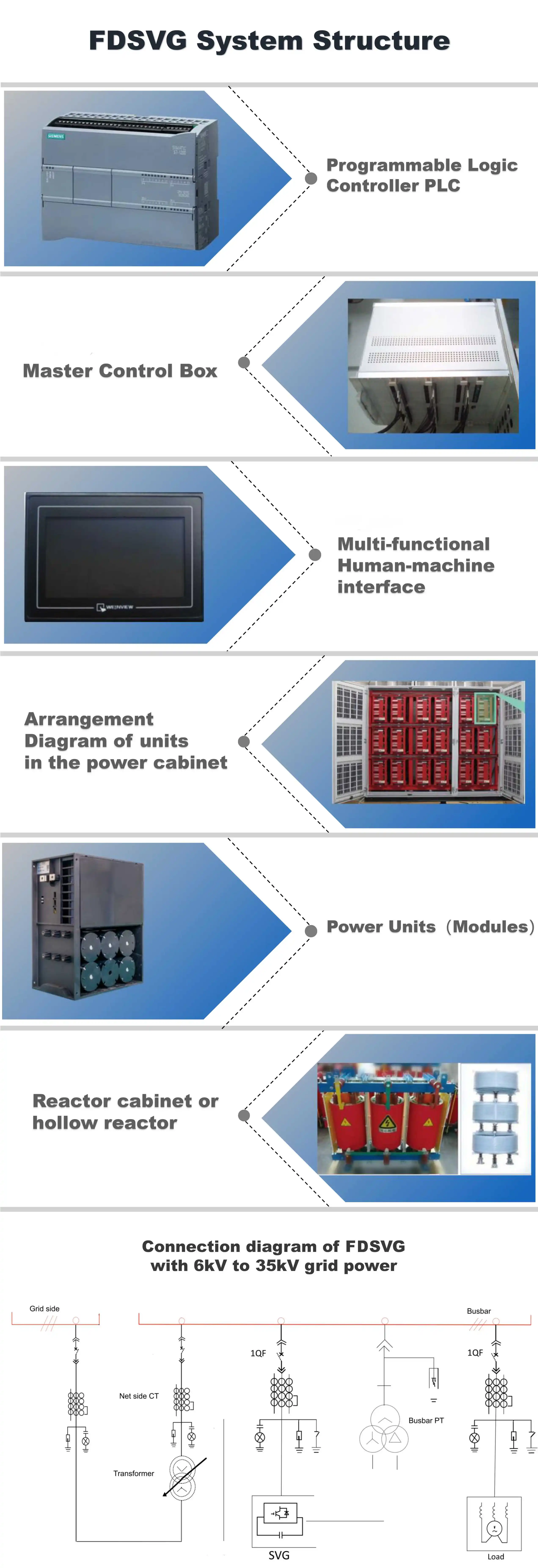

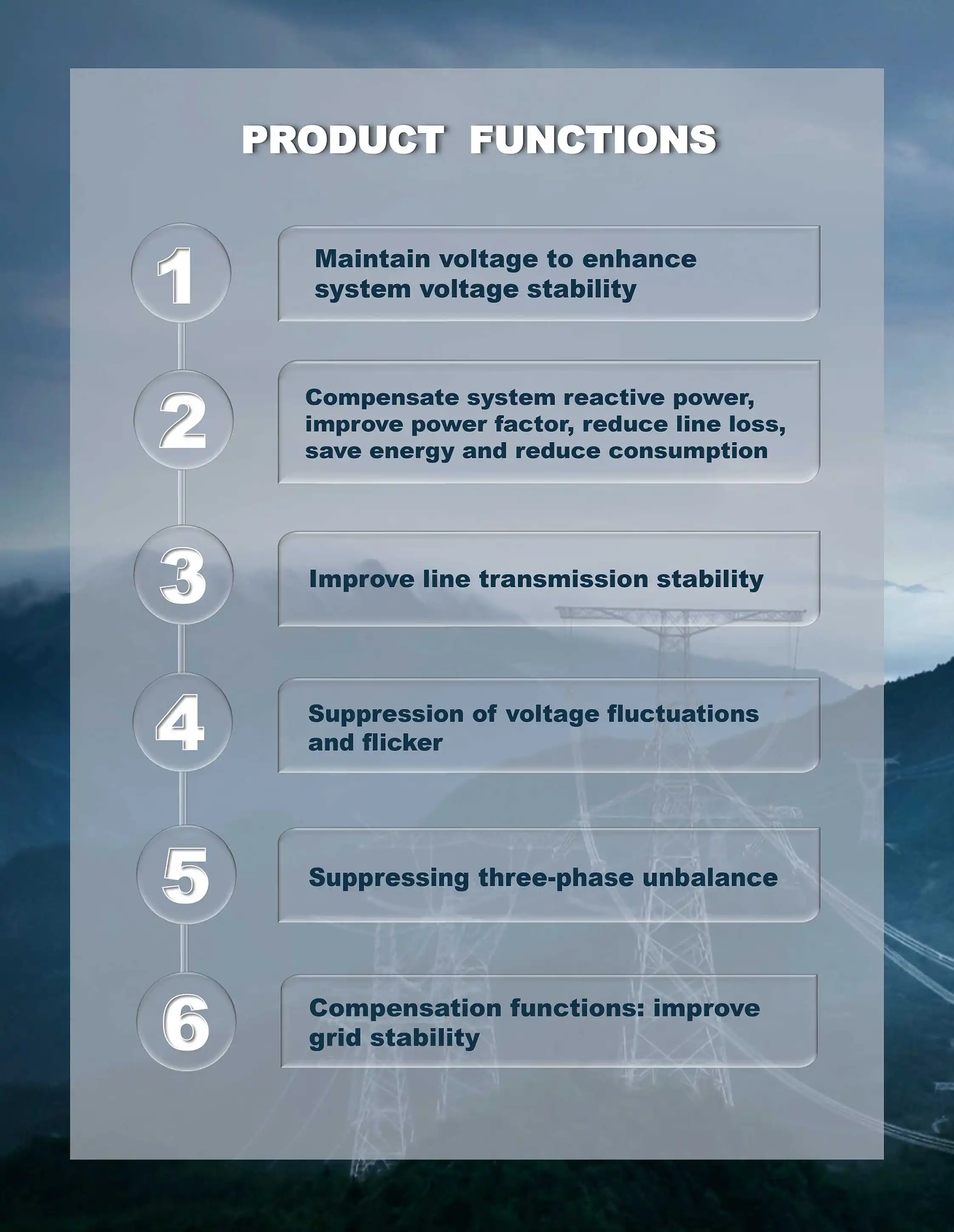

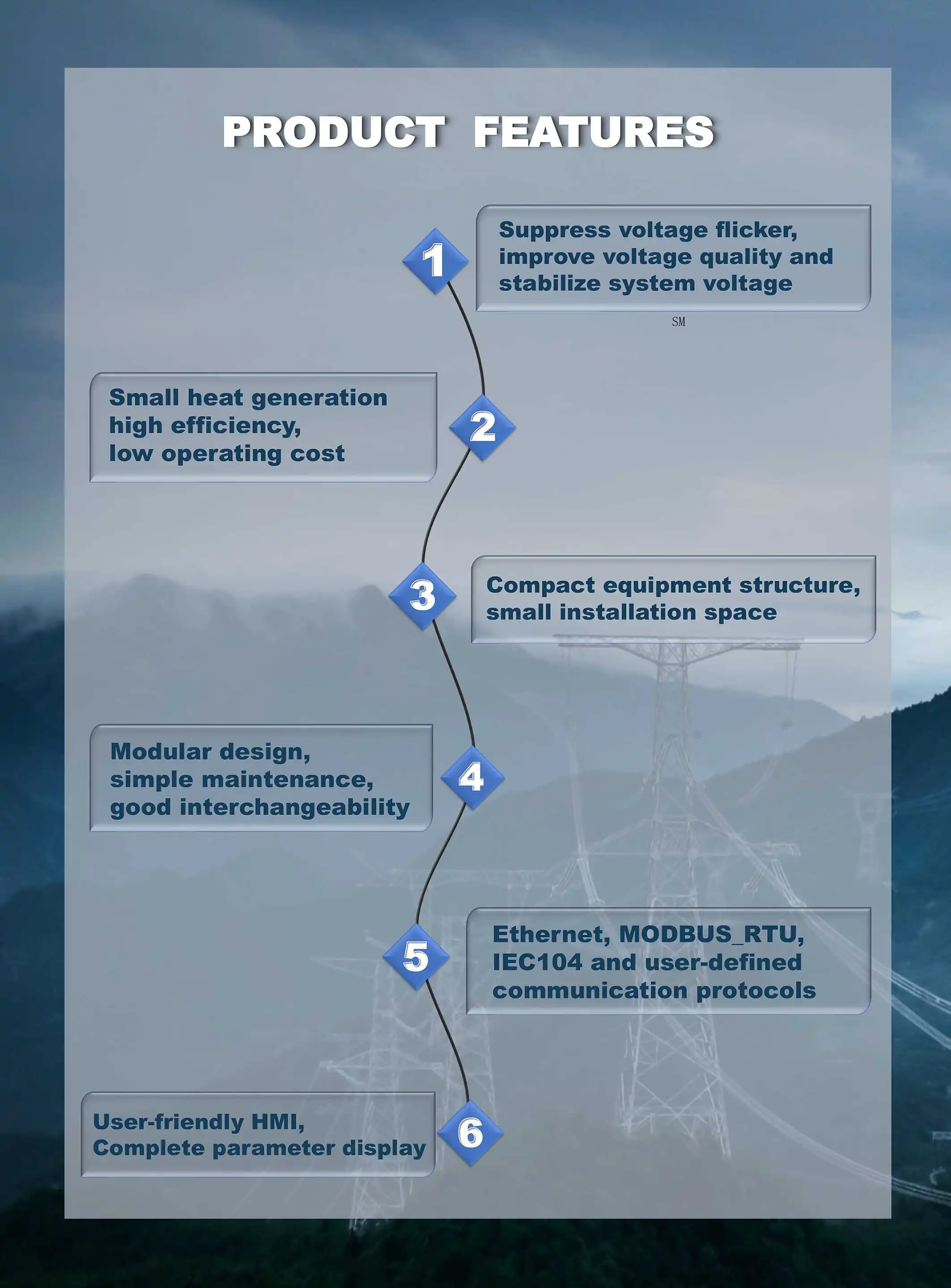

FDSVG series products as the reactive power compensator, it provides fast dynamic reactive power compensation and harmonic filtering for power grid and electrical loads. It also can effectively improve transit stability of power grid voltage, suppress bus voltage flicker, compensate unbalanced loads, filter the harmonic and reduce power loss.
Product Paramenters

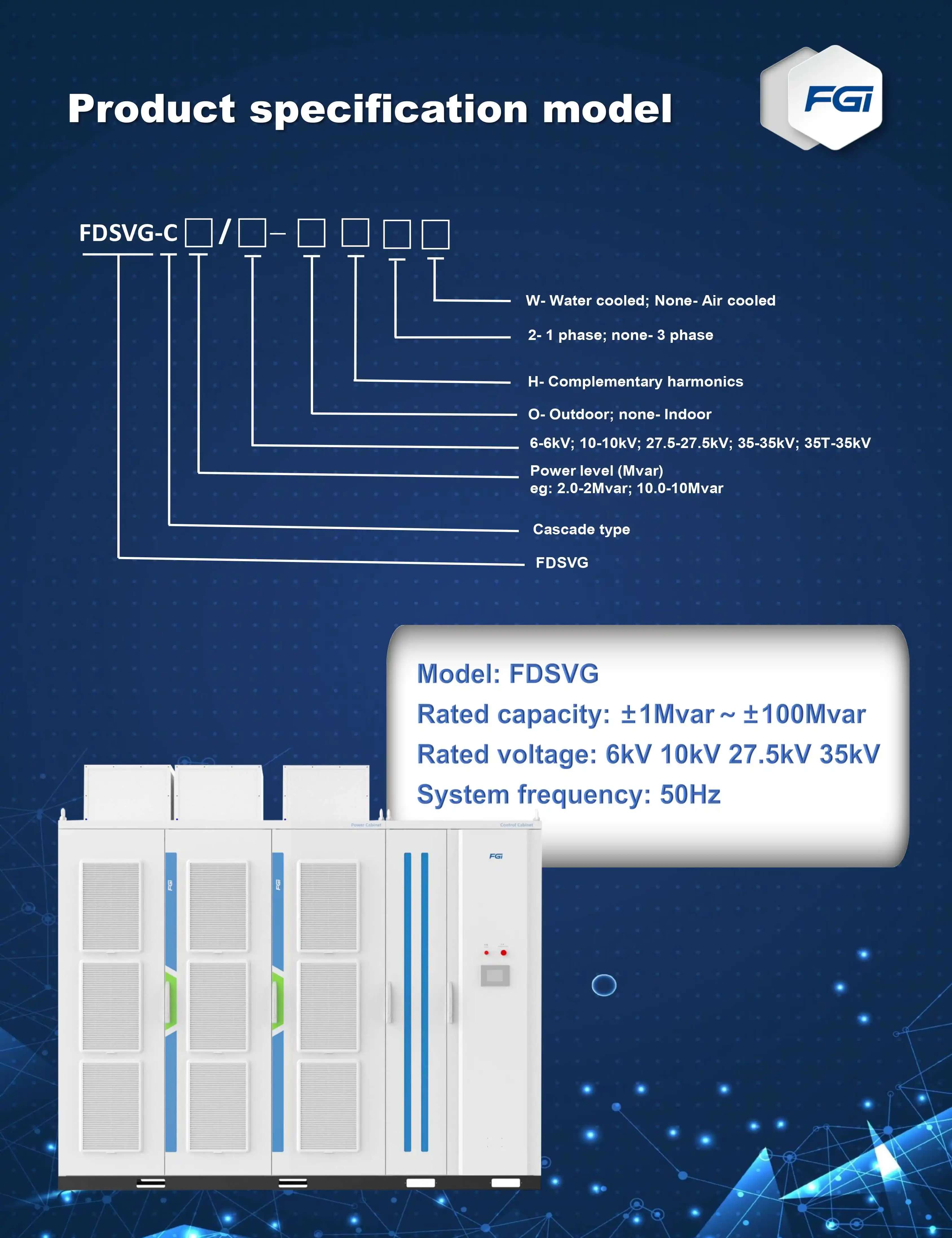

Technical parameters | Rated capacity | ±1Mvar～±100Mvar |
Rated voltage | 6/6.6kV, 10/11kV, 27.5kV, 35kV | |
System frequency | 50Hz | |
Overload capacity | >120% | |
MTBF | >100,000 hours | |
System efficiency | ≥99.2% (Under rated operating conditions) | |
Response time | ≤5ms | |
Active power loss | ≤0.8% | |
Total harmonic current distortion (THDi) | ≤ 3% | |
Control power supply | 380VAC, 220VAC or 220VDC | |
Reactive power regulation mode | Capacitive and inductive automatic continuous smooth regulation | |
Starting regulation power | 5kvar | |
Compensation current resolution | 0.5A | |

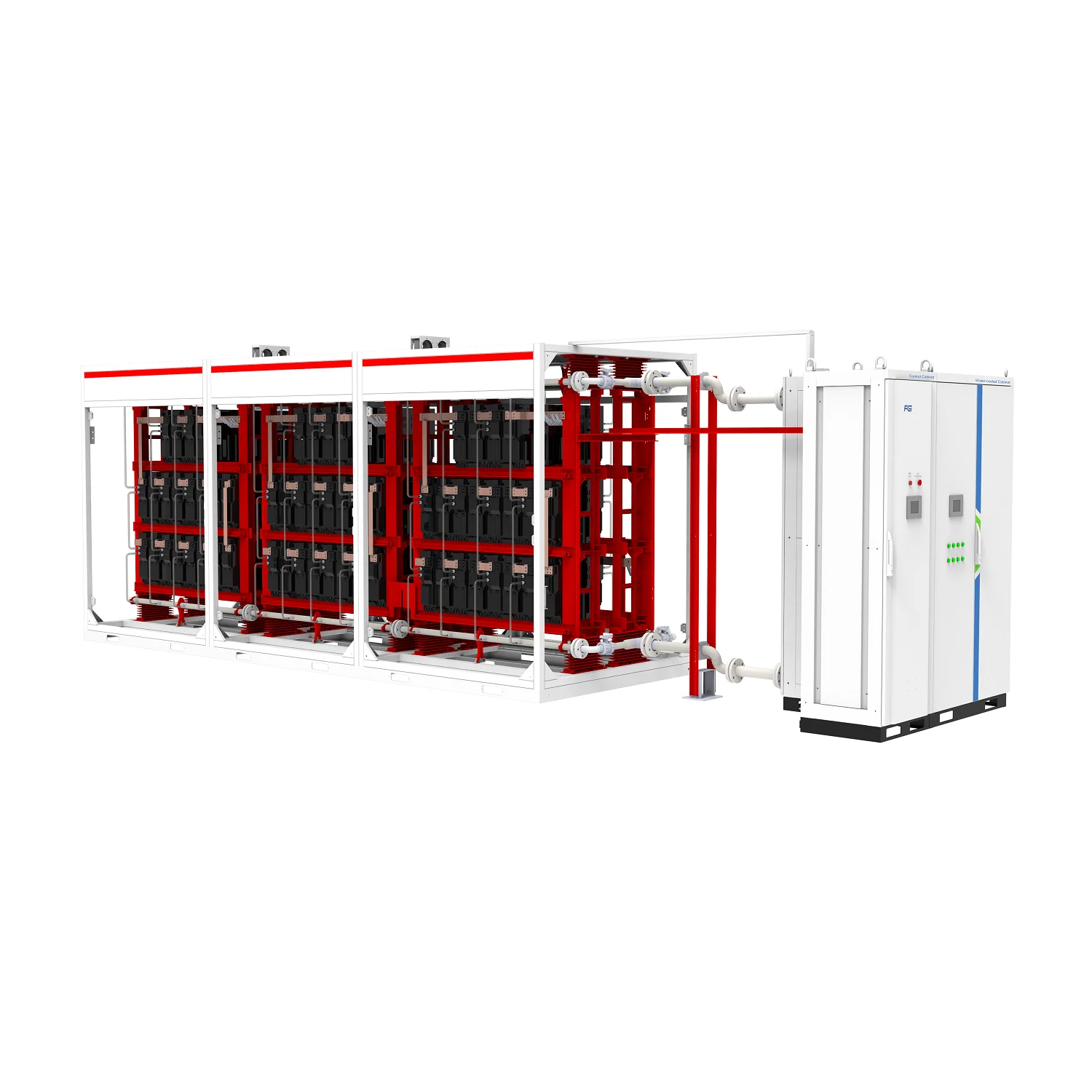

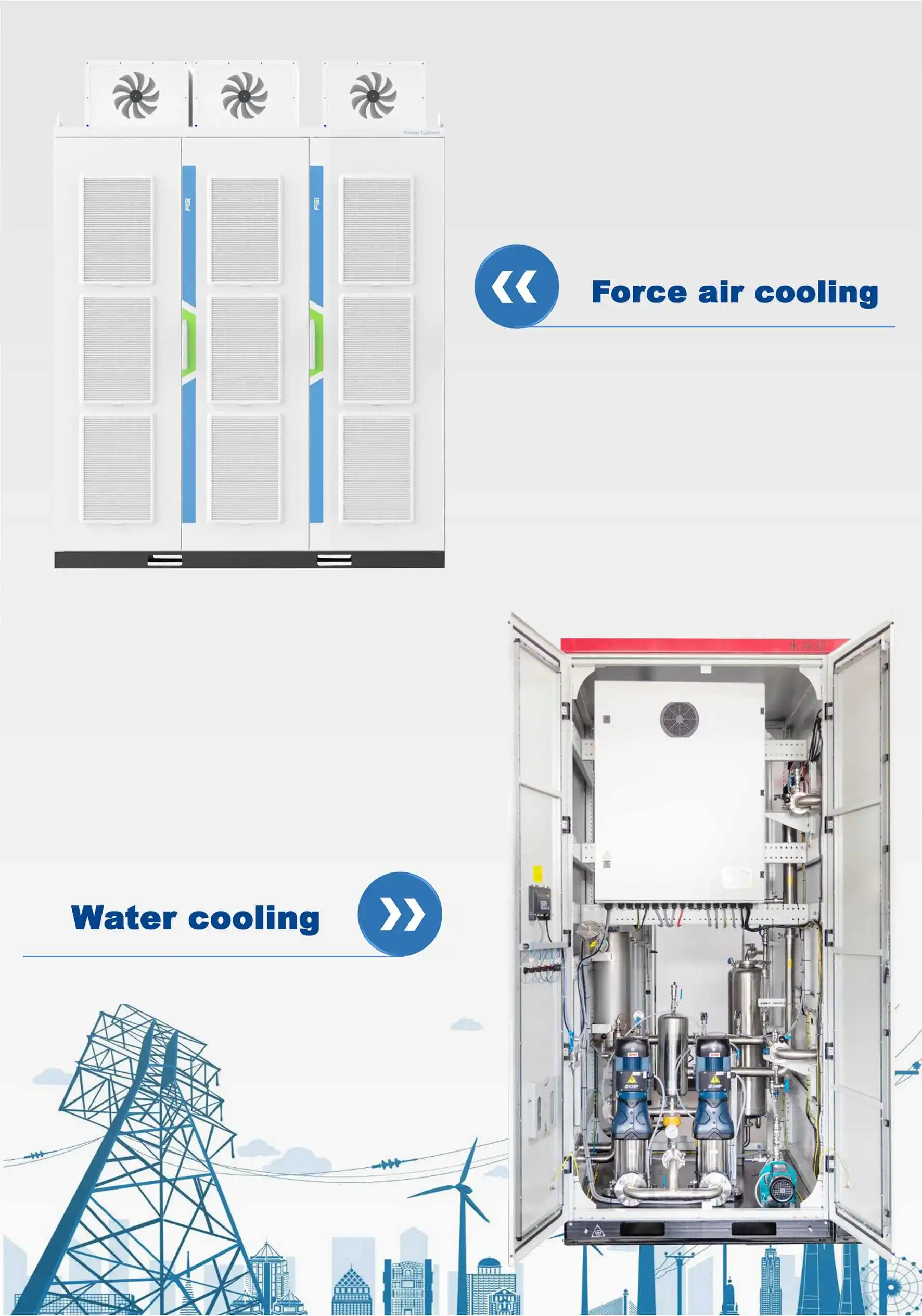

Cooling method | Force air cooling / Water cooling | |
Communication interface | Ethernet, RS485 and CAN communication interface, high-speed fiber optic communication interface | |
Communication protocols | MODBUS_RTU, ProfiBUS, IEC61850-103/104, CANOPEN protocol, user-defined protocols (can be freely set on the HMI) | |
1: Constant device reactive power mode; 2: Constant assessment point reactive power mode 3: Constant assessment point power factor mode; 4: Constant assessment point voltage mode; 5: Load compensation mode 6: Time-sharing 96-point control | ||
Support multiple machines in parallel connection operation, multi-bus integrated compensation, support up to 4 groups of FC integrated compensation control | ||
Protection level | Indoor type: IP20; Outdoor type: IP44 | |
Protection functions | Comprehensive protection strategy | Improve the reliability of the device |
Components level protection: <10us Device level protection: 500~1000us System level protection. 5~2000ms | ||
Protections | Bus over-voltage, bus under-voltage, over-current, power electronics damage detection protection, pulse loss, trigger abnormality, overvoltage breakdown, unit module power cabinet over-temperature protection input interface, protection output interface control and system power supply abnormalities etc. | |
Ambient environment | Storage temperature | -30℃～+70℃ |
Operating temperature | -10℃～+50℃ | |
Relative humidity | Monthly average not more than 90﹪(25℃), no condensation | |
Altitude | ≤1000m (above 1000m, special instructions are required) | |
Marine environment and strong corrosive environment | Need to be customized design | |
Seismic intensity | 8 degrees |
