Mitsubishi FX5U PLC CPU FX5U 64MR/ES CPU Module Controller PLC
- Category: >>>
- Supplier: Changsha Zhinian Automation Equipment Co. Ltd.
Share on (1600833848985):
Product Overview
Description
Product Overview

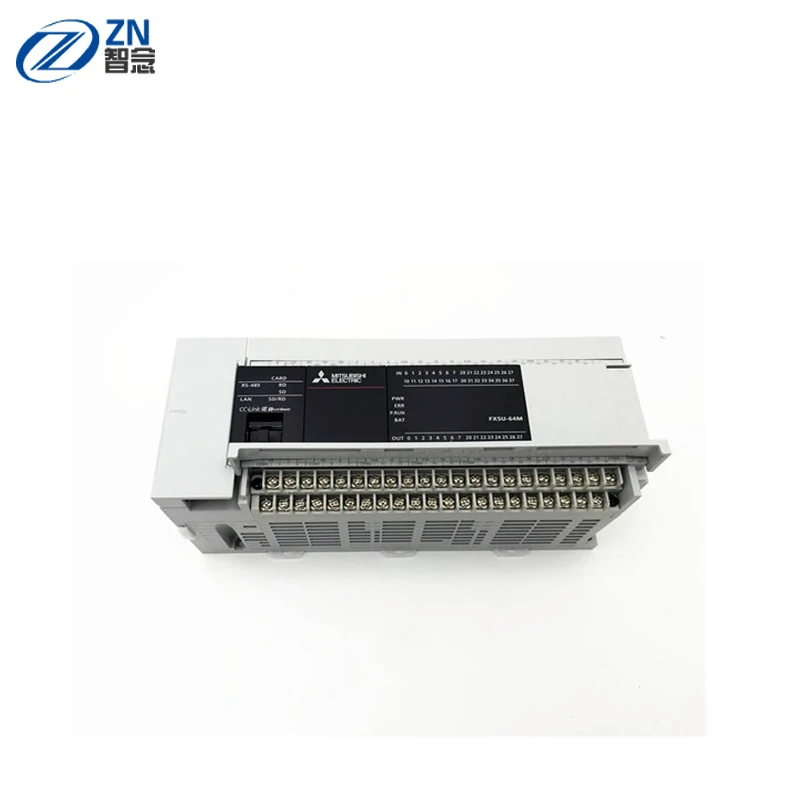

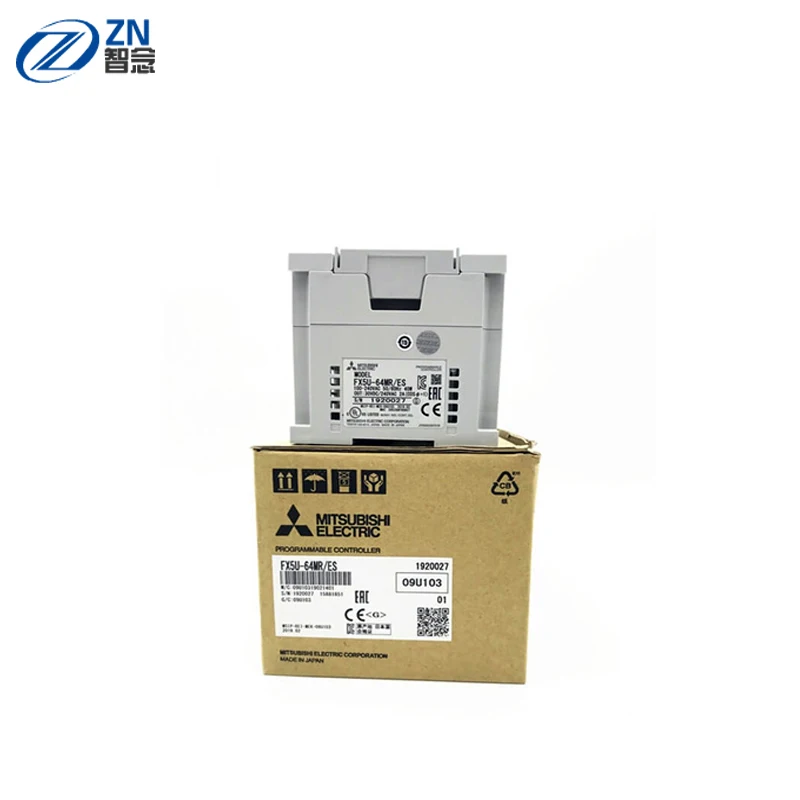

Mitsubishi FX5U PLC CPU FX5U-64MR/ES CPU Module Controller PLC
FX5U;CPU;AC;32 Inputs;32 Relay Outputs;3xAnalog;Eth;RS-485
FEATURES AT A GLANCE
Mitsubishi PLC CPU
The Mitsubishi FX5U series iQ platform compatible programmable logic controller (PLC) has 16 digital input (type 24VDC
sink/source) and 16 relay/transistor outputs. MELSEC communication protocol (3C/4C Frames) and MELSOFT connection. It has 64k
steps program capacity and 16 built-in inputs. The FX5U continues the FX tradition of total flexibility by offering a huge range
of new and existing add-on options. It further enhances the built-in functions of Ethernet, analogue I/O, data logging, position
control, security, communication and networking functions incorporated as a standard. It will provide users with the ability to
specify more powerful systems, but with fewer overall components, saving time and cost.
Features and Benefits
Voltage rating ranges between 100VAC and 240VAC
Expanded input/output area for networks and complex applications
Can be upgraded by combining with expansion modules
Built-in SD card slot
Voltage rating ranges between 100VAC and 240VAC
Run/Stop/Reset switch
Built-in Ethernet port, RS485
Displays the input and output states via LEDs
Integrated real-time clock
Programming software is GX Works3
Operating temperature ranges between 0°C and 55°C
The Mitsubishi FX5U series iQ platform compatible programmable logic controller (PLC) has 16 digital input (type 24VDC
sink/source) and 16 relay/transistor outputs. MELSEC communication protocol (3C/4C Frames) and MELSOFT connection. It has 64k
steps program capacity and 16 built-in inputs. The FX5U continues the FX tradition of total flexibility by offering a huge range
of new and existing add-on options. It further enhances the built-in functions of Ethernet, analogue I/O, data logging, position
control, security, communication and networking functions incorporated as a standard. It will provide users with the ability to
specify more powerful systems, but with fewer overall components, saving time and cost.
Features and Benefits
Voltage rating ranges between 100VAC and 240VAC
Expanded input/output area for networks and complex applications
Can be upgraded by combining with expansion modules
Built-in SD card slot
Voltage rating ranges between 100VAC and 240VAC
Run/Stop/Reset switch
Built-in Ethernet port, RS485
Displays the input and output states via LEDs
Integrated real-time clock
Programming software is GX Works3
Operating temperature ranges between 0°C and 55°C
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Type | FX5U |
2 | Power Supply (V) | 100-240 |
3 | Current Type | AC |
4 | Program Memory | 64K STEPS |
5 | Program Memory Unit | FLASH |
6 | Integrated Digital Inputs | 16 |
7 | Integrated Digital Outputs | 16 |
8 | Integrated Analogue Inputs | 2 |
9 | Output Type | RELAY |
10 | Local I/O Points | 256 |
11 | Local + Remote I/O Points | 512 |
12 | Expandable | YES |
13 | Cycle Time LD (ns) | 34 |
14 | Cycle Time MOV (ns) | 34 |
15 | Ethernet Port | 1 |
16 | RS-485 | 1 |
17 | Power Consumption (W) | 30 |
18 | Buffer Battery | OPTION |
19 | Protection Class | IP10 |
20 | Min. Ambient Temperature (°C) | 0 |
21 | Max. Ambient Temperature (°C) | 55 |
22 | Series | MELSEC IQ-F SERIES |
Company Profile
Foucs on Automation Industry for 10+ year
Zhinian Automation Equipment Co,,Ltd is a leading industrial automation company focused the most valued service provider in control, automation, electrical, mechanical and design services in the semiconductor, chemical, food, pharmaceutical, automotive, food & beverages, metal surface treatment, OEM, electrical dealers, contractors and general industries.
Application
Oil and Gas Industry
- Oil and gas refineries
- Oil complexes
- Oil and gas supply facilities
Pharmaceutical and Chemical Industry
- Pharmaceutical factories - Paint factories
- Chemical fertilizer Plants
- Soap and detergent factories
Manufacturing Industry
- Rubber product manufacturing plants
- Automobile plants
- Plastic product manufacturing plants
- Printing factories
- Automobile plants
- Plastic product manufacturing plants
- Printing factories
Semiconductor Industry
- Semiconductor manufacturing plants
- Cleaning process
- Film deposition process
- Resist coating
- Etching process
- Resist stripping process etc.
- Cleaning process
- Film deposition process
- Resist coating
- Etching process
- Resist stripping process etc.
Our Advantages
Zhinian Automation have large stock with best price for your selection, We have various range of brand and products.
We mainly supply PLC, HMI, Servo motor and drive, Inverter of Omron, Proface, Fuji and Mitsubishi, Siemens, Schneider.
Packing & Delivery
FAQ
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could Zhinian provide technology support?
A:We're in this field more than 12 years. If there's any problem, please contact with us,we'll provide suggestion from our
engineer to help you solve problem.
3. Q:Does Zhinian keeps goods in stock or only trading?
A:We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
Send your Inquiry details in the Below, Click "Send" Now!
A: Yes, we provide warranty for all the goods from us.
2. Q: Could Zhinian provide technology support?
A:We're in this field more than 12 years. If there's any problem, please contact with us,we'll provide suggestion from our
engineer to help you solve problem.
3. Q:Does Zhinian keeps goods in stock or only trading?
A:We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
Send your Inquiry details in the Below, Click "Send" Now!
