Price:15 000,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Product feature




Dry Cooler Feature:
• Unique floating coil design avoids leakage caused by thermal expansion and contraction.
• Staggered fin pattern design and corrugated fin enhance air flow turbulence
• Inner-grooved copper tube increase heat transfer area and enhance heat transfer
• Optimized flow pass design ensure fully heat exchange with refrigerant
• Equipped with 2nd generation owl-wing fan motor as standard. It features with low noise level, large volume flow and low energy consumption. Ready for dual speed connection.
• Outdoor type powder coated casing made of galvanized sheet metal and stainless steel bolts provide a high resistance to corrosion.


• Optional features:
§ EC variable speed fan motor, to save great energy
§ ZAplus/AxiTop for greater volume flow and extreme silence
§ Adiabatic system significantly reduce energy consumption in summer
§ Epoxy coated or hydrophilic aluminum fin suitable for coastal or high corrosion area
§ Fluid dry cooler
§ Clean stainless steel tube and aluminum fin coil for cooling deionized water.



Floating coil

Unique floating coil design avoids leakage caused by thermal expansion and contraction.





Water Cooled Chiller and Dry Cooler Working Principle:









Dry Cooler Cases


Dry Cooler for School cooling.

Country: China
Application: school
Cooling capacity: 1360, 850, 425kW
Cooling medium: 30% ethylene glycol 30%
Supply power: 380V/3P/50Hz
Fan brand: Chinese brand



Dry Cooler for injection molding machine.

Country: Algeria
Application: Cooling water for injection molding machine
Cooling capacity: 694kW
Cooling medium: water
Supply power: 400V/3P/50Hz
Fan brand: Ziehl-Abegg



Dry Cooler for vegerable freezer

Country: Singapore
Application: match with fruit and vegerable freezer
Cooling capacity: 14.6kw, 17kw and 29.37kw
Cooling medium: 20% ethylene glycol 20%
Supply power: 230V/1P/50Hz
Fan brand: Ziehl-Abegg



Dry Cooler Parameter


some standard dry cooler technical parameters as below, For more informations, please contact me at 0086 13816516551.



Dry Cooler Type
D1-005-1x350
D1-007-1x350
D1-009-1x450
D1-011-1x450
D1-013-1x450
D1-017-1x500
D1-020-1x500
Capacity (35C outdoor temp.)
KW
4.89
6.83
9.39
10.99
13.33
17.01
19.8
Medium
Water flow
M3/h
0.85
1.2
1.63
1.91
2.3
3
3.5
Pressure drop
kPa
36
58
25
40
80
60
40
Air flow
M3/h
2828
2492
6199
5827
5225
8168
7601
Fan motor
Phase
1
1
3
3
3
3
3
W
140
140
540
540
540
830
830
A
0.6
0.6
1.1
1.1
1.1
1.45
1.45
Fan
No X φ
1x1x350
1x1x350
1x1x450
1x1x450
1x1x450
1x1x500
1x1x500
Sound pressure level
dB(A)
31
31
43
43
43
49
49
Dimension
L
mm
870
870
1020
1020
1020
1220
1220
W
mm
525
525
625
625
625
825
825
H
mm
797
797
820
820
820
870
870
Product weight(empty)
kg
38
48
55
60
67
82
91


\t\t\t\t\t\t\t\t\tOur Advantage \t\t\t\t\t\t\t


OEM design dry cooler.

Tell us the datas as following:


A. Required water inlet temperature?
B. Required water outlet temperature?
C. Water flow?
D.Ambient temperature?
E.Supply power(voltage-Hz-phase)
G.Any other requirements ?



CNC drilling for the header


CNC cutting tube



High Precision Punch Press

Fin Press



\t\t\t\t\t\t\t\t\tHow To Order \t\t\t\t\t\t\t

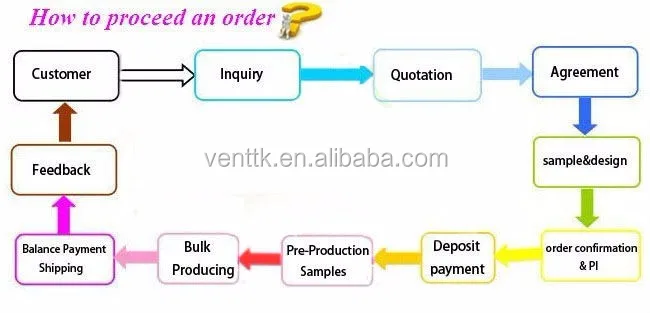

What's the order process?
1) Inquiry---provide us all clear requirements.
2) Quotation---official quotation list with all clear specifications.
3) PI--Confirm all the order technical data and price
4) Payment terms--- T/T deposit in advance
5) Production---mass production
6) Shipping--- by sea. Detailed picture of package will be provided.
7) After-sales Service--Any questions, we will try best to assist to solve for you.





Certification

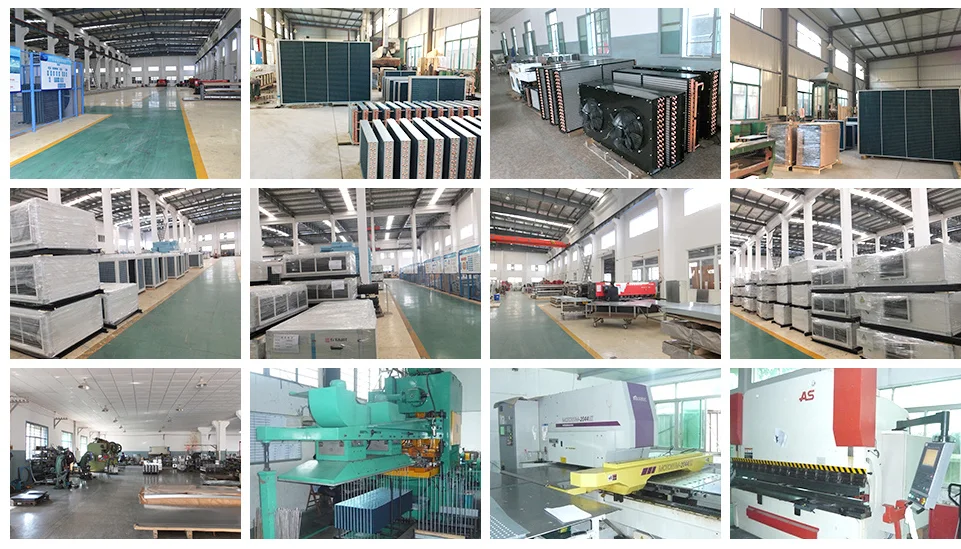

Factory show
