High anti tear liquid silicone rubber LSR silicone rubber for sealing plug
- Category: >>>
- Supplier: Foshan Tian Bao Li Silicon Engineering Technology Co. Ltd.
Share on (1600833878002):
Product Overview
Description
Product Description
TBL-8700 Series Self-lubricating Liquid Silicone Rubber
Product Description：
This series is two-component addition liquid silicone rubber, with excellent high and lower temperature resistance, high
anti-tear, good strength, and good self-lubricating etc. The process was liquid injection molding technology and can be widely used in automotive parts, plug-in parts, sealing plug, etc.
Product Features:
* High strength
* Fast molding
* Good oil caving
This series is two-component addition liquid silicone rubber, with excellent high and lower temperature resistance, high
anti-tear, good strength, and good self-lubricating etc. The process was liquid injection molding technology and can be widely used in automotive parts, plug-in parts, sealing plug, etc.
Product Features:
* High strength
* Fast molding
* Good oil caving
Specification
Item&Model | TBL-8730 | TBL-8740 | TBL-8750 | TBL-8770 |
Proportion | 1:1 | 1:1 | 1:1 | 1:1 |
Appearance | White | white | white | white |
Viscosity /mPa.s | 60×104 | 90×104 | 120×104 | 150×104 |
oil content % | 4% | 4% | 4% | 4% |
Hardness/Shore A | 30-36 | 40-46 | 48-54 | 63-70 |
Tensile Strength /MPa | ≥4.5 | ≥5.5 | ≥7.0 | ≥7.5 |
Elongation /% | ≥400 | ≥350 | ≥350 | ≥280 |
Tear strength /kN/m | ≥10 | ≥10 | ≥15 | ≥30 |
Specific Gravity /g/cm3 | 1.13 | 1.13 | 1.13 | 1.14 |
compression set （175℃/22h)% | 18 | 25 | 25 | 25 |
Product Advantages
1.High Temperature: Silicone Rubber applicable temperature from -40°C to 230°C, it can be used in microwave and oven.
2.Easy to Clean: Silicone Rubber finished products just need water to do cleaning.
3.Long Life: Silicone Rubber stable in chemical properties.
4.Soft and Comfortable: Benefit from silicone rubber softness, mould products comfortable touch, extremel flexible and not deformed.
5.Environmental Friendly: Silicone Rubber does not produce and toxic or hazardous substances from raw materials to finished products.
6.Electrical Insulation Performance: Silicone rubber have high resistivity.
7.Low Temperature Resistance: Silicone Rubber in - 60°C to - 70°C still have good elasticity. Our company has also developed some silicone rubber that can withstand lower temperature for mulations.
8.Conductivity: Silicone Rubber have good conductivity when add conductive material (such as silicon dioxide).
9.Weather Fastness: Silicone Rubber is not offected by ozone, long time in Ultraviolet light and other climatic conditions, its physical properties are only slight changed.
10.Thermal Conductivity: Silicone Rubber have good thermal conductivity when add some raw materials.
11.Radiation Resistance: Radiation resistance of phenyl-containing silicone rubber is greatly improved.
3.Long Life: Silicone Rubber stable in chemical properties.
4.Soft and Comfortable: Benefit from silicone rubber softness, mould products comfortable touch, extremel flexible and not deformed.
5.Environmental Friendly: Silicone Rubber does not produce and toxic or hazardous substances from raw materials to finished products.
6.Electrical Insulation Performance: Silicone rubber have high resistivity.
7.Low Temperature Resistance: Silicone Rubber in - 60°C to - 70°C still have good elasticity. Our company has also developed some silicone rubber that can withstand lower temperature for mulations.
8.Conductivity: Silicone Rubber have good conductivity when add conductive material (such as silicon dioxide).
9.Weather Fastness: Silicone Rubber is not offected by ozone, long time in Ultraviolet light and other climatic conditions, its physical properties are only slight changed.
10.Thermal Conductivity: Silicone Rubber have good thermal conductivity when add some raw materials.
11.Radiation Resistance: Radiation resistance of phenyl-containing silicone rubber is greatly improved.

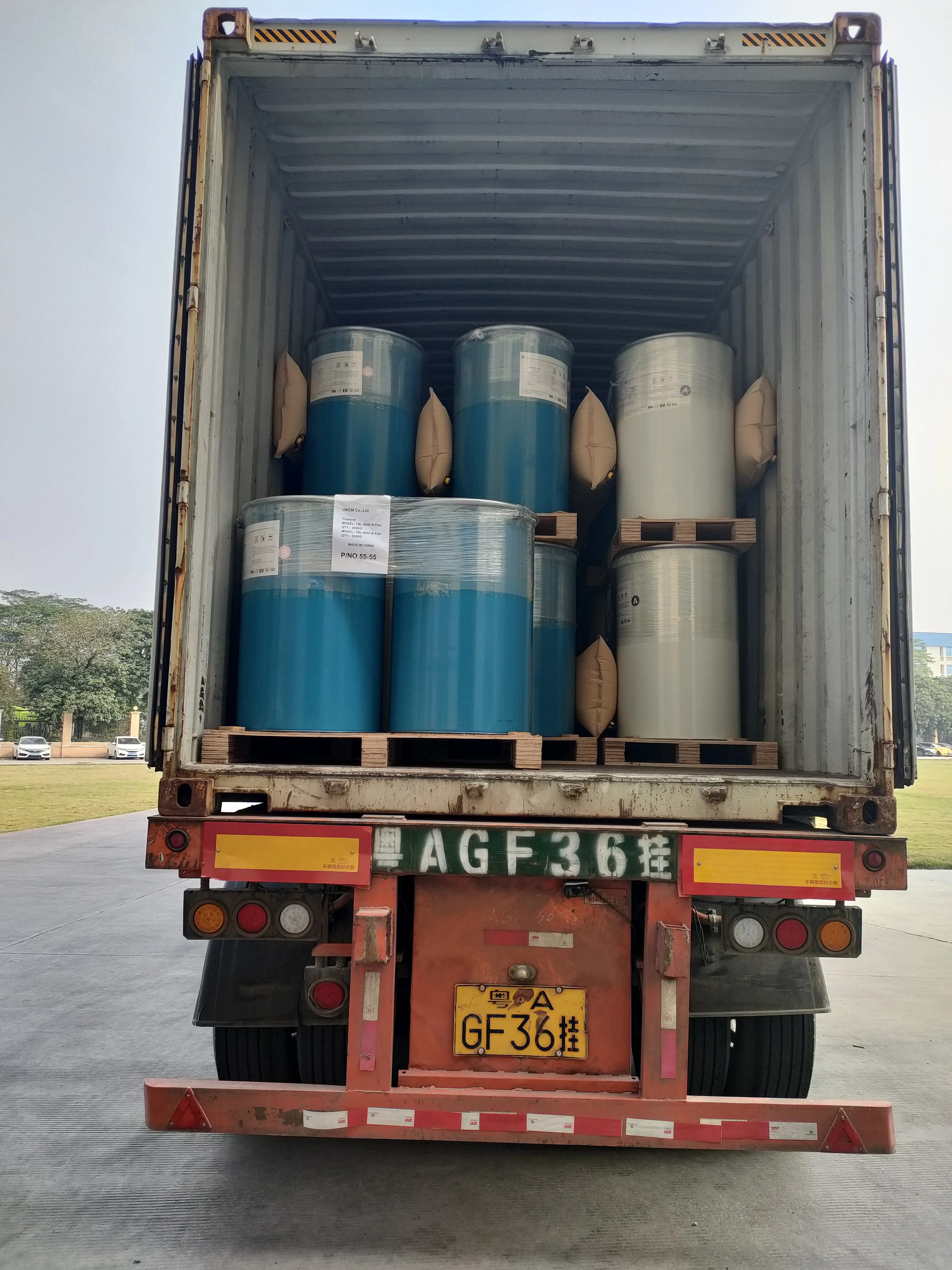

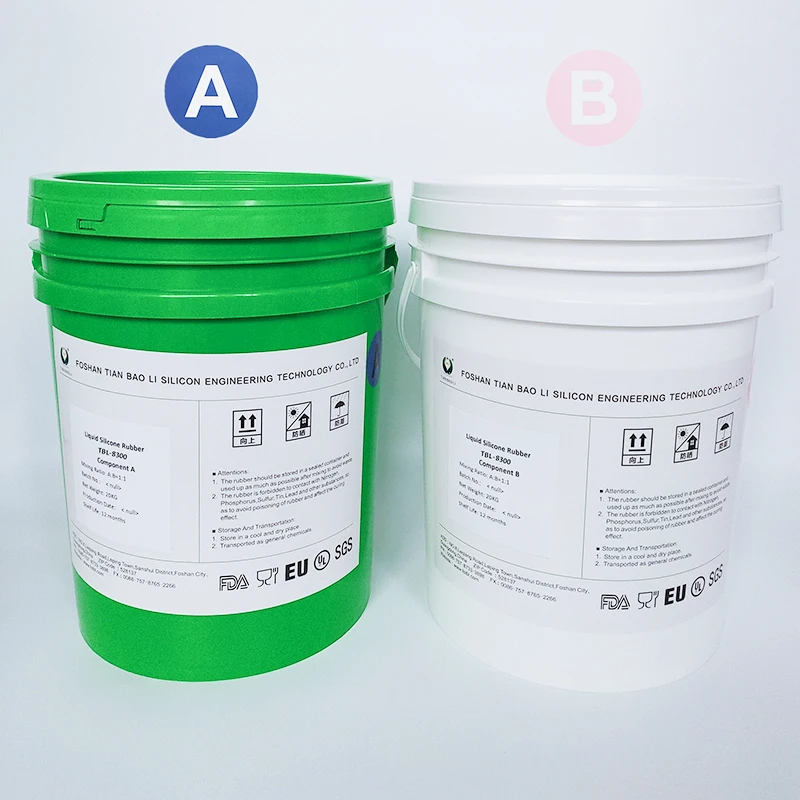

Packing & Delivery
20KG/Barrel or 200KG/Barrel
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Company Profile
Foshan Tian Bao Li Silicon Engineering Technology Co., Ltd it is a high-tech enterprise specializing in the R&D, production and operation of silicone products.
The company longevity "covers the area of 26700 square meters and the building area of 30,000 square meters.Now, our company equip with the silicone rubber automatic production lines and various advanced silicone rubber production equipment , none but Tian Bao Li own the full auto-lines for the manufacture of silicone rubber in China.Its annual production capacity is about 30000 tons.
The company longevity "covers the area of 26700 square meters and the building area of 30,000 square meters.Now, our company equip with the silicone rubber automatic production lines and various advanced silicone rubber production equipment , none but Tian Bao Li own the full auto-lines for the manufacture of silicone rubber in China.Its annual production capacity is about 30000 tons.
The company has three business divisions, HTV Silicone Rubber , Liquid Silicone Rubber and RTV Silicone Rubber. Widely used in electronics, household appliances, medical supplies, infant child products, LED lighting, new energy vehicles and other industries.

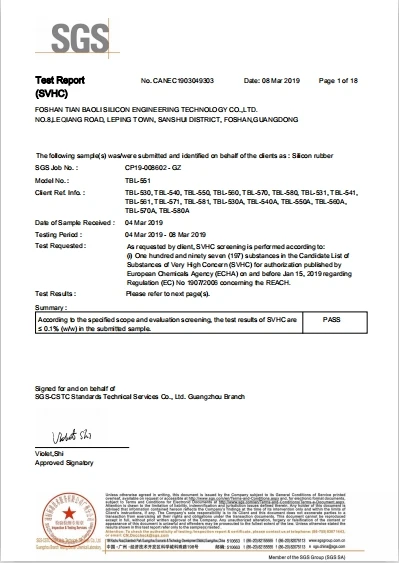

Certifications
Technical Instrument
Our Service
1.Pre-sale: Our technical team will according to customer need to recommend the most suitable product for customer.
2.Technology R & D: If customer products are special, we can develop new products for our customers.
3.Quality Control: At the time of production, our company's quality inspection team will take several samples to conduct the whole process of quality inspection, and the production workers will strictly follow the requirements to produce.
4.After-sale: Our sales team will follow up to the customer's use of the product.If there are any problems, our technical team will try our best to provide solutions.
5.OEM support: Strong technical team support, our company has core technology for R&D, which can be carried out for customers OEM.
4.After-sale: Our sales team will follow up to the customer's use of the product.If there are any problems, our technical team will try our best to provide solutions.
5.OEM support: Strong technical team support, our company has core technology for R&D, which can be carried out for customers OEM.
