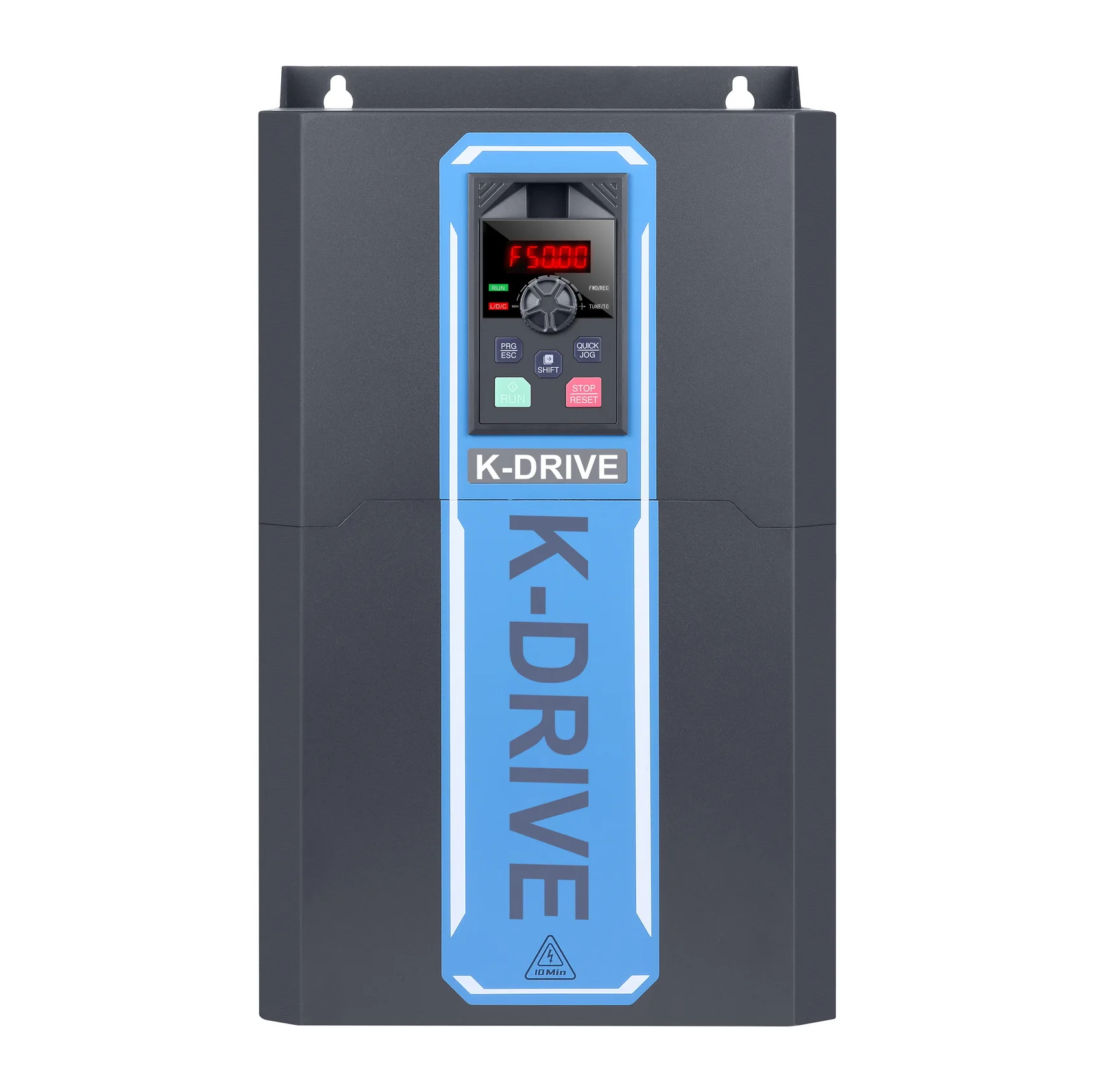

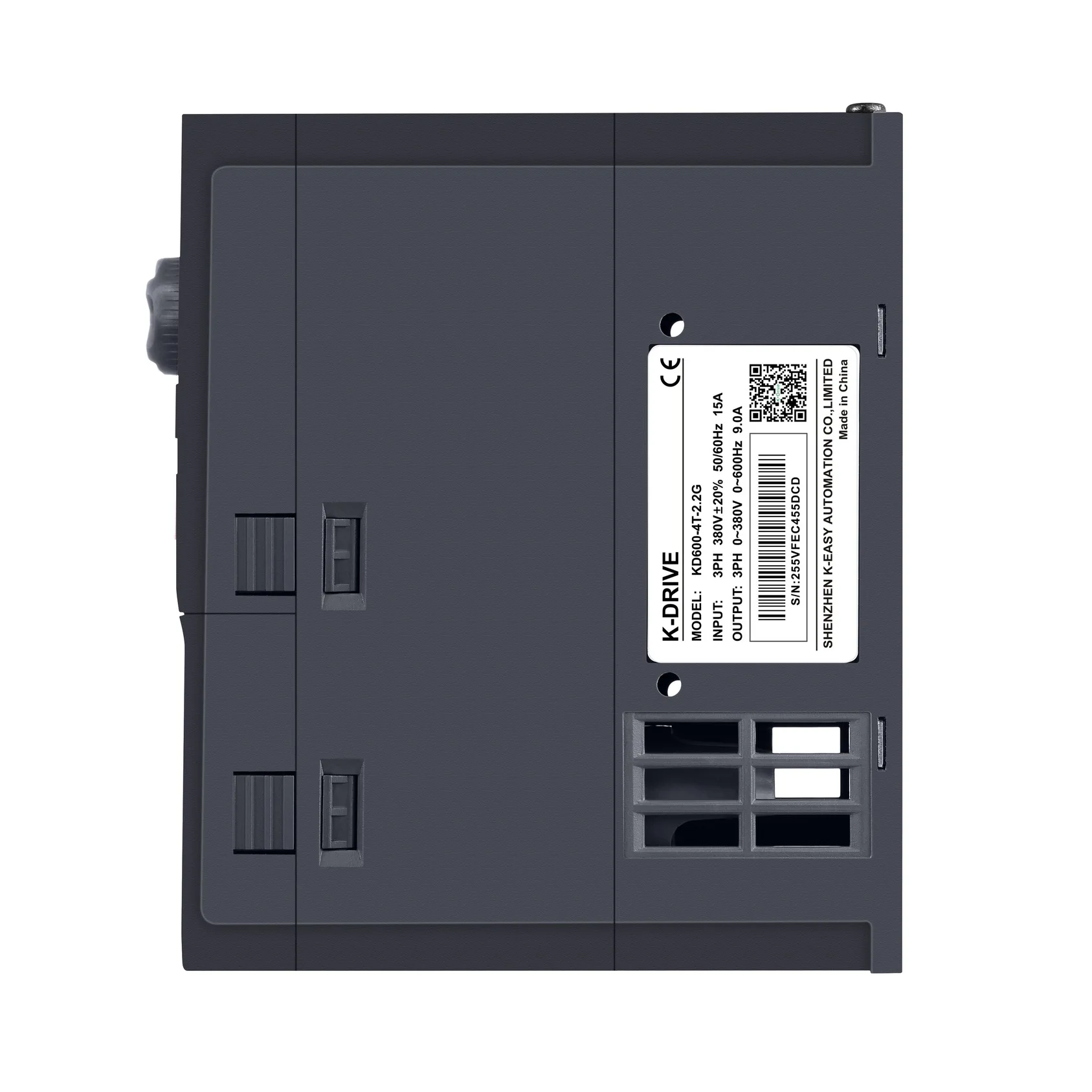

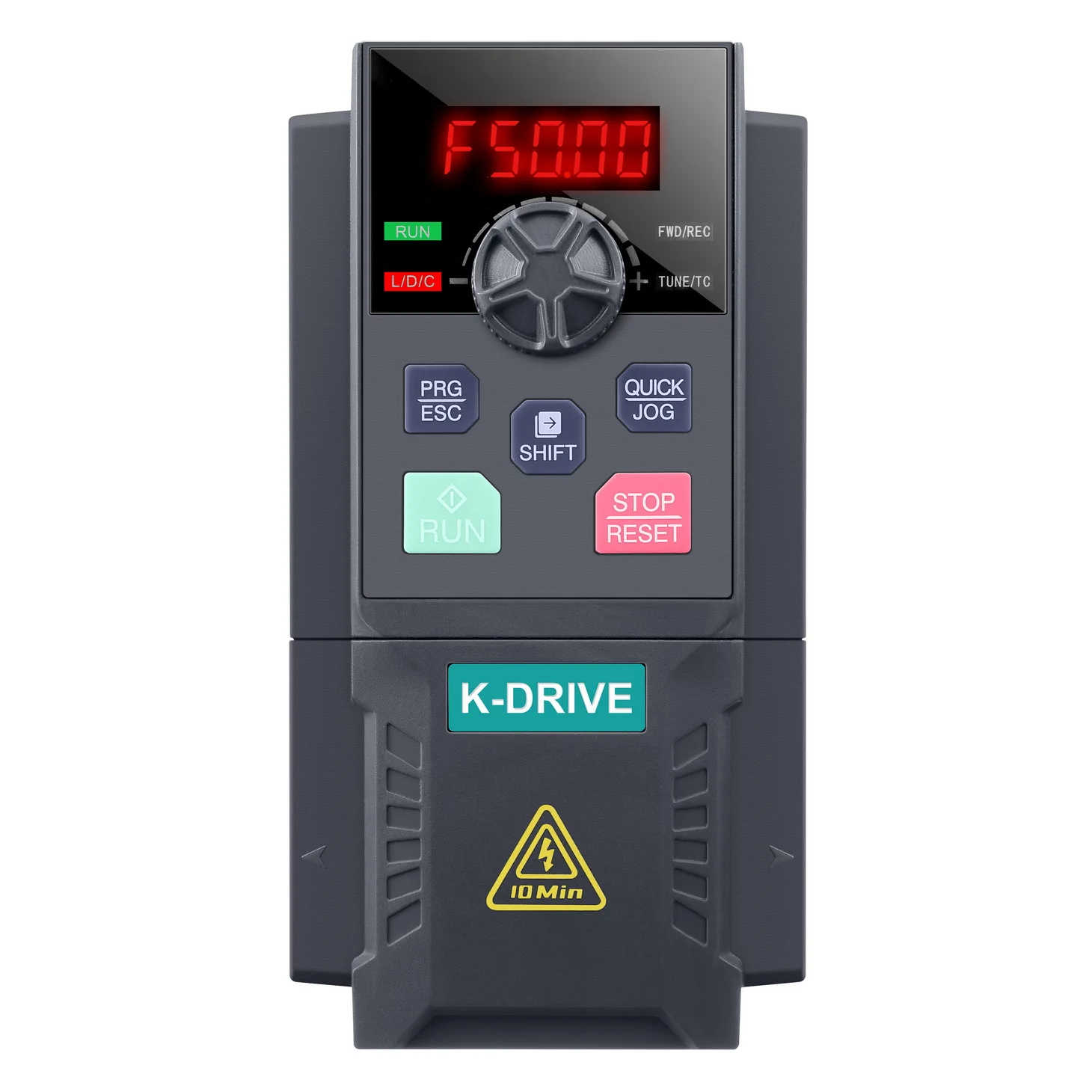

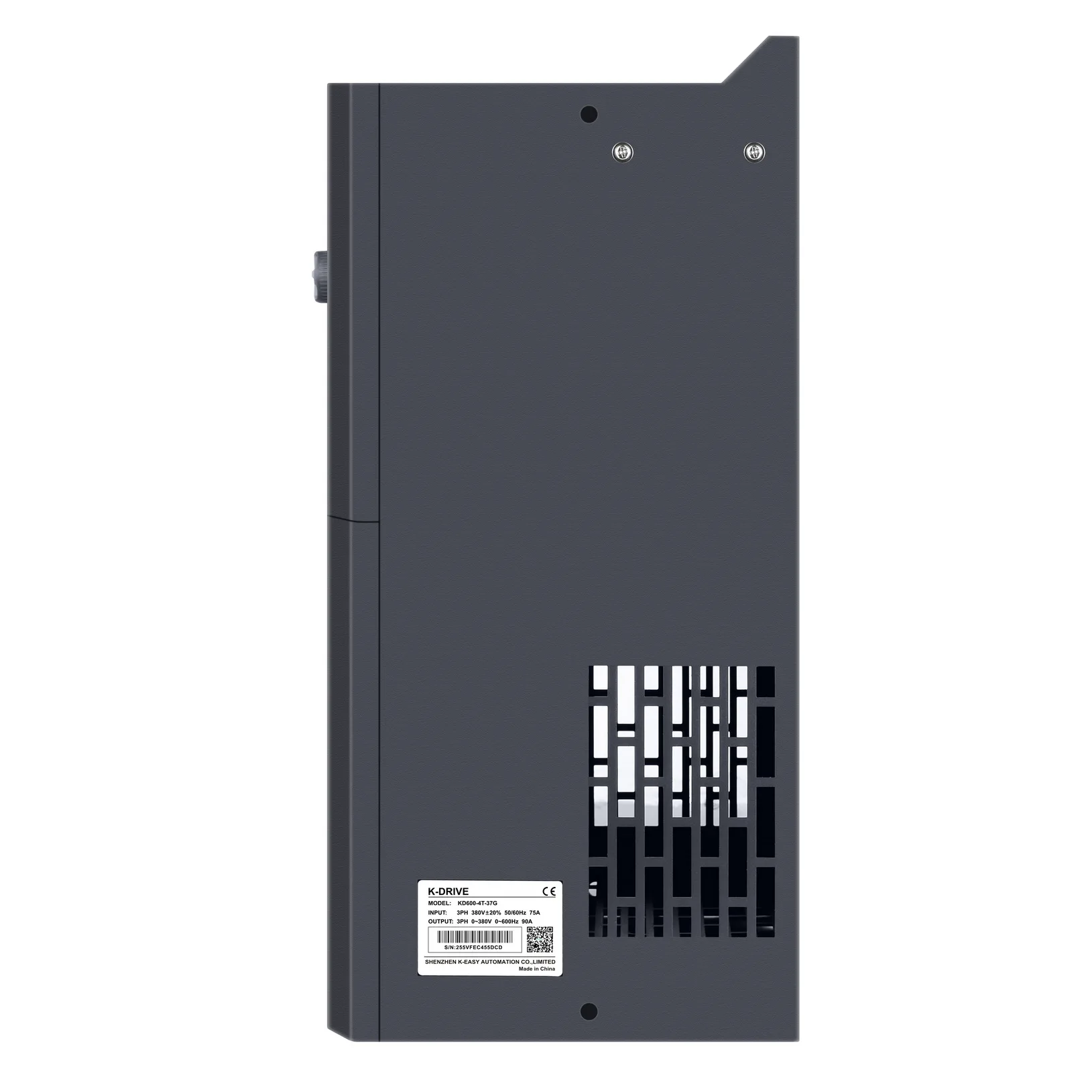

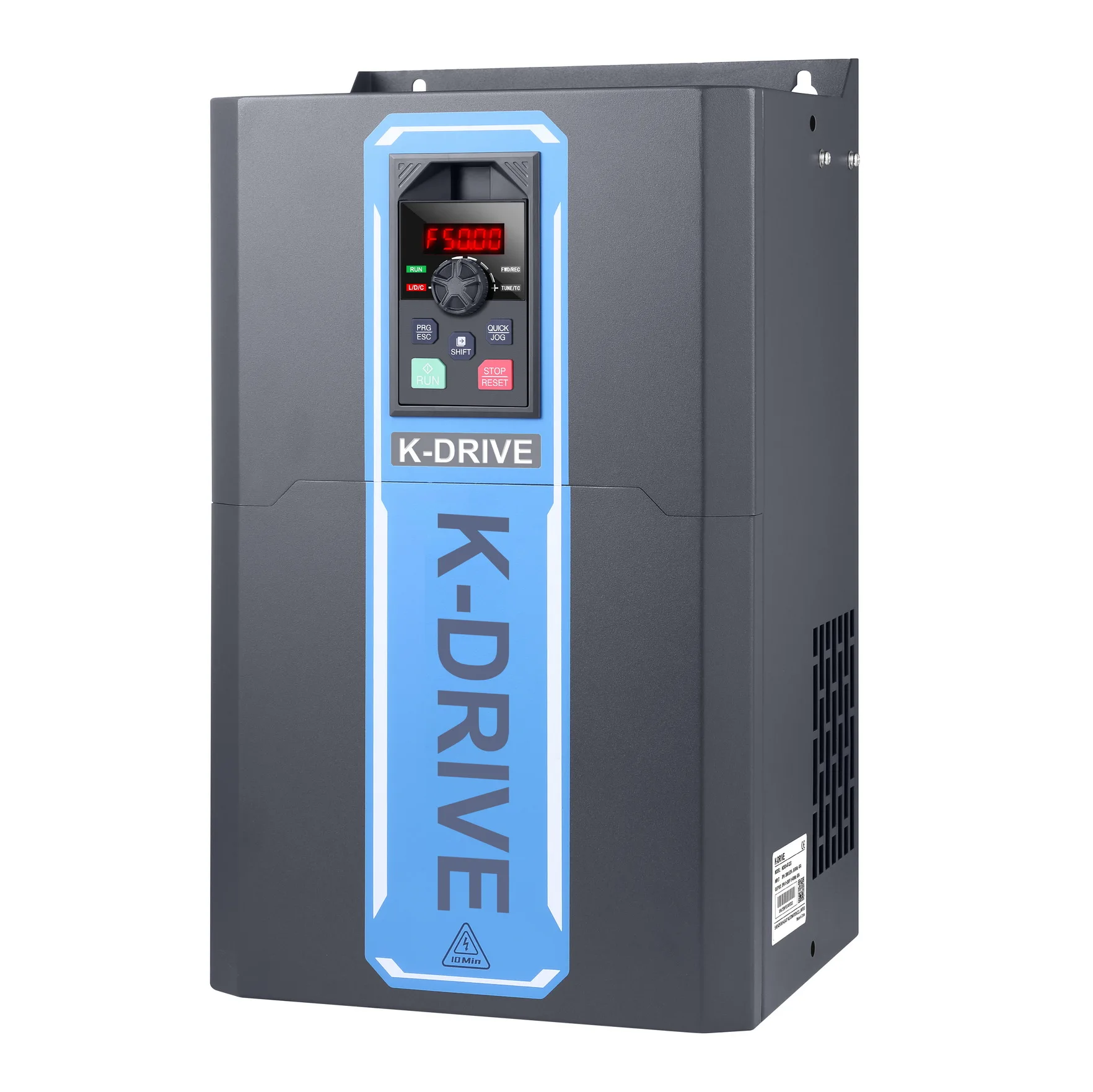

K Drive KD600 0.4kw 0.75kw 1.5kw 2.2kw VFD Frequency Inverter AC Drive for Gantry Crane
- Category: >>>
- Supplier: Shenzhen K-Easy Electrical Automation Company Limited
Share on (1600833911002):
Product Overview
Description
Products Description

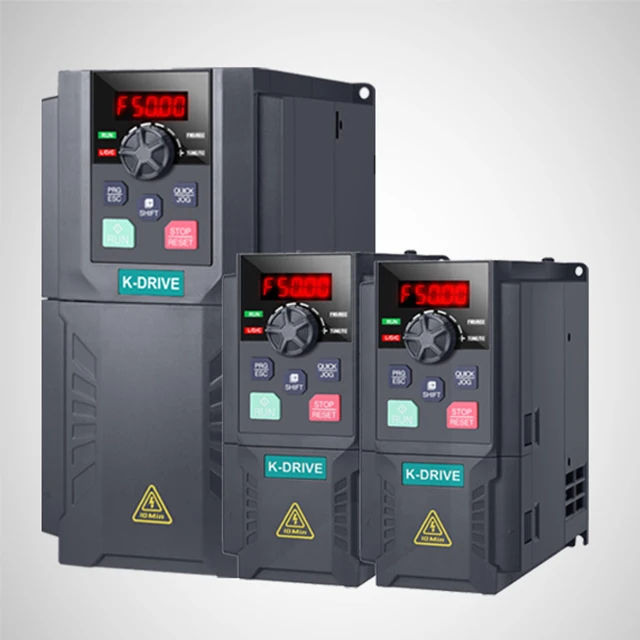

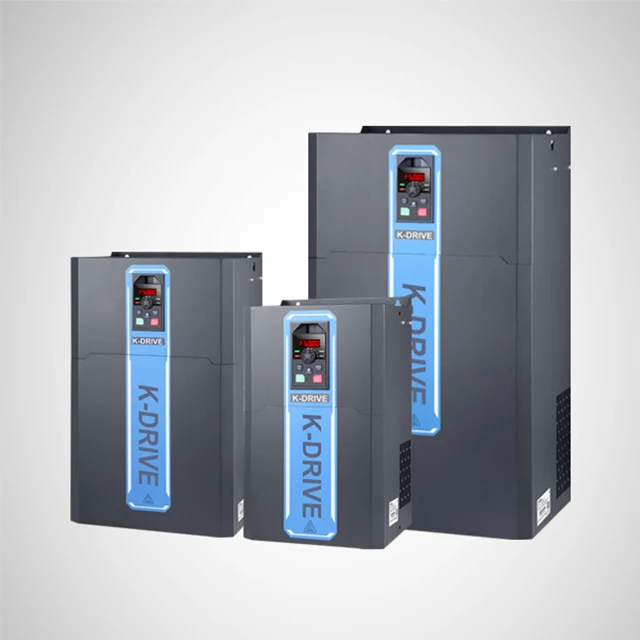

KD600 series high-performance vector inverter is a combination of our company's latest technologies. With humanized engineering design and powerful and complete software functions, it is the product with the richest and most comprehensive functions among all our products
Product features
Optional STO (Safe Torque off) function
IGBT module for all models
Redundant design of hardware solution ensures long-term stable operation
Detachable keyboard, external keyboard, convenient for customer debugging
IGBT module for all models
Redundant design of hardware solution ensures long-term stable operation
The whole series is equipped with a metal backboard as standard, which provides stronger protection than the plastic backboard
Extra large silicone buttons facilitate customer operation
The whole series is equipped with a metal backboard as standard, which provides stronger protection than the plastic backboard
Support LCD keypad, multi-language menu (optional)
Detachable keyboard, external keyboard, convenient for customer debugging
Pc software, one-key setting,keypad parameter copy, saving customer debugging time
Built-in EMC C3 filter, stronger anti-electromagnetic interference ability
lndependent air duct design prevents dust from contacting the circuit board, better heat dissipation performance
Installation back mounting system can insert the inverter directly into the rack

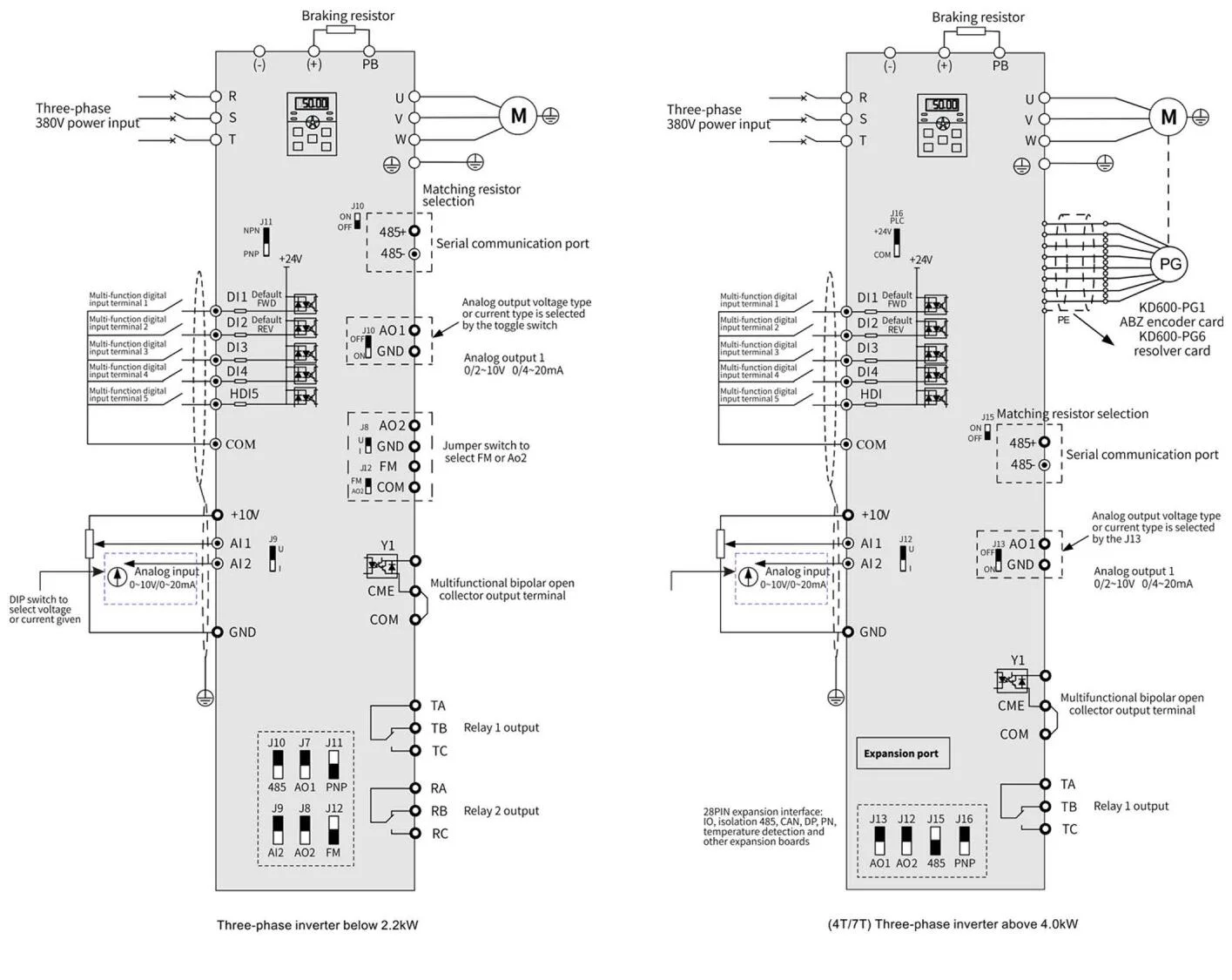

Programmable DI/DO/AI/AO
MODBUS RS485, Profitnet, Profitbus, CANopen, Ethercat, PG, I/0 expansion card
MODBUS RS485, Profitnet, Profitbus, CANopen, Ethercat, PG, I/0 expansion card
Integrated PID function support most of water supply applications
Integrated multi-speed function support maximum 16 speeds
Support fire override mode
Technical Parameter
Input Voltage | 208~240V single phase & three phase | |
380~480V three phase | ||
Output Frequency | 0~1200Hz V/F | |
0~600HZ FVC | ||
Control Technology | V/F , FVC,SVC, Torque Control | |
Overload capability | 150%@rated current 60S | |
180%@rated current 10S | ||
200%@rated current 1S | ||
Simple PLC support max 16-steps speed control 5 Digital inputs , support both NPN & PNP 2 Analog inputs, 2 analog outputs | ||
Communication | MODBUS RS485, Profitnet, Profitbus, CANopen, Ethercat, PG | |

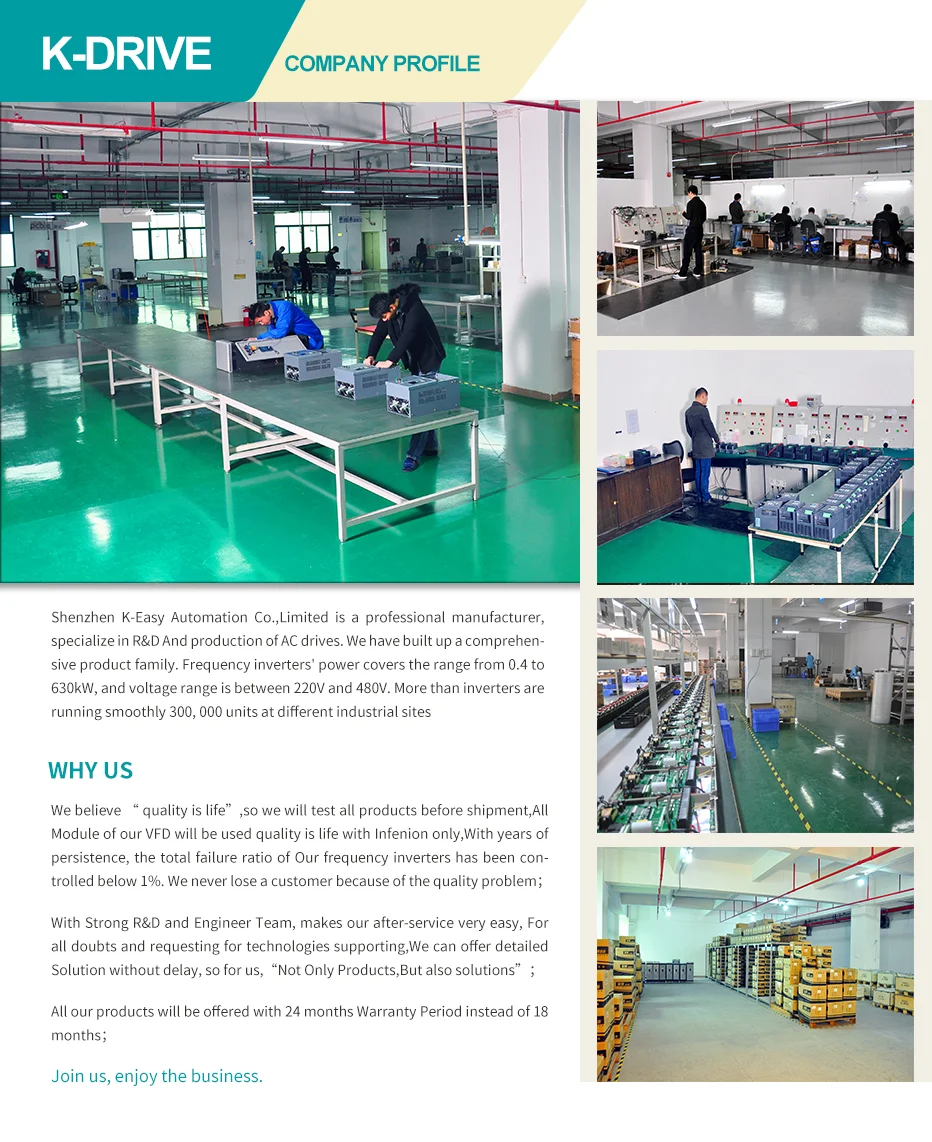

Company Profile
