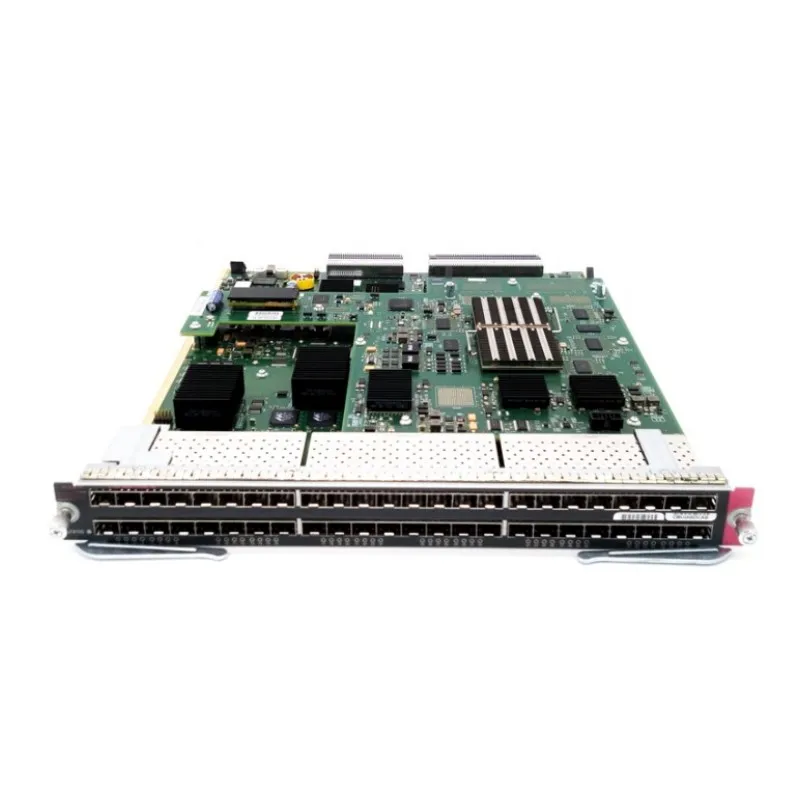

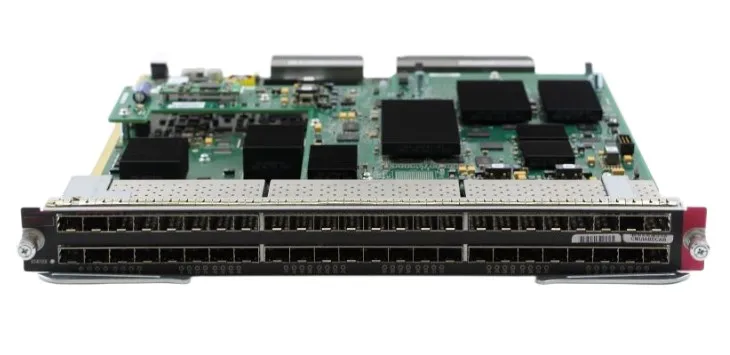

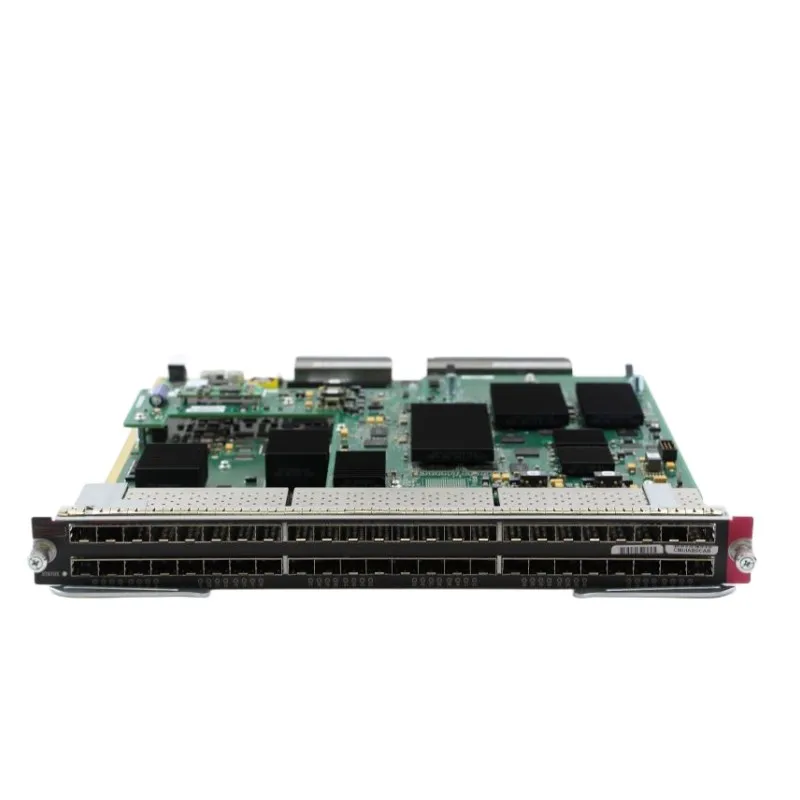

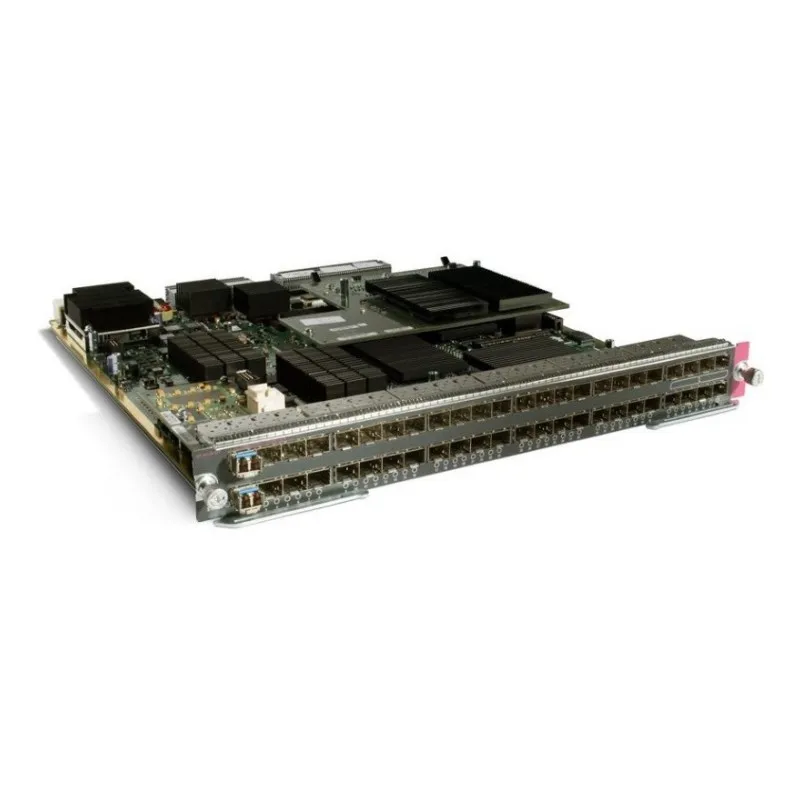

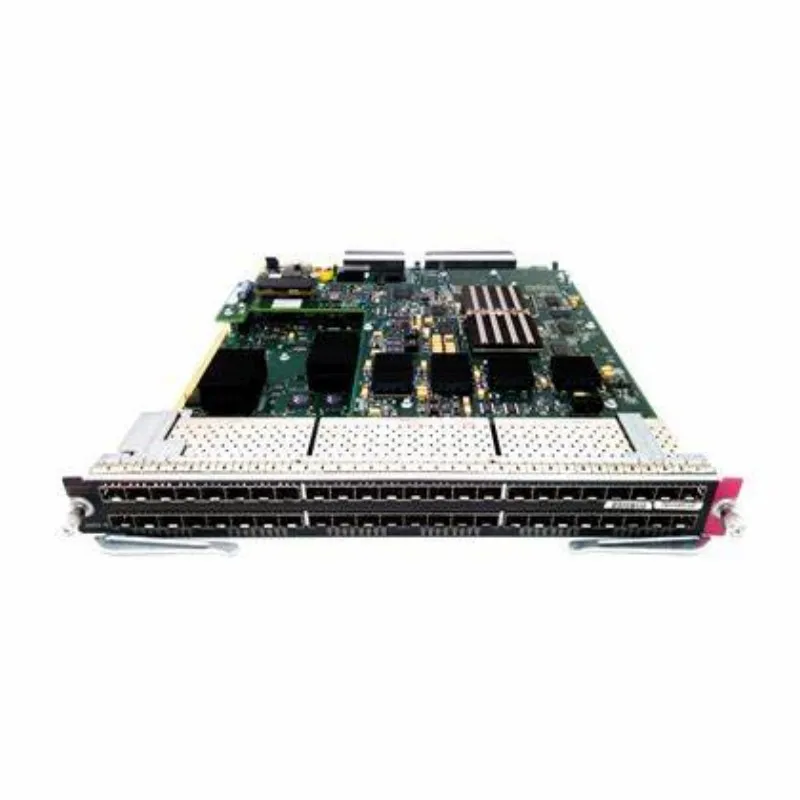

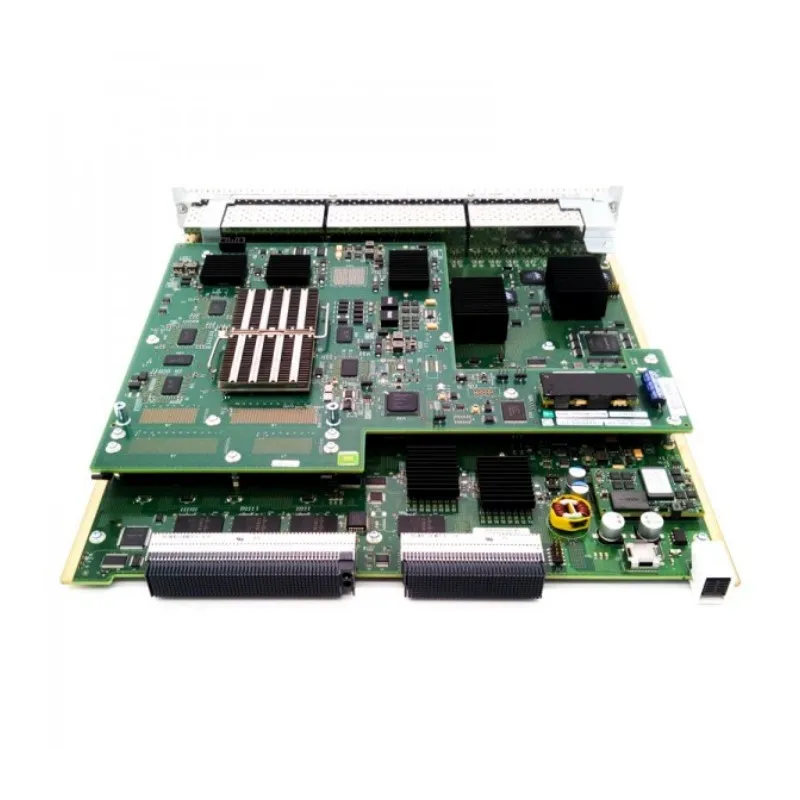

WS X6848 SFP 2TXL 6500 Series Ethernet Module

6800 Series 10 Gigabit Ethernet modules Specifications

Standard protocols

IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, and IEEE 802.3an

Physical specifications

  Occupies one slot in the 6500 E-Series chassis

  Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm)

  Weight:

   WS-X6816-10G-2T & 2TXL, WS-X6816-10T-2T & 2TXL: 13.6 pounds excluding X2 components; ¼ pound for each X2

Environmental conditions

Operating temperature:

  Agency-certified for operation: 32 to 104°F (0 to 40°C)

  Design and tested for operation 32 to 130°F (0 to 55°C)

  Storage temperature: -40 to 167°F (-40 to 75°C)

  Relative humidity: 10 to 90 percent, noncondensing

Operating altitude:

  Agency-certified for operation: -500 to 6500 ft (-150 to 2000m)

  Designed and tested for operation -500 to 10000 ft (-150 to 3000m)

Regulatory compliance

6800 Series 10 Gigabit Ethernet Copper module, when installed in a system, comply with the following EMC and safety standards:

EMC Standards:

  FCC Part 15 (CFR 47) Class A

  ICES-003 Class A

  VCCI Class A

  EN55022 Class A

  EN55024

  CISPR24

  CISPR 22 Class A

  AS/NZS CISPR 22 Class A

  ETS 300 386

  KN 22 Class A

  EN 50082-1

  EN61000-3-2

  EN61000-3-3

  EN61000-6-1

  CNS13438 Class A

  KN6100 -4 Series

Safety Standards:

  UL 60950-1

  CAN/CSA C22.2 No. 60950

  EN 60950-1

  IEC 60950-1

  AS/NZS 60950-1

  IEC 60825 Class 1

  EN 60825 Class 1

  21CFR 1040

NEBS criteria levels

SR-3580 Issue 3, June 2007 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4)

ETSI

  ETS 300 019-2-1, Class 1.1 Storage

  ETS 300 019-2-2, Class 2.1 and 2.2 Transportation

  ETS 300 019-2-3, Class 3.1E Stationary Use

Network management

  ETHERLIKE-MIB (RFC 1643)

  IF-MIB (RFC 1573)

  Bridge MIB (RFC 1493)

  -STACK-MIB

  -VTP-MIB

  -CDP-MIB

  RMON MIB (RFC 1757)

  -PAGP-MIB

  -STP-EXTENSIONS-MIB

  -VLAN-BRIDGE-MIB

  -VLAN-MEMBERSHIP-MIB

  ENTITY-MIB (RFC 2037)

  HC-RMON

  RFC1213-MIB (MIB-II)

  SMON-MIB

Power requirements

  WS-X6816-10G-2T: 488.5 Watts

  WS-X6816-10G-2TXL: 503.5 Watts

  WS-X6816-10T-2T: 514.96 Watts

  WS-X6816-10T-2TXL: 529.96 Watts

Indicators

  Status: green (operational), red (faulty), and orange (module booting)

  Link: green (port enabled and connected), orange (port disabled), and off (port enabled and not connected)
