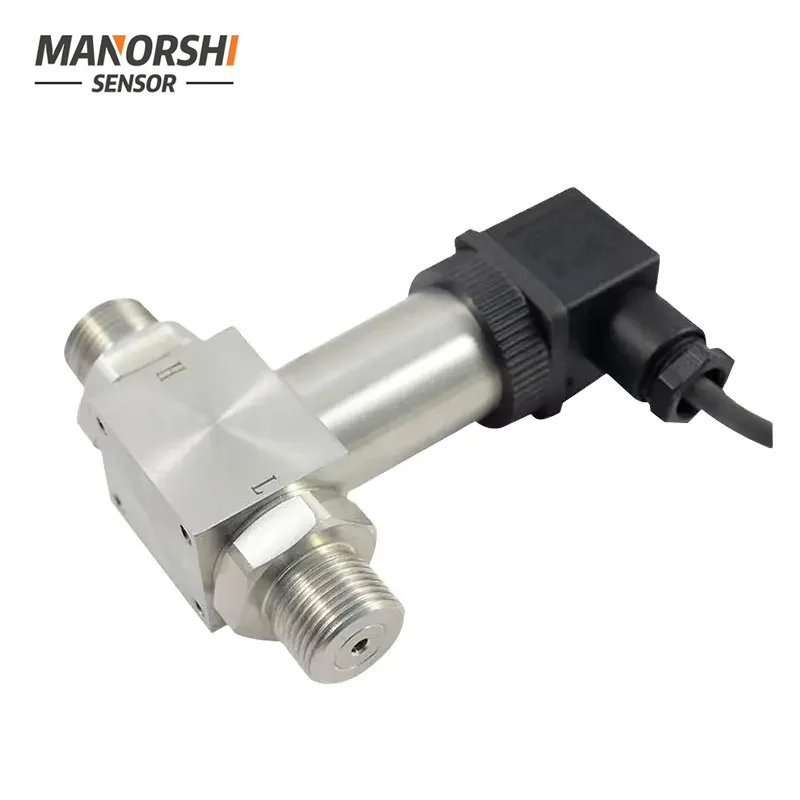

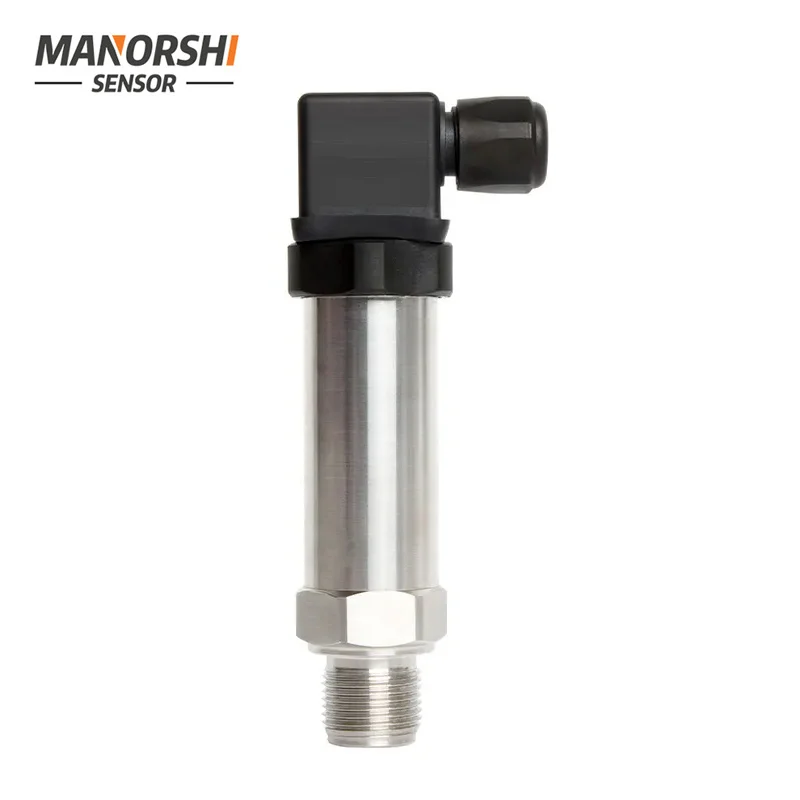

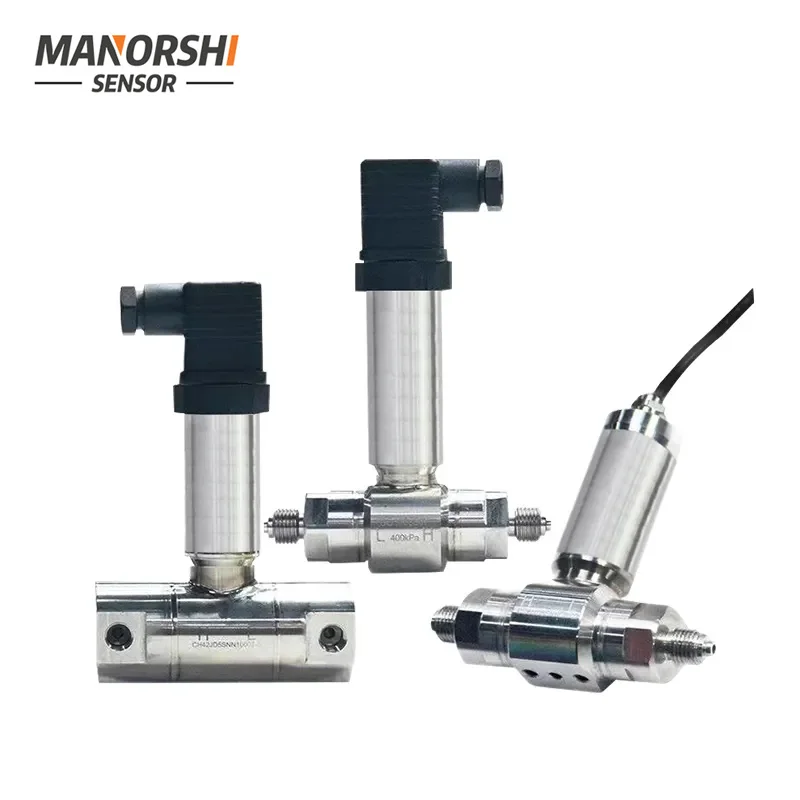

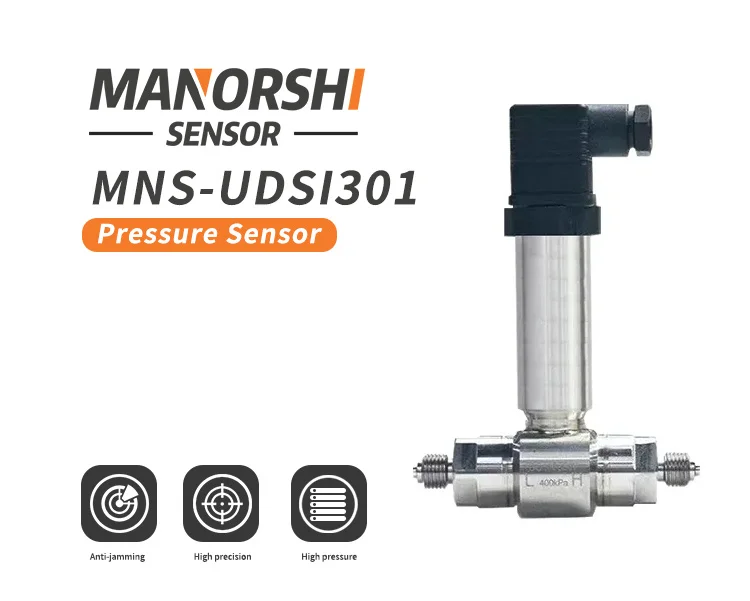

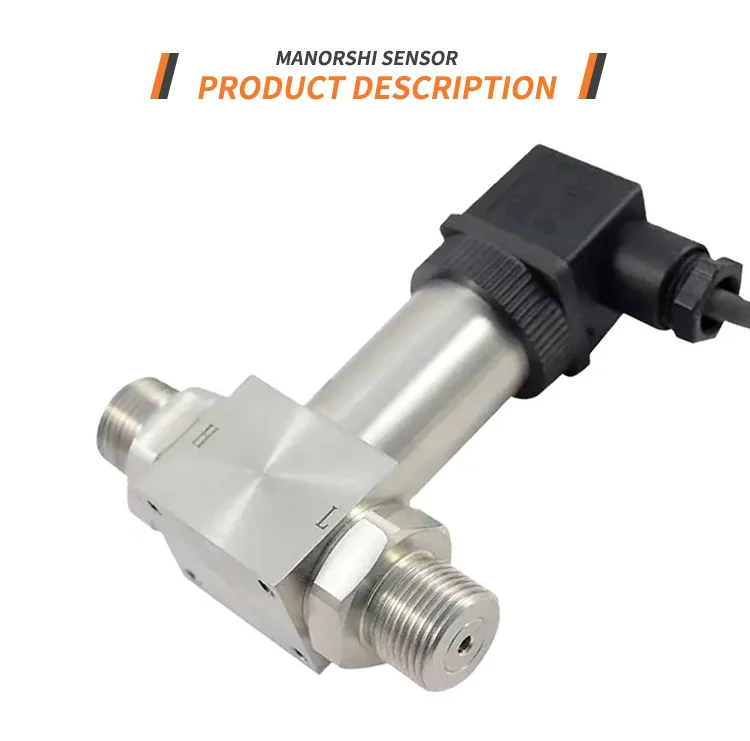

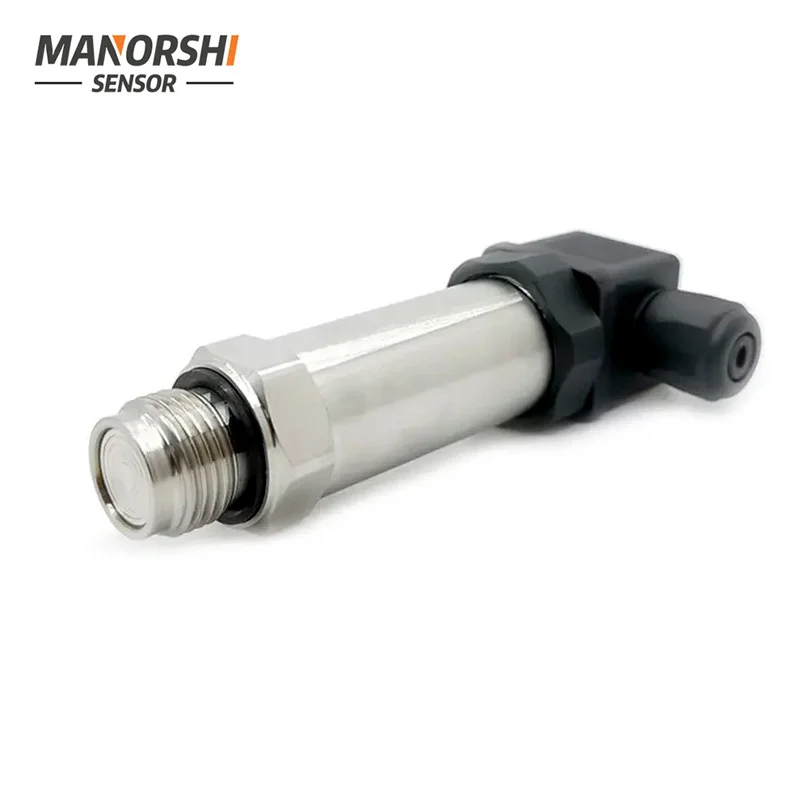

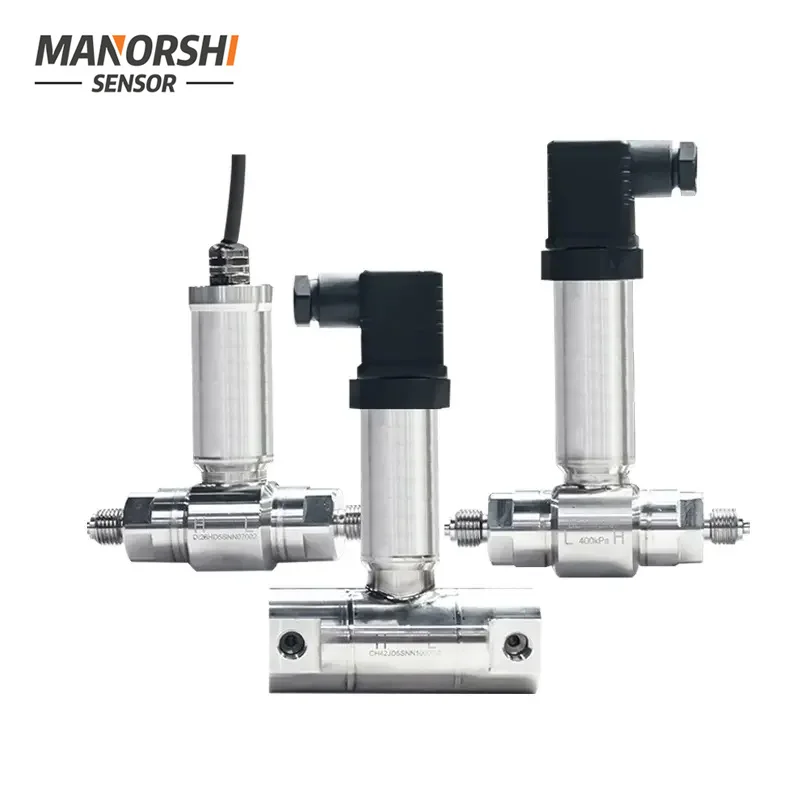

Ip68 12vdc acid and alkali resistance high precision digital water level pressure sensor

Applications

Gauge and absolute pressure,liquid level,air pressure

Measurement range

0~10MPa

withstand voltage

Triple scale value

Comprehensive accuracy

Level 0.5 (default) Level 0.3(need to be customized)

overload capacity

200%

Medium temperature

-40~60C (temperature compensation-40~70°C)

ambient temperature

-40~85℃

supply voltage

DC24V[15~36VDC](default),12VDC power supply needs to be customized

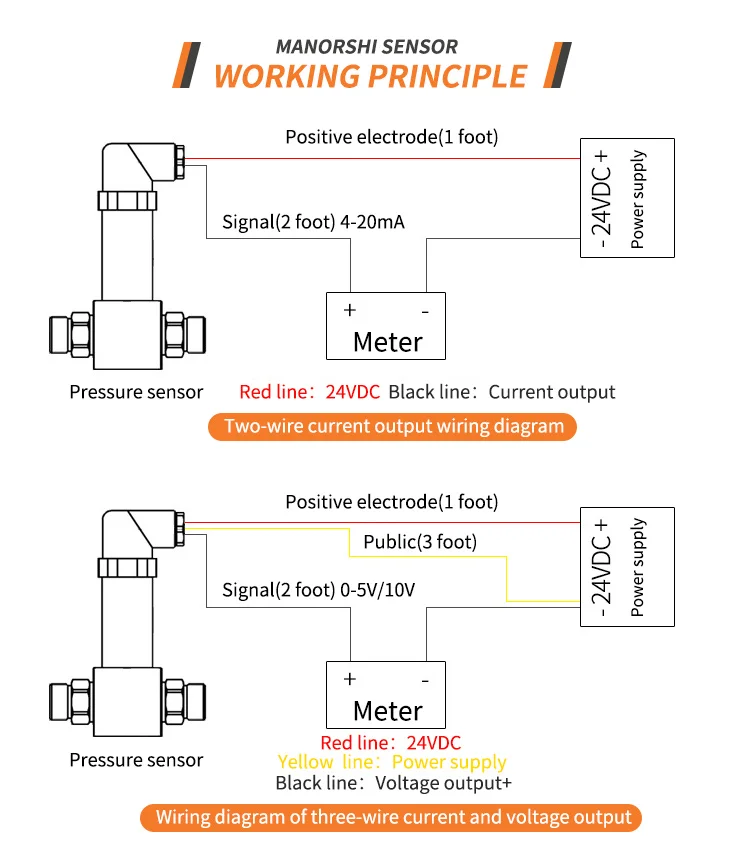

output signal

4~20mA two wires,0~5V three wires,0~10V three wires, RS485 and GPRS. The output analog signal is used in conjunction with the PY502H display control instrument, with switch alarm or sound and light alarm

sealing level

IP65

stable performance

士0.2%FS/year

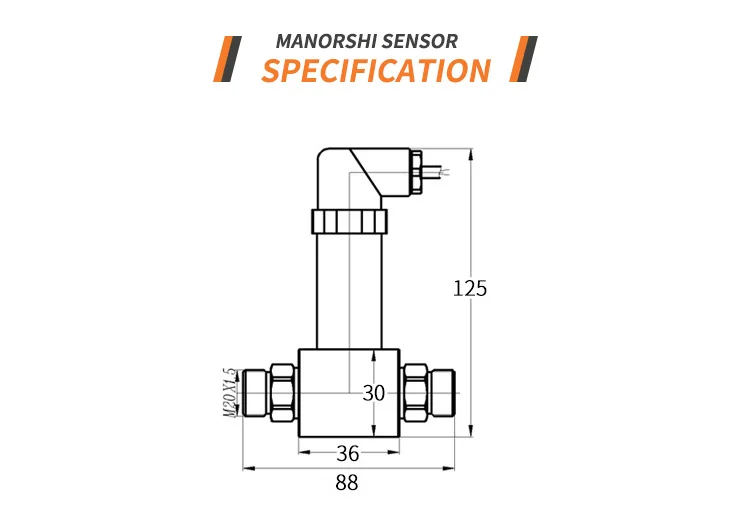

process connection

Thread M20X1.5,M14X1.5,G1/2,G1/4,customized

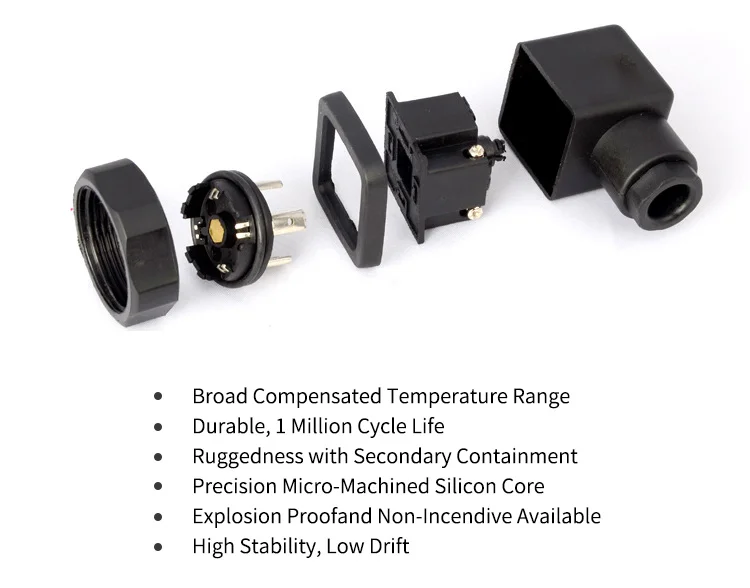

Electrical Interface

Four-core shielded wire,four-core aviation connector, tight wire nut
