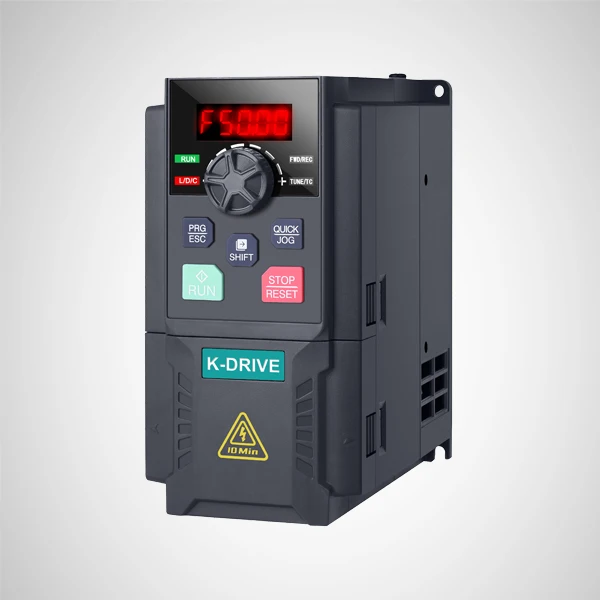

China Manufacture KD600E Series AC Drive Frequency Inverter Speed Drive Frequency Drive Special for elevator
- Category: >>>
- Supplier: Shenzhen K-Easy Electrical Automation Company Limited
Share on (1600833936256):
Product Overview
Description
Advantages
Thanks to sophisticated engineers, scientific producing workmanship, rigorous quality control systems and management team, Keasy frequency inverters are equipped with advanced features, some of which are listed as below:
3 Years Warranty Time Under 30KW, All Brake Units Bulit In
FOB Term If Total Order Amount Arrives US$20000
Price Also Same For KD600E(Elevator Series) And SP600(Off Grid Solar Pump)
Keypad Can Be Removeable For All Series, Modbus RS486 All Built In
All C2/C3 Standard EMC Filter Built In
All Series CE And ISO Certificated
Price Also Same For KD600E(Elevator Series) And SP600(Off Grid Solar Pump)
Keypad Can Be Removeable For All Series, Modbus RS486 All Built In
All C2/C3 Standard EMC Filter Built In
All Series CE And ISO Certificated

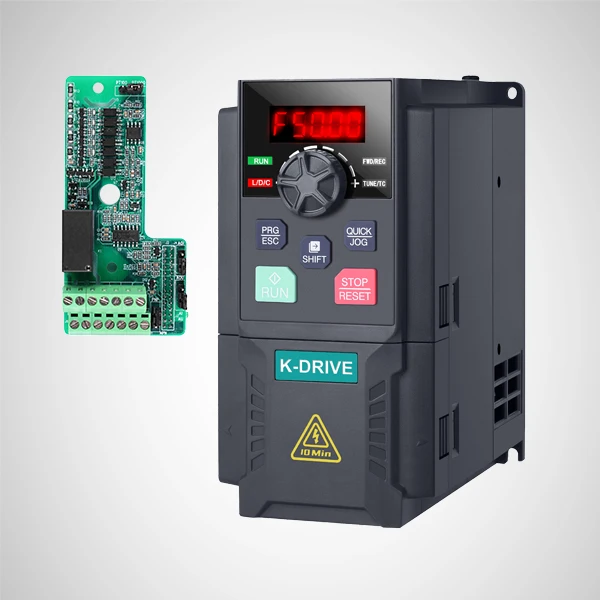

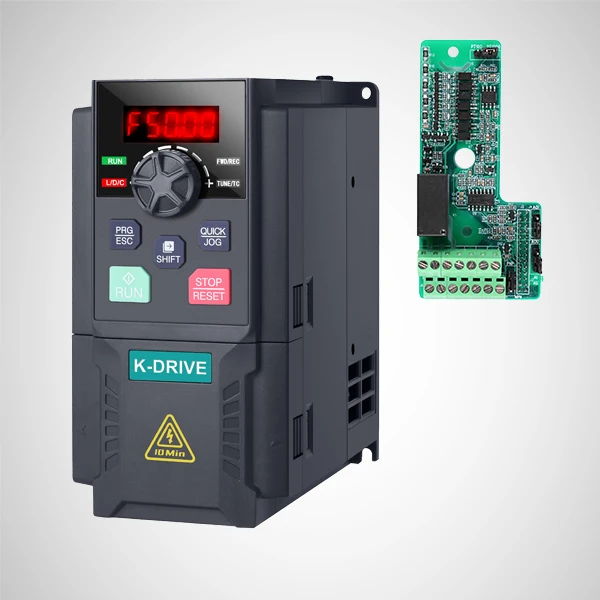

Additional Card And LCR Keypad For Selection:
ABZ Open integrated electrode PG1 Card US$35
ABZ Difference PG3 Card US$22
Rotary PG6 Card US$45
Profibus Card PN1 US$120
I/O 2 Card (3 DI and 2 Relays More) US$5
Ethercat Communication Card US$ 150
LCR Keypad US$25
Ethercat Communication Card US$ 150
LCR Keypad US$25
Why choose Keasy variable frequency drive?
| Performance | Common brands | K-easy |
| Applicable motors | Asynchronous motors | Asynchronous /synchronous motors |
| Warranty Time | 1 Year | 3 Years |
| Starting torque | 2.0Hz, 150% (sensor-less vector control) 0Hz, 180% (closed-loop vector control) | 0.5Hz, 180% (sensor-less vector control) 0Hz, 200% (closed-loop vector control) |
| Speed adjustable range | 1:100 (SVC), 1:1000 (VC) | 1:200 (SVC), 1:1000 (VC) |
| Ambient temperature (no derating required) | -10-40ºC | -10-50ºC (for most of the models) |
| Rated input voltage | 208VAC-400VAC | 208VAC-690VAC |
| Communication | Modbus RTU//ASCII | Modbus RTU//ASCII Profibus-DP, CANopen, etc. |
| Position control (fixed length, or angular positioning) | × | √ |
| Field weakening control | × | √ |
| Autotune online | Online | Online & Offline |
| Short-time ramp-up | Trip | No trip |
| Customized features (software and/or hardware) | Unprocurable or no experience | Procurable with rich experience |
