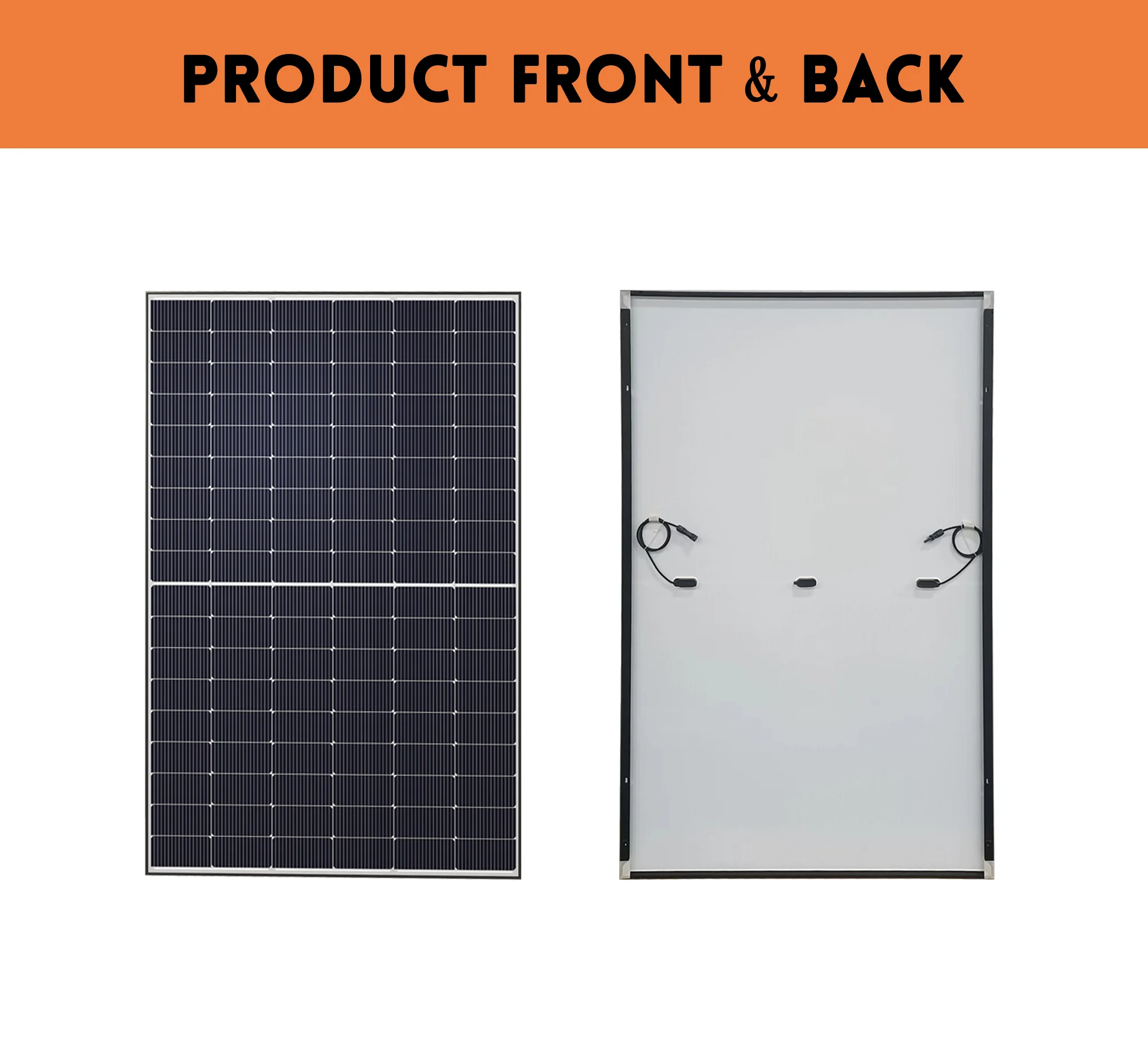

Lumentree Solar Panel Price 415W 455W 550W 650W 700W Photovoltaic PV Panels Half Cell Mono Modules Kit Solar System For Home
- Category: >>>
- Supplier: Hangzhou Lumentree New Energy Co. Ltd.
Share on (1600833938469):
Product Overview
Description

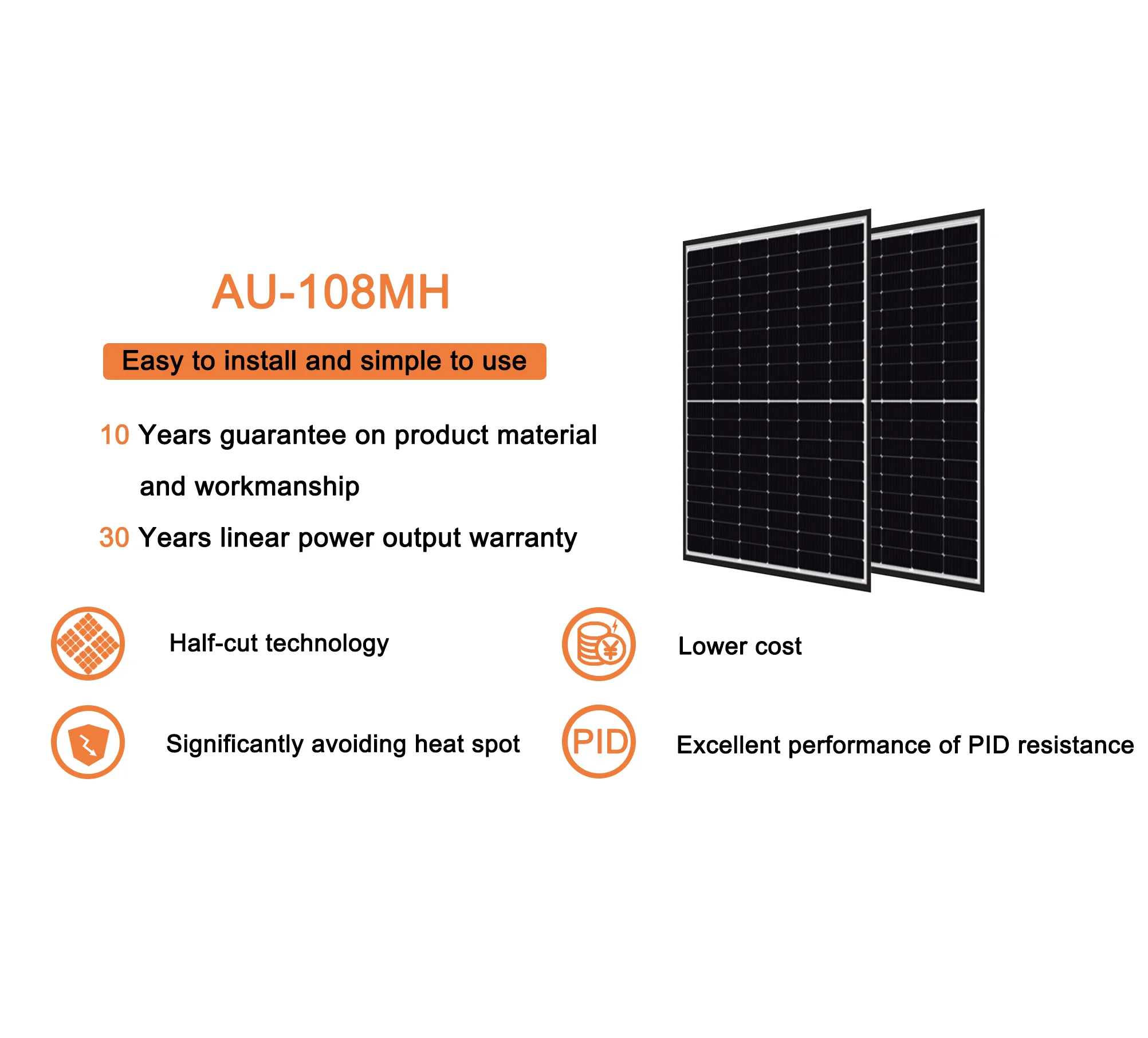

Half-cut TechnologyNew circuit design, lower internal current and lower internal resistance loss
Significantly Avoiding Heat Spot
The unique circuit design to reduce the temperature of heat spot significantly, so that to reduce the power loss and then increase the output of modules.
Lower Cost
Increasing power generation can reduce the cost per kilowatt-hour
Excellent Performance of PID Resistance
The performance of PID resistance(Potential Induced Degradation) passed the standard of TUV Nord.
Products Details
SPECIFICATION
ELECTRICAL DATA(STC) | ||||||||||
Model Type | AU390-27V-MH | AU395-27V -MH | AU400-27V -MH | AU405-27V -ΜΗ | AU410-27V -MH | |||||
Peak Power(Pmax) | 390.00 | 395.00 | 400.00 | 405.00 | 410.00 | |||||
Maximum Power Voltage(Vmp) | 30.82 | 30.98 | 31.14 | 31.30 | 31.46 | |||||
Maximum Power Current(Imp) | 12.66 | 12.76 | 12.85 | 12.94 | 13.04 | |||||
Open Circuit Voltage(Voc) | 36.65±3% | 36.85±3% | 37.05±3% | 37.25±3% | 37.45±3% | |||||
Short Circuit Current(Isc) | 13.49±3% | 13.58±3% | 13.67±3% | 13.76±3% | 13.85±3% | |||||
Module Efficiency( % ) | 19.94 | 20.20 | 20.46 | 20.71 | 20.97 | |||||
*STC: irradiance 1000 W/m², AM 1.5, and cell temperature of 25°℃
QUALIFICATIONS&CERTIFICATES

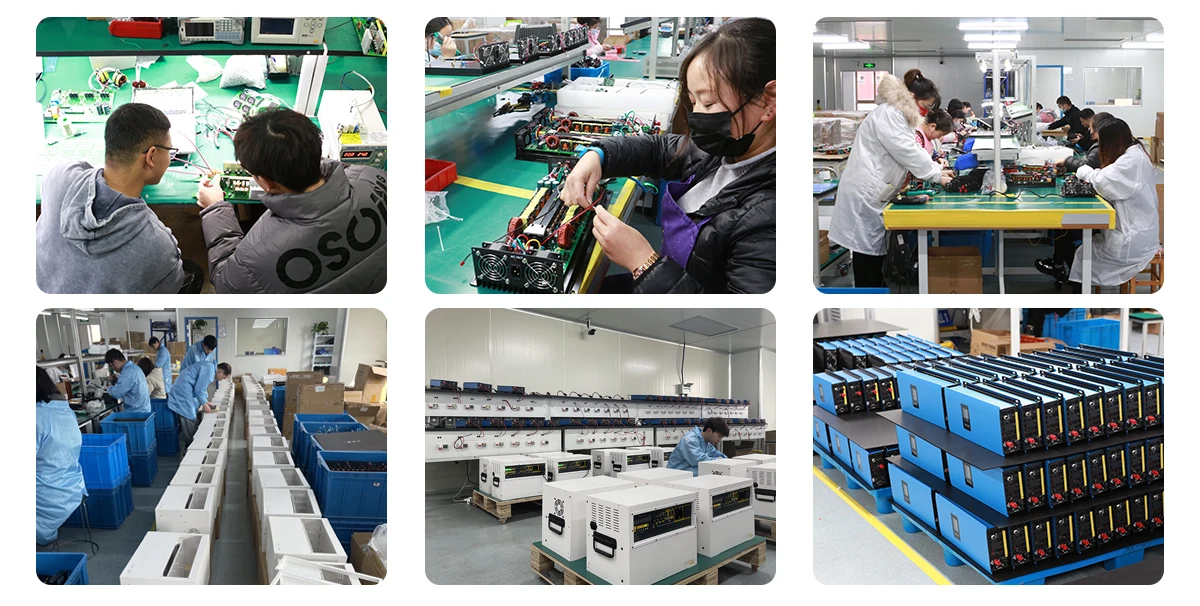

FACTORY
EXHIBITION
FAQ
Q1. Are you manufacturer or trading company?
A: We are manufacturer. We have 3 production lines with a production capacity of 10,000 units per month.
Q2. What is the time of warranty of solar inverter?
A: 10 years.
Q3.Can you provide sample for testing market?
A:Yes. We also accept sample orders. Sample details please contact our sales.
Q4. What is your terms of payment?
1: 100% payment through alibaba.
2. 30% T/T prepaid, 70% by the copy of Bill of lading.
3. Or according to negotiation.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test and we can provide product test report.
A: We are manufacturer. We have 3 production lines with a production capacity of 10,000 units per month.
Q2. What is the time of warranty of solar inverter?
A: 10 years.
Q3.Can you provide sample for testing market?
A:Yes. We also accept sample orders. Sample details please contact our sales.
Q4. What is your terms of payment?
1: 100% payment through alibaba.
2. 30% T/T prepaid, 70% by the copy of Bill of lading.
3. Or according to negotiation.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test and we can provide product test report.
Q6. Can you do OEM/ODM services?
Yes, we can. We can customize the product logo, packaging materials, etc
We have 20 engineers with more than 10 years of research and development experience, can jointly develop customized products to meet your unique requirements for products. At the same time, we have noise rooms and laboratories to provide necessary conditions for research and development.
We have 20 engineers with more than 10 years of research and development experience, can jointly develop customized products to meet your unique requirements for products. At the same time, we have noise rooms and laboratories to provide necessary conditions for research and development.

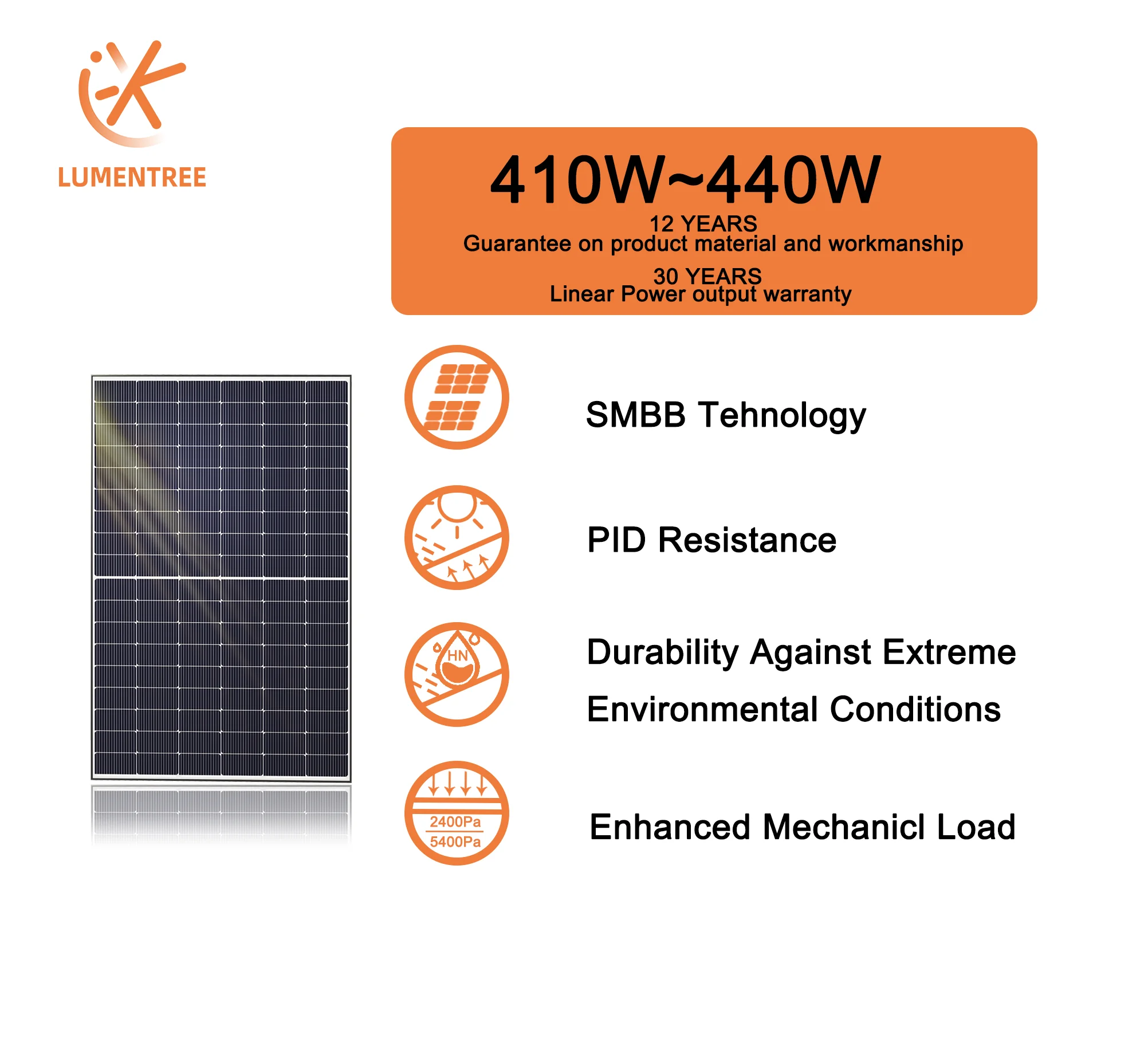

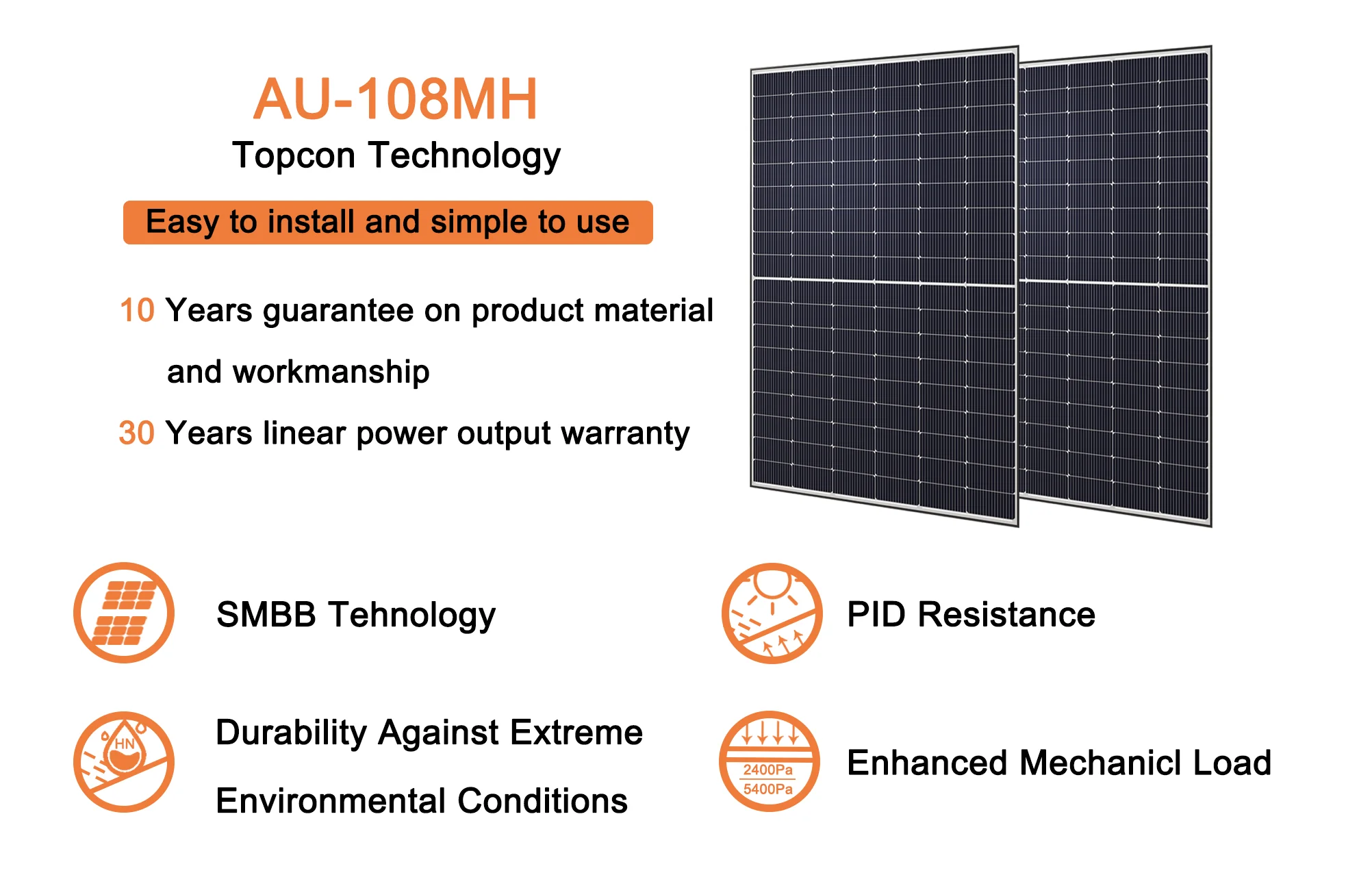

SMBB TechnologyBetter light trapping and current collection to improve module power output and reliability.
PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

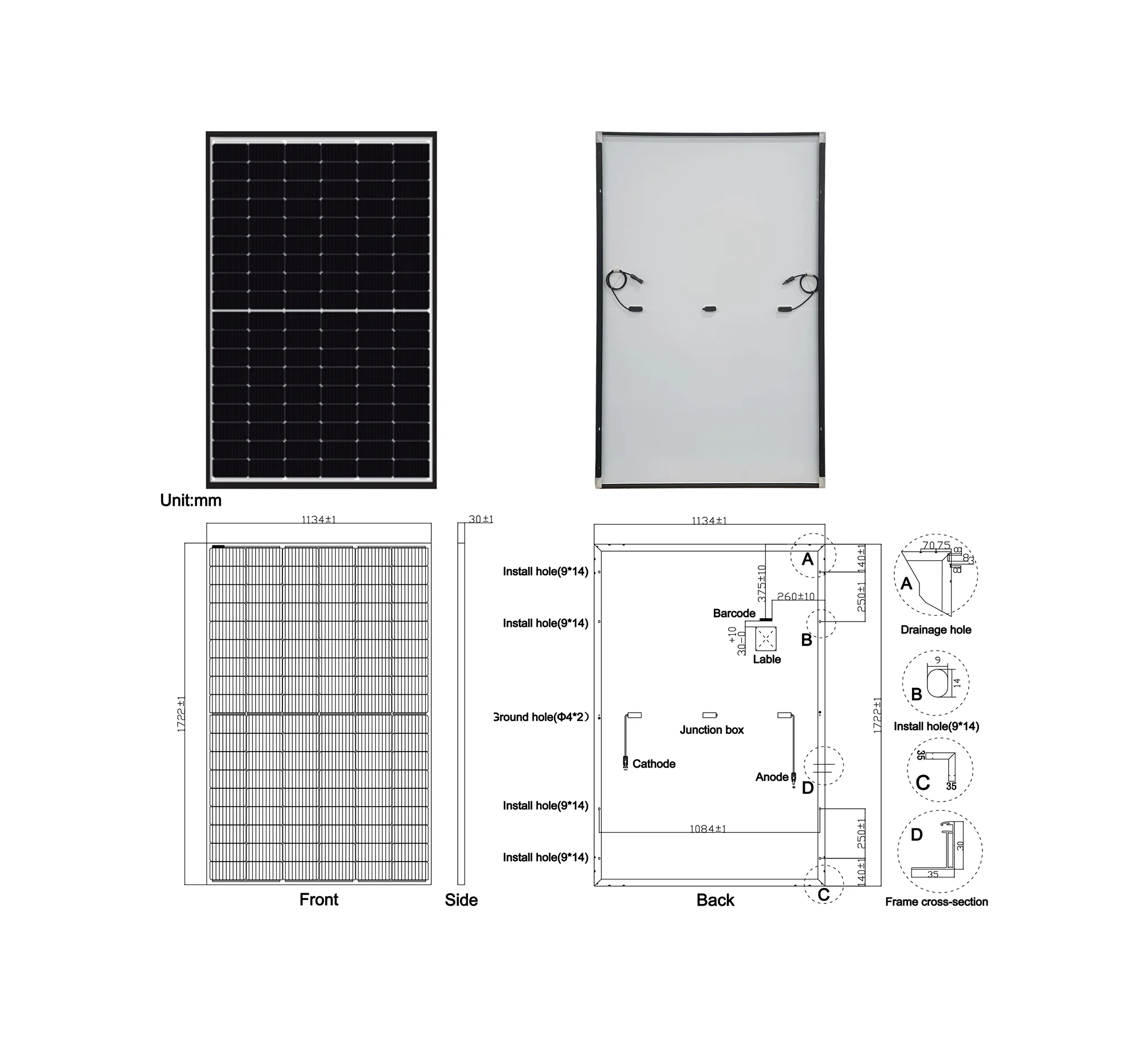

Products Details
SPECIFICATION
ELECTRICAL DATA(STC) | ||||||||||||||
Model Type | AU410-27V-MH | AU415-27V-MH | AU420-27V-MH | AU425-27V-MH | AU430-27V-MH | AU435-27V-MH | AU440-27V-MH | |||||||
Peak Power(Pmax) | 410.00 | 415.00 | 420.00 | 425.00 | 430.00 | 435.00 | 440.00 | |||||||
Maximum Power Voltage(Vmp) | 31.13 | 31.32 | 31.51 | 31.70 | 31.88 | 32.06 | 32.24 | |||||||
Maximum Power Current(Imp) | 13.17 | 13.25 | 13.33 | 13.41 | 13.49 | 13.57 | 13.65 | |||||||
Open Circuit Voltage(Voc) | 37.73±3% | 37.92±3% | 38.11±3% | 38.30±3% | 38.49±3% | 38.68±3% | 38.87±3% | |||||||
Short Circuit Current(Isc) | 13.91±3% | 13.99±3% | 14.07±3% | 14.15±3% | 14.23±3% | 14.31±3% | 14.39±3% | |||||||
Module Efficiency( % ) | 21.00 | 21.25 | 21.51 | 21.76 | 22.02 | 22.28 | 22.54 | |||||||
*STC:irradiance 1000W/m2, AM1.5,and cell temperature of 25°℃
QUALIFICATIONS&CERTIFICATES
FACTORY
EXHIBITION
FAQ
Q1. Are you manufacturer or trading company?
A: We are manufacturer. We have 3 production lines with a production capacity of 10,000 units per month.
Q2. What is the time of warranty of solar inverter?
A: 10 years.
Q3.Can you provide sample for testing market?
A:Yes. We also accept sample orders. Sample details please contact our sales.
Q4. What is your terms of payment?
1: 100% payment through alibaba.
2. 30% T/T prepaid, 70% by the copy of Bill of lading.
3. Or according to negotiation.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test and we can provide product test report.
A: We are manufacturer. We have 3 production lines with a production capacity of 10,000 units per month.
Q2. What is the time of warranty of solar inverter?
A: 10 years.
Q3.Can you provide sample for testing market?
A:Yes. We also accept sample orders. Sample details please contact our sales.
Q4. What is your terms of payment?
1: 100% payment through alibaba.
2. 30% T/T prepaid, 70% by the copy of Bill of lading.
3. Or according to negotiation.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test and we can provide product test report.
Q6. Can you do OEM/ODM services?
Yes, we can. We can customize the product logo, packaging materials, etc
We have 20 engineers with more than 10 years of research and development experience, can jointly develop customized products to meet your unique requirements for products. At the same time, we have noise rooms and laboratories to provide necessary conditions for research and development.
We have 20 engineers with more than 10 years of research and development experience, can jointly develop customized products to meet your unique requirements for products. At the same time, we have noise rooms and laboratories to provide necessary conditions for research and development.
