Crane type RT 60 vibratory pile hammer for steel sheet pile and pipe piles electric vibro hammer for sale
- Category: >>>
- Supplier: Realtop Heavy Industry Co. Ltd.
Share on (1600833959501):
Product Overview
Description
Product Overview

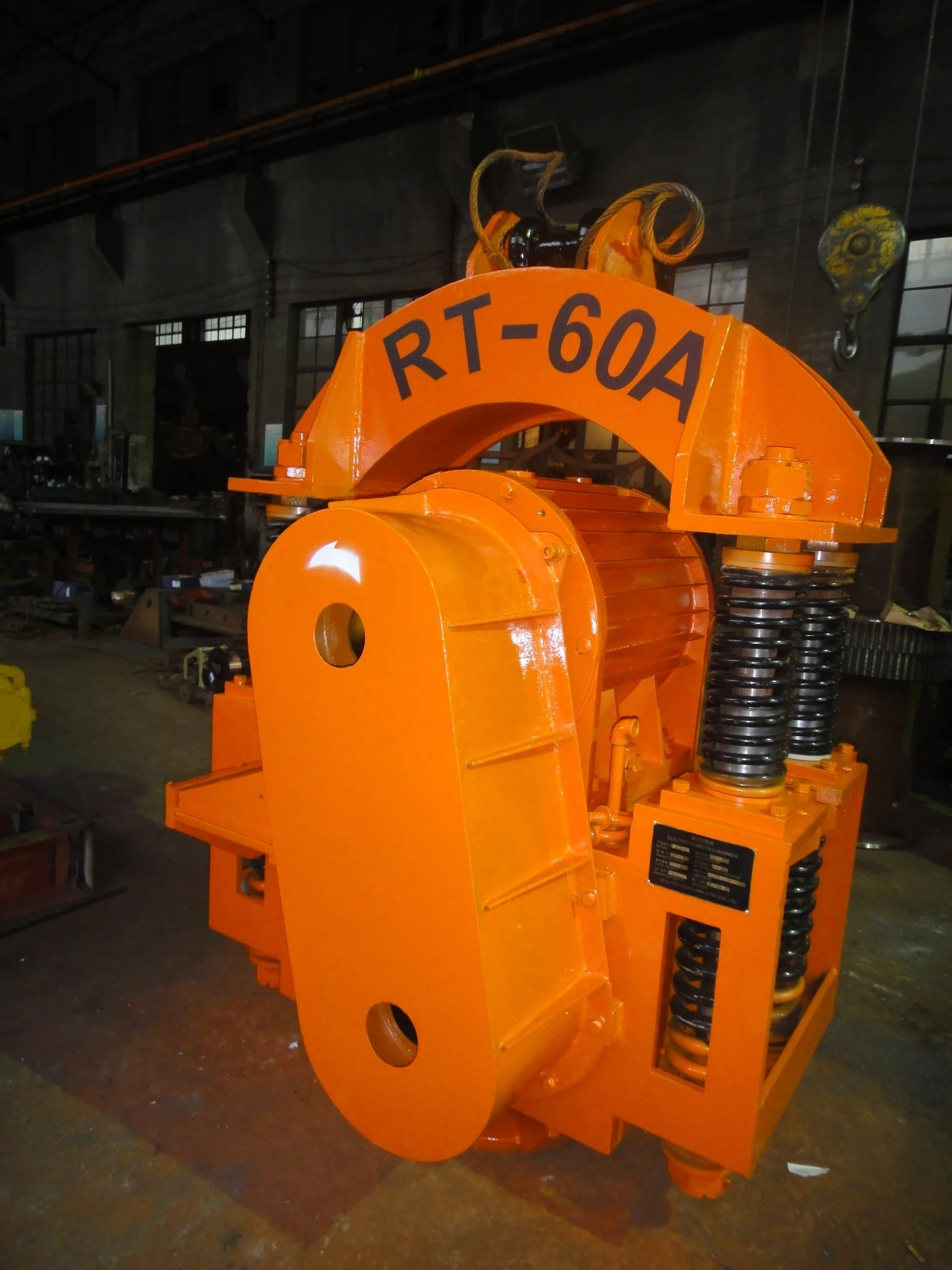

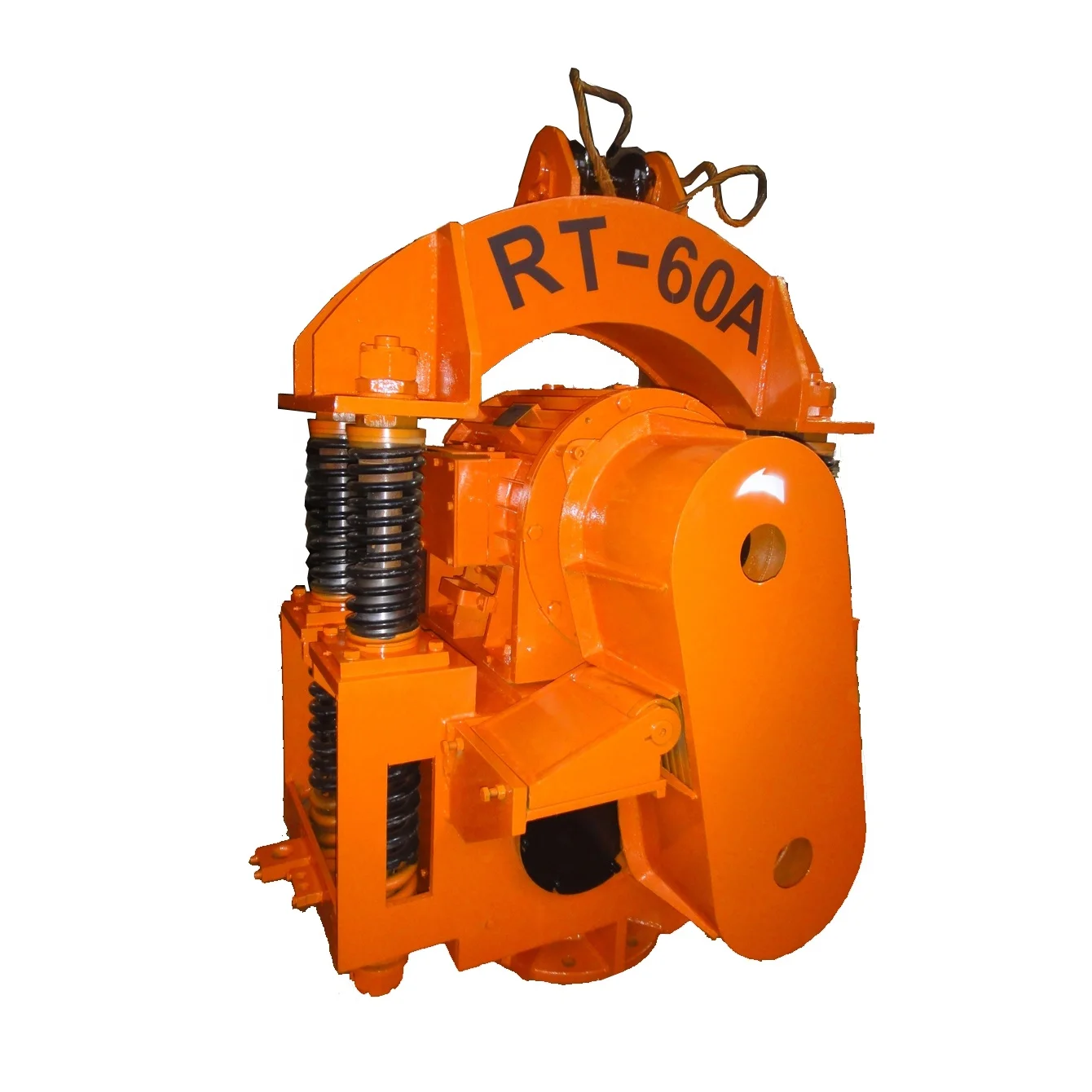

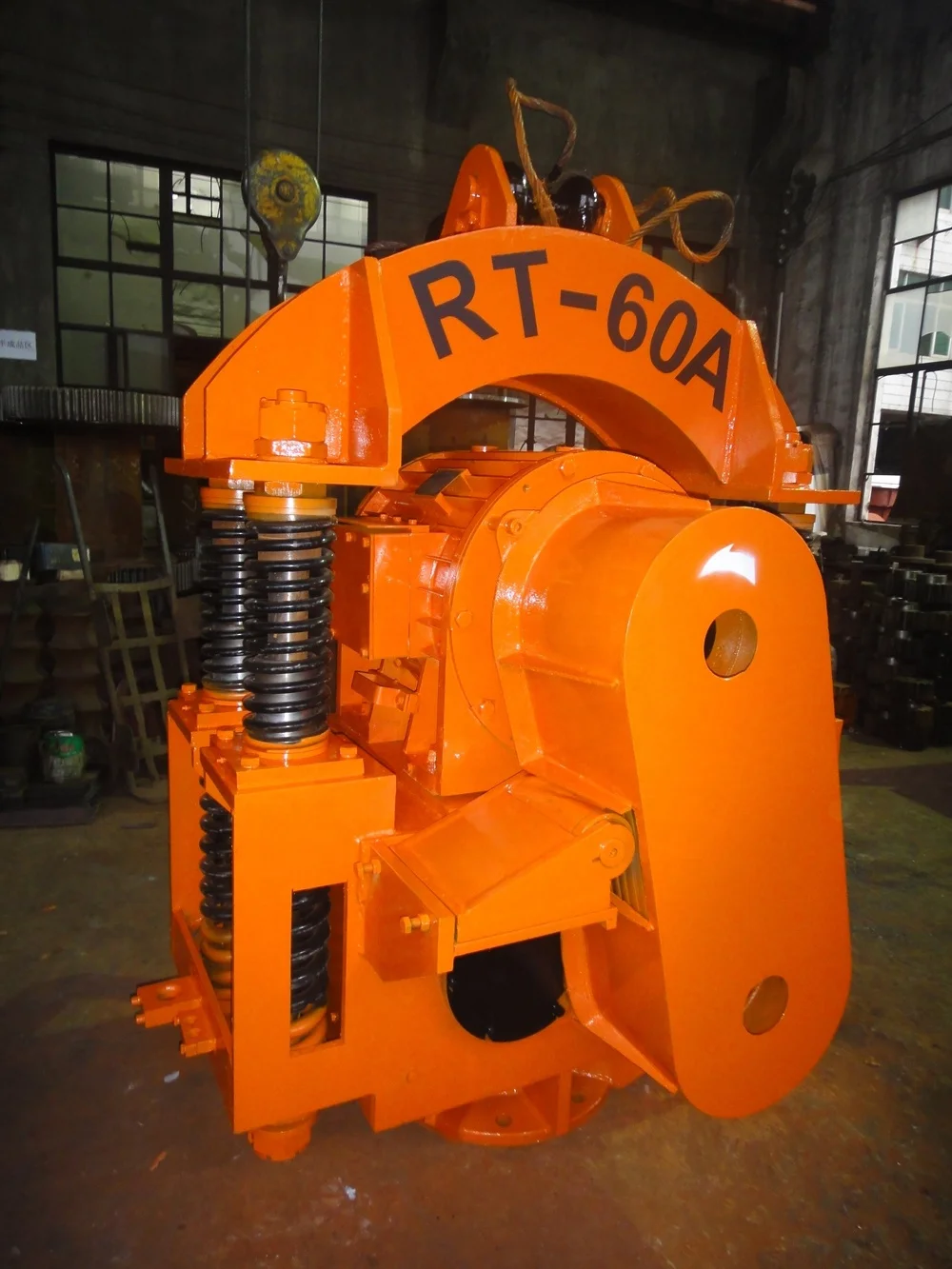

RT-60A ELECTRIC VIBRO PILE HAMMER
Realtop Crane Type Electric Vibro Pile Hammer RT serious are developed and researched by our company independently on the basis of combination of foreign and domestic technologies according to the features of our foundations at home.
It is a vibro pile hammer with higher effective,widely applied to the work including piling with concrete, piling with broken stones, piling with lime, piling with sand bags, plastic sheet water discharging piling.
Assembled with our hydraulic clamp, it can extract steel piles and concrete piles. It is a good equipment for the foundations in building, road, highways, railways, airport, bridges, harbors and docks.
It is a vibro pile hammer with higher effective,widely applied to the work including piling with concrete, piling with broken stones, piling with lime, piling with sand bags, plastic sheet water discharging piling.
Assembled with our hydraulic clamp, it can extract steel piles and concrete piles. It is a good equipment for the foundations in building, road, highways, railways, airport, bridges, harbors and docks.
FEATURES AT A GLANCE
Features:
1 Equipped with pressuring device, which can effectively pressurize the Injection force, improving the work effective.
2 the strength V-belt is adopted to improve its transmission capacity, prolonging its service time.
3 Common motor with protector Y serial is adopted, featuring in lower cast and easy repairing,
it can be equipped with an additional anti-vibration motor according to the requirement of the user.
4. It has two eccentric moments to adapt the requirements for different soils.
5. Better shock absorbent capacity, lower noise, no pollution, less troubles, easy operation.
2 the strength V-belt is adopted to improve its transmission capacity, prolonging its service time.
3 Common motor with protector Y serial is adopted, featuring in lower cast and easy repairing,
it can be equipped with an additional anti-vibration motor according to the requirement of the user.
4. It has two eccentric moments to adapt the requirements for different soils.
5. Better shock absorbent capacity, lower noise, no pollution, less troubles, easy operation.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Item | Unit | RT-60A | ||
Motor Type | YNZ60-6-W | |||
Motor Power | KW | 60 | ||
eccentric axle rotation | r/min | 1100 | ||
Eccentric moment | N.m | 360 | ||
Exciting Vibration Force | KN | 485 | ||
Unloaded Vibration Amplitude | mm | 9.8 | ||
Allowable pulling pile force | KN | 200 | ||
Weight | kg | 4900 | ||
Common start power/Converter start power | KVA | 225 | ||
Outer Size | L | mm | 1250 | |
W | mm | 1430 | ||
H | mm | 2300 | ||
PRODUCT CONFIGURATION
Single jaw

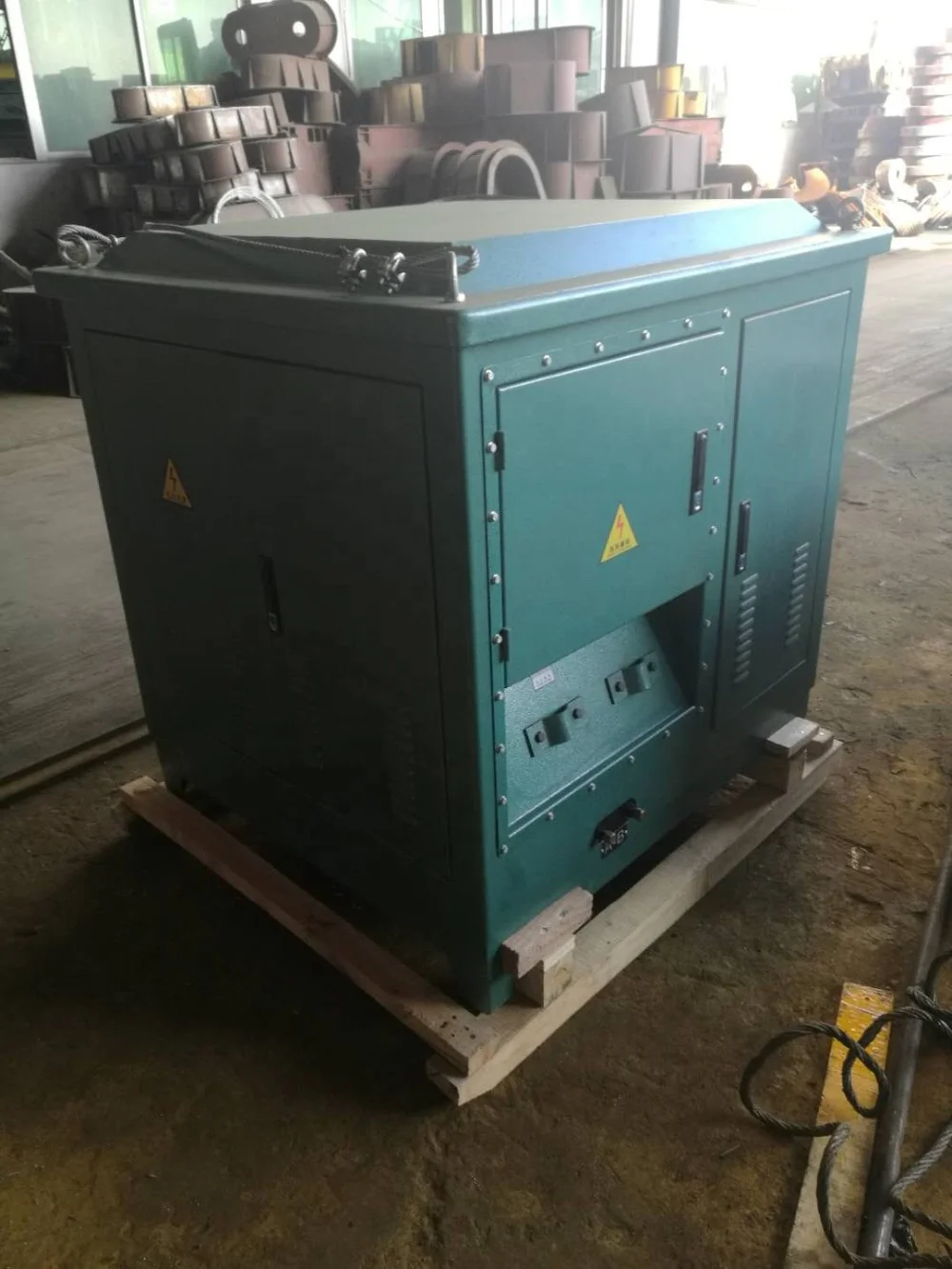

Control cabinet
Wearing parts

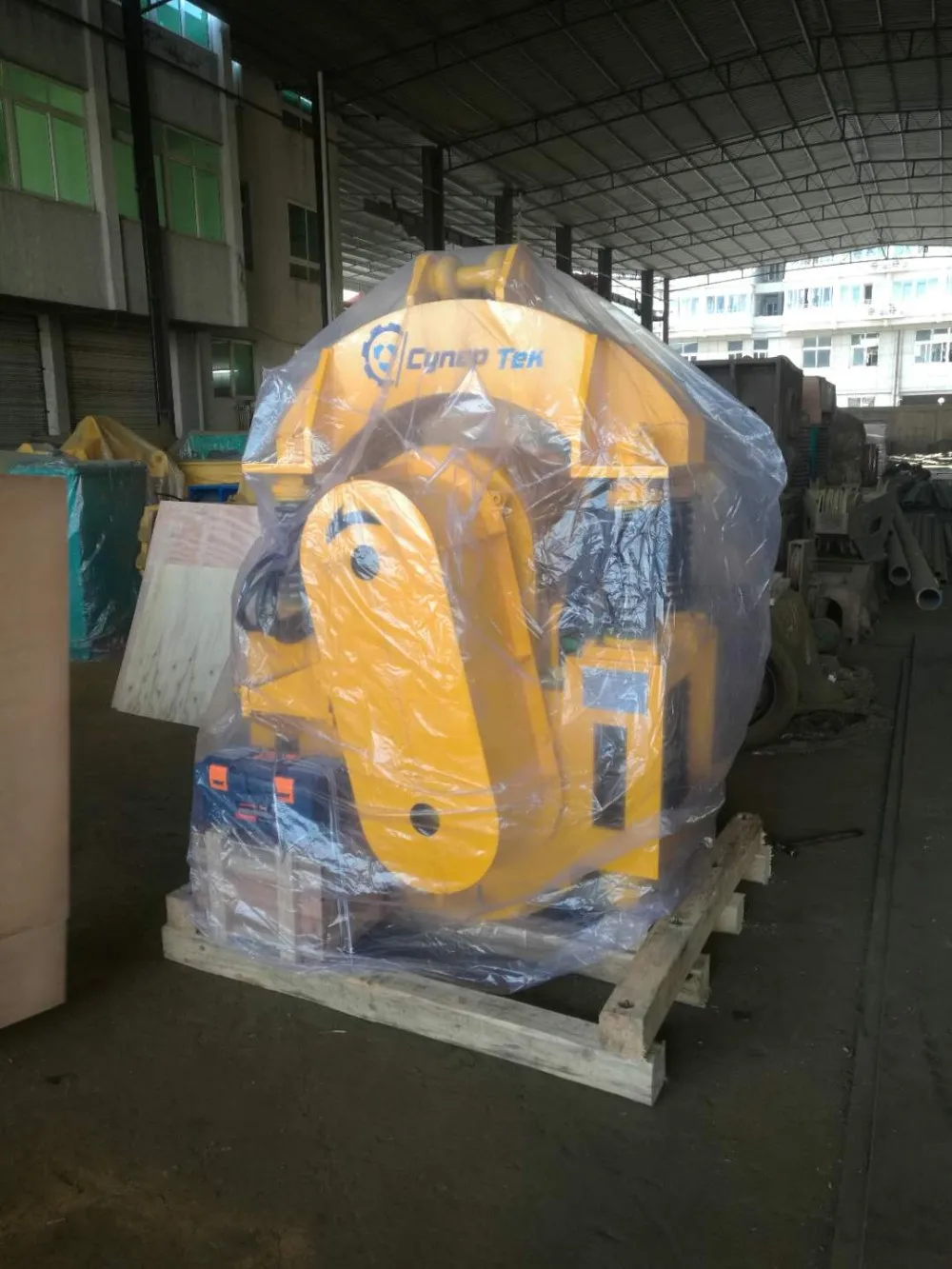

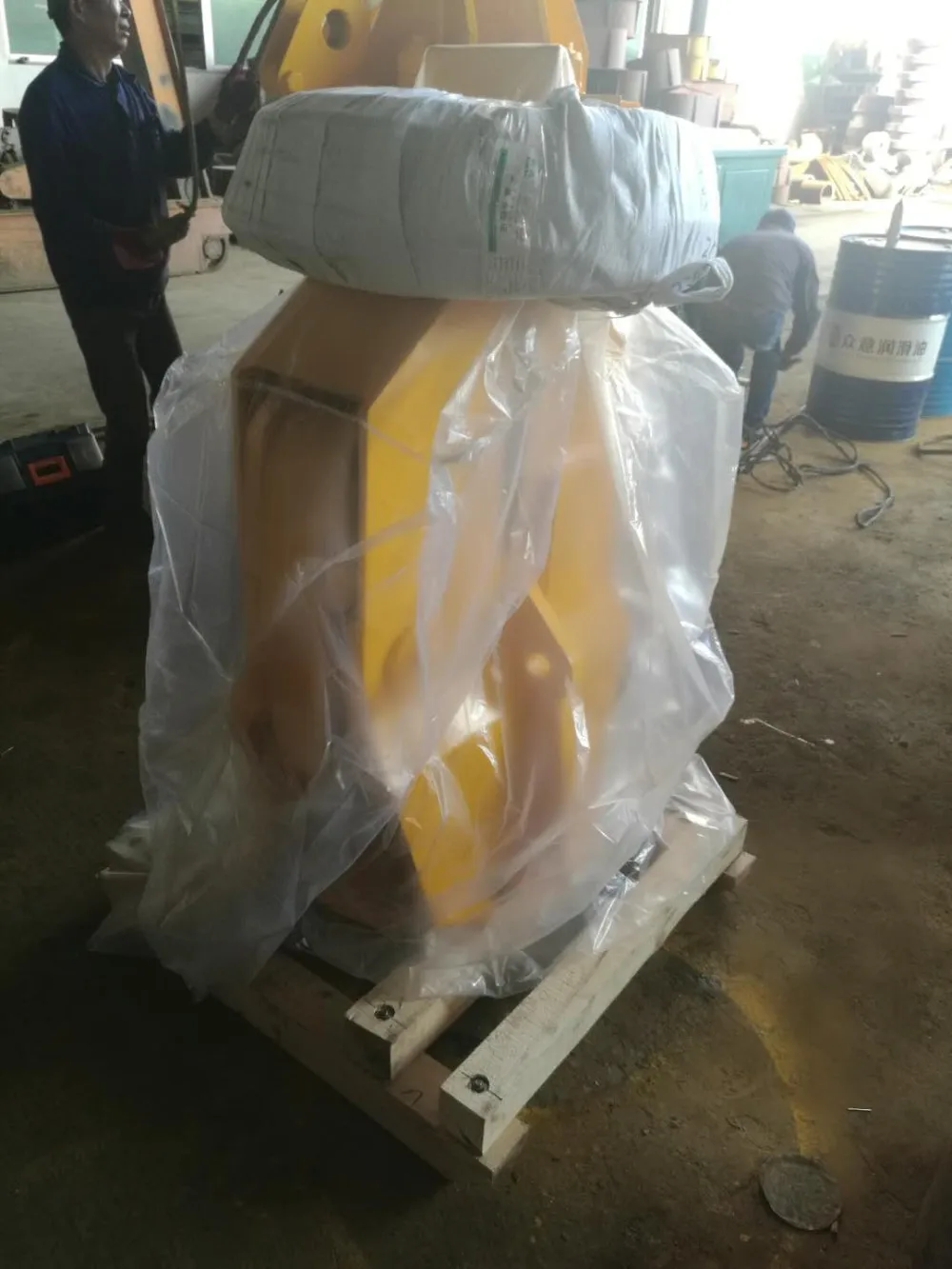

Packing and Delivery
Packiing list of one set electric vibro pile hammer RT-60A
CTN NO. | Description | Qty (pcs) | Weight (kgs) | Dimensions (cm) | Volume | ||||||
G.W. | N. W. | L | W | H | m³ | ||||||
1 | 60kw vibratory hammer, oil tube, screw bolt and wearing parts, special tools. | 1 | 4500 | 4200 | 165 | 158 | 225 | 5.83 | |||
2 | Hydraulic gripper, cable. | 1 | 1200 | 1120 | 137 | 107 | 158 | 2.32 | |||
3 | Control cabinet. | 1 | 730 | 630 | 137 | 123 | 145 | 2.44 | |||
TOTAL | 6430 | 10.59 | |||||||||
Wearing parts list for one set eletric vibro pile hammer RT-60A
No. | Description | Unit | Qty |
1 | Grip jaw plate | pcs | 1 |
2 | Connect screw bolt | pcs | 8 |
3 | Oil seal for hammer | pcs | 2 |
4 | Solenoid valve | pcs | 1 |
5 | Triangle belt | pcs | 1 |
6 | Power indicator light | pcs | 2 |
7 | Ammeter | pcs | 1 |
8 | Voltmeter | pcs | 1 |
9 | Press gauge | pcs | 1 |
10 | Button | pcs | 4 |
Successful Project
Project in Bangladesh
Project in Philippines
Project in Russia
