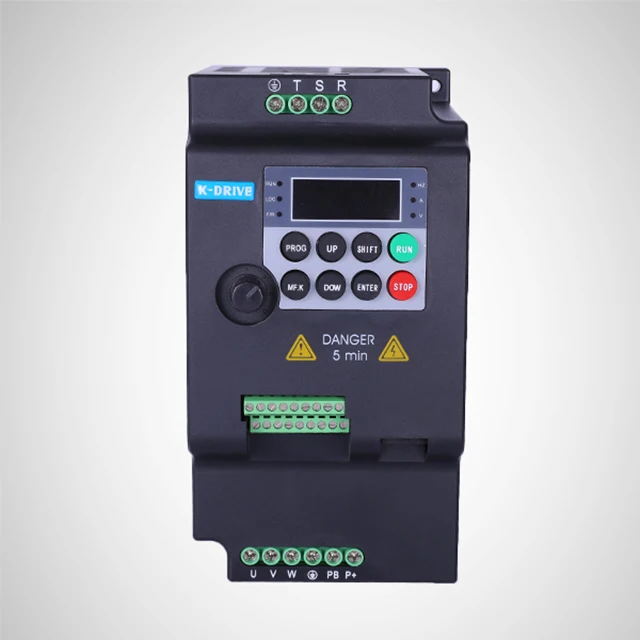

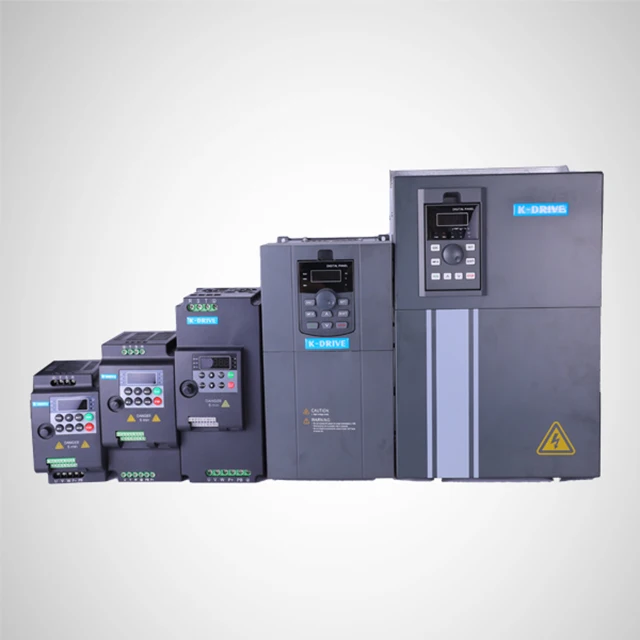

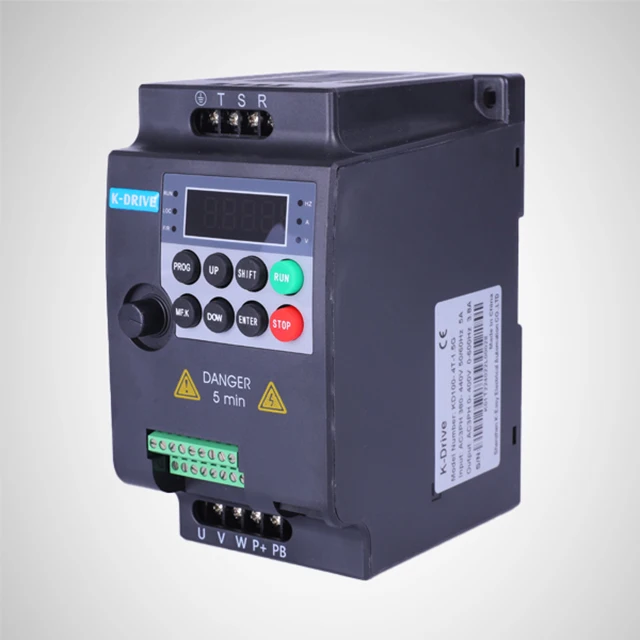

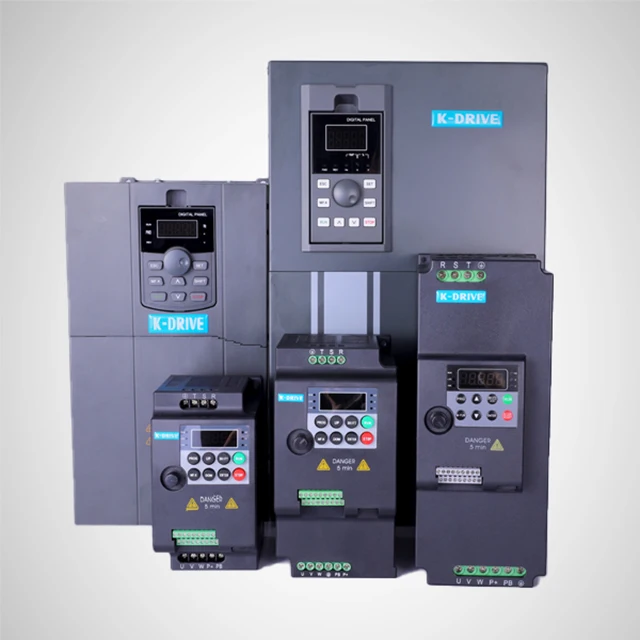

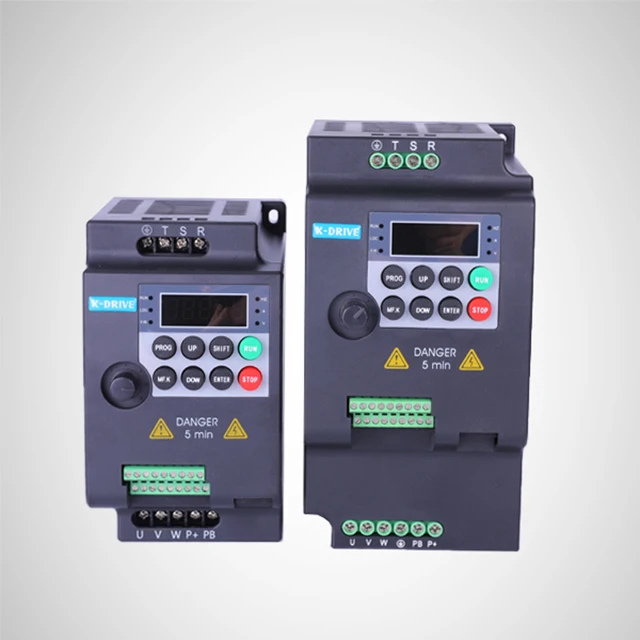

Sample Customization K Drive Variable Frequency Converter for Drilling Machine 380v 1.5KW VFD
- Category: >>>
- Supplier: Shenzhen K-Easy Electrical Automation Company Limited
Share on (1600833972453):
Product Overview
Description
Product Description
Product Description
Low Cost AC Drive Specially Desgined For Low Horsepower Applications
Auto Torque Boost & Slip Compensation
All Brake Unit Built In(Can Add Brake Resistor Directly)
Built In Modbus (RS485)
Outer Keypad Available
Vector Control
Carrier Frequency Upto 10KHZ
All 24 Months Warranty Time.
Exw Price For All, same For FOB Price once total fee arrives US$20,000
Products Specification:
| Model | Power Supply Capacity(KVA) | Input Current(A) | Output Current(A) | Applicant Motor | Dimensions(cm) | Weight(kg) | |
| Single-phase power: 220v, 50/60Hz | KW | HP | |||||
| KD100-2S-0.4G | 1 | 5.4 | 2.3 | 0.4 | 0.5 | 21*11*16.5 | 1.35 |
| KD100-2S-0.75G | 1.5 | 8.2 | 4 | 0.75 | 1 | 21*11*16.5 | 1.35 |
| KD100-2S-1.5G | 3 | 14 | 7 | 1.5 | 2 | 21*11*16.5 | 1.35 |
| KD100-2S-2.2G | 4 | 23 | 9.6 | 2.2 | 3 | 21*11*16.5 | 1.35 |
| Three-phase power: 380v, 50/60Hz | |||||||
| KD100-4T-0.75G | 1.5 | 3.4 | 2.1 | 0.75 | 1 | 21*11*16.5 | 1.35 |
| KD100-4T-1.5G | 3 | 5 | 3.8 | 1.5 | 2 | 21*11*16.5 | 1.35 |
| KD100-4T-2.2G | 4 | 5.8 | 5.1 | 2.2 | 3 | 21*11*16.5 | 1.35 |
| KD100-4T-3.7G | 5.9 | 10.5 | 9 | 3.7 | 5 | 22*17*20 | 2.1 |
| KD100-4T-5.5G | 8.9 | 14.6 | 13 | 5.5 | 7.5 | 22*17*20 | 2.1 |
| KD100-4T-7.55G | 11 | 20.5 | 17 | 7.5 | 10 | 28.5*22*23.5 | 3.8 |
| KD100-4T-11G | 17 | 26 | 25 | 11 | 15 | 28.5*22*23.5 | 3.8 |
