Внутренний драйвер PWM контроль 57 мм бесщеточный двигатель BLDC высокая скорость 10000 об/мин
- Category: >>>
- Supplier: Changzhou Spark Motor Tech Co. Ltd.
Share on (1600833973442):
Product Overview
Description
Product Description
ADVANTAGES of Brushless DC motor, etc.:
(1) Hall sensor insides, easy to drive and regulate.
(2) Can run at low speed and high power, save the reducer, and directly drive the large load.
(3) No brush and collector ring structure, suitable for public places, anti-interference, good safety performance.
(4) Excellent torque performance, medium, and low-speed torque performance large start torque, small start current.
(5) Step-less speed regulation, wide speed range, strong overload capacity. (6) Small volume, light weight, large output.
(7) Soft start, soft stop, and good braking characteristics .
(8) No excitation loss and brush loss, high efficiency, and a good comprehensive power-saving effect.
(9) High reliability, good stability, strong adaptability, and simple repair and maintenance.
(10) Vibration resistance, low noise, smooth operation, and long life.
(1) Hall sensor insides, easy to drive and regulate.
(2) Can run at low speed and high power, save the reducer, and directly drive the large load.
(3) No brush and collector ring structure, suitable for public places, anti-interference, good safety performance.
(4) Excellent torque performance, medium, and low-speed torque performance large start torque, small start current.
(5) Step-less speed regulation, wide speed range, strong overload capacity. (6) Small volume, light weight, large output.
(7) Soft start, soft stop, and good braking characteristics .
(8) No excitation loss and brush loss, high efficiency, and a good comprehensive power-saving effect.
(9) High reliability, good stability, strong adaptability, and simple repair and maintenance.
(10) Vibration resistance, low noise, smooth operation, and long life.
Motot Technical Data/电机性能表 | ||||||
Model | BL5704-48100 | BL5704-24100 | ||||
Rated Voltage (VDC) | 48 | 24 | ||||
No-load | Current (A) | 2.4 | 3.289 | |||
Speed (rpm) | 9108 | 10478 | ||||
At max efficienty | Current (A) | 8.27 | 11.55 | |||
Speed (rpm) | 7720 | 8275 | ||||
Torque (Nm) | 0.359 | 0.189 | ||||
Power (W) | 290 | 164 | ||||
At max performance | Current (A) | 15.11 | 22.54 | |||
Speed (rpm) | 6400 | 5132 | ||||
Torque (Nm) | 0.728 | 0.423 | ||||
Power (W) | 487 | 227 | ||||
CAN BE PAIRED WITH PLANETARY GEAR BOX, PLEASE CONTACT US FOR CUSTOMIZATION！ | ||||||

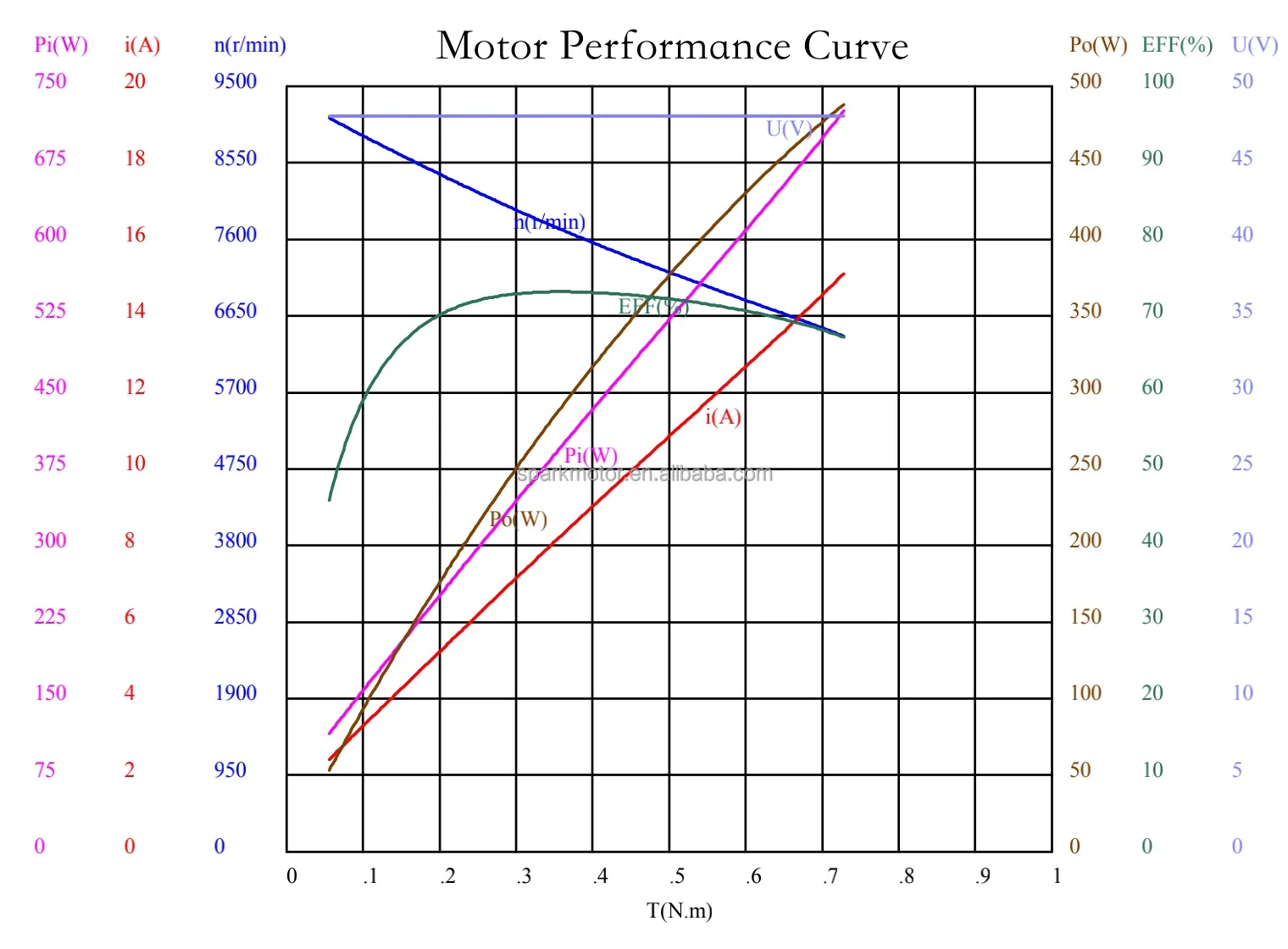

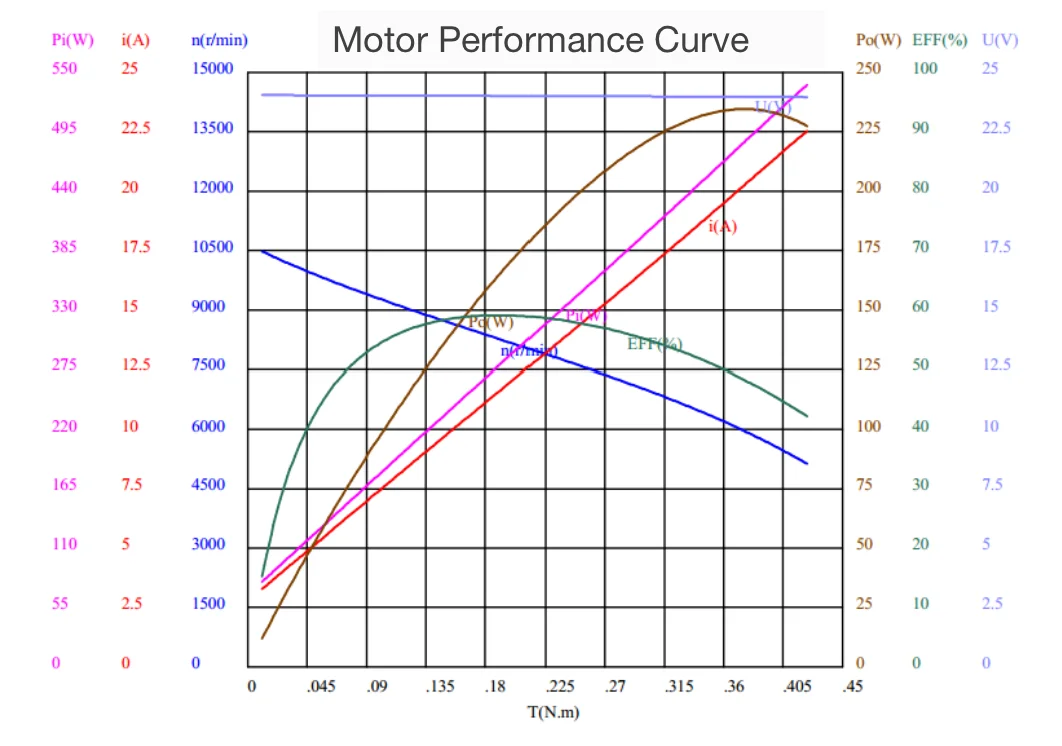

Testing environment：22°C
Transmission ratio (motor/dynamometer shaft): 1/1
Rotary Direction: CW
Rotary Direction: CW
Power supply: 48 VDC (left), 24 VDC (right)

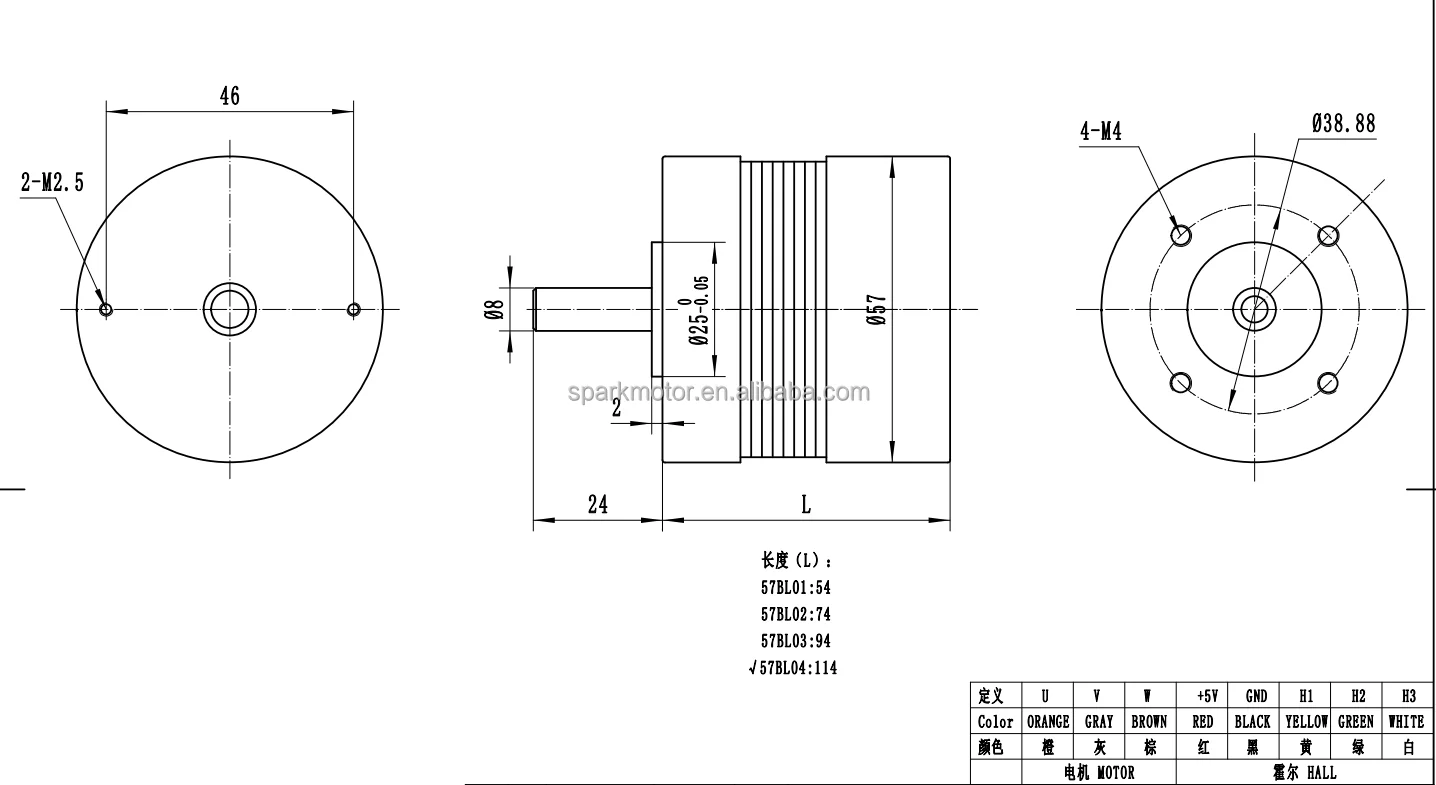

Mechenical Dimensions/机械尺寸:
Motor Function Interface/功能接口说明 | Motor Function Interface/功能接口说明 | |||
Pin No. | Signal | |||
Motor | Orange | U | ||
Gray | V | |||
Brown | W | |||
Hall | Red | +5V | ||
Black | GND | |||
Yellow | H1 | |||
Green | H2 | |||
White | H3 | |||
Application
Wide applications of BLDC motor:
Spark BLDC products are designed to benefit customers with optimized designs for noise reduction, vibration reduction, and longer working life. BLDC motors can be widely used in FA, pumps, valves, solar energy, automotive, and other fields.
