3000rpm 1.27nm 60DNMA2 0D40DKAM 400 ac servo motor flange 60mm servo motor
- Category: >>>
- Supplier: Changzhou Maples Precision Electromechanical Co. Ltd.
Share on (1600833984282):
Product Overview
Description
3000rpm 1.27nm 60DNMA2-0D40DKAM 400 ac servo motor flange 60mm servo motor
Product Description
You will receive

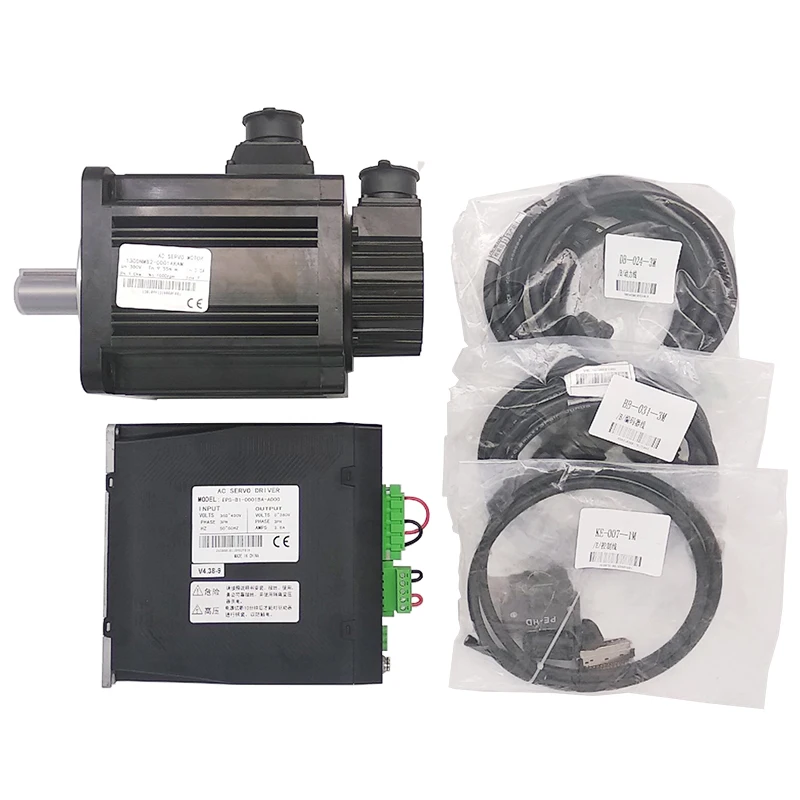

1Pcs SERVO MOTOR +1PCS SERVO DRIVER+3PCS CABLES ( CONTROL POWER AND ENCODER)
1Pcs SERVO MOTOR +1PCS SERVO DRIVER+3PCS CABLES ( CONTROL POWER AND ENCODER)
Noted: If you need other motor, please send inquiry to us or contact us directly.
Model | 60DNMA2-0D40DKAM |
Rated speed | 3000rpm |
Phase | 1/3 |
Rated Current | 2.5A |
rated Totque | 1.27N.m |
Resistance | 4.28±10%Ω |
Inductance | 15.4±20%mH |
Frame Size | 60*60mm |
Shaft Diameter | 14mm |
Motor Length | 140mm |
Encoder Resolution | 5000*4PPR |
Weight | 1.59Kg |
OEM Service | Accept |
Warranty | 3 months - 1 year |
SERVO SET

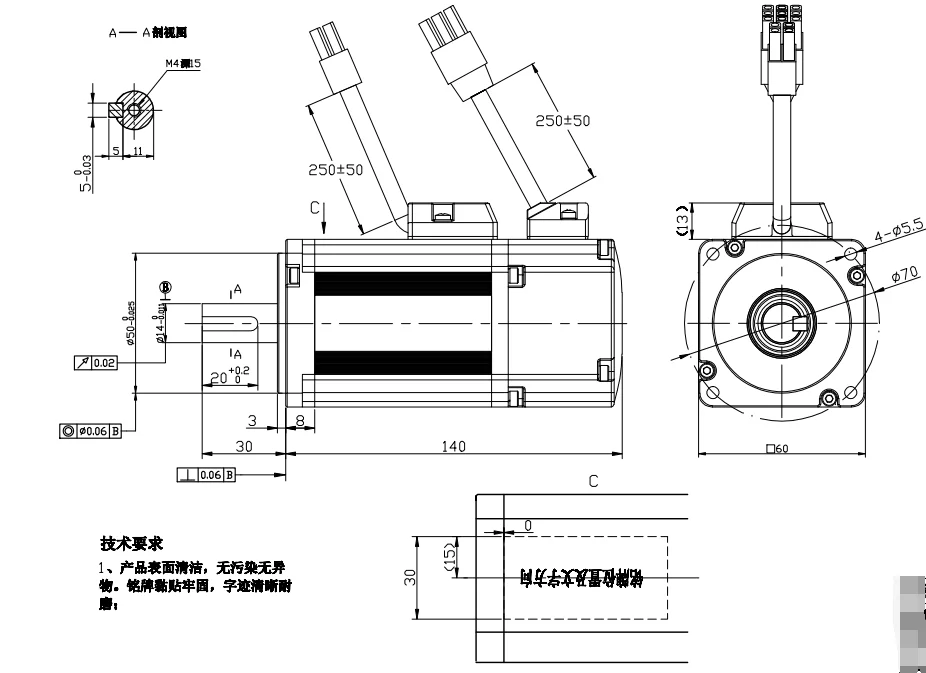

Motor Dimension (mm)
Motor Application:
Servo motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
Servo motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.

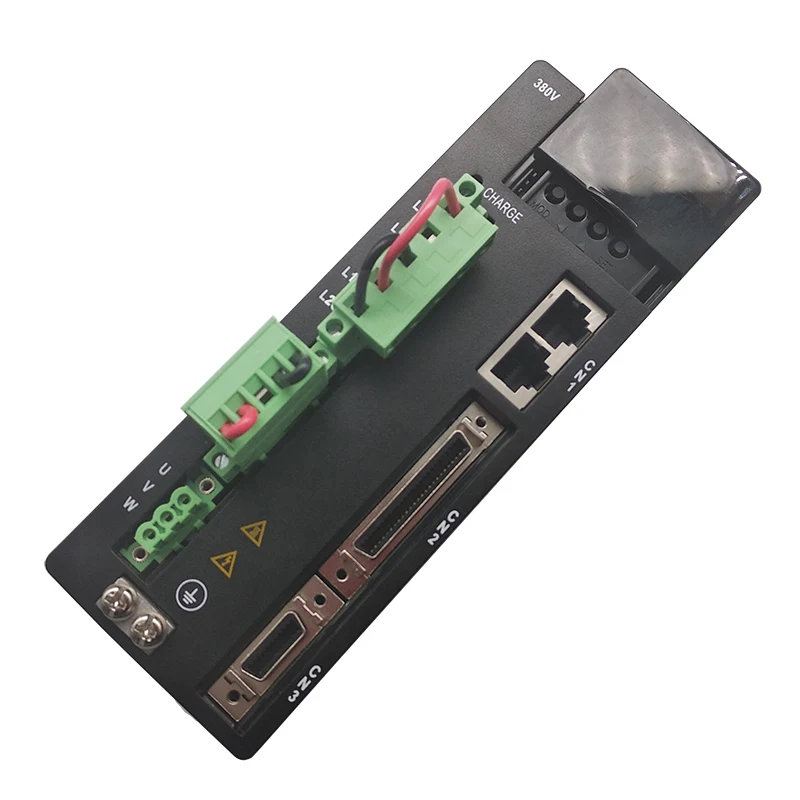

Servo Driver:
Input voltage | AC 220V |
Peak current | current change according to load |
Pulse frequency | 50/60HZ |
ENCOER | 5000*4 PPR |
Using environment | 0~50℃, avoid dust, oil, corrosion gas |
Storage environment | -20℃~65℃，avoid direct sunlight |
Wiring Diagram
220V | Power | Model of driver | Flang/ mm | Model of motor | Speed /rpm | Holding Torque/ N.M |
100W | EPS-B1-0D10AA-A030 | 40 | 40DNMA2-0D10DIAK/M | 3000 | 0.32 | |
100W | EPS-B1-0D10AA-A000 | 40 | 40DNMA2-0D10DKAK/M | 3000r/min | 0.32 | |
200W | EPS-B1-0D20AA-A000 | 60 | 60DNMA2-0D20DKAM | 3000r/min | 0.64 | |
400W | EPS-B1-0D40AA-A000 | 60 | 60DNMA2-0D40DKAM | 3000r/min | 1.27 | |
750W | EPS-B1-0D75AA-A000 | 80 | 80DNMA2-0D75DKAM | 3000 | 2.39 | |
1KW | EPS-B1-0001AA-A000 | 130 | 130DNMA2-0001DKAM | 3000 | 3.18 | |
1KW | EPS-B1-0001AA-A000 | 130 | 130DNMA2-0001CKAM | 2000 | 4.77 | |
1KW | EPS-B1-0001AA-A000 | 130 | 130DNMA2-0001AKAM | 1000 | 9.55 | |
1.2KW | EPS-B1-01D5AA-A000 | 130 | 130DNMA2-01D2CKAM | 2000 | 5.73 | |
1.2KW | EPS-B1-01D5AA-A000 | 110 | 110DNA-12CK1AMS | 2000 | 5.73 | |
1.5KW | EPS-B1-01D5AA-A000 | 130 | 130DNMA2-01D5CKAM | 2000 | 7.2 | |
1.8KW | EPS-B1-02D2AA-A000 | 130 | 130DNMA2-01D8DKAM | 3000 | 5.73 | |
2.2KW | EPS-B1-02D2AA-A000 | 130 | 130DNMA2-0002CKAM | 2000 | 9.55 | |
3KW | EPS-B1-0003AA-A000 | 130 | 130DNMA2-0003CKAM | 2000 | 14.33 | |
3KW | EPS-B1-0003AA-A000 | 180 | 180DNA-30BK1AMS | 1500 | 19.1 | |
4KW | EPS-B1-04D5AA-A000 | 180 | 180DNA-40BK1AMS | 1500 | 25.5 | |
4.5KW | EPS-B1-04D5AA-A000 | 180 | 180DNA-45BK1AMS | 1500 | 28.6 | |
5.5KW | EPS-B1-05D5AA-A000 | 180 | 180DNA-55BK1AMS | 1500 | 35 |
Packing & Delivery
Packing
Layers of packaging are more secure and faster, strict packing to ensure the safety and integrity of the motor.
Delivery
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptable.
Company Profile
Changzhou Maples Precision Electromechanical Co., Ltd is located in Changzhou close to Shanghai of China. It mainly sales hybrid stepper motors, stepper motor drives, brushless dc motors, brushless dc motor driver, and also agent servo motors, spindle motors, related drives, switching power supplies and accessories.
Our main goal is to become a professional supplier of mechanical and electrical products and provide customers with perfect after-sales service.
We have a professional technical team, who have extensive experience in the design and development of motor and motor drive products. We provide customers with a full range of services, including product customization and technical consultation. We have advanced equipment and experienced engineers that ensure our products meet customer needs and requirements. Our products are widely used in medical, industrial, commercial, and consumer applications. We strive to provide our customers with the highest quality products and services. We have a strict quality control system to ensure our products meet the industry standards. We are committed to providing our customers with the highest level of customer service. Our sales team is professional, knowledgeable, and dedicated to helping our customers achieve their goals.
Our main goal is to become a professional supplier of mechanical and electrical products and provide customers with perfect after-sales service.
We have a professional technical team, who have extensive experience in the design and development of motor and motor drive products. We provide customers with a full range of services, including product customization and technical consultation. We have advanced equipment and experienced engineers that ensure our products meet customer needs and requirements. Our products are widely used in medical, industrial, commercial, and consumer applications. We strive to provide our customers with the highest quality products and services. We have a strict quality control system to ensure our products meet the industry standards. We are committed to providing our customers with the highest level of customer service. Our sales team is professional, knowledgeable, and dedicated to helping our customers achieve their goals.
FAQ
Q1: How to choose the suitable stepper motor? | ||||||||
A: There are several important items: size, length of stepper motor, holding torque, voltage, current etc. After confirm some them and told us, we can send you the suitable one. | ||||||||
Q2: Any other methods to finalize the model? | ||||||||
A: Sure, you can send us the model you are using, we can help you find the suitable one. | ||||||||
Q3: When can I get the drawing of stepper motor? | ||||||||
A: We will provide drawings of stepper motor after you place the order. | ||||||||
