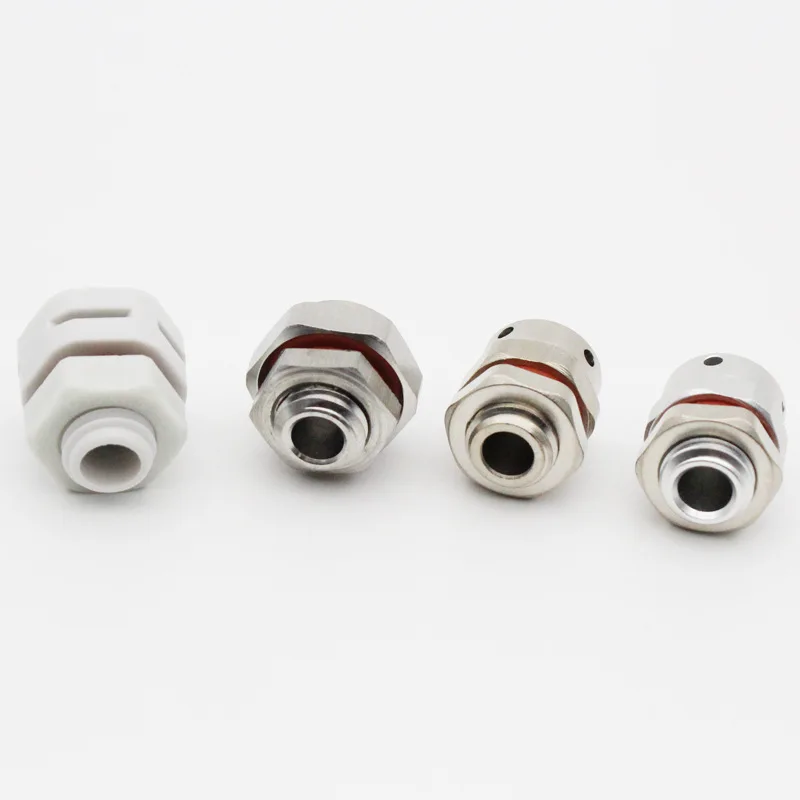

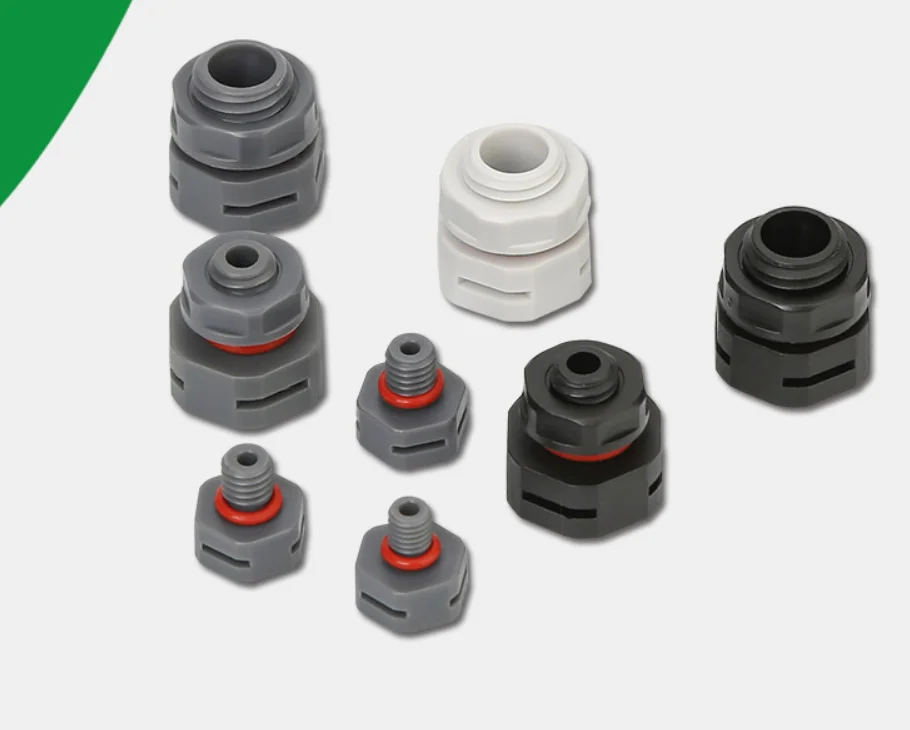

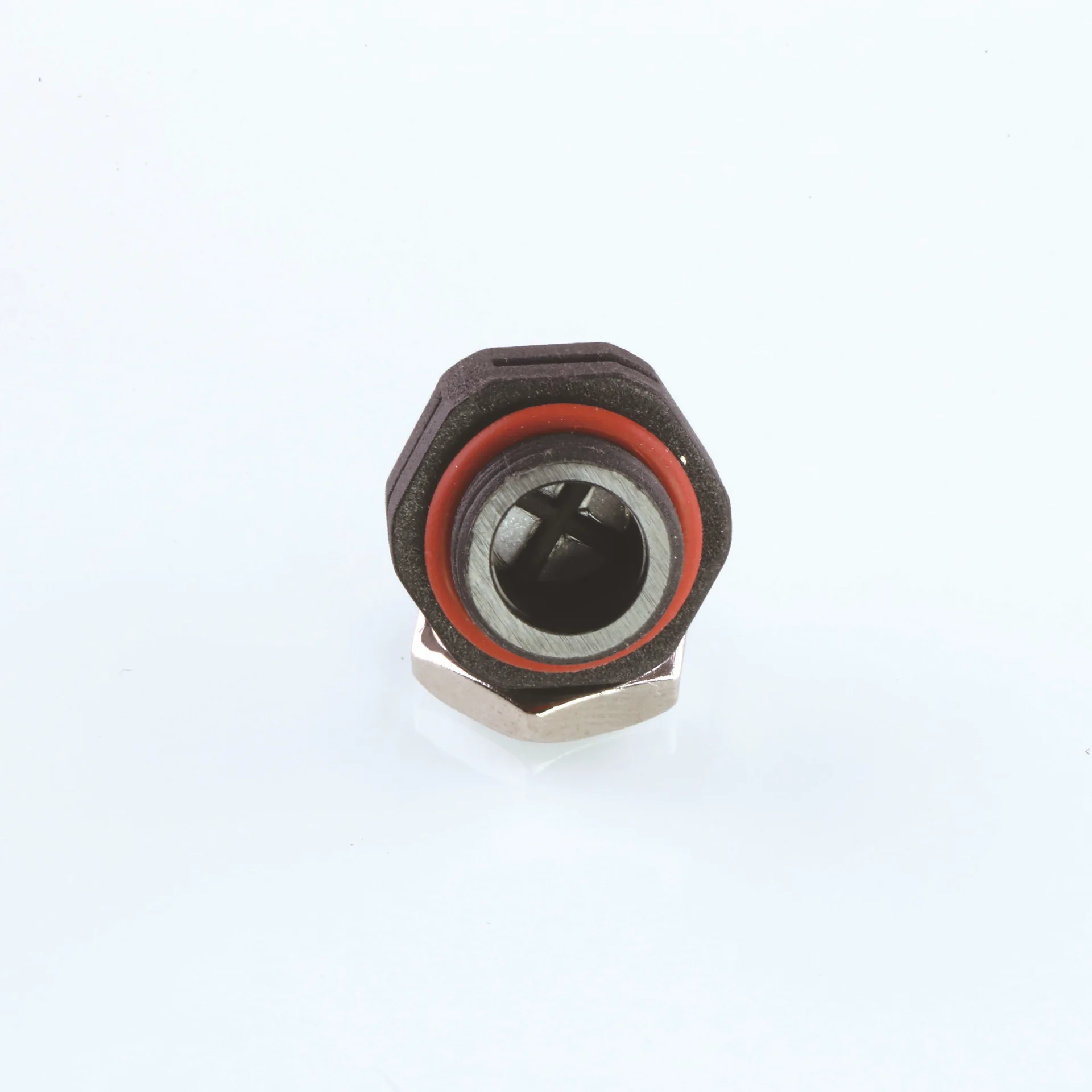

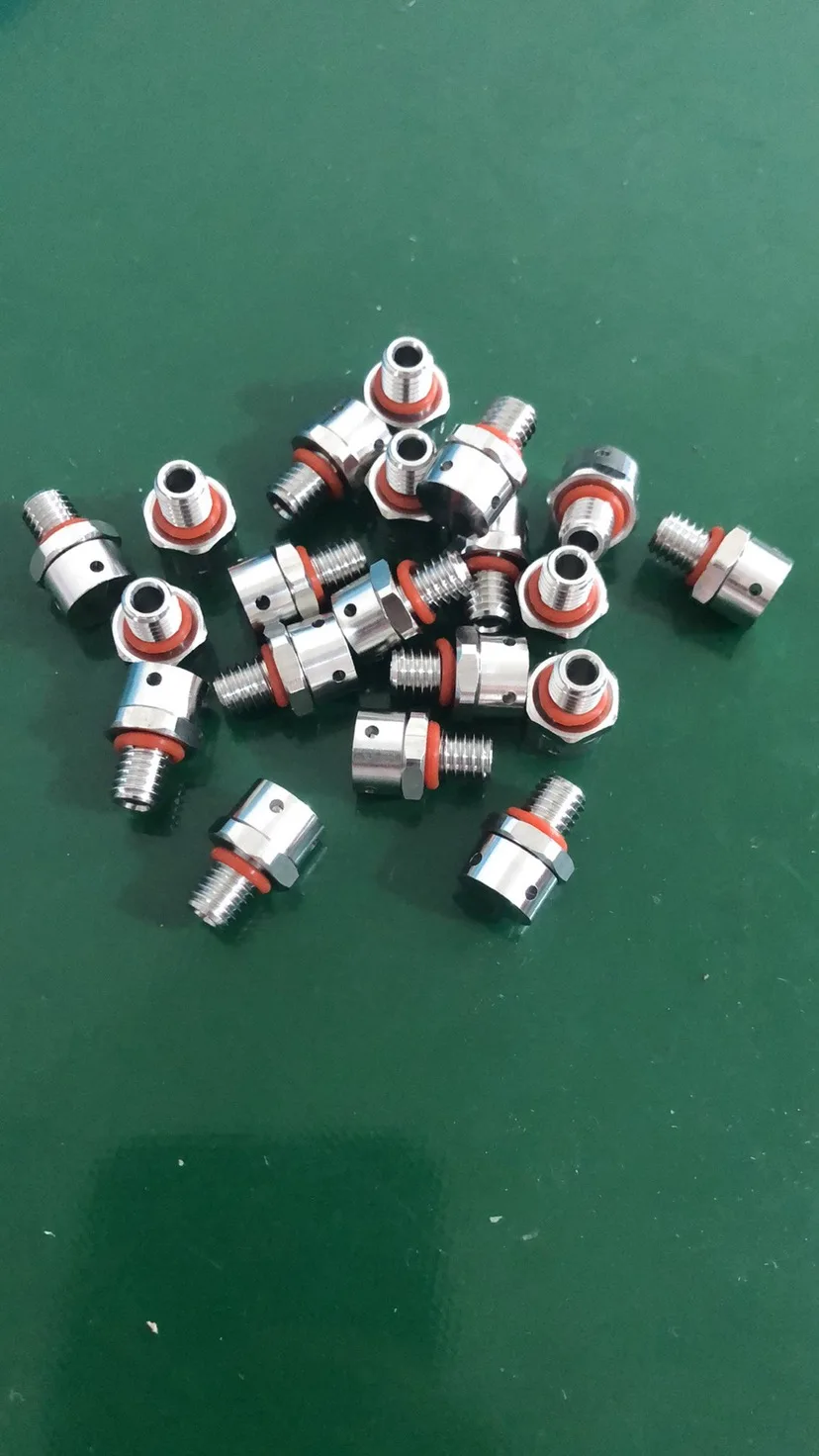

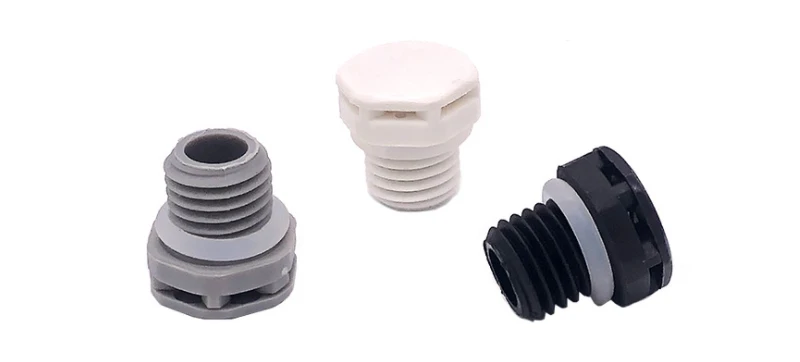

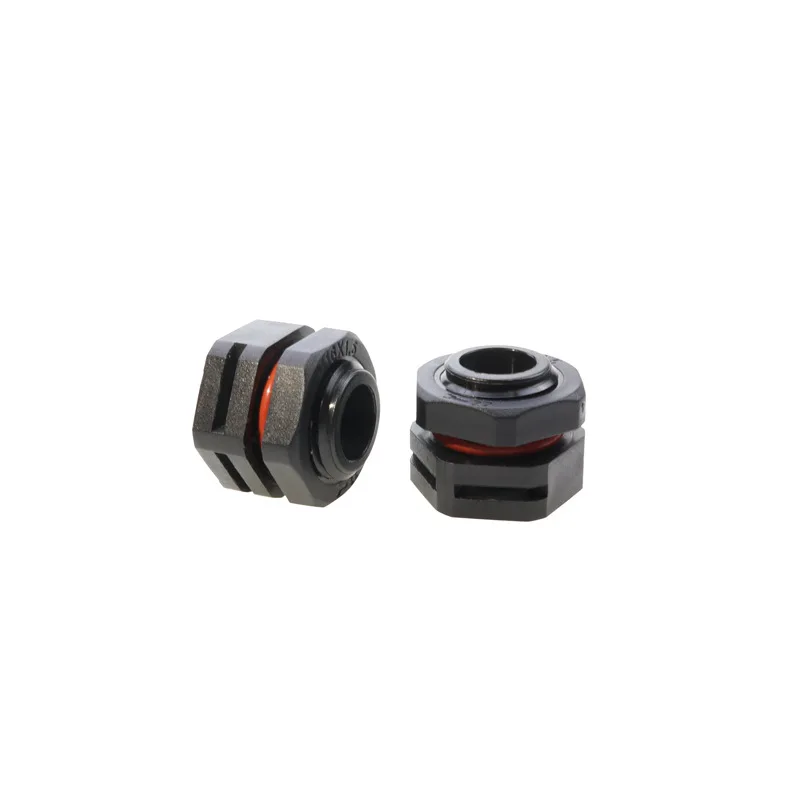

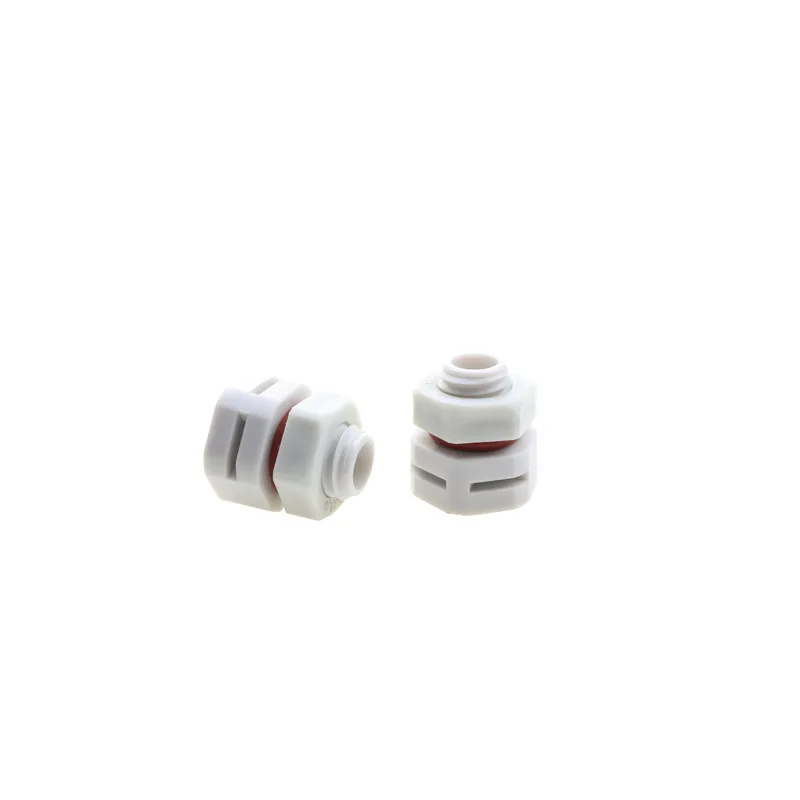

ML Breather Valve M12*1.5 Waterproof Vent Plug Screw Valve For LED Light
- Category: >>>
- Supplier: Jiaxing Mingliang Import And Export Co. Ltd.
Share on (1600834006027):
Product Overview
Description
Specification

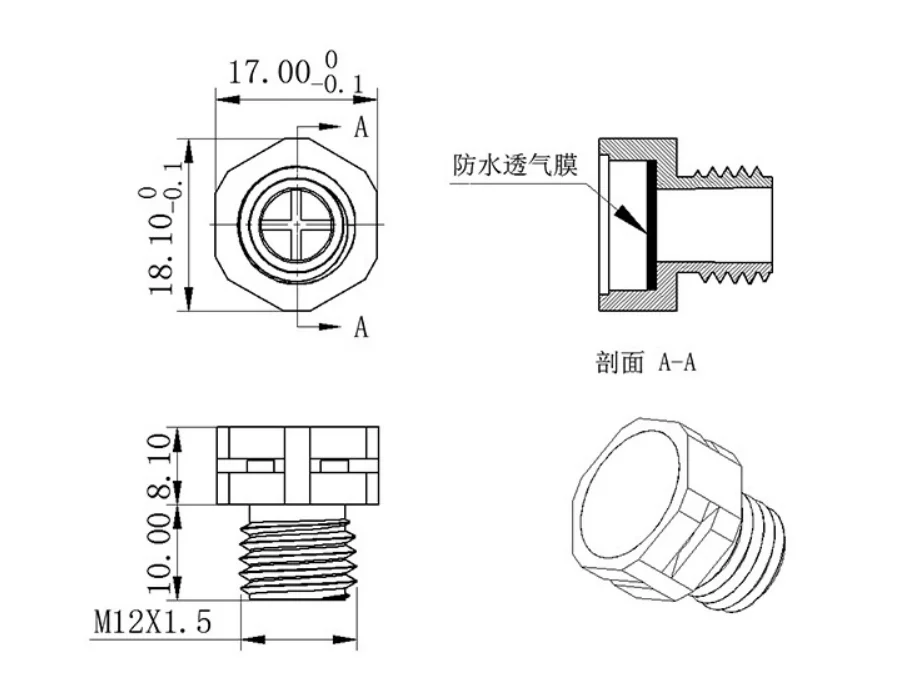

Name | Air vent plug |
Airflow | ≥140ml/min |
IP ranking | IP67 waterproof or customized IP68 |
Type | Screw in |
Feature | Dustproof, Breathable, Heat dissipation,Hydrophobicity |
Application | Solar Energy, Automotive vehicle, Camera, Tel communication ... |

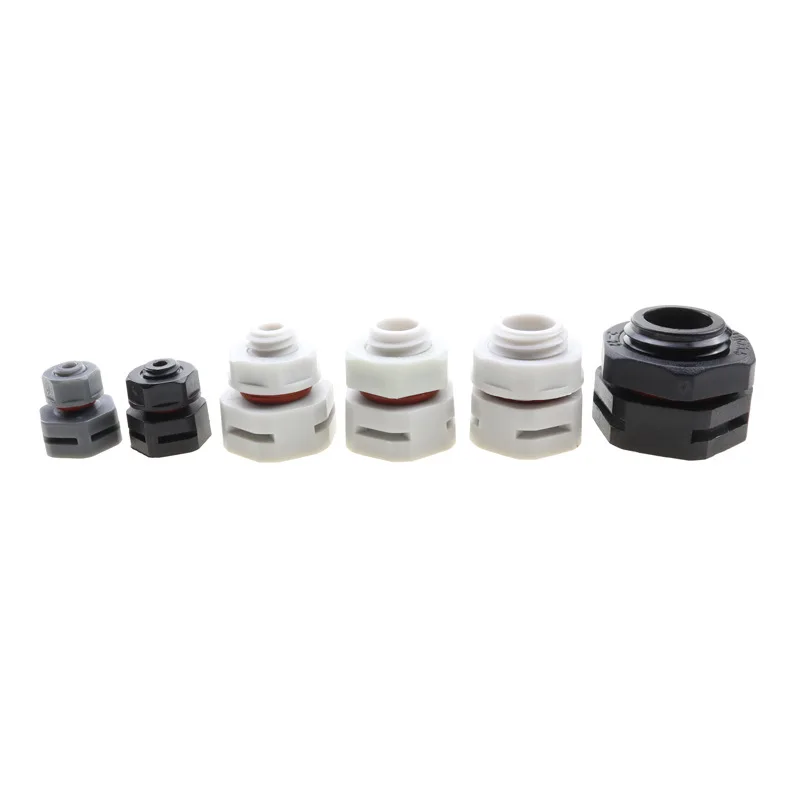

Thread Size | Thread length mm | Remark |
M5 * 0.8mm | 7 | If you need locknut, or other thread size, Pls advise the sales before order. |
M6 * 1mm | 7 | |
M10 * 1.5mm | 10 | |
M12 * 1.5mm | 10 | |
M16 *1.5mm | 10 | |
M20 *1.5mm | 15 |
* Caution: for industrial use only, not for food, medicine, cosmetic or medical facility etc
Specific Application:
It can be applied to outdoor cabinet, chassis shell, heavy industries and all kinds of outdoor sealed component for protective waterproof purpose.
Benefits:
1.High air permeability membrane can balance the pressure and lower down tension for sealing stripe;
2.With the hydrophobic and oleophobic membrane inserted inside the body, the vent becomes chemically inner and UV- resistant ;
3.It can greatly reduces the fog and condensation.Faultfree and maintenance-free working under harsh environment with a long
service life. Eptfe film can prevent salt crystal moisture and moisture permeability.
Installation:
1.When the housing thickness is >3mm, suggest drilling M12*1.5mm threaded hole and use silicone O-ring to seal the entrance.

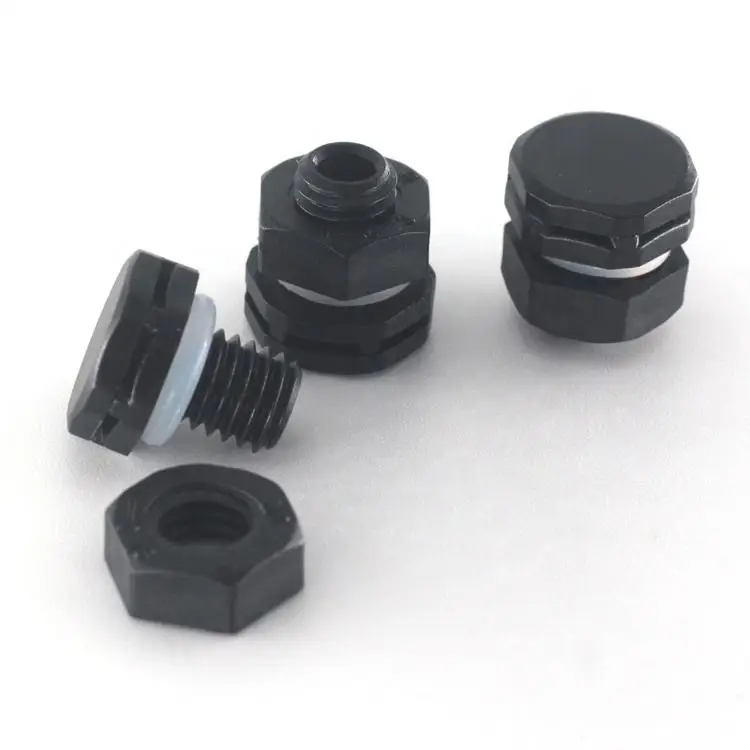

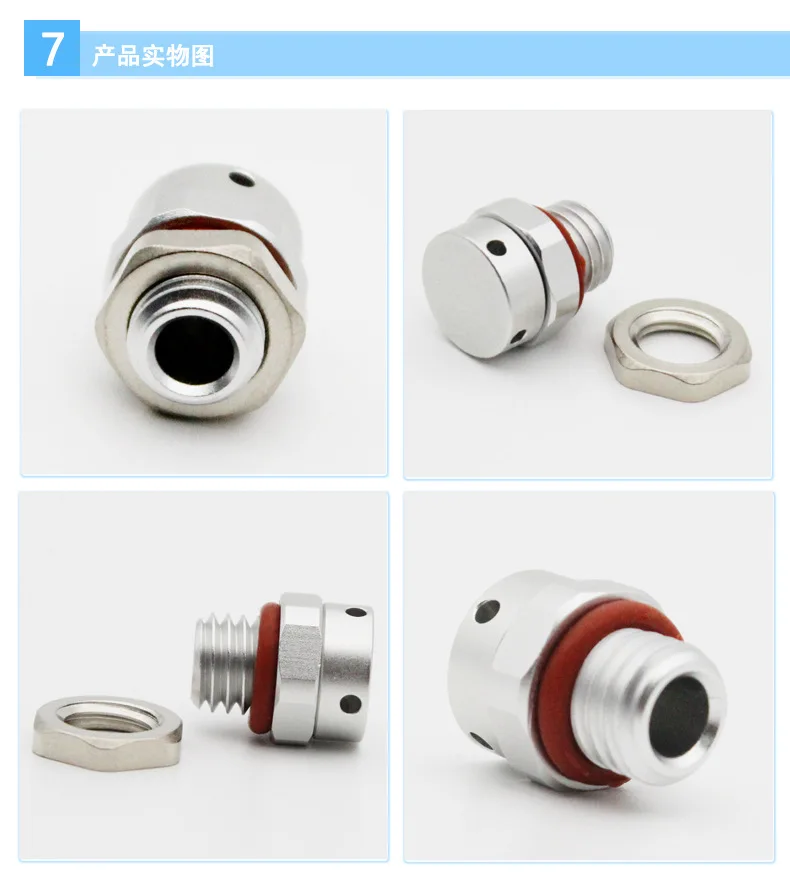

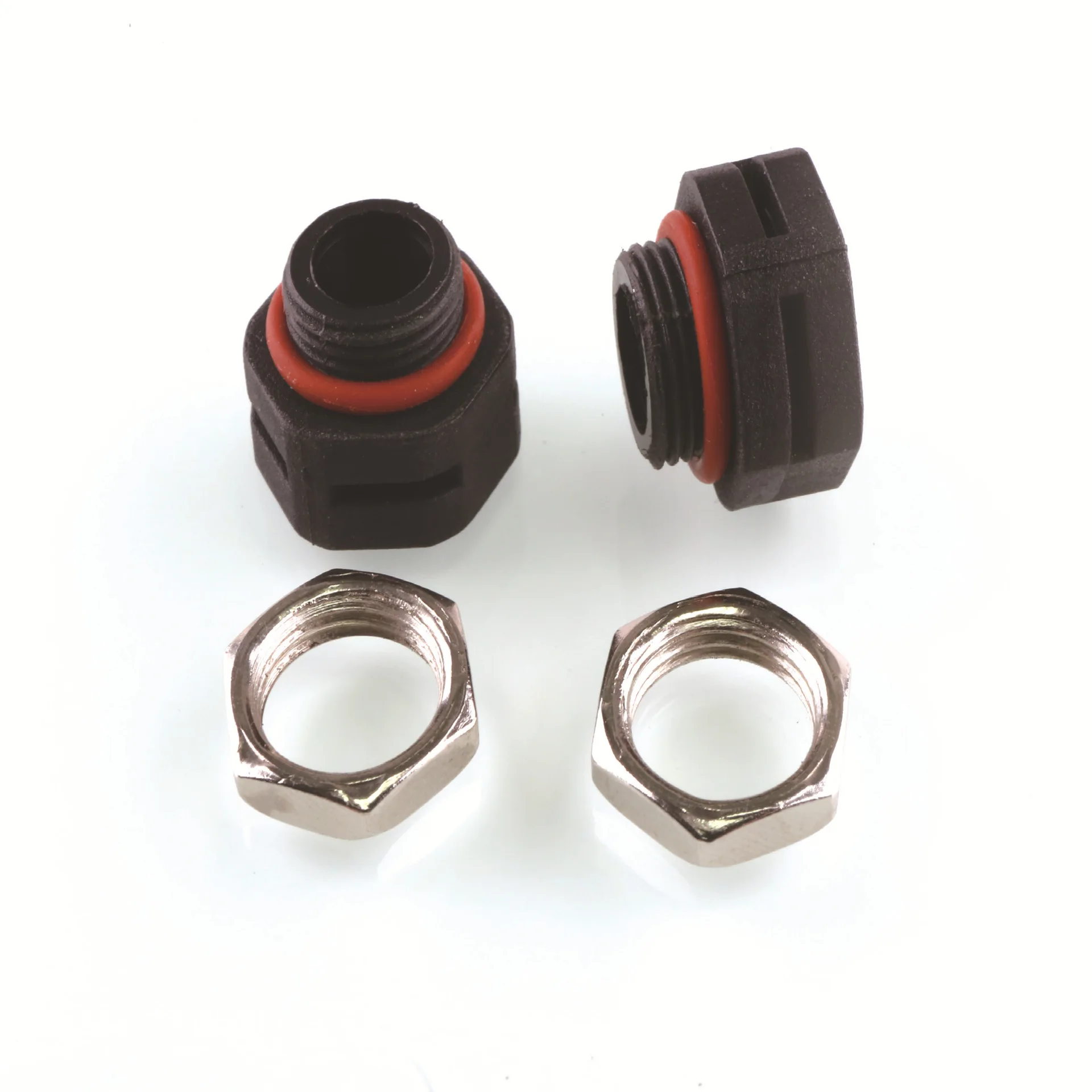

2. When the housing thickness is ≤3mm, suggest drilling ø12.2 ± 0.1mm straight hole and lock with nut. Seal the entrance with Flat silicone ring .
Customization: Voir Tech’s protective vents can be customized to match your products in spec., color, property and We can provide. you with specific solution. For more information, please contact us.
Specific Application:
It can be applied to outdoor cabinet, chassis shell, heavy industries and all kinds of outdoor sealed component for protective waterproof purpose.
Benefits:
1.High air permeability membrane can balance the pressure and lower down tension for sealing stripe;
2.With the hydrophobic and oleophobic membrane inserted inside the body, the vent becomes chemically inner and UV- resistant ;
3.It can greatly reduces the fog and condensation.Faultfree and maintenance-free working under harsh environment with a long
service life. Eptfe film can prevent salt crystal moisture and moisture permeability.
Installation:
1.When the housing thickness is >3mm, suggest drilling M12*1.5mm threaded hole and use silicone O-ring to seal the entrance.
2. When the housing thickness is ≤3mm, suggest drilling ø12.2 ± 0.1mm straight hole and lock with nut. Seal the entrance with Flat silicone ring .
Customization: Voir Tech’s protective vents can be customized to match your products in spec., color, property and We can provide. you with specific solution. For more information, please contact us.
