Multy Layer Powder Material Sand Classifying Linear Vibrating Screen

Product Overview

Description

Multy Layer Powder Material Sand Classifying Linear Vibrating Screen

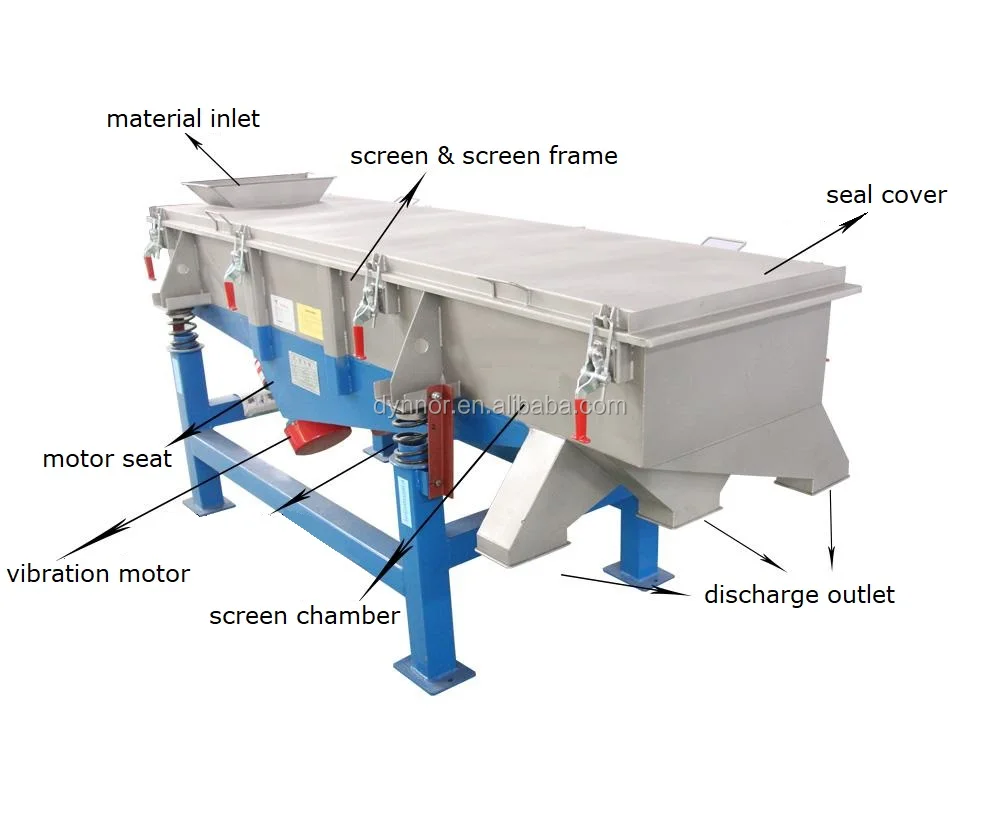

Introduction of linear vibrating screen:

The linear vibrating screen uses the vibrating motor to excite the vibration as the vibration source, so that the materials are thrown up on the screen, and move forward in a straight line at the same time. The materials enter the feed inlet of the screen machine evenly from the feeder. Through the multi-layer screen, several specifications of screen upper and screen lower materials are produced, and they are discharged from their respective outlets respectively, which can be made into a fully enclosed structure. During the operation, there is no dust overflow, and the materials are discharged automatically, It is more suitable for assembly line operation.

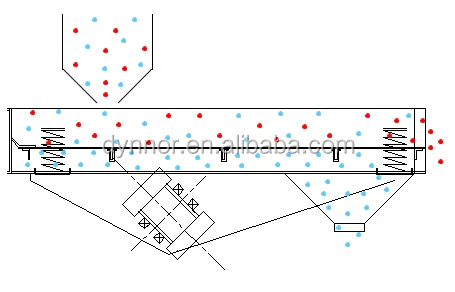

Working Principle of linear vibrating screen:
ZS Linear Vibrating Screen use the vibrating motor excitation as vibration source, so that materials in the sieve to be toss, at the same time does the straight exercise forward, material from the feeder evenly into the feed-in mouth of the linear vibrating screen, through the multi-layer mesh generate several kinds of materials which under the sieve/up the siever, then are discharged from their respective export separately.

The main features of linear vibrating screen:

(1). Low-energy

(2). High output

(3). Simple structure

(4). Easy maintenance

(5). Full-closed structure

(6). No dust diffusion

(7). Automatic nesting, more suitable for assembly line operations.



Application of the linear vibrating screen:

Selection and classification for powder, granular materials, widely used in plastics, abrasives, chemicals, medicine, building materials, food, carbon, fertilizer and other industries.



Main Technical Parameters of the linear vibrating screen:

Model	ZS612	ZS618	ZS1030	ZS1230	ZS1535	ZS1845
Screen pore size(mm)	600×1200	600×1800	1000×3000	1200×3000	1500×3500	1800×4500
Material granularity(mm)	0.074-6	0.074-6	0.074-6	0.074-6	0.074-6	0.074-6
Screen side obliquity(°)	1-7	1-7	1-7	1-7	1-7	1-7
Layer	1-4	1-4	1-4	1-4	1-4	1-4
Motor Power(kw)	2×0.37	2×0.37	2×0.75	2×1.1	2×1.5	2×2.2
