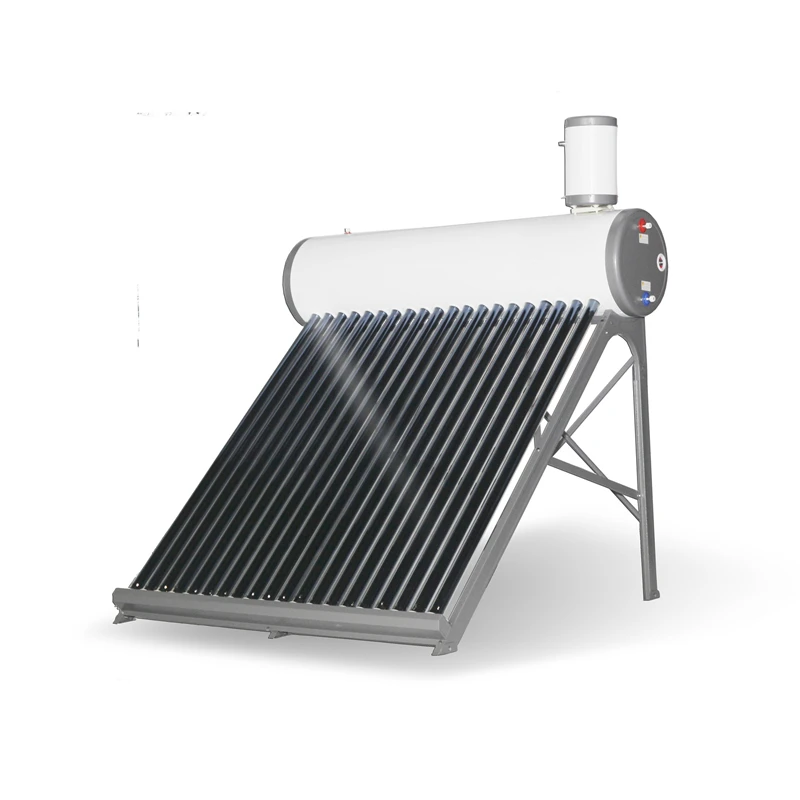

Pre heated pressurized factory price copper coil solar water heater pre heated heat exchanger solar heater system
- Category: >>>
- Supplier: Jiangsu Sunrain Solar Energy Co. Ltd.Jiangsu Ltd.
Share on (1600834150550):
Product Overview
Description
Products Description

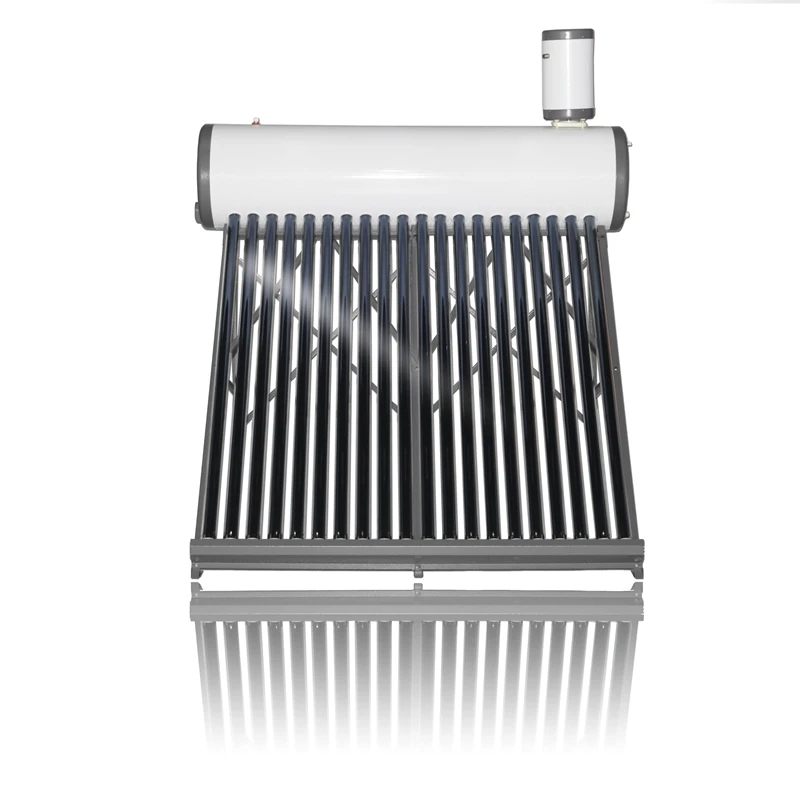

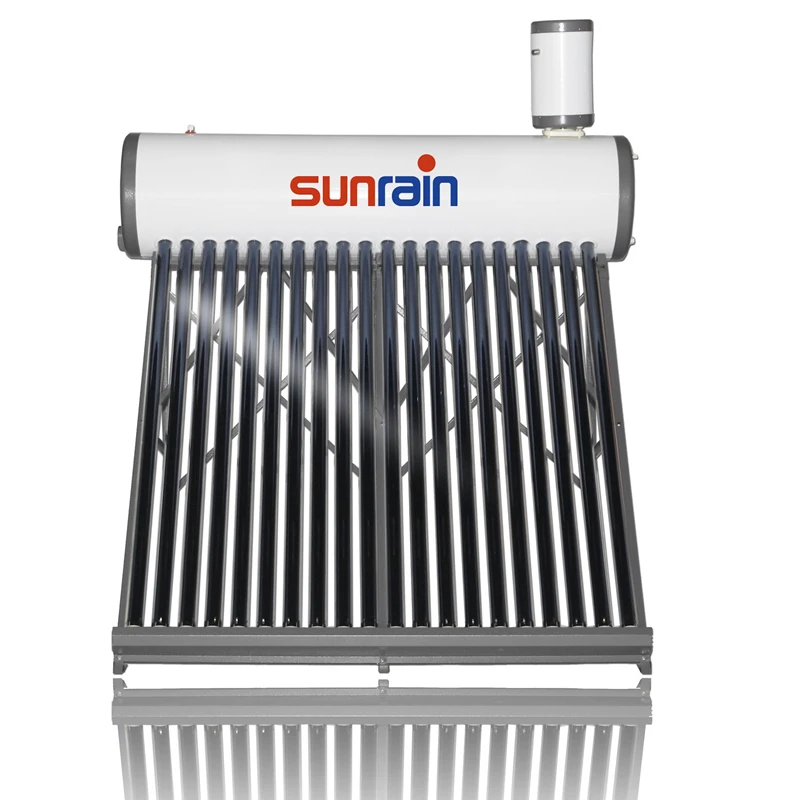

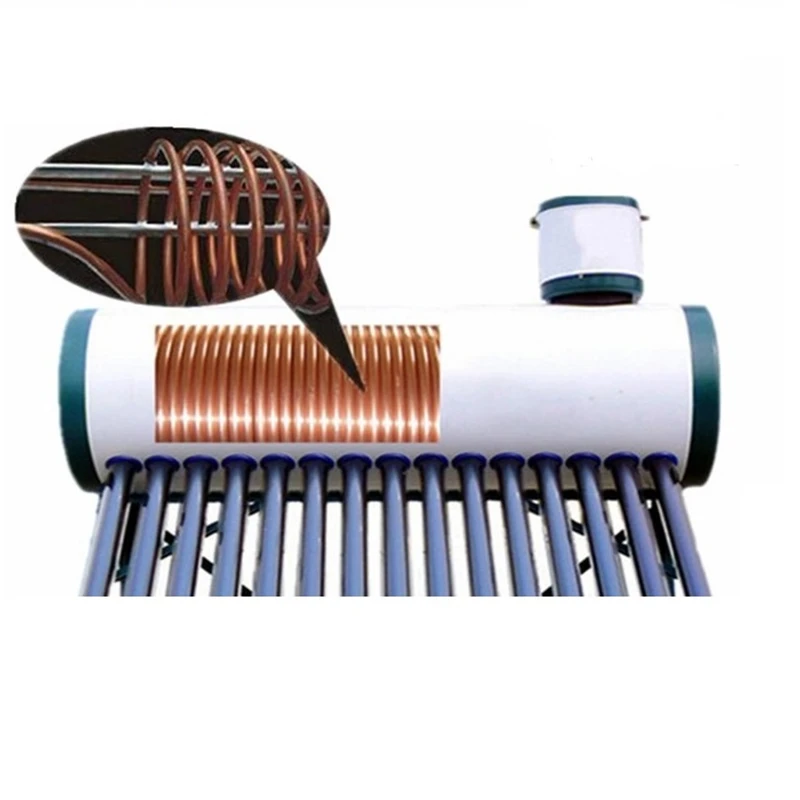

Sunrain Compact Solar Water Heater with Coil Heat Exchanger.
1). Top quality product with 3 years warranty.
2). Solar water heater can supply enough hot water for 6 to 8 people.
3). Simple structure, simple for installation, simple for maintenance.
4). Test pressure 10 Bar, operating pressure 6 Bar, water heater can be connected directed with city water.
5). Optional electric heater back up: 1.5KW.
6). Solar water heater inlet and outlet size: 1/2inch.
7). Inner tank material: SUS304- 0.5mm thickness.
8). Branding: Sunrain or OEM.
3). Simple structure, simple for installation, simple for maintenance.
4). Test pressure 10 Bar, operating pressure 6 Bar, water heater can be connected directed with city water.
5). Optional electric heater back up: 1.5KW.
6). Solar water heater inlet and outlet size: 1/2inch.
7). Inner tank material: SUS304- 0.5mm thickness.
8). Branding: Sunrain or OEM.

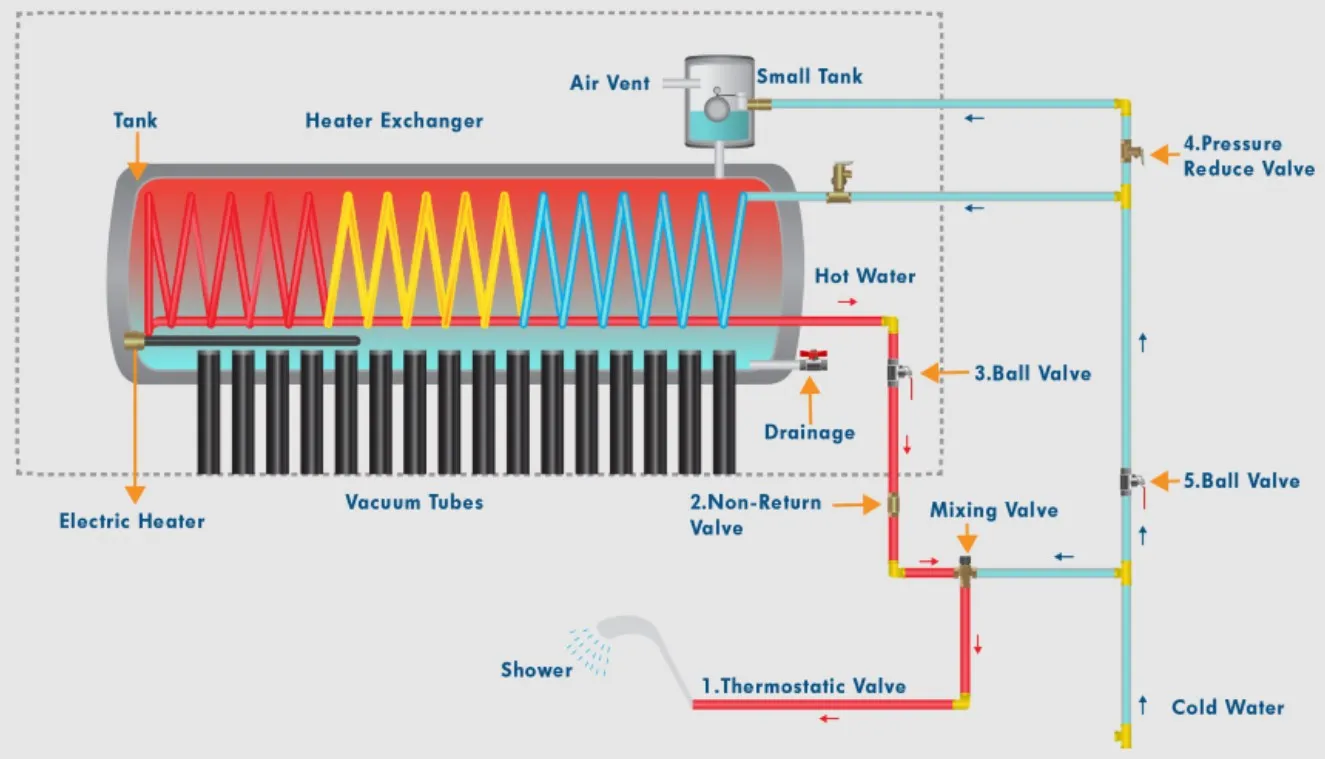

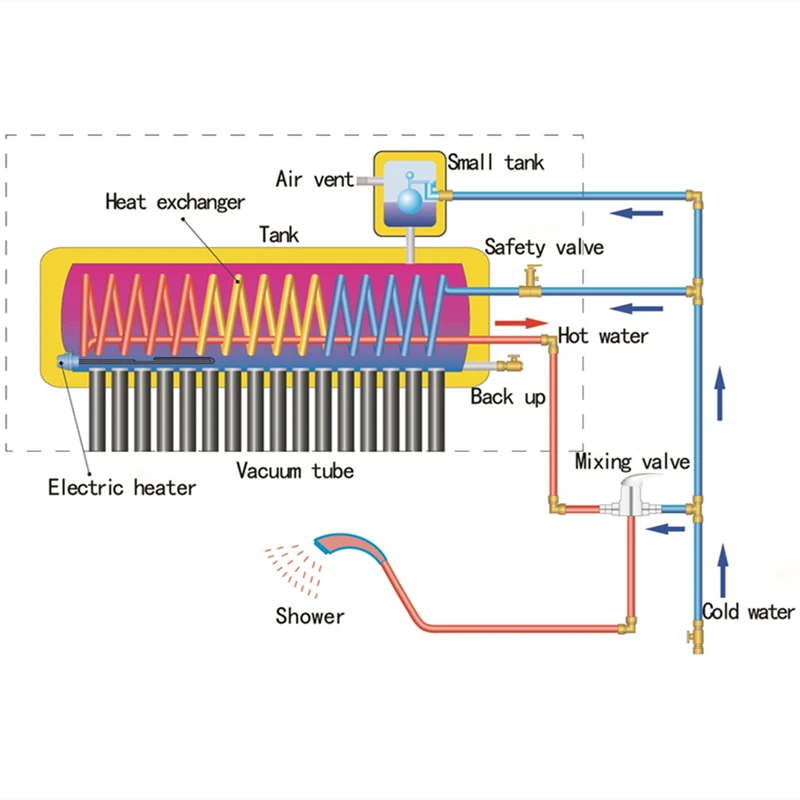

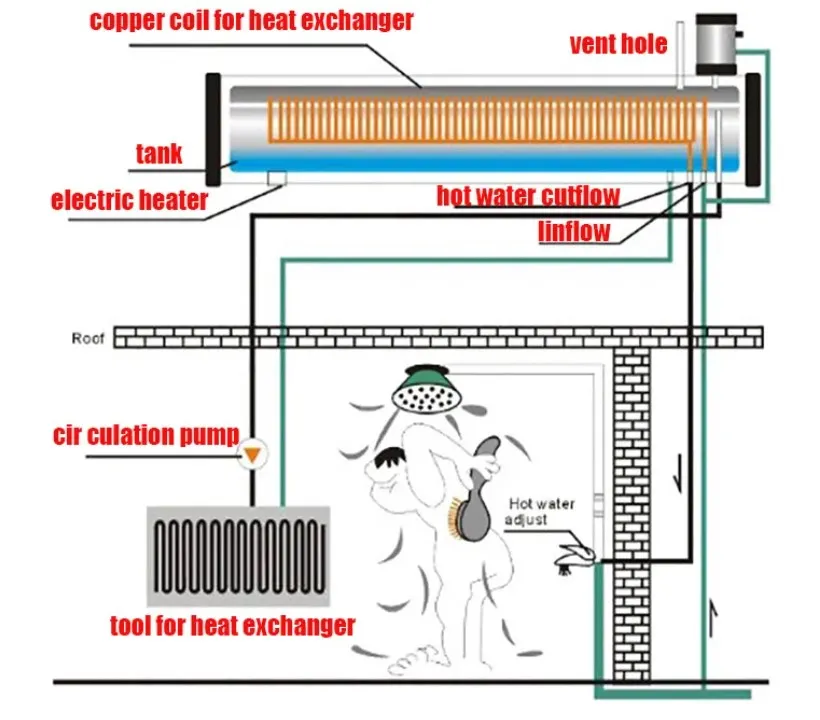

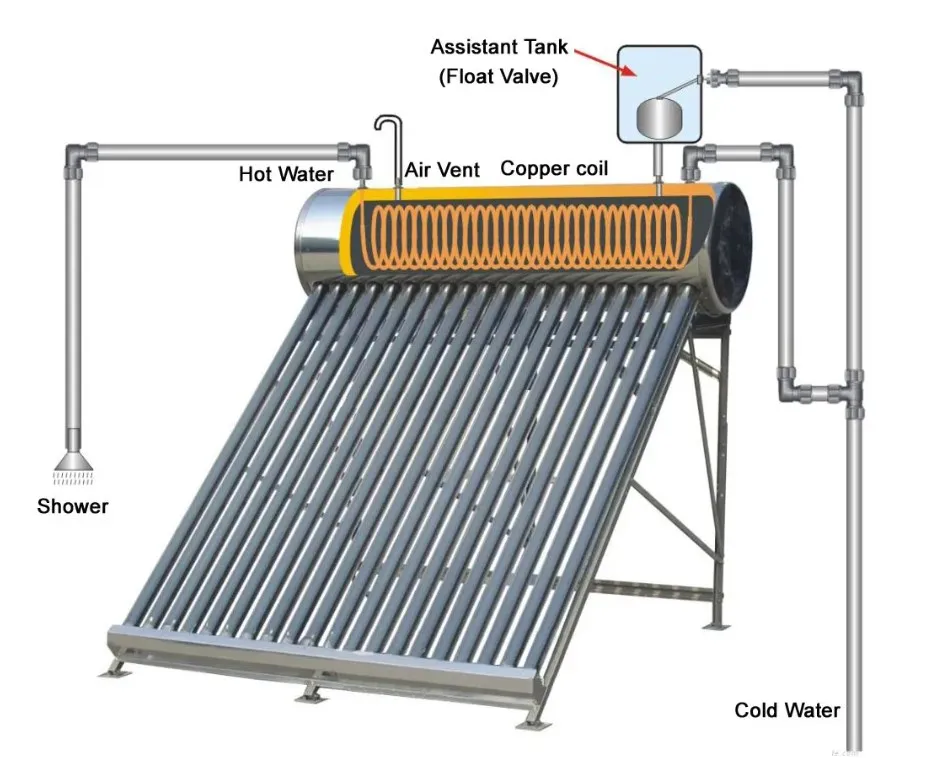

Working principle
Working principle
Solar water heating systems, or solar thermal systems, use energy from the sun to warm water for storage in a hot water cylinder or thermal store. Water in the heat exchangers will be heated quickly.
Specification
Model: | TZ58/1800-15E | TZ58/1800-20E | TZ58/1800-25E | TZ58/1800-30E | |||
Volume: | 150L | 200L | 250L | 300L | |||
Material of inner tank: | 0.5mm SUS304 | ||||||
Material of insulation: | 40mm Polyurethane | ||||||
Electric resistance: | 1.5KW | ||||||
Copper coil: | φ12mm | ||||||
Working pressure: | ≤0.6MPa | ||||||
Max testing pressure: | 1.0MPa | ||||||
Size of pipe connection: | G 1/2" | ||||||

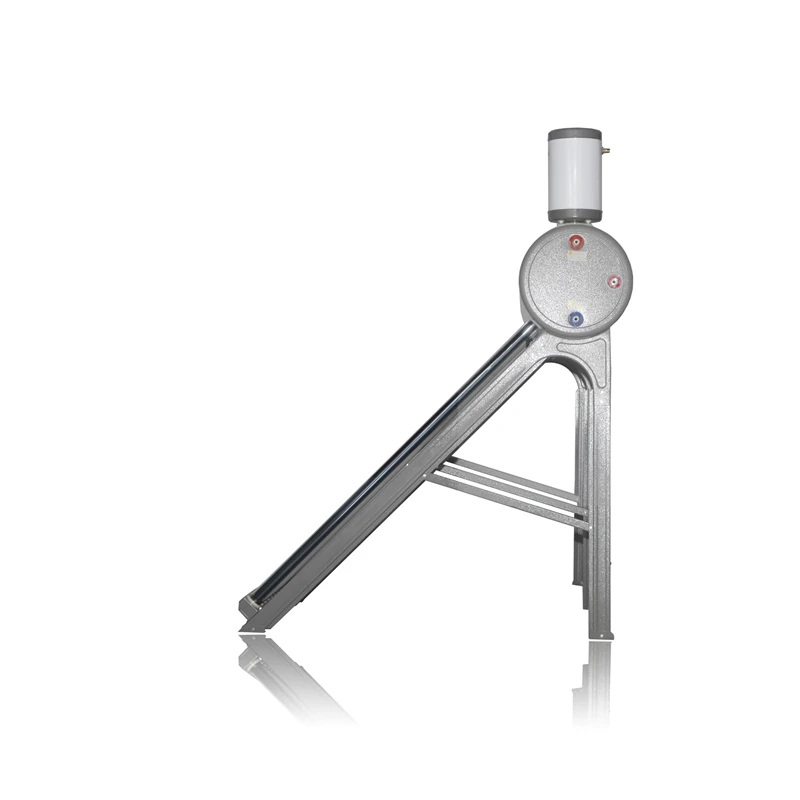

Angle of frame: | 23°/30°/45° | ||||||
20GP/40GP/40HC Loading Qty: | 36/75/89 | 28/59/70 | 23/49/58 | 20/42/49 | |||
Wide Application
We can supply complete plumbing fittings for you installation, 3D design, easy for installation.

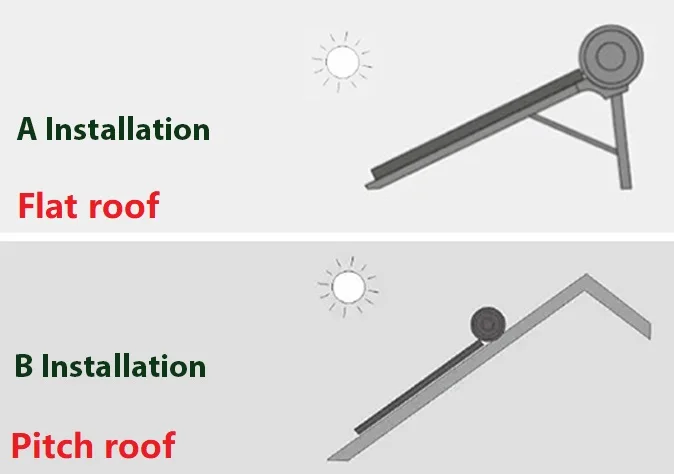

The solar water heater can be installed for both flat roof and pitch roof:

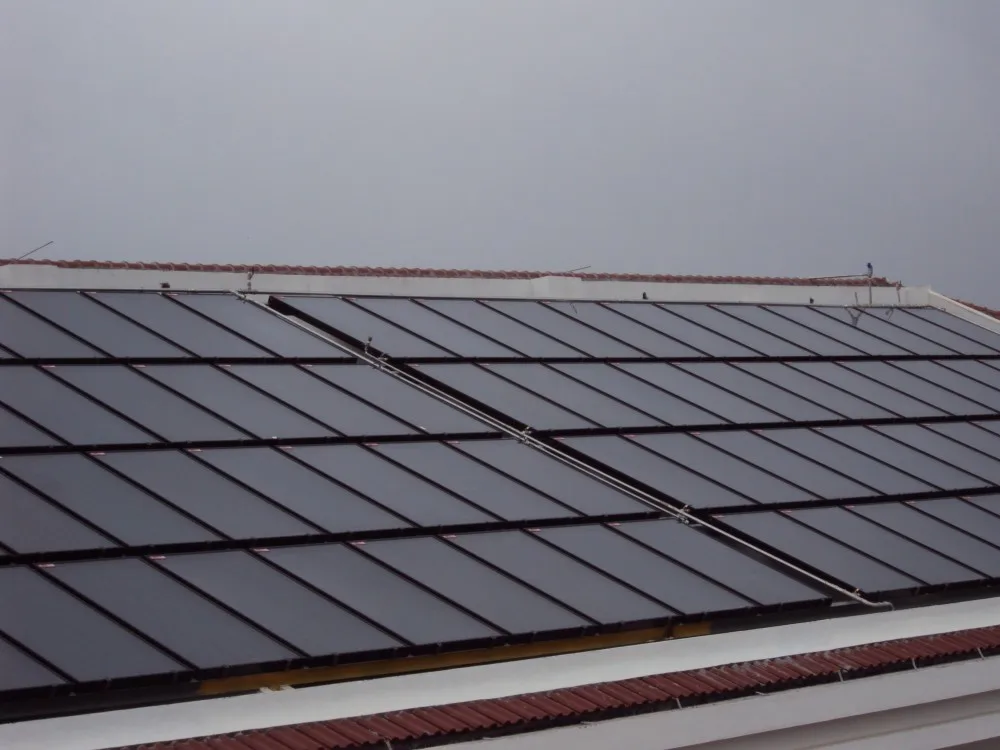

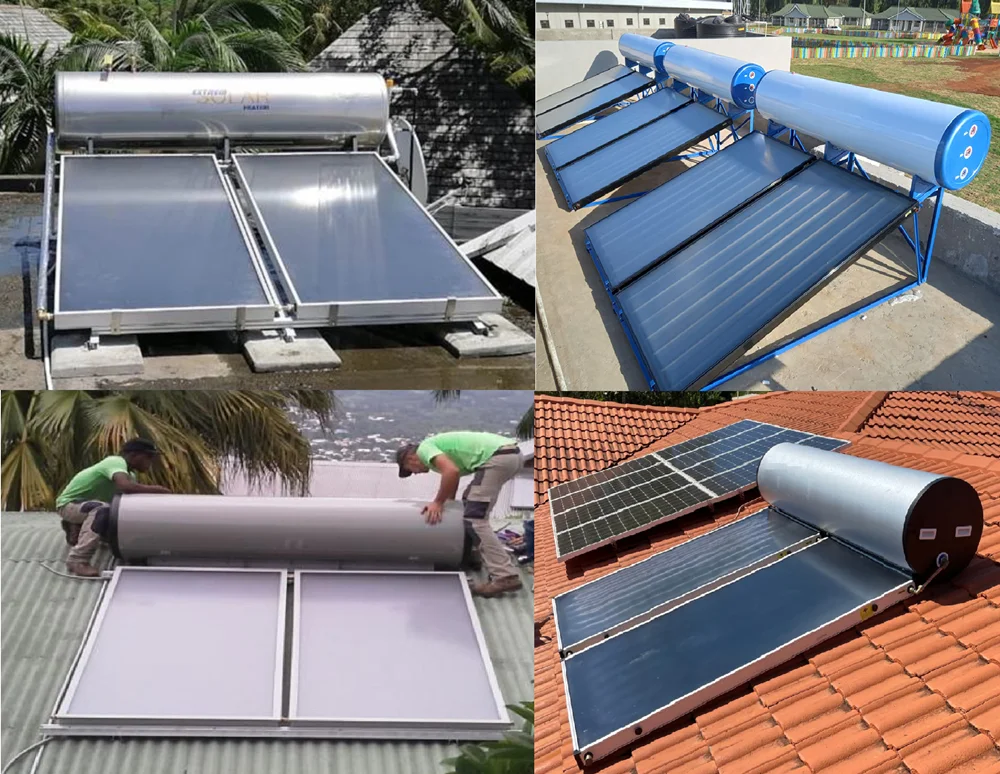

Pictures of our customer installations:
Package and Delivery
Certification and Exhibition
Sunrain has many successful projects and exhibition overseas.
Of course, many product certificates have also been obtained by Sunrain.

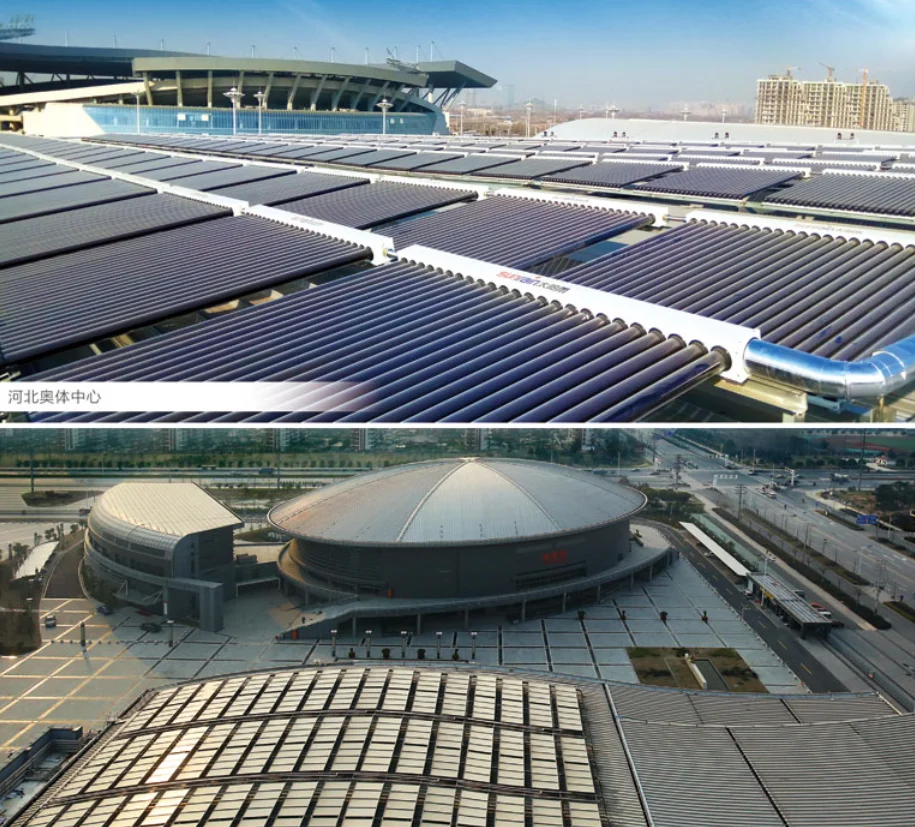

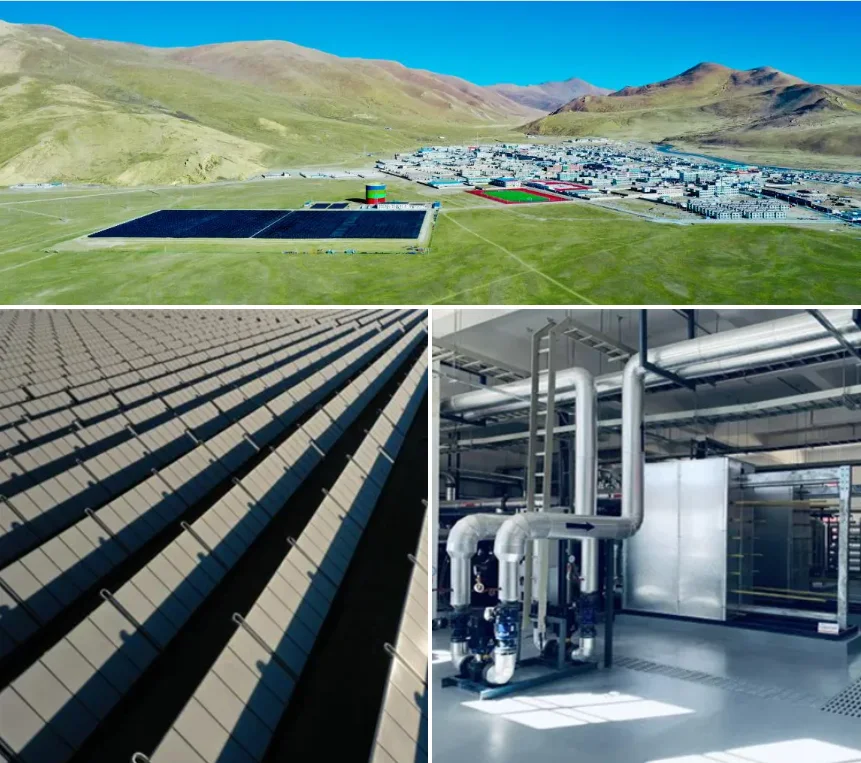

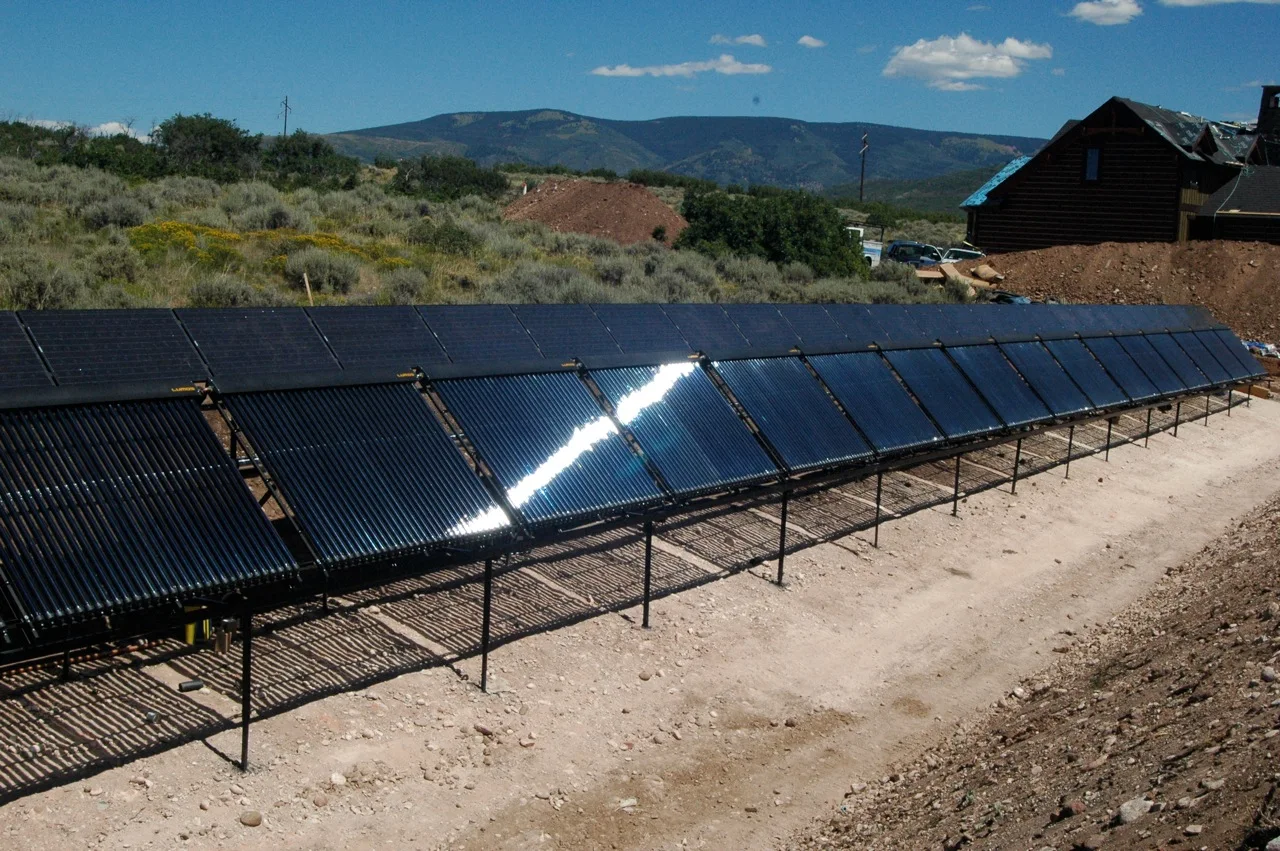

Successful projects
Successful exhibitions
Certificates
FAQ
1.Is your company a trading company or factory？
Yes, of course, We are a professional solar water heater manufacturer with rich experience and complete R&D, production, sales and service supply, welcome to visit our factory.
2.What is your main product?
Our main products include solar water heater, solar flat panel collector, heat pump water heater, heat pump dryers, swimming pool heat pump, solar water heater, heat pump top kit, EVI heat pump, Etc.Which can meet the different demands from industrial, commercial and residential application.
3.What kind of payment term do you offer?
LCL order is 100% TT payment, container order is 30% TT deposit, 70% TT before loading. L/C and OA, etc.
4.What is your Delivery Time?
LCL order/Sample order:20 days. Full container order:35 days
5.How long is your warranty?
Three or five years warranty and long term technical support.
6.What is your Packing?
LCL order/Sample order in plywood case. Full container order in high quality export carton.
7.What is your FOB Port in China?
We accept FOB Lianyungang, Qingdao, Shanghai etc.
