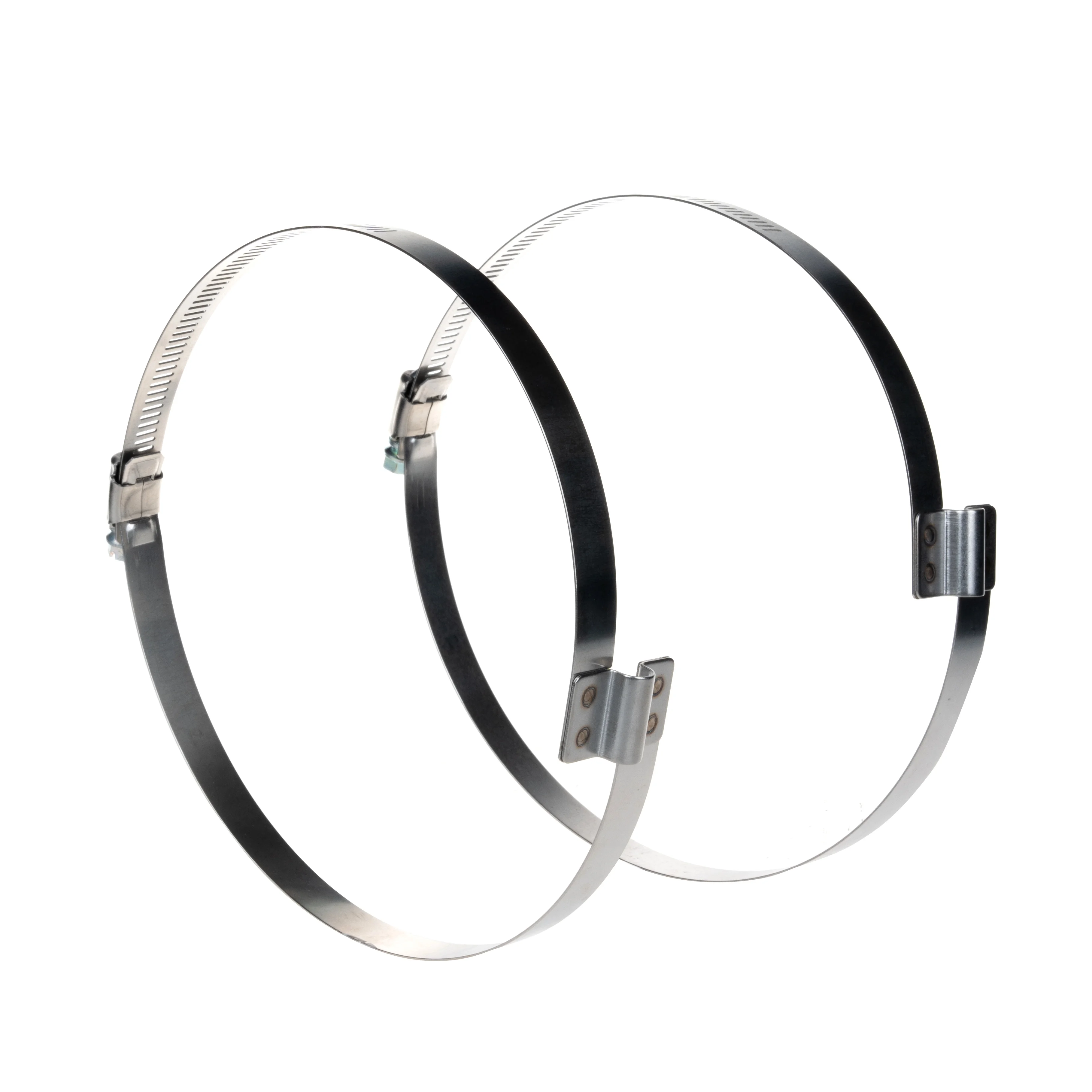

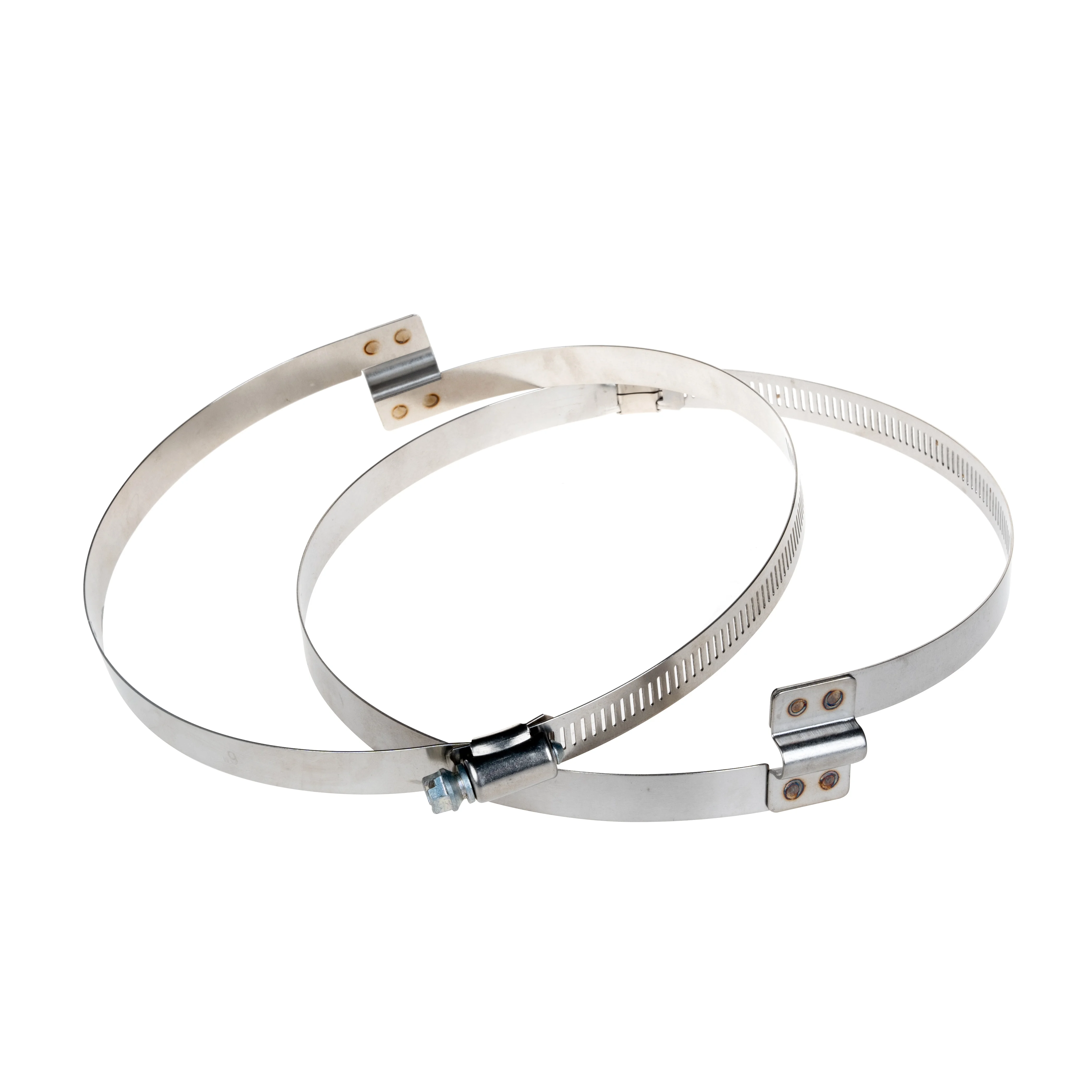

Customized Flex Tube Bridge Worm Gear Clamp for Spiral Duct Free Samples

Product Overview

Description

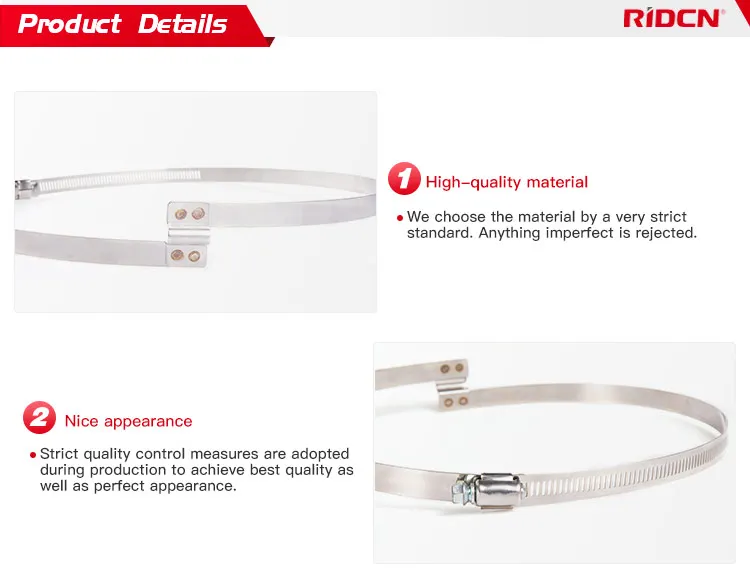

• Material: band and housing are 304 stainless steel


• Band Width:12.7mm(1/2 inch)


• Band Thickness: 0.5mm/0.6mm/0.7mm


• Screw: 8mm(5/16 inch) slotted hex head ( zinc-plated steel, 304 stainless steel and 410stainless steel are optional)

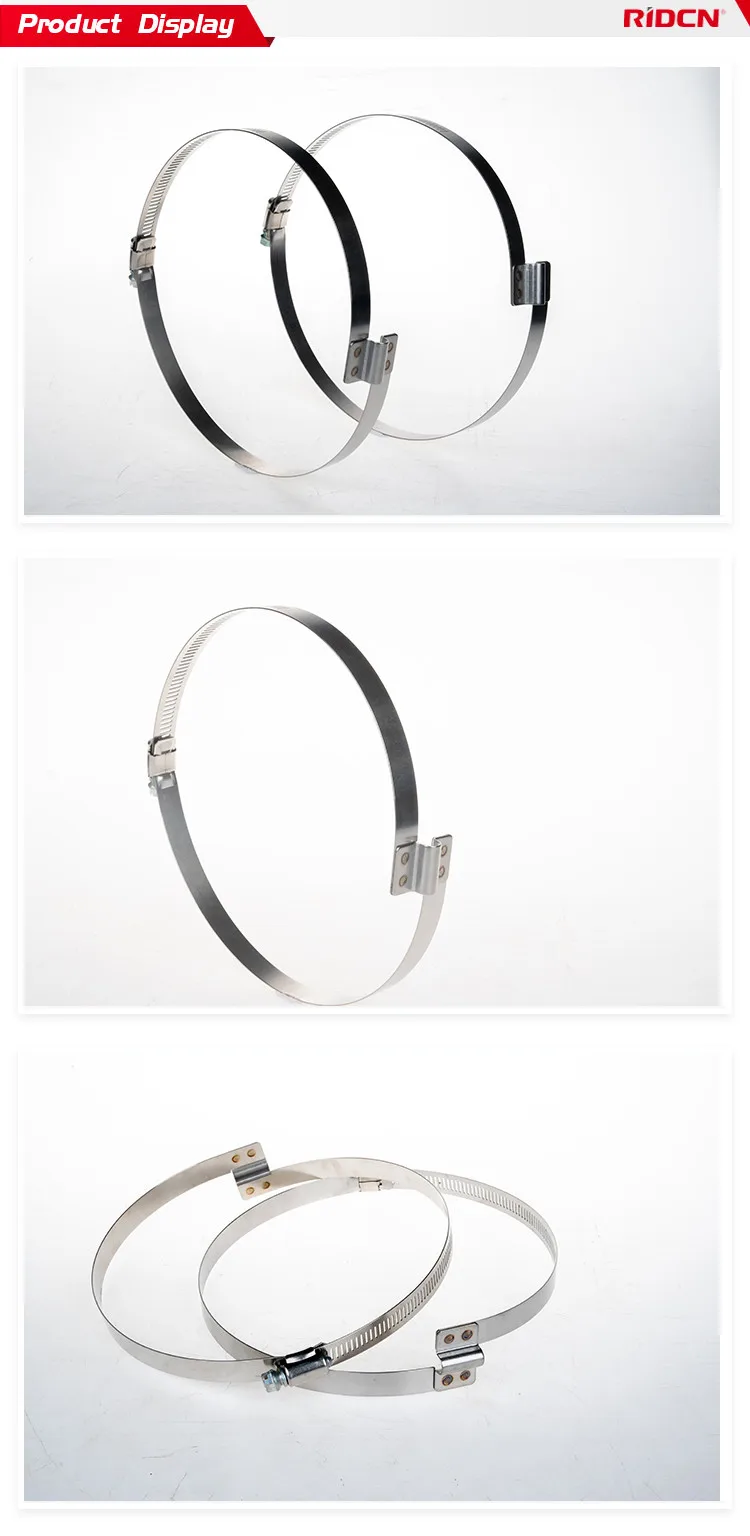

• Bridge worm drive clamps are specially designed for joining two pieces of spiral ducts. They Fit over the helix to create a perfect leak-proof seal. They are used in various fields such as automobile, industrial machine, construction, agriculture, etc.

Part NO.	Diameter Range	Bandwidth	Thickness		Torque
	(mm)	(mm)	(mm)	(mm)	(N.m)
130B	94-130	12.7	0.6	0.7	5.6
150B	104-150	12.7	0.6	0.7	5.6
160B	114-160	12.7	0.6	0.7	5.6
173B	127-173	12.7	0.6	0.7	5.6
195B	149-195	12.7	0.6	0.7	5.6
200B	154-200	12.7	0.6	0.7	5.6
220B	174-220	12.7	0.6	0.7	5.6
240B	194-240	12.7	0.6	0.7	5.6
270B	224-270	12.7	0.6	0.7	5.6
Note:We customize clamps according to your special requirements.               Other sizes and alternate materials are also available.
