6 IN 1 Display Smart Meter Din Rail AC Monitor Voltage Current Power Factor Active KWH Electric Energy Frequency Meter D52 2066

Product Overview

Description

6 IN 1 Display Smart Meter Din Rail AC Monitor Voltage Current Power Factor Active KWH Electric Energy Frequency Meter D52-2066



Parameter

Features: 100% Brand new and high quality!

D52-2066

Good stability, standard size, high precision, easy to install



Technical Indicators

1.Accuracy:1%±2 words

2. Range: AC voltage: AC 40.0-300.0V or AC 250.0-450.0V(You should select one type of the meter in your order)

AC Current:AC 0-100.0A, the current resolution is 0.01A.

Frequence: 45.0Hz-65.0Hz

Power Factor: 0.00-1.00PF

Electric Power: 0-450000W, the electric power resolution is 0. 1W when measure electric power between

0-9999.9W, otherwise the electric power resolution is 1W.

Electric Energy: 0-99999kwh, the display of electric energy resolution is 0.01kwh when measure electric

engery between 0-999.99kwh, the display of electric energy resolution is 0.1kwh when measure electric engery between 1000.0-9999.9kwh and the display of electric energy resolution is 1kwh when measure electric engery larger than 9999.9kwh



3. Speed: 2 times per second

4. Size:54×80×64

5. Installation: Din-Rail



Application Method

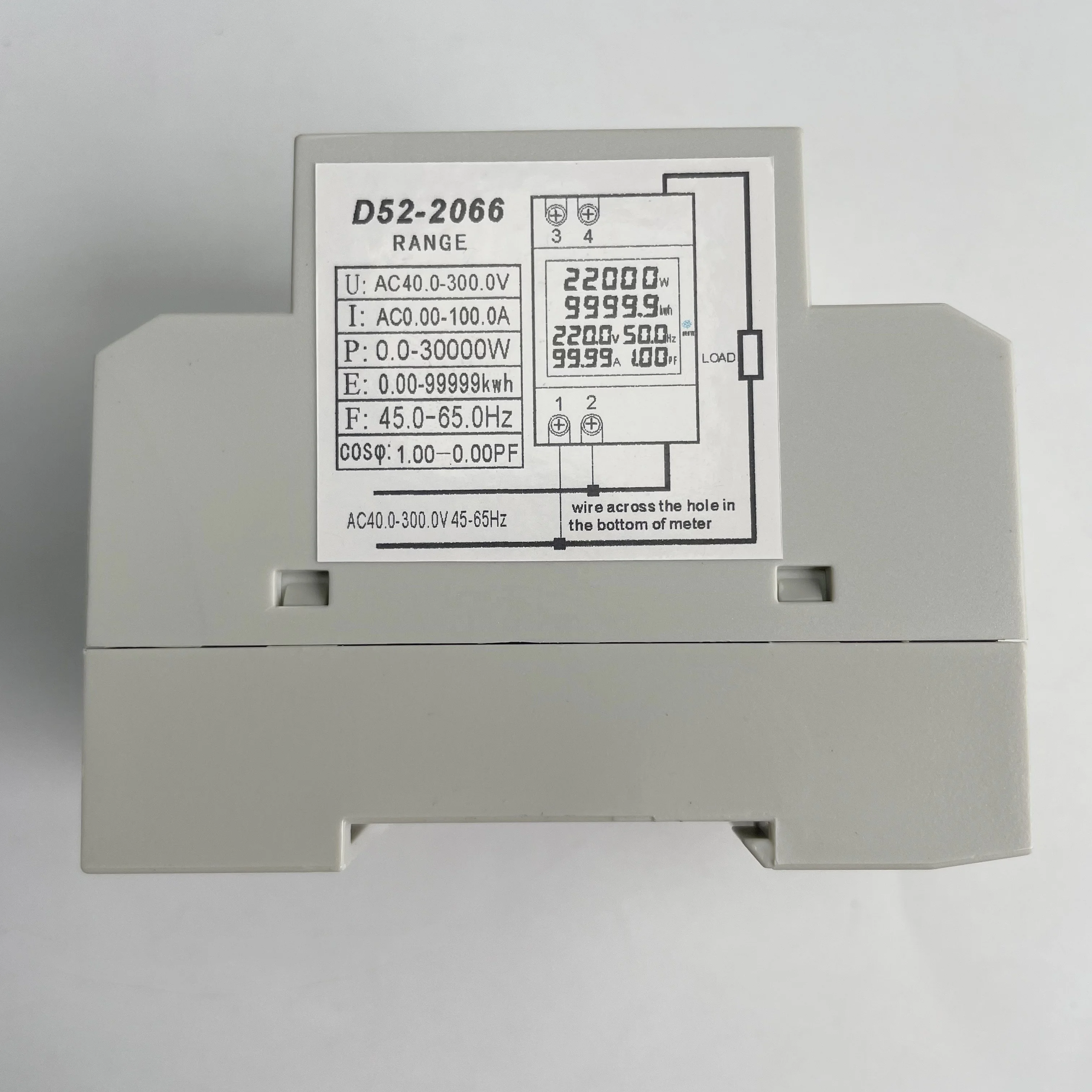

1. According to connection graph, connect the green wire of secondary current transformer to the blueterminal of meter and make the wire of measurement circuit through the hole in the current transformer.

2. Supply power and start to measure and display the result.

3. Press down the button last for 5 second, the electric energy will to be zero.



Attentions:

1. The meter will be destroyed when you make wrong connection method with voltage

2. The meter can only use to measure 50Hz AC city electricity, it will be destroyed when use to input (green terminal) and secondary current transformer (blue terminal). measure square wave, output of inverter and correction sine wave.

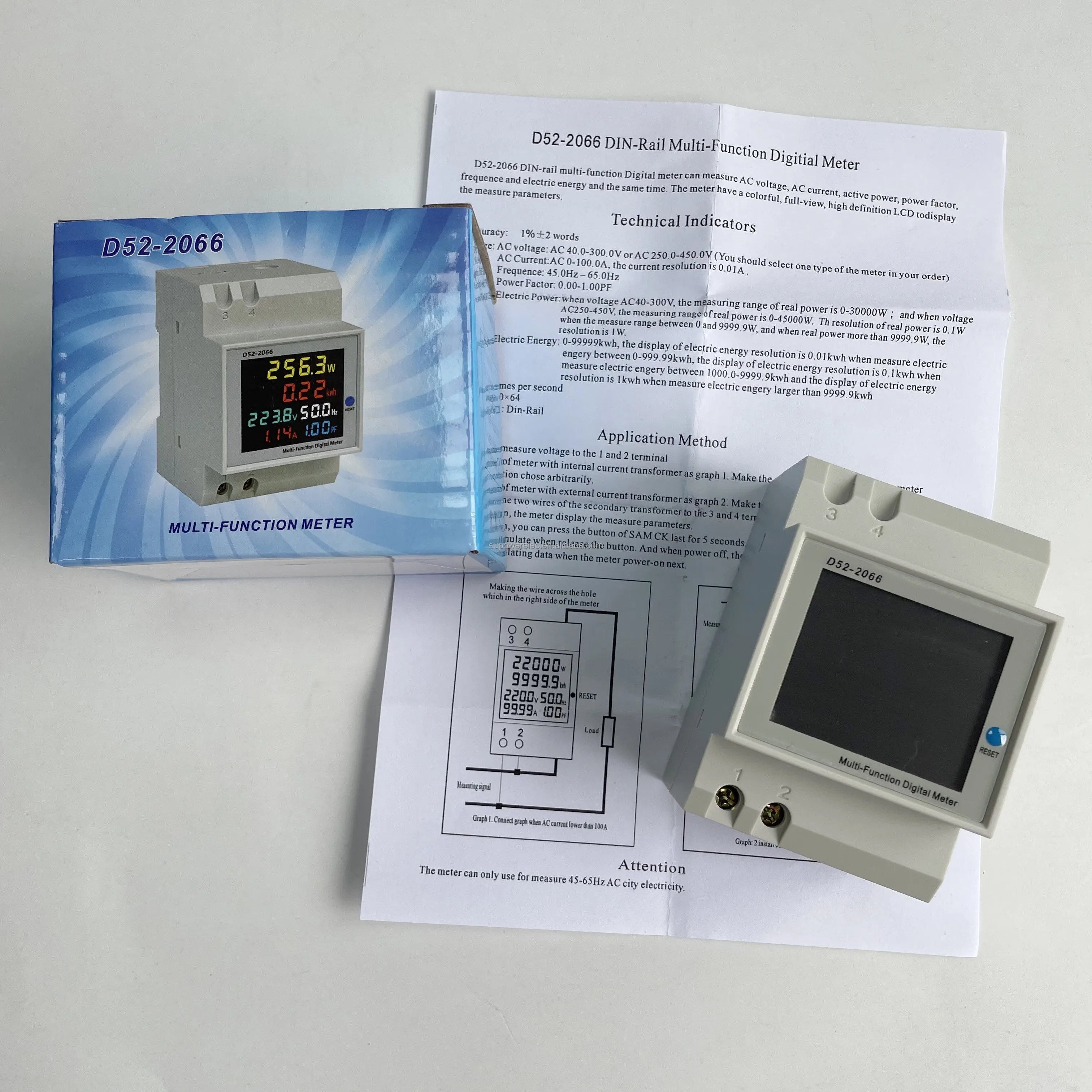

Package included:

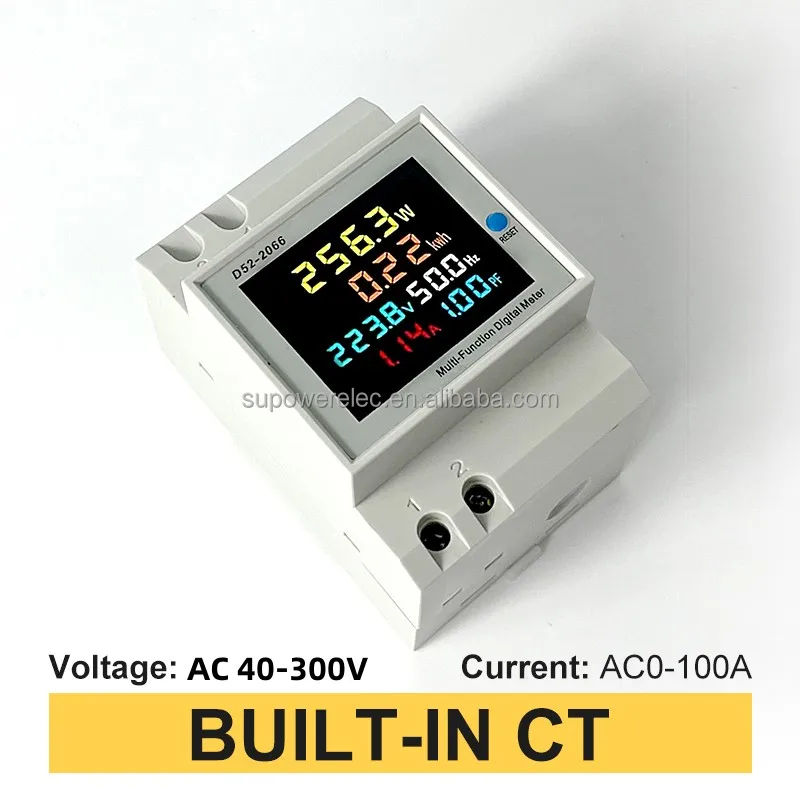

1 piece Meter with Built-in Current transformer

1 English instructions
