Cheap Vehicle Inductive Loop Detector Sensor Single Channel Ground For Parking Boom Barrier Gate
Cheap Vehicle Inductive Loop Detector Sensor Single Channel Ground For Parking Boom Barrier Gate
Cheap Vehicle Inductive Loop Detector Sensor Single Channel Ground For Parking Boom Barrier Gate
Cheap Vehicle Inductive Loop Detector Sensor Single Channel Ground For Parking Boom Barrier Gate
Cheap Vehicle Inductive Loop Detector Sensor Single Channel Ground For Parking Boom Barrier Gate
Cheap Vehicle Inductive Loop Detector Sensor Single Channel Ground For Parking Boom Barrier Gate
Cheap Vehicle Inductive Loop Detector Sensor Single Channel Ground For Parking Boom Barrier Gate

Cheap Vehicle Inductive Loop Detector Sensor Single Channel Ground For Parking Boom Barrier Gate

Share on (1600834616555):


Price:$25.00 - $30.00

Quantity:


Product Overview

Description



Product Description

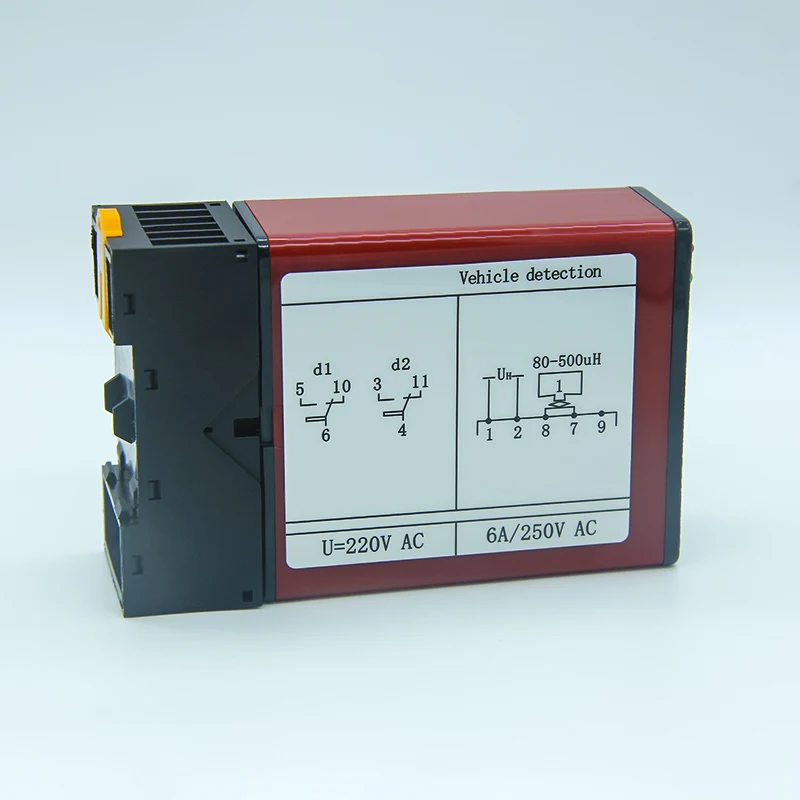

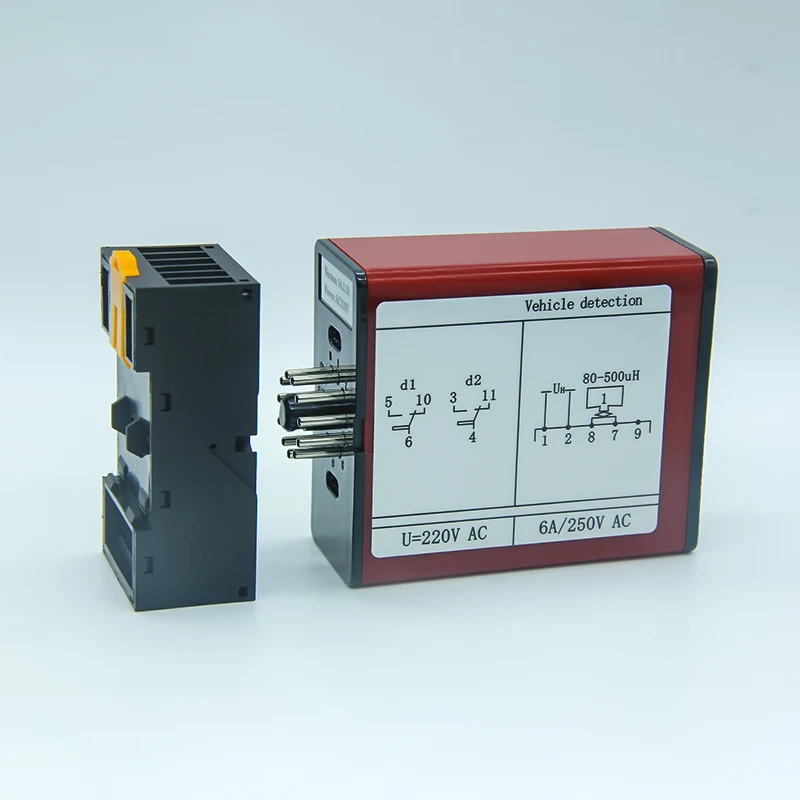

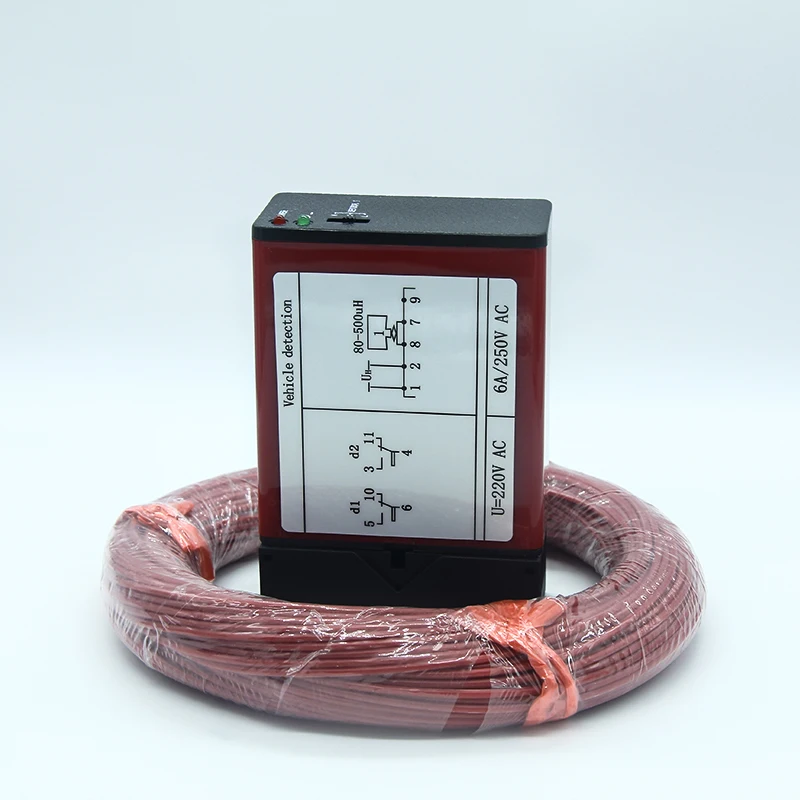

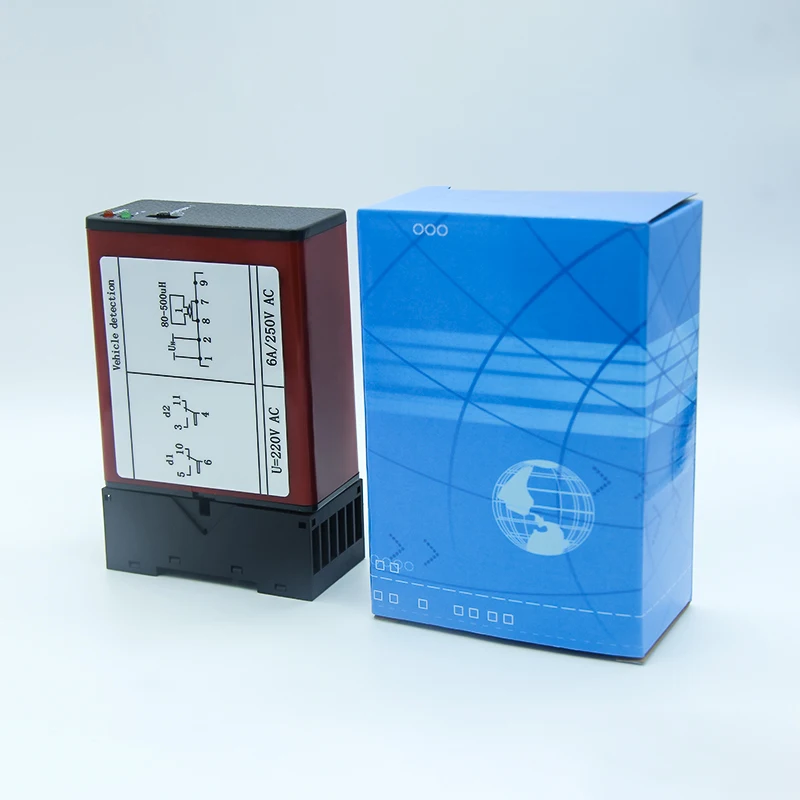

Security Vehicle Loop Detector Sensor Single Channel Vehicle Outdoor Traffic Inductive For Barrier gate

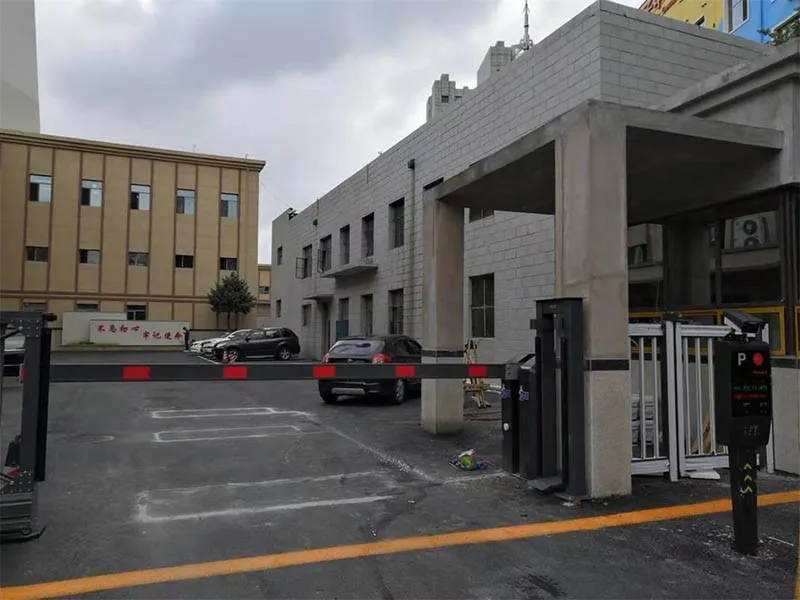

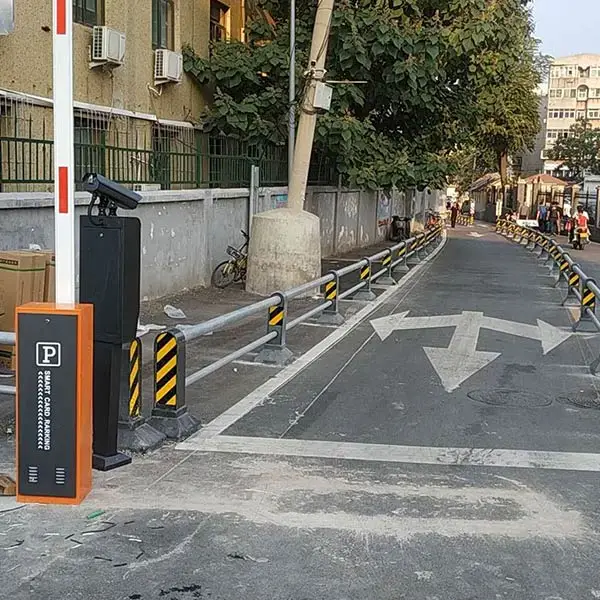

This product is an inductance coil type vehicle detector. The principle is that the metal parts of the vehicle will change the inductance value of the detection loop, and the microcontroller will analyze it to determine whether the vehicle exists. Used to control gates, fences, parking lot barriers and card machines.




Specification


item
value
Brand Name
SCTEWELL
Model Number
LVR110
Supply voltage
230V AC,115V AC,24V DC/AC,12V DC/AC
Power Consumption
4.5VA
Output relays
240A/5A
Operating Temperature
-20℃~+65℃
frequency range
20 kHz~170 kHZ
reaction time
100 ms
signal holding time
unlimited
sensitivity
adjustable 3 increments
Dimension
78L*40W*108H MM

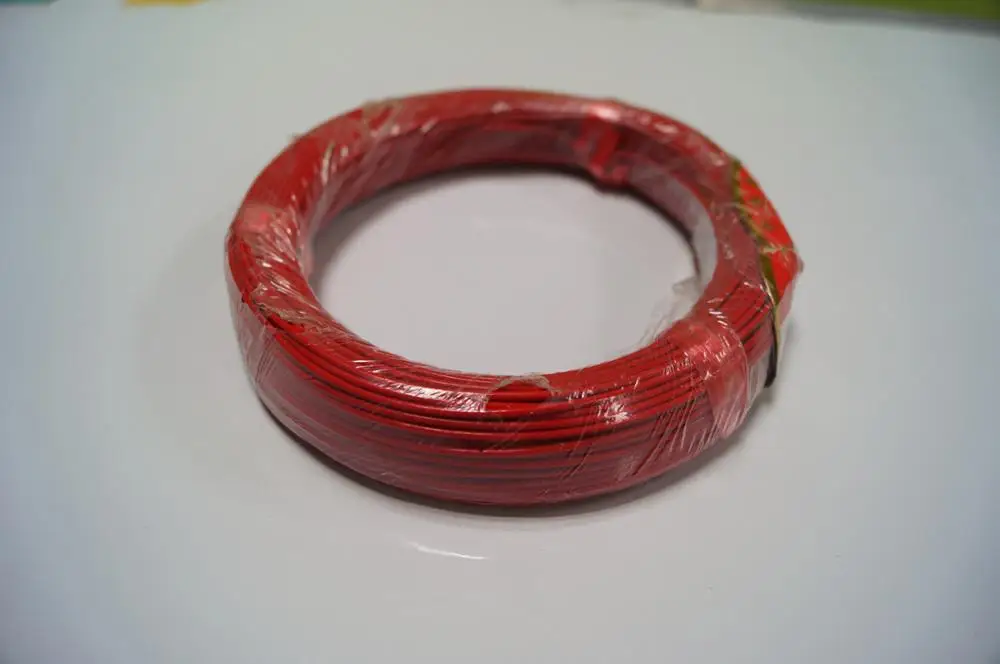

line length
50 m/roll
Loop inductance
Total loop plus connection wiring：50uH to 1000uH.
Recommend 100 uH~300 uH
working humidity
≤90 %
Warranty
1 Year


Install detector
The loop detectors must only be placed in dry rooms or control cabinets that are protected against all types of moisture and wetness.A distance of at least 10 mm from other devices must be maintained on each side.The ambient temperature must not exceed 65℃.The installation of the induction loop is described in other operating instructions.
Coil installation instructions
1. The shape of the detection ring is generally rectangular, the width is 1 meter, and the length depends on the width of the road. Keep a distance of more than 0.35 meters from the road boundary at both ends of the detection ring
2. If there is a metal object in the road, it must be installed at least 1 meter away from the detection ring
3. The installation pavement must be cement or asphalt pavement. Cut a concave groove with a width of 50-80 mm and a depth of 30-50 mm. The four corners can be chamfered to prevent damage to the coil. After the coil is embedded, it should be poured with cement or asphalt to prevent loosening.

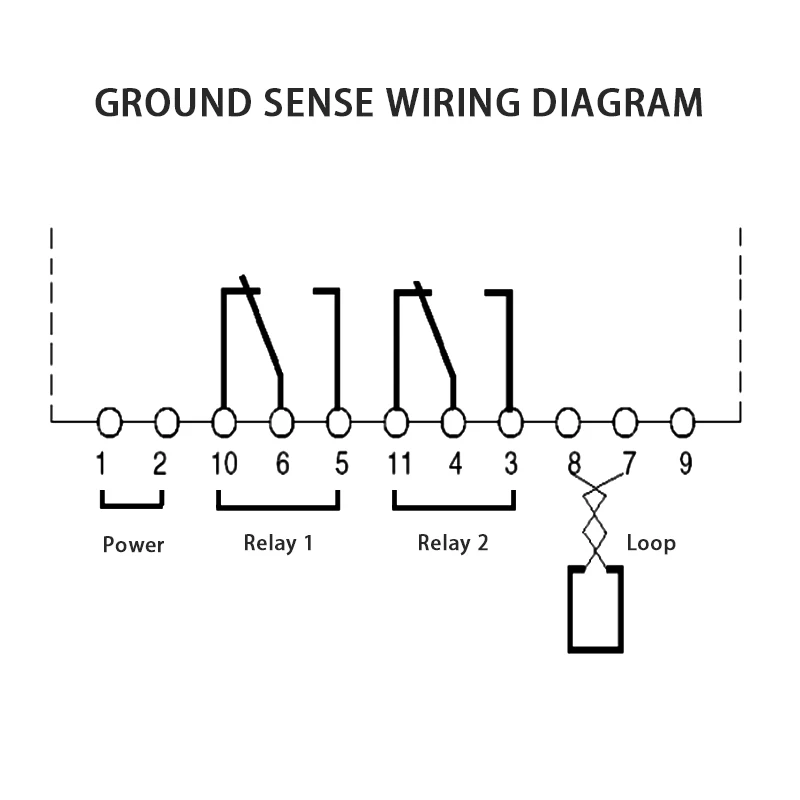

4. The lead wire of the detection ring must be twisted (not less than 20 times per meter) directly connected to the vehicle detector.
5. The length of the detection ring and the number of turns determine its inductance. Ideal value 100-300 uH


Sensitivity adjustment
---There are 3-speed sliding switch on the black use panel on the left side of the product.
---The setting "L" corresponds to the lowest sensitivity."M" is the medium sensitivity and "H" is the height sensitivity.
---After the sensitivity has been set,a reset and a calibration automatically takes place.
Attention: if the detector os not working normally,you must check the loop and wiring at first,and then alter the frequency or the sensitivity.


How to reset the vehicle detector？
The detector automatically reset and tune to the inductive loop when the power is applied，whether on initial installation or after any break in power supply.Should it be necessary to retune the detector,as may be required after changing any of the switches or after moving the detector from one installation to another.




Packing & Delivery




1.Package details:
color box ：1pcs vehicle detector packing in one box size：80*40*115 mm weight：0.26 kg






FAQ


1. who are we?
We are based in Guangdong, China, start from 2010,sell to Southern Europe(16.67%),Mid East(16.67%),Eastern Europe(16.67%),South America(16.67%),North America(16.67%),Northern Europe(16.60%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Turnstile,Parking System,Door Access Control,Parking Barrier,Swing Barrier

4. why should you buy from us not from other suppliers?
The quality policy "quality products serve customers, continuous improvement to enhance vitality", SCTEWELL has established a perfect quality management system, passed ISO9001 international quality system authentication the sole company of the industry

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese
