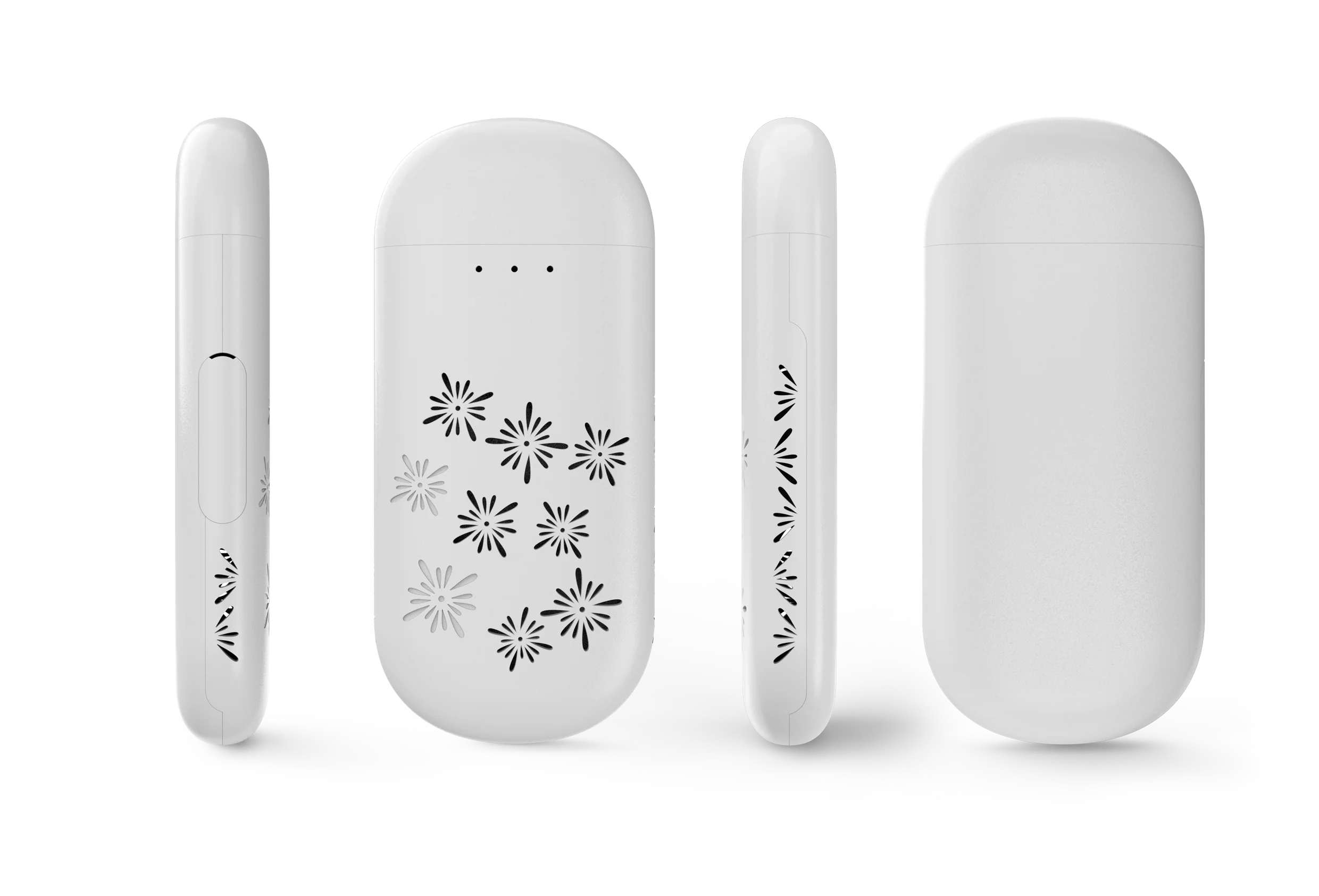

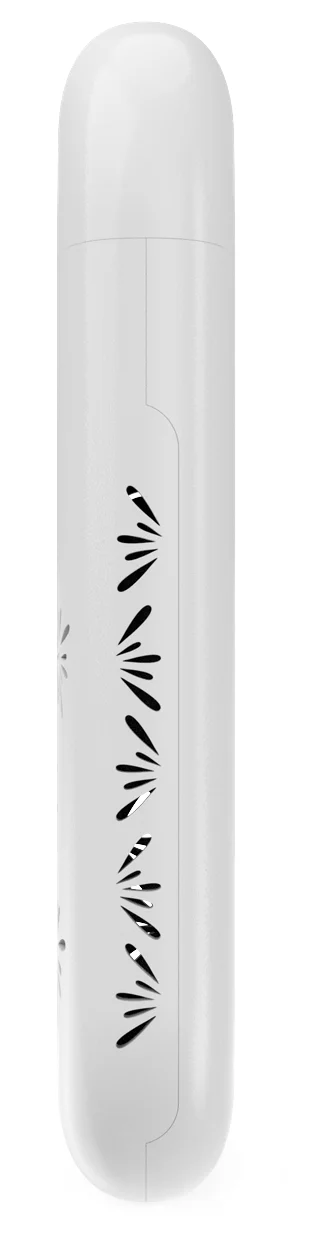

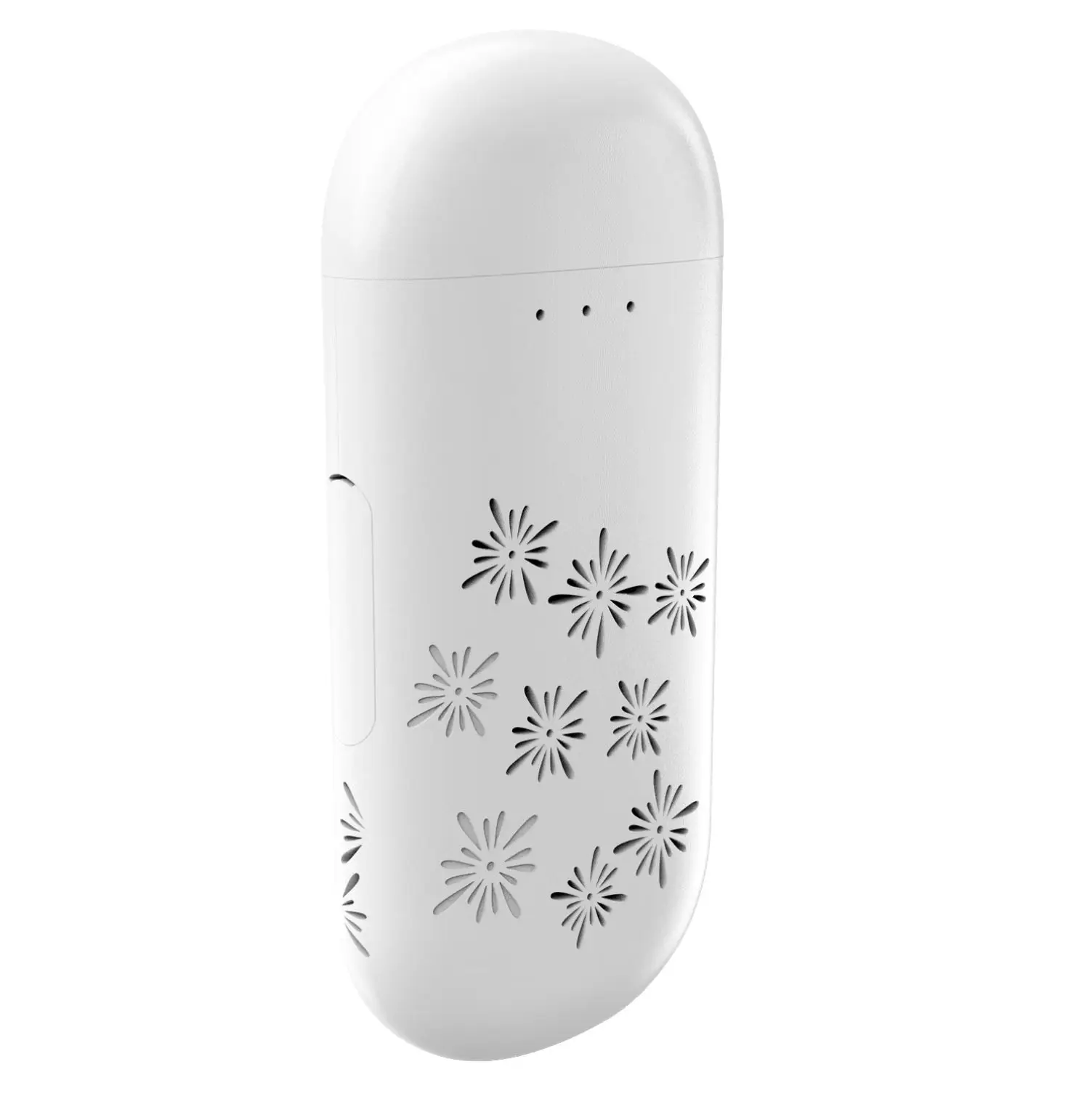

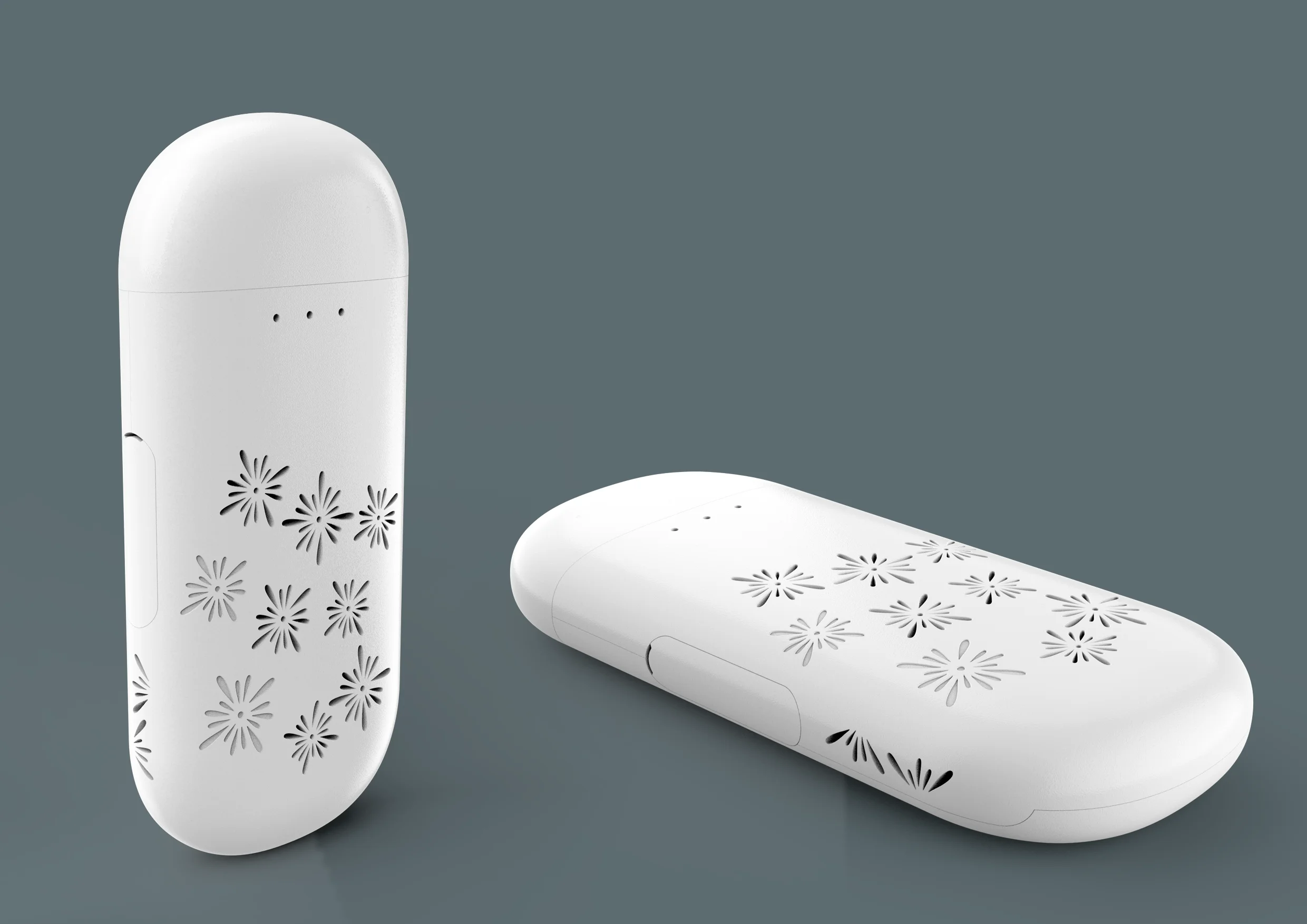

Portable 5g USB Modem Wireless 5g UFI with high speed
- Category: >>>
- Supplier: Shenzhen Ex-Link Technology Co. Ltd.
Share on (1600834620705):
Product Overview
Description
Portable 5g USB Modem Wireless 5g UFI snapdragon with high speed
HUF300 4G LTE/5G UFI supports 3G/4G LTE/5G network system and global frequency band. Support 4G LTE CAT 6, CAT 12 or 5G NR network access. The 4G LTE high-speed router meets the maximum downlink bandwidth CAT 6 (300Mbps)/CAT 12 (600Mbps), and the maximum uplink bandwidth CAT 6 (50Mbps)/CAT 12 (150Mbps). The 5G industrial router supports SA and NSA modes. The maximum downlink bandwidth of the 5G NSA mode is 2Gbps, and the maximum uplink bandwidth is 1Gbps. The maximum downlink bandwidth of the 5G SA mode is 2.2Gbps, and the maximum uplink bandwidth is 575Mbps.
One channel USB3.0 interface of HUF300 network card. It supports WIFI 802.11AC, 5GHz hotspot sharing, and the theoretical maximum rate is 867Mbps, meeting the access sharing needs of more than 60 users of WIFI hotspot, and providing stable and high-speed wireless broadband access for individual and enterprise users. It supports remote management protocol, which is convenient for users to remotely monitor operation and maintenance and real-time monitor equipment operation status.
Product features.
Support 3G/4G LTE/5G network mode and global frequency band. Support 4G CAT 6, CAT 12 or 5G NR network access.
Support 2 * 2 MIMO or 4 * 4 MIMO 4G built-in antenna. 4 * 4 MIMO 5G built-in antenna.
1 * USB3.0 interface is provided and supports 1 * Nano SIM card or eSIM card.
Support 802.11AC, WIFI 5, 5GHz high-speed hotspot sharing.
ABS plastic shell, fashionable appearance.
Easy to use and easy maintenance
User friendly web interface for user interaction.
Supports Central Management Platform.
Supports local web UI and remote FOTA update firmware.
Operating system
Built-in Linux operating system.
| Cellular feature – 4G LTE CAT 6, CAT 12 version | |
| 3G/4G data connectivity | Supports LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks. |
| 3G/4G Frequency bands | Version E. LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32(Optional) LTE-TDD: B38/B40/B41/B42(Optional) /B43(Optional) WCDMA: B1/B3/B5/B8 Version A. LTE-FDD: B2/B4/B5/B7/B12/B13/B14B25/B26/B29/B30/B66/B71 LTE-TDD: B41/B48 Version LA. LTE-FDD: B2/B4/B5/B7/B8/B28/B66 LTE-TDD: B42(Optional) /B43(Optional) WCDMA: B2/B4/B5/B8
Remarks. More frquency bands or requirements please contact with us. |
| 3G/4G Data rates | 4G LTE - CAT 6 LTE-FDD data rates. Max DL 300Mbps , Max UL 50Mbps LTE-TDD data rates. Max DL 226Mbps , Max UL 28Mbps
4G LTE - CAT 12 LTE-FDD data rates. Max DL 600Mbps,Max UL 150Mbps LTE-TDDdata rates. Max DL 430Mbps ,Max UL 90Mbps
HSPA+ data rates. Max DL 42Mbps,Max UL 11.2Mbps.
WCDMA. data rates. Max DL 384Kbps, Max UL 384Kbps |
| 3G/4G Transmitting Power | LTE-TDD frequency bands. Class 3 (23 dBm±2 dB) LTE-FDD frequency bands. Class 3 (23 dBm±2 dB) WCDMA frequency bands. Class 3 (24 dBm+ 1/-3 dB) |
| 3G/4G LTE Receiving Sensitivity | WCDMA B1 , -106.7 dBm WCDMA B2 , -104.7 dBm WCDMA B3 , -103.7 dBm WCDMA B4 , -106.7 dBm WCDMA B5 , -104.7 dBm WCDMA B6 , -106.7 dBm WCDMA B8 , -103.7 dBm WCDMA B19 , -106.7 dBm LTE-FDD B1(10MHz) , -96.3 dBm LTE-FDD B2(10MHz) , -94.3 dBm LTE-FDD B3(10MHz) , -93.3 dBm LTE-FDD B4(10MHz) , -96.3 dBm LTE-FDD B5(10MHz) , -94.3 dBm LTE-FDD B7(10MHz) , -94.3 dBm LTE-FDD B8(10MHz) , -93.3 dBm LTE-FDD B12(10MHz) , -93.3 dBm LTE-FDD B13(10MHz) , -93.3 dBm LTE-FDD B14(10MHz) , -93.3 dBm LTE-FDD B17(10MHz) , -93.3 dBm LTE-FDD B18(10MHz) , -96.3 dBm LTE-FDD B19(10MHz) , -96.3 dBm LTE-FDD B20(10MHz) , -96.3 dBm LTE-FDD B25(10MHz) , -92.8 dBm LTE-FDD B26(10MHz) , -93.8 dBm LTE-FDD B28(10MHz) , -94.8 dBm LTE-FDD B30(10MHz) , -95.3 dBm LTE-FDD B32(10MHz) , -96.3 dBm LTE-FDD B66(10MHz) , -95.8 dBm LTE-FDD B71(10MHz) , -94.3 dBm LTE-TDD B38(10MHz) , -96.3 dBm LTE-TDD B39(10MHz) , -96.3 dBm LTE-TDD B40(10MHz) , -96.3 dBm LTE-TDD B41(10MHz) , -94.3 dBm LTE-TDD B42(10MHz) , -95 dBm LTE-TDD B43(10MHz) , -95 dBm LTE-TDD B46(20MHz) , -88.5 dBm LTE-TDD B48(10MHz) , -95 dBm |
| LTE features | Version CAT 6. Meet 3GPP Rel-12 CAT 6 FDD and TDD standards. Support uplink QPSK and 16 QAM modulation and demodulation. It supports downlink QPSK, 16 QAM and 64 QAM modulation and demodulation. Support 1.4MHz to 40MHz (2 CA) RF bandwidth.
Version CAT 12. Meet 3GPP Rel-12 CAT 12 FDD and TDD standards. Support uplink QPSK, 16 QAM and 64 QAM modulation and demodulation. It supports downlink QPSK, 16 QAM, 64 QAM and 256 QAM modulation and demodulation. Support 1.4MHz to 60MHz (3 CA) RF bandwidth. |
| UMTS features | Support 3GPP Rel-9 DC-HSDPA, DC-HSUPA, HSPA+, HSDPA, HSUPA and WACDMA network modes. Support QPSK, 16 QAM and 64 QAM modulation modes. |
| Antenna | Support 2 * 2 MIMO 4G antenna or 4 * 4 MIMO 4G antenna with 50 Ω impedance. |
| Cellular feature – 5G Version | |
| 3G/4G/5G data connectivity | It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA,HSUPA and WCDMA networks. |
| 3G/4G/5G Frequency bands | 5G NR SA. n41/n78/n79 5G NR NSA. N1/n28/n41/n78/n79 LTE-FDD. B1/B3/B5/B8 LTE-TDD. B34/B38/B39/B40/B41 WCDMA. B1/B5/B8
Remarks. More frquency bands or requirements please contact with us. |
| 3G/4G/5G Data rates | 5G NSA. Max DL 2.2Gbps,Max UpLoad Rate 575Mbps 5G SA. Max DL 2Gbps,Max Upload Rate 900Mbps LTE. Max DL 400Mbps ,Max UL 150Mbps DC-HSDPA. Max DL 42Mbps HSUPA. Max DL 11Mbps |
| 3G/4G/5G Transmitting Power | WACDMA frequency bands. Class 3 (24dBm+1/-3dB). LTE-FDD frequency bands. Class 3 (23dBm±2dB) . LTE-TDD frequency bands. Class 3 (23dBm±2dB) . 5G NR n1/n41 frequency bands. Class 3 (23dBm±2dB) . 5G NR n28 frequency bands. Class 3 (23dBm±2/-2.5dB) . 5G NR n41/n78/n79 frequency bands HPUE. Class 2 (26 dBm +2/-3 dB) 5G NR n77/n78/n79 frequency bands. Class 3 (23 dBm +2/-3 dB) |
| 5G NR features | Support 3GPP Rel-15 standard. Support uplink 256QAM modulation mode and downlink 256QAM modulation mode. n1/n41/n77/n78/n79 supports downlink 4 × 4 MIMO. N28 supports downlink 2 × 2 MIMO. n41/n77/n78/n79 supports uplink 2 × 2 MIMO. Support 15 kHz and 30 kHz of SCS. Support the working mode of SA and NSA. Support Option 3x, 3a, 3 and Option 2. NSA mode: the maximum downlink rate is 2.2 Gbps, and the maximum uplink rate is 575 Mbps. SA mode: maximum downlink rate 2 Gbps, maximum uplink rate 1 Gbps. |
| LTE feature | Maximum support: CA: downlink 2CC, uplink 2CC. FDD: downlink Cat 12, uplink Cat 13. TDD: downlink Cat 12, uplink Cat 13 Support 1.4/3/5/10/15/20 MHz RF bandwidth. Uplink QPSK, 16QAM and 64QAM modulation modes are supported. It supports downlink QPSK, 16QAM, 64QAM and 256QAM modulation modes. Downlink support 2 × 2 MIMO. LTE: The maximum downlink rate is 400 Mbps, and the maximum uplink rate is 150 Mbps. |
| UMTS feature | Support 3GPP Rel-9 DC-HSDPA, HSDPA, HSUPA, HSPA+and WCDMA. Support QPSK, 16QAM and 64QAM modulation modes. DC-HSDPA: The maximum downlink rate is 42.2 Mbps. HSUPA: The maximum uplink rate is 11 Mbps. WCDMA: maximum downlink rate 384 kbps, maximum uplink rate 384 kbps. |
| Antenna | 4 * 4 MIMO 4G/5G internal antenna,50Ω impedance. |
| SIM card feature | |
| SIM card | Supports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. ( Optional ) |
Packaging & Shipping
| All items are well packed according to the requirement. Packing can be done as per customer's requirement.
Production Lead-time : 2-6 weeks |
