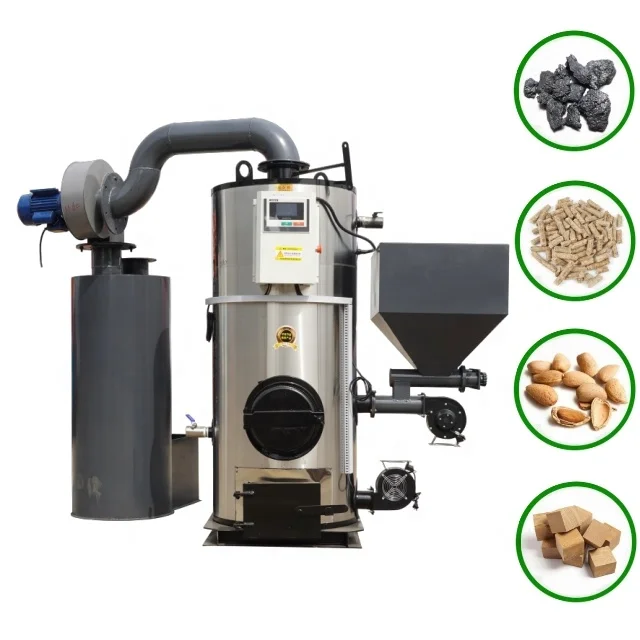

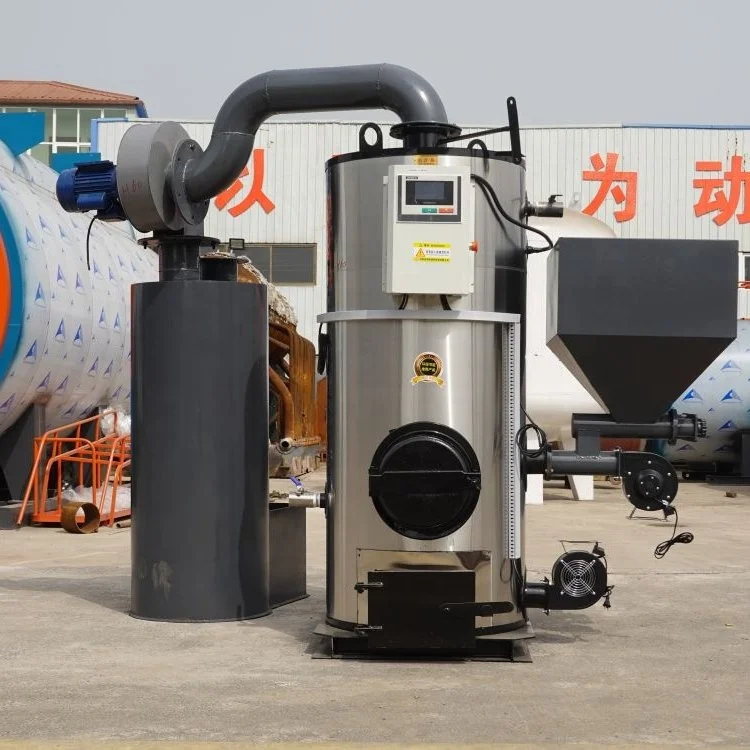

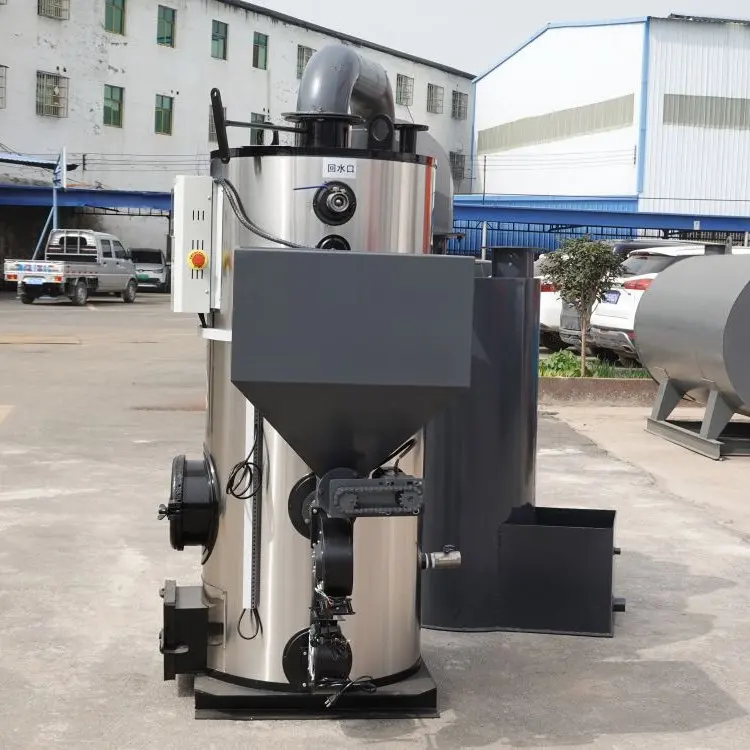

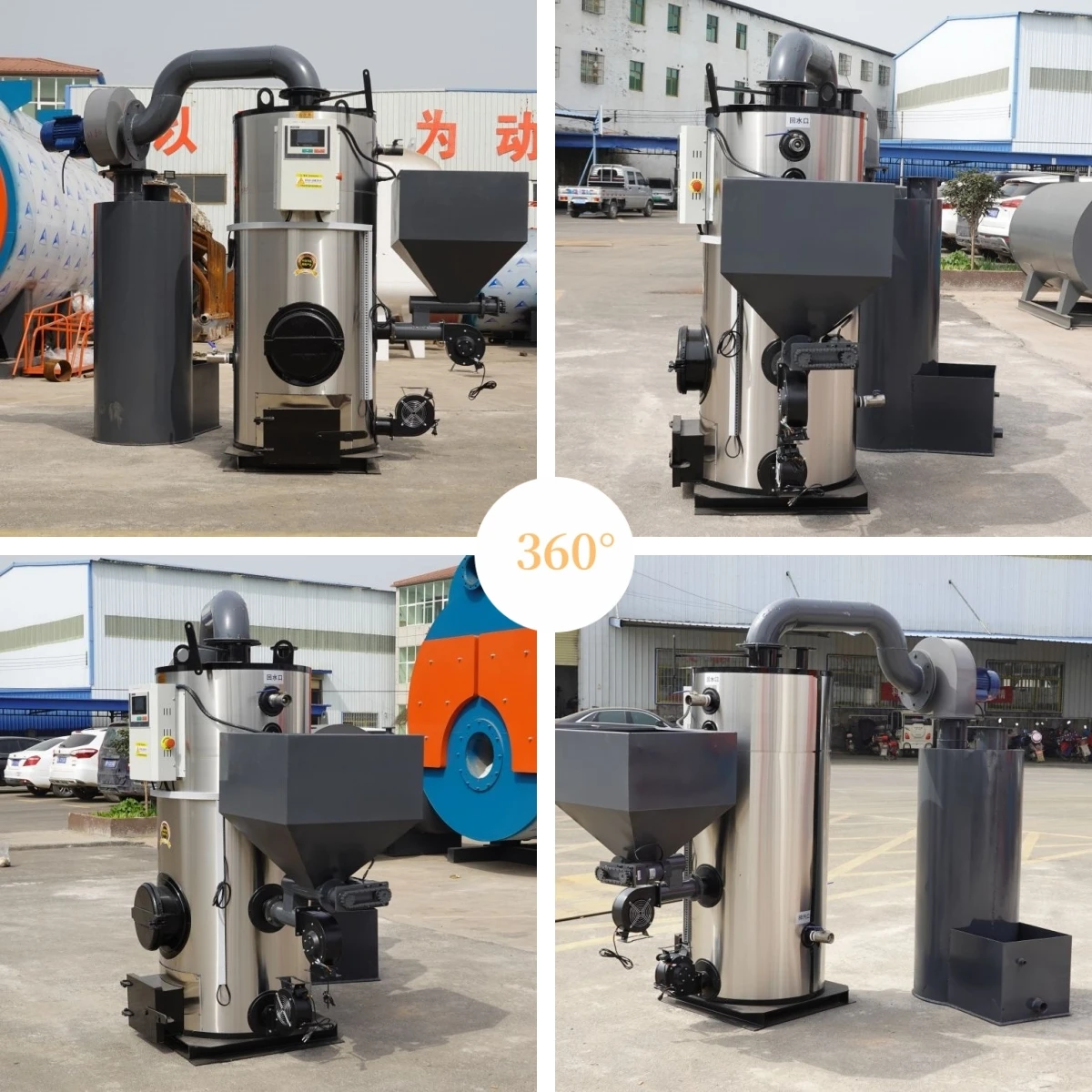

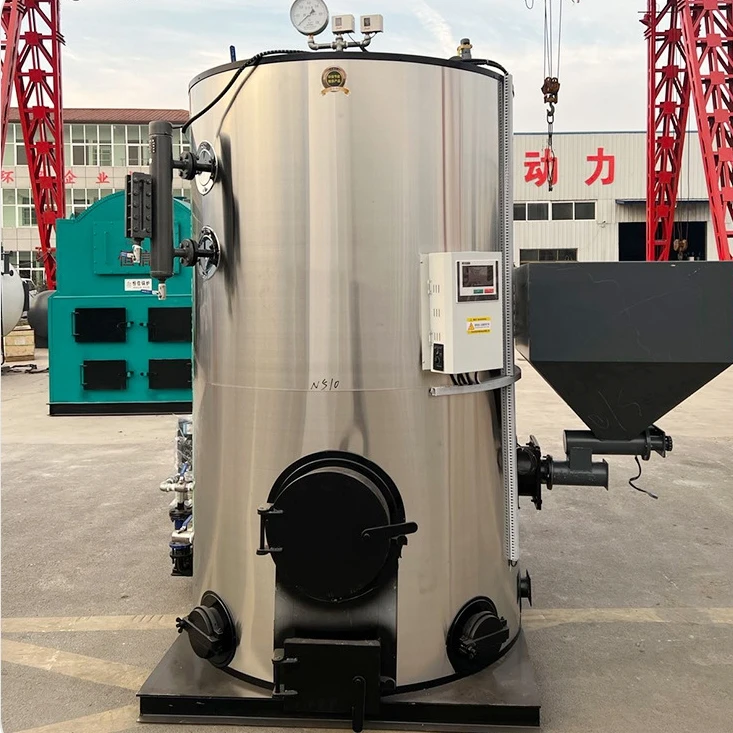

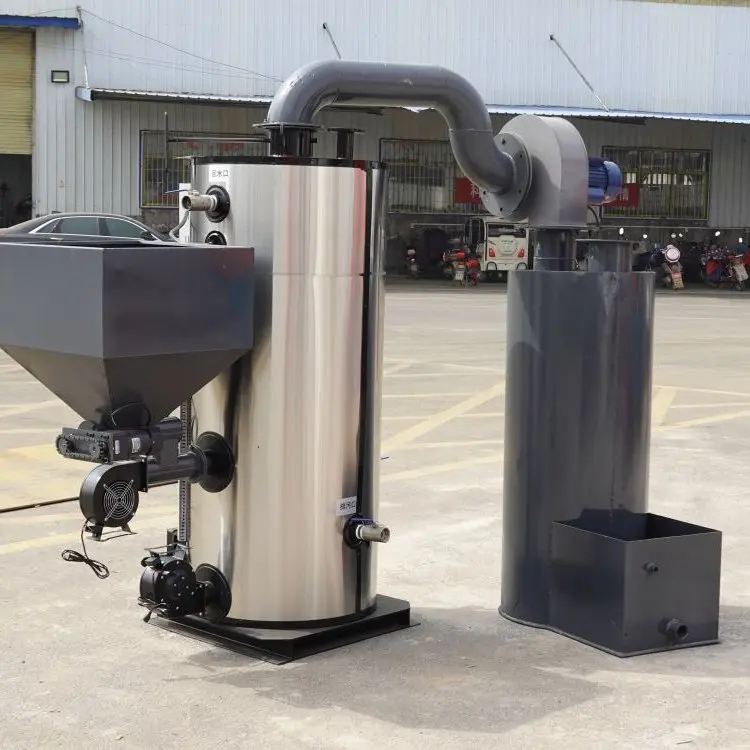

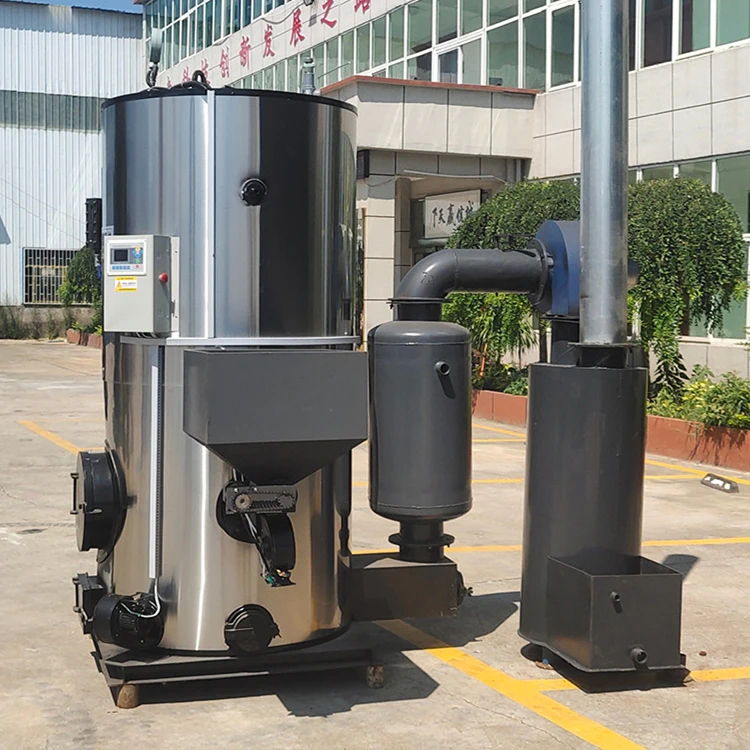

Professional Small Biomass Fuel Wood Pellet Straw Hot Water Boiler for Green House Heating
Product introduction: Biomass hot water boiler is a biomass boiler that produces hot water. It refers to a kind of thermal energy equipment that uses the heat energy released by the combustion of biomass pellet fuel to heat water to a rated temperature. Biomass hot water boilers are mainly used for heating and bathing. The biomass hot water boiler circulates the hot water in the heat preservation water tank through the hot water circulating pump, and then heats the hot water in the water tank again and again to achieve bathing purposes;) can meet people's heating requirements; biomass hot water boilers and hot water circulating pumps combined with heat exchangers can achieve the dual functions of bathing and heating.
Advantages of biomass hot water boilers:
4. Small footprint:
Boiler has a compact structure, which greatly saves the floor space of the boiler room.
1. High efficiency
Using positive pressure combustion, the combustion efficiency is
greatly improved.
greatly improved.
2. Environmental protection
The size of the furnace is matched with the combustion flame, and the thermal efficiency is high.
The size of the furnace is matched with the combustion flame, and the thermal efficiency is high.
3. Safety
The furnace adopts double densely arranged coils, and the heating surface is fully arranged, which reduces the heat load on the surface of the tube and makes the use of heat transfer oil safer.
The furnace adopts double densely arranged coils, and the heating surface is fully arranged, which reduces the heat load on the surface of the tube and makes the use of heat transfer oil safer.
4. Small footprint:
Boiler has a compact structure, which greatly saves the floor space of the boiler room.
Design Parameters
Model | CLHG0.06 | CLHG0.12 | CLHG0.24 | CLHG0.35 | CLHG0.48 | CLHG0.6 | |||||||
Rated Calorific Quantity(Kcal/h) | 5*104 | 10*104 | 20*104 | 30*104 | 40*104 | 50*104 | |||||||
Thermal Efficiency | 94% | ||||||||||||
Rated Outlet water Temp. | 85℃ | ||||||||||||
Rated Return water temp. | 60℃ | ||||||||||||
Voltage | 220/50hz | ||||||||||||
Operating Pressure | Atmospheric Pressure | ||||||||||||
Thermal efficiency | ＞90% | ||||||||||||
Total power | 2.67 | 3.1 | 3.9 | 4.9 | 4.9 | 6.1 | |||||||
Fuel bin volume | 100 | 120 | 120 | 150 | 150 | 180 | |||||||
Fuel consumption | 12 | 25 | 49 | 70 | 97 | 120 | |||||||
Boiler Proper Size(mm) | L | 1550 | 1950 | 2300 | 2600 | 2600 | 2700 | ||||||
W | 550 | 780 | 900 | 1020 | 1100 | 1050 | |||||||
H | 1400 | 1460 | 1600 | 1800 | 1800 | 2000 | |||||||
Transportation Weight(kg) | 850 | 1700 | 1900 | 1900 | 2100 | 3100 | |||||||
Application
Product packaging

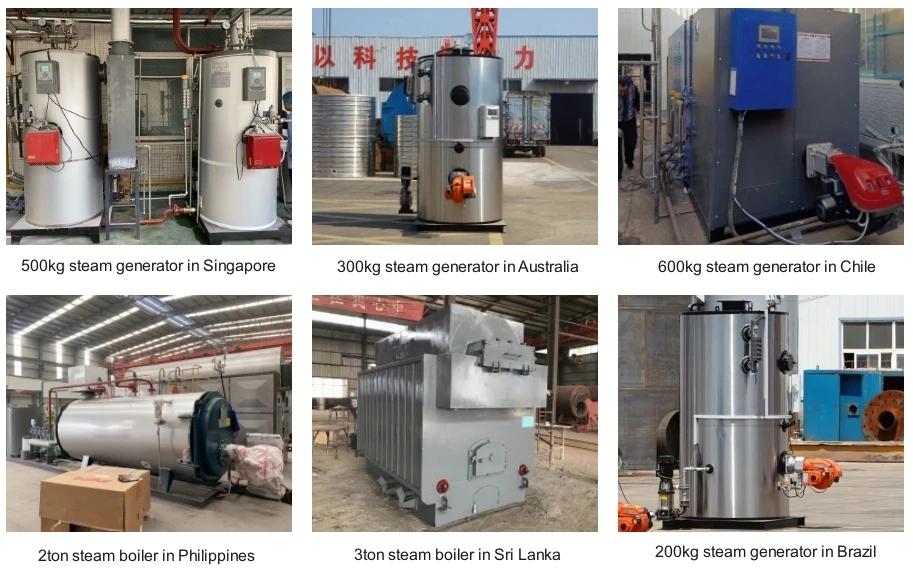

Successful Cases
Company Profile
Henan Xinda Boiler Co., Ltd., a Grade A boiler manufacturer, specializes in the design, production, sales, installation and maintenance services of environmental protection and energy saving products. The factory floor covers an area of 12,000 square meters and is equipped with the latest technology production facilities.
After years of continuous development and progress, we have obtained more than ten invention patents and a number of national energy-saving and environmental protection product honors, and passed the ISO9001 international quality management system certification. The company also has professional research and development capabilities, providing efficient, stable and long-life products that meet CE and ASME standards.
By the end of 2018, we have exported to 67 countries around the world and have successfully provided tailor-made solutions to more than 100,000 customers. Our main products are:
(1) LHS/LSS vertical gas oil steam boiler and hot water boiler
(2) LHG vertical biomass steam boiler and hot water boiler
(3) WNS gas steam boiler and hot water boiler
(4) DZL/DZH biomass/wood/coal steam boiler and hot water boiler
(5) SZL biomass steam boiler and hot water boiler
(6) LDR electric steam generator and hot water boiler
(7) Various types of pressure vessels
Xinda Boiler has been committed to improving the efficiency and safety of boilers and providing safe, energy-saving and environmentally friendly products. We look forward to working with you to create a brilliant future.
Customer Visiting
Exhibition
Business Exhibition:
In April, 2018, Xinda Boiler Exhibition was held in Shanghai. 5 boiler models were exhibited- WNS series oil gas fired fire tube boiler, DZL series biomass fired water tube boiler, LHG series biomass steam generator, LDR series electric steam boiler and LHS oil gas series vertical steam boiler. During the exhibition, a great number of people were very interested in Xinda Boiler company and the boilers. We gave them detailed explanation, and have already established a good business relationship with some of them.
In April, 2018, Xinda Boiler Exhibition was held in Shanghai. 5 boiler models were exhibited- WNS series oil gas fired fire tube boiler, DZL series biomass fired water tube boiler, LHG series biomass steam generator, LDR series electric steam boiler and LHS oil gas series vertical steam boiler. During the exhibition, a great number of people were very interested in Xinda Boiler company and the boilers. We gave them detailed explanation, and have already established a good business relationship with some of them.
Customer Evaluation
Our Services
*Sales Professionals will stay in touch with the you even after the deal. Never ignore your calls.
*Call you once in a while to exchange pleasantries.
*Give you the necessary support. Help you install, maintain or operate our steam generator. Sales professionals selling steam generators must ensure machines are 100% checked before shipping and customers are able to use net without any difficulty.
*Any product found broken or in a damaged condition must be exchanged immediately by the sales professional. Don’t harass our customers. Listen to your grievances and make you feel comfortable.
*Take feedback of the products and services from the customers. Feedback helps the organization to know the customers better and incorporate the necessary changes for better customer satisfaction.
*Call you once in a while to exchange pleasantries.
*Give you the necessary support. Help you install, maintain or operate our steam generator. Sales professionals selling steam generators must ensure machines are 100% checked before shipping and customers are able to use net without any difficulty.
*Any product found broken or in a damaged condition must be exchanged immediately by the sales professional. Don’t harass our customers. Listen to your grievances and make you feel comfortable.
*Take feedback of the products and services from the customers. Feedback helps the organization to know the customers better and incorporate the necessary changes for better customer satisfaction.
