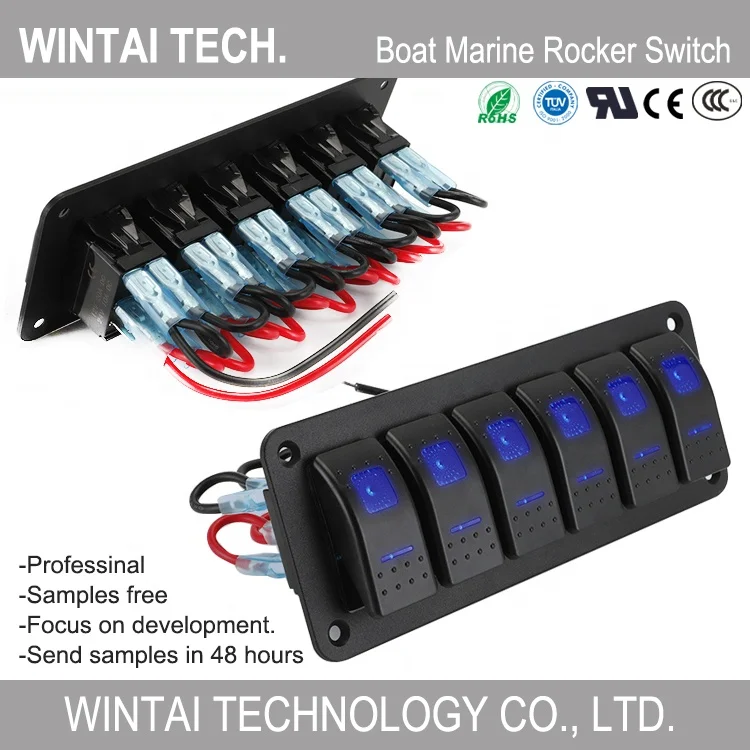

Wintai tech Car Marine Boat 6 Gang Led Rocker Switch Panel Rocker Switch Panel Carling Rocker Switch

Share on:

Price:$0.42 - $0.50
Price in USD:Details


Product Overview

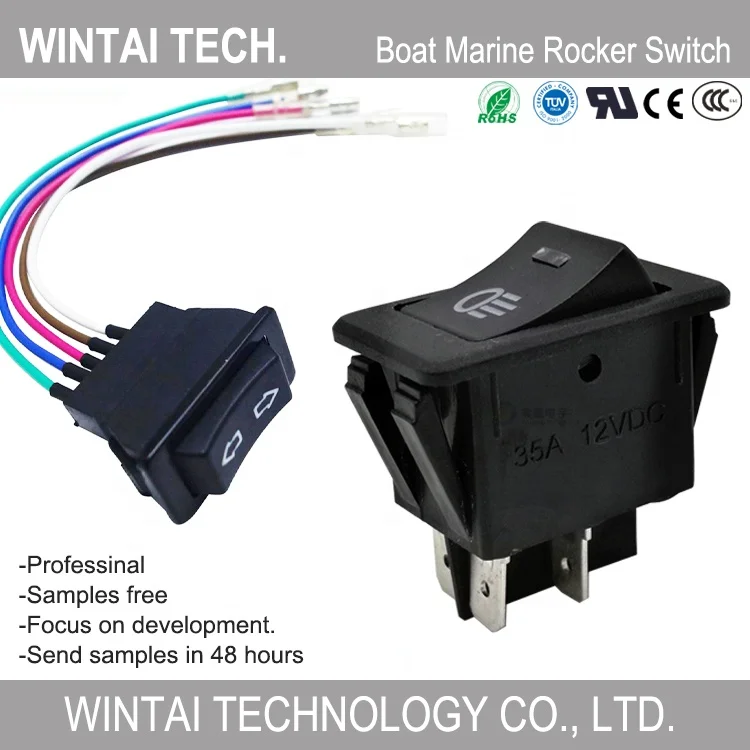

4pin Rocker Switch
The rocker switch, also known to some other manufactures as the boat switch. It's an on and off electrical switch that, when pressed, swings from side to side, raising one side and lowering the other. This shaking mechanism can connect or disconnect the circuit. Wintai Tech. rocker switch, including mini type, common and waterproof type, providing an extensive range for printed circuit board through-hole, surface mount and panel mount applications. It is designed to perform in a variety of applications,such as household appliances, computers, etc.

Product Paramenters

Product Name
Rocker Switch
Current Rating
20A 12VDC 24VDC
108 Ω min
Operating Force
Operating Temperature
-25oC ~ +80oC
Life Time
10,000 Cycles

Details Images

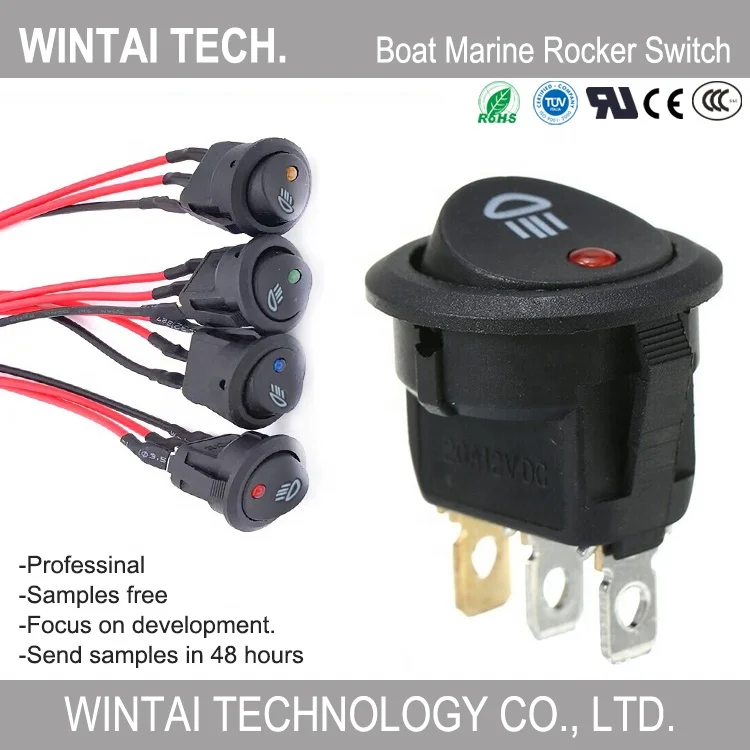

Automotive Fog Light Switch

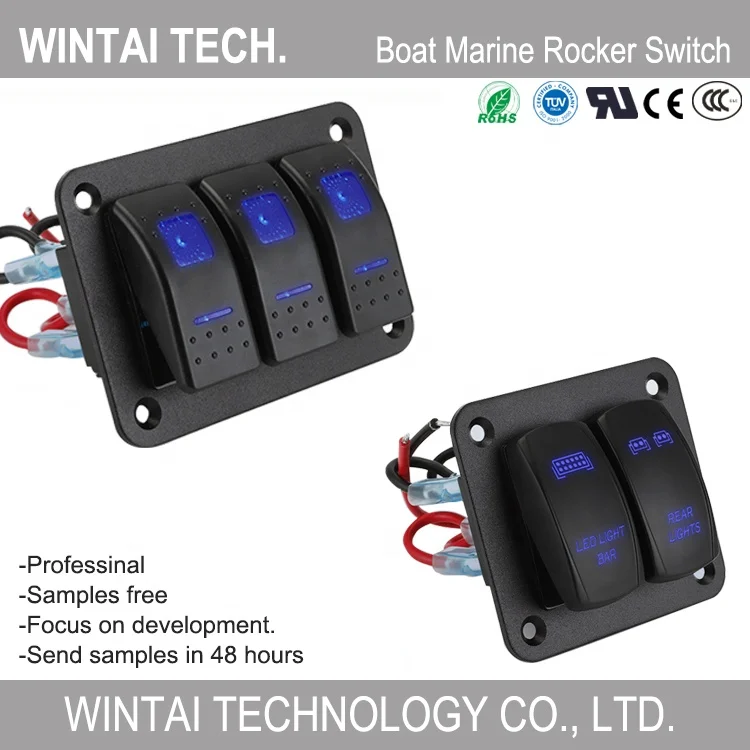

2 Gand and 3 Gand Control Panel

Products Description

Product Structure Description
Generally speaking, the rocker switch is composed of 8 parts, the details are as follows. (1) Operation button, is made of PA66 nylon (UL94V-2). (2) Sealing rubber, is made of silicone rubber. (3) Semi-elliptical spring, is made of stainless steel plated silver. (4-5) Internal case and lid, both are made of Polycarbonate. (6)Cover, is made of PA66 nylon(UL94V-2). (7).Contacts, are made of coin silver, silver plated. (8)Terminals,are made of copper, silver plated.
