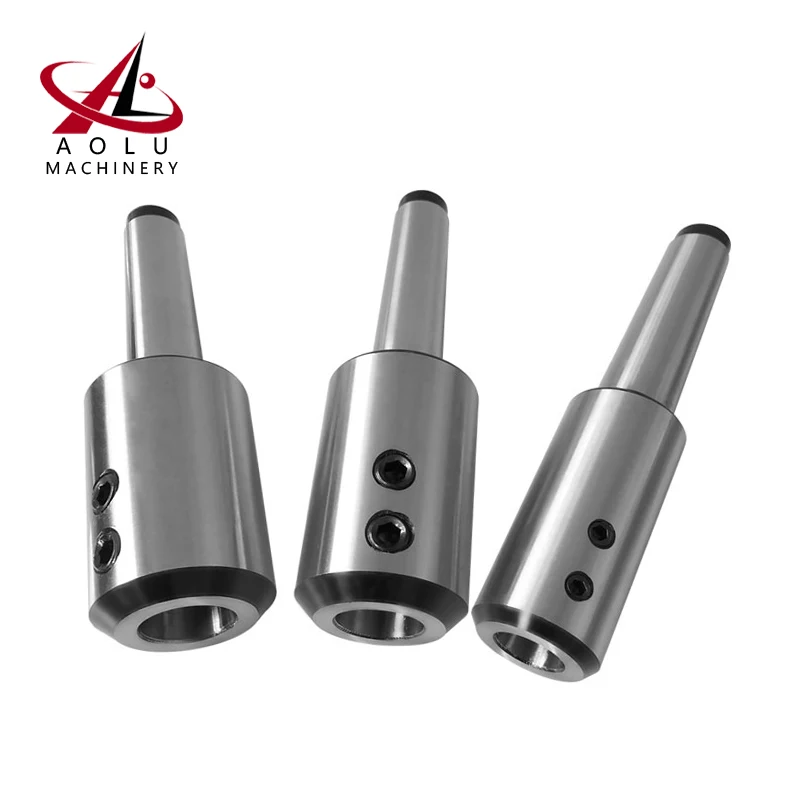

CNC tool holder CNC side lock weldon tool holder MTB3 MTB4 MTB5 SLN20 SLN25 SLN32 SLN40 SLA end mill adapters Inch size
- Category: >>>
- Supplier: Shandong Aolu Machinery Co. Ltd.
Share on (1600834786180):
Product Overview
Description
Product Description

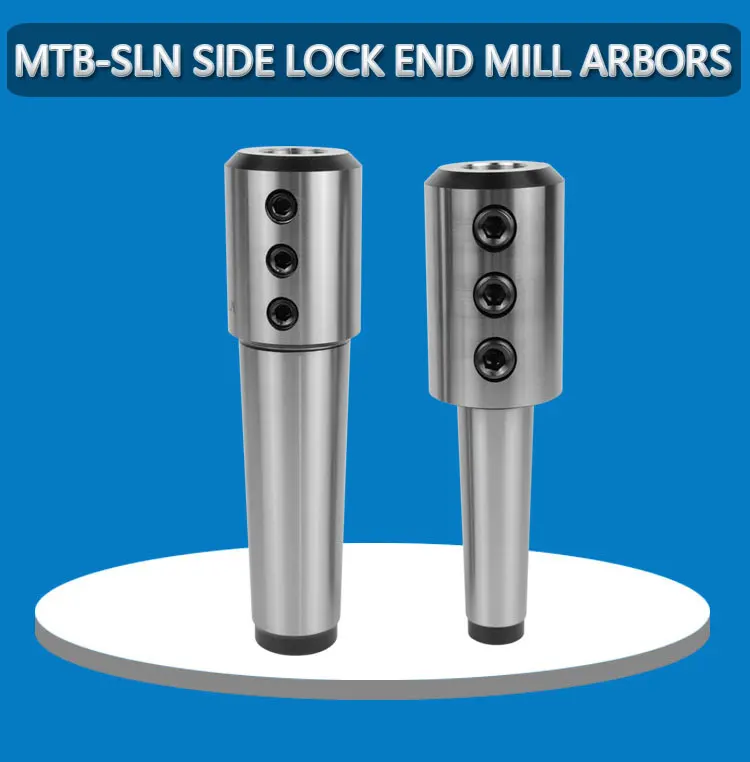

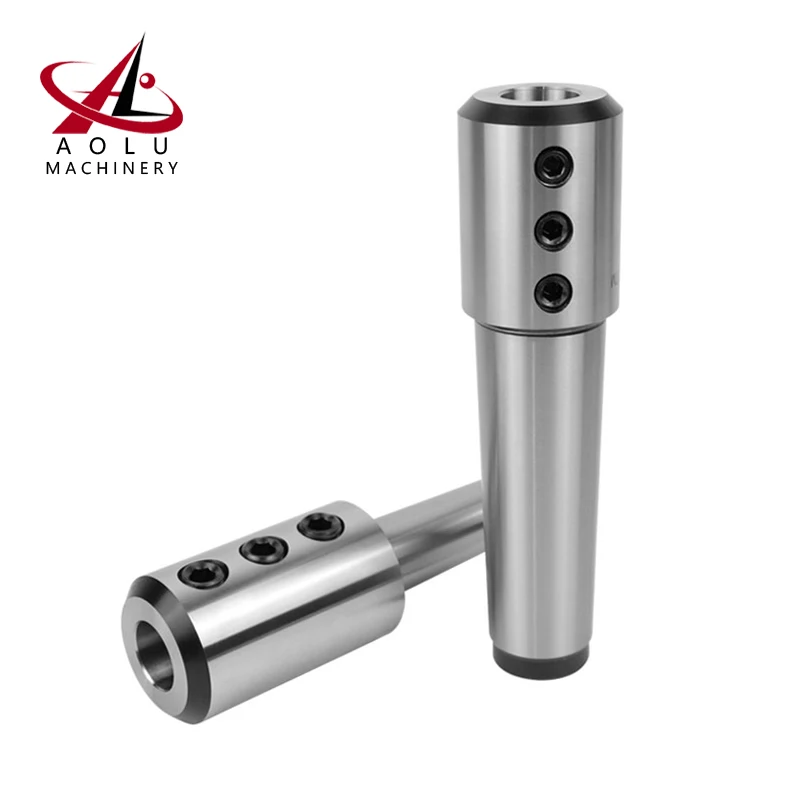

Product name | MTB-SLN Side Lock End Mill Tool Holder |
Model | MTB3/4/5-SLN20/25/32/40 |
Material | 42CrMo |
Feature | High presion |

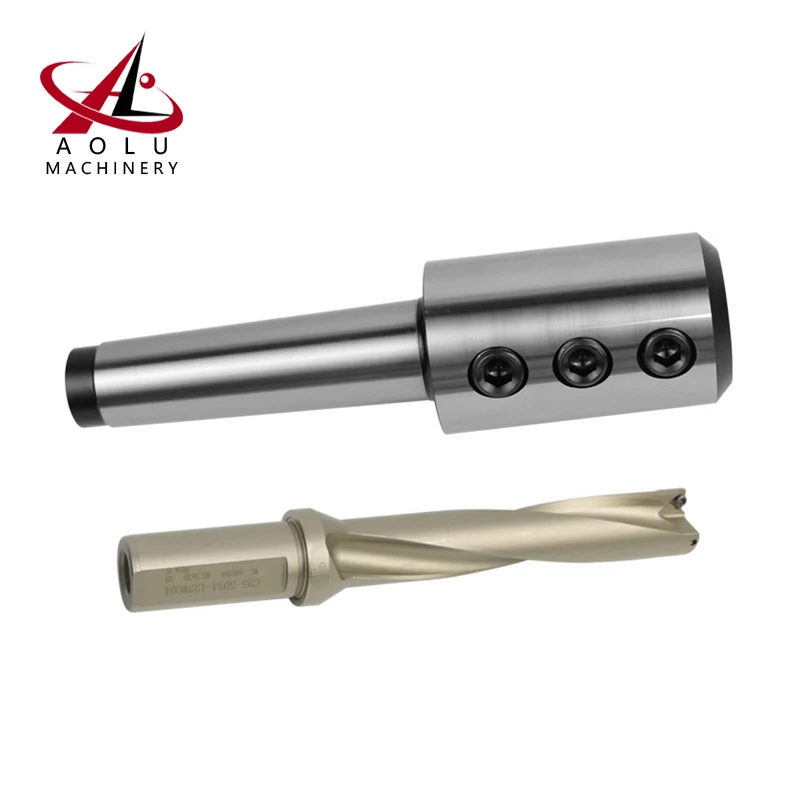

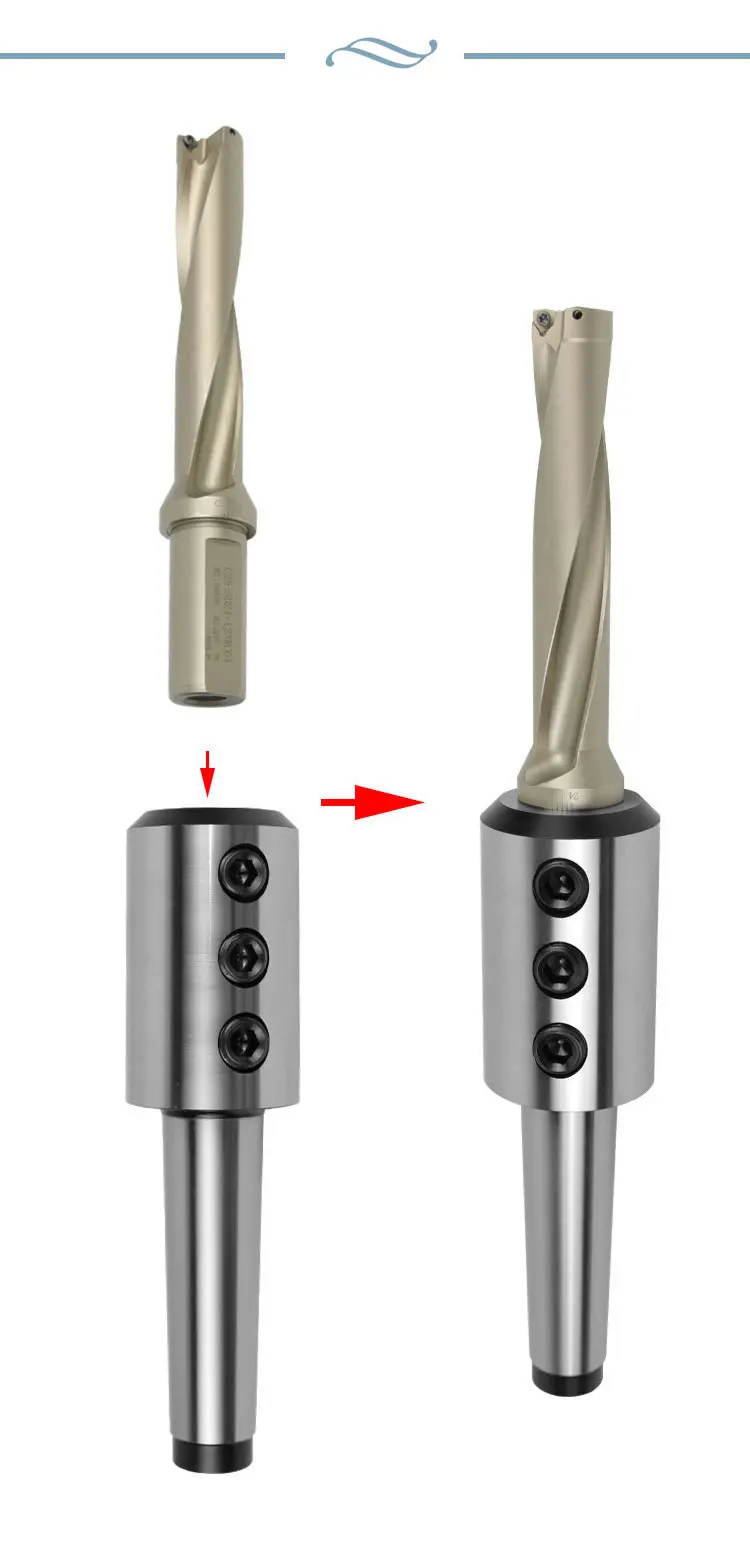

U The drill and the end face are closely attached to increase the seismic resistance and drilling power

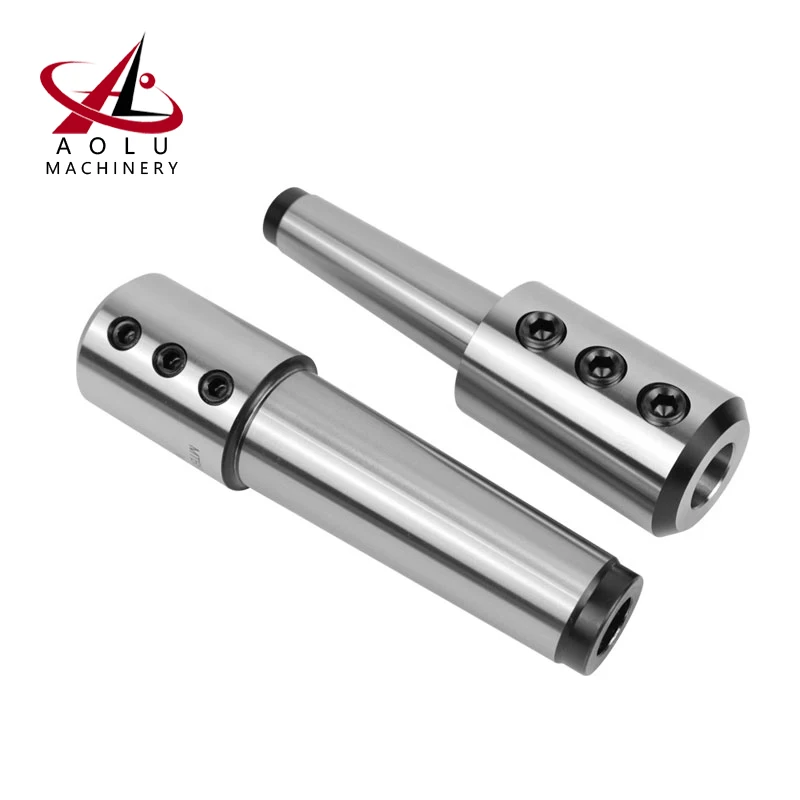

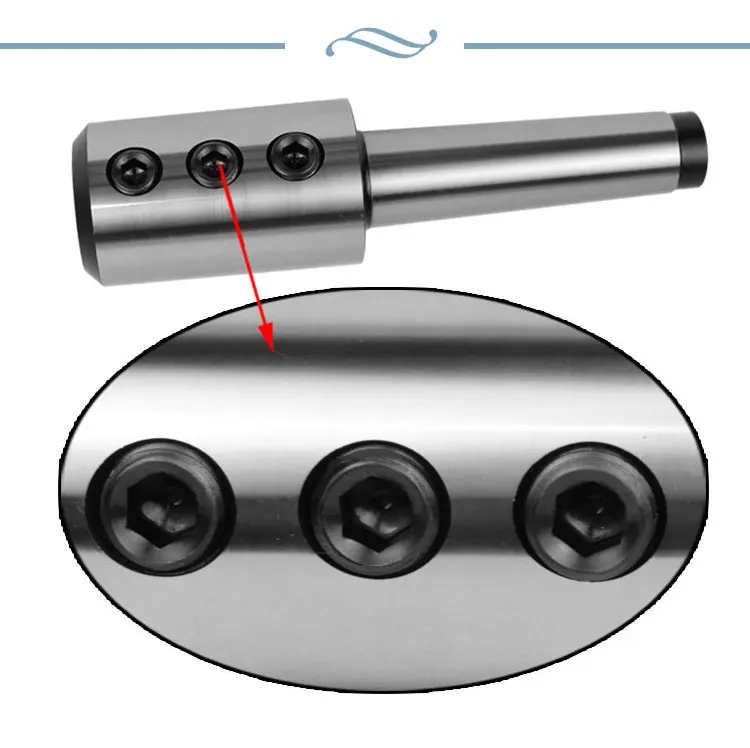

Lock screw
screw compression method, ensure the processing is more stable

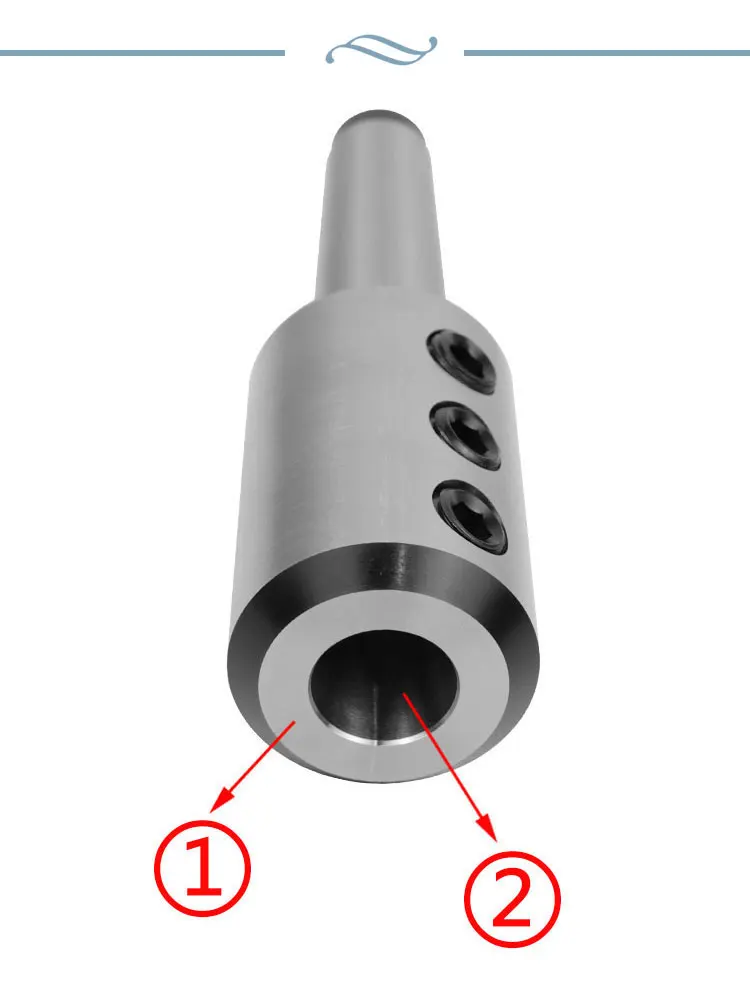

①Thickening of inner wall by 30%
②The whole through hole is beneficial to the central water outlet
②The whole through hole is beneficial to the central water outlet
The middle through hole, is conducive to water, increase earthquake resistance

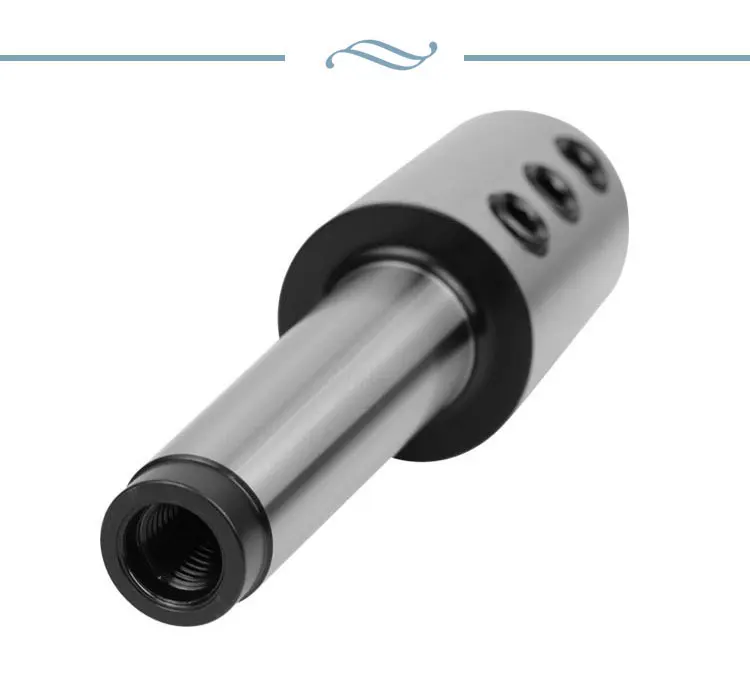

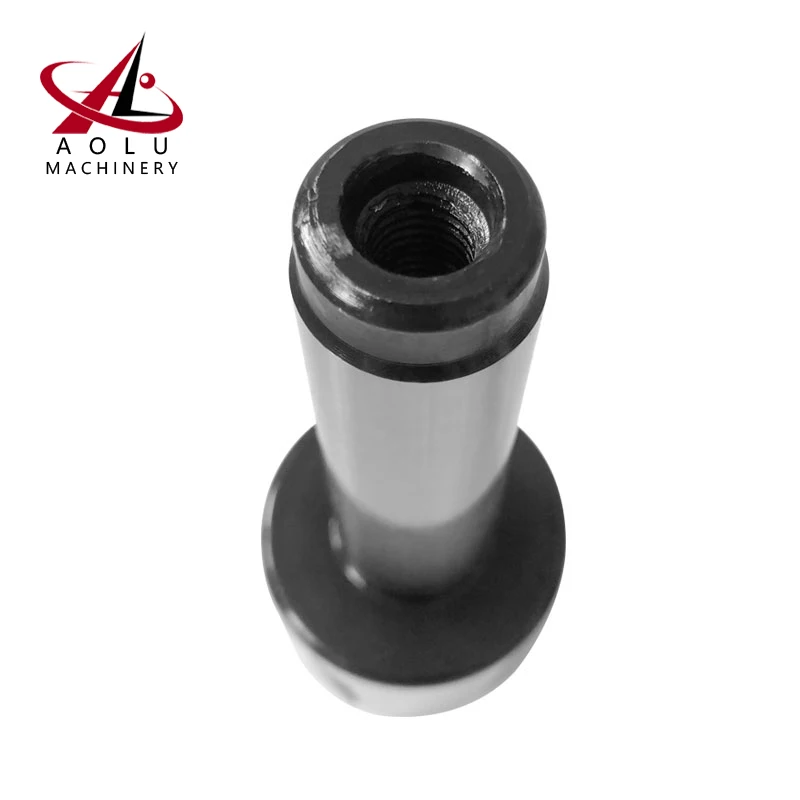

MTB3 Screw thread M12
MTB4 Screw thread M16
MTB5 Screw thread M20
MTB4 Screw thread M16
MTB5 Screw thread M20

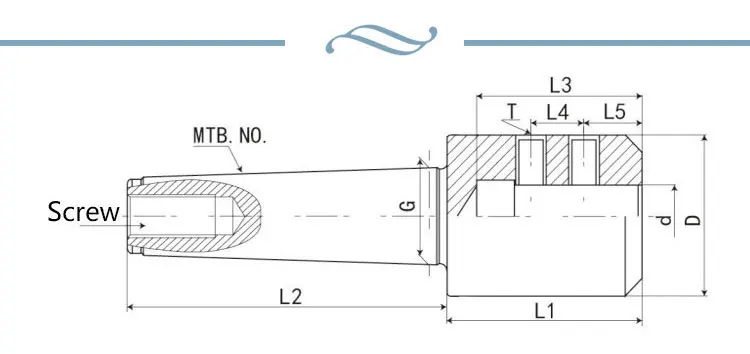

Size | L1 | L2 | L3 | L4 | L5 | D | d | G | Screw |
MTB3-SLN20-80L | 80 | 85 | 70 | 20 | 25 | 53 | 20 | 23.825 | M12 |
MTB3-SLN25-95L | 95 | 85 | 80 | 25 | 24 | 53 | 25 | 23.825 | M12 |
MTB3-SLN32-95L | 95 | 85 | 85 | 28 | 24 | 53 | 32 | 23.825 | M12 |
MTB4-SLN20-65L | 65 | 108 | 70 | 20 | 25 | 53 | 20 | 31.267 | M16 |
MTB4-SLN25-95L | 95 | 108 | 80 | 25 | 24 | 53 | 25 | 31.267 | M16 |
MTB4-SLN32-95L | 95 | 108 | 85 | 28 | 24 | 53 | 32 | 31.267 | M16 |
MTB4-SLN40-115L | 115 | 108 | 100 | 32 | 30 | 58 | 40 | 31.267 | M16 |
MTB5-SLN20-65L | 65 | 136 | 70 | 20 | 25 | 53 | 20 | 44.399 | M20 |
MTB5-SLN25-65L | 65 | 136 | 80 | 25 | 24 | 53 | 25 | 44.399 | M20 |
MTB5-SLN32-70L | 70 | 136 | 85 | 28 | 24 | 53 | 32 | 44.399 | M20 |
MTB5-SLN40-115L | 115 | 136 | 100 | 32 | 30 | 58 | 40 | 44.399 | M20 |
1:Are you factory or trade company?
We are Industry and trader integration.
2: Why we can choose you?
1): Reliable--.we are the real company, we dedicate in win-win
We are Industry and trader integration.
2: Why we can choose you?
1): Reliable--.we are the real company, we dedicate in win-win
2): Professionalwe offer the pet products exactly you want
3): Factory--we have factory so have compective price
3: Could you supply samples?
Yes,we can supply samples.
4:Do you support processing customized products?
It can be customized according to drawings, samples and dimension drawings
3: Could you supply samples?
Yes,we can supply samples.
4:Do you support processing customized products?
It can be customized according to drawings, samples and dimension drawings
