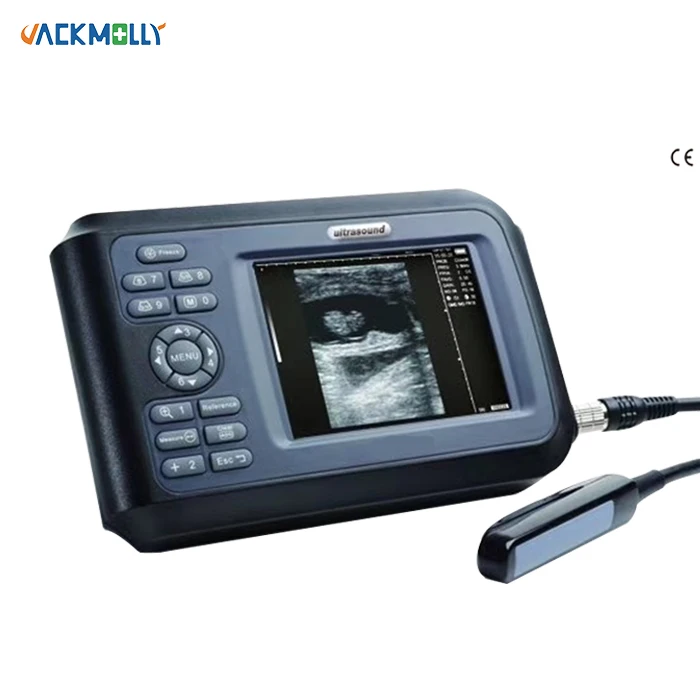

808F Portable Cow Horse Animals Ultrasound Scanner
- Category: >>>
- Supplier: Shanghai Jackmolly Technology Co. Ltd.
Share on (1600834786331):
Product Overview
Description
Products Description
Handheld Ultrasound Scanner used to diagnose animals
Features
1. Light weight of 0.5 kg, very convenient to carry out.
2. Crystal clear with high resolution image display
3. Dismountable battery which can work more than 3 hours.
4. 192 frames of cine-memory and 1024 images permanent storage.
5. Realized read-write function through USB connection and SD connection
6. Other performance is as the same as the laptop computer, such as power save mode, touch mouse and so on.
7. Professional software: General software, Obstetrics software, Cardiac software.
8. Video-out port, connect with computer, external monitor and HP printer directly
9. Supports the colored surface, the ultrasonic area pseudo-color.
2. Crystal clear with high resolution image display
3. Dismountable battery which can work more than 3 hours.
4. 192 frames of cine-memory and 1024 images permanent storage.
5. Realized read-write function through USB connection and SD connection
6. Other performance is as the same as the laptop computer, such as power save mode, touch mouse and so on.
7. Professional software: General software, Obstetrics software, Cardiac software.
8. Video-out port, connect with computer, external monitor and HP printer directly
9. Supports the colored surface, the ultrasonic area pseudo-color.
Softwares
This Ultrasonic diagnostic instrument (here in after referred as instrument) using 3.5 MHz electronic convex array probe,adopts
full digital beam former(DBF); real-time dynamic aperture imaging (RDA); full digital dynamic receive focusing (DRF); frequency conversion;
full digital beam former(DBF); real-time dynamic aperture imaging (RDA); full digital dynamic receive focusing (DRF); frequency conversion;
8 segments TGC; dynamic digital filtering; dynamic digital filtering; image enhancement; line correlation, frame correlation, point correlation, linear interpolation and many other image processing technology, etc.;

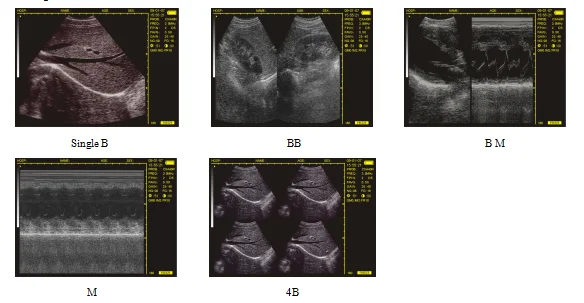

Display modes as B, B/B, 4B, B+M and M, image multiplying factors of ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 under the B mode;
With 128 a large memory and offers permanent storage, cine loop in real time;
Display modes as B, B/B, 4B, B+M and M, image multiplying factors of ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 under the B mode;
With 128 a large memory and offers permanent storage, cine loop in real time;
256 images available after diagnosis of real-time playback or by image viewer, Has measurements of distance, area, circumference, heart rate, gestational weeks(BPD,GS,CRL,FL,HC,OFD,TTD,AC 8 measurement kinds) and so on;
Chinese and English transformation; 16 kinds of pseudo color processing; real-time clock; serial number of medical record;
Chinese and English transformation; 16 kinds of pseudo color processing; real-time clock; serial number of medical record;
many note functions as full-screen character noting;
Adopts large scale integrated circuit FPGA, MSF, mass memory, surface mounting technology and so on.
Adopts large scale integrated circuit FPGA, MSF, mass memory, surface mounting technology and so on.
Display Mode | B、B+B、B/M、M |
Screen Size | 5.5inch,TFT color LCD |
Probe | 3.5 MHz mechanical sector probe |
Depth | 190mm |
Gray Shade | 256 levels |
Measurement | Distance,Circumference,Area,Volume and Heart Rate |
OB Measurement | Pig-HL Sheep/Goat-USD Bovine-BLSLHL Dog BD,GSD,HD,BD |
Technical Specifications

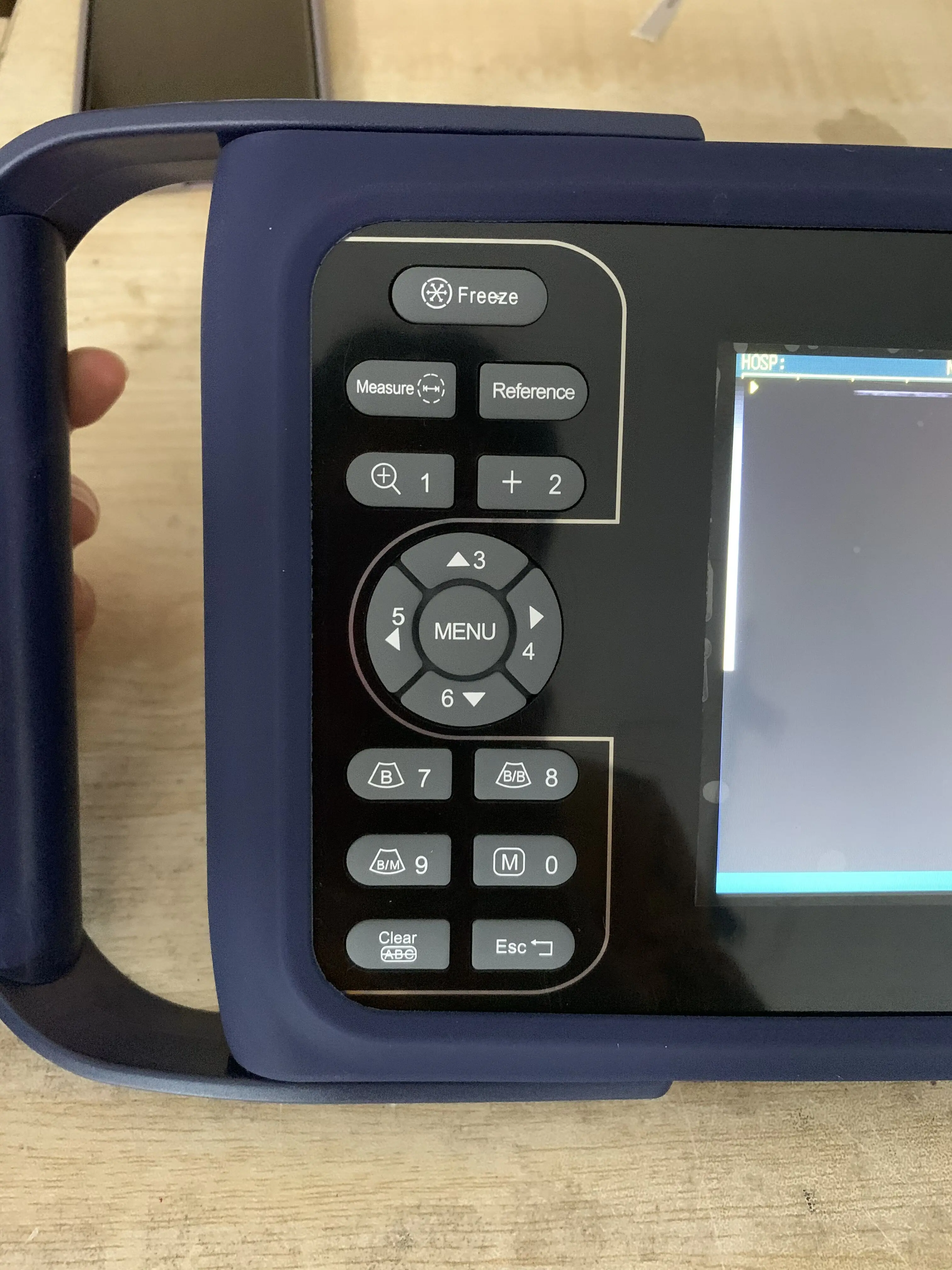

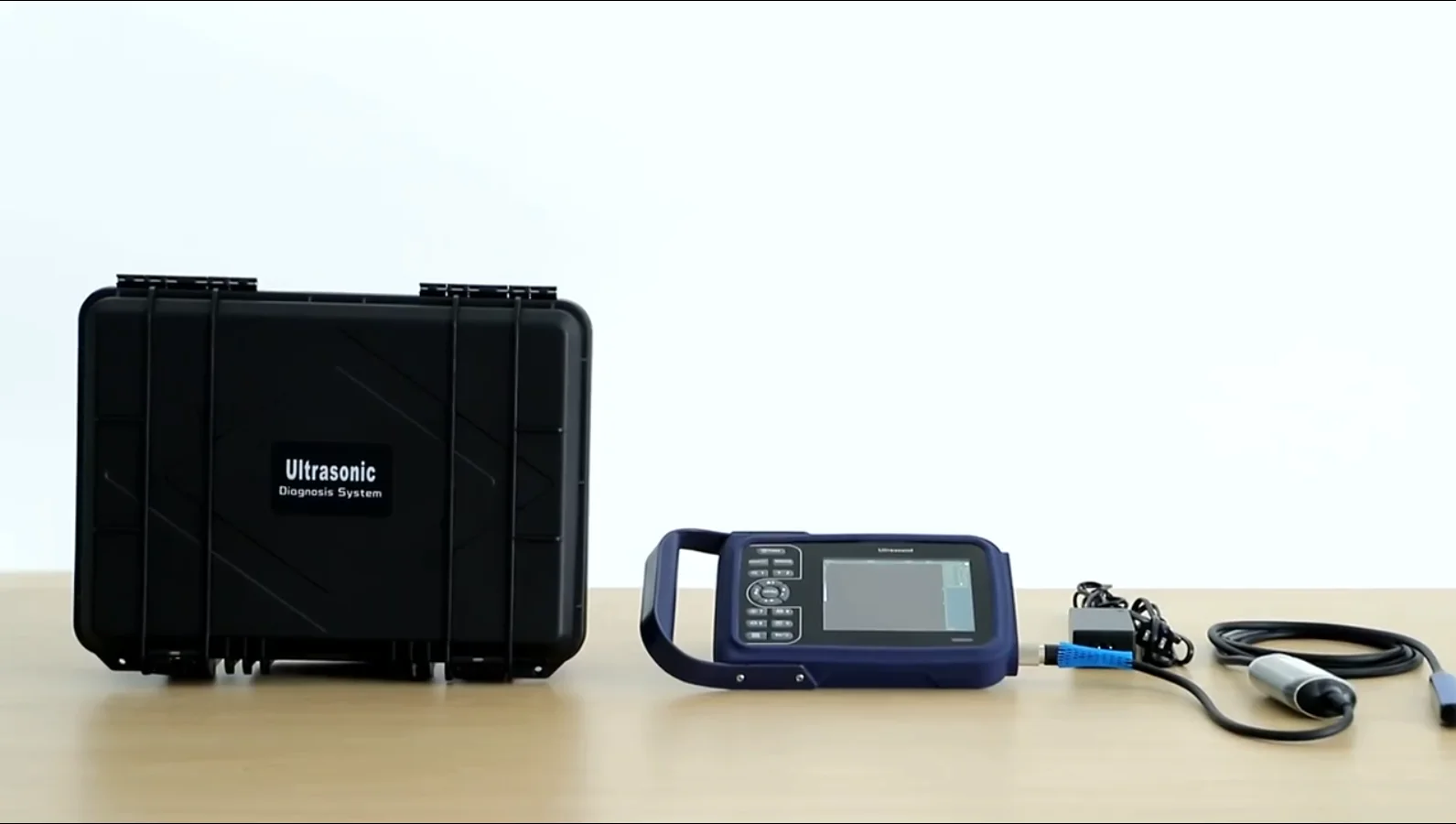

Details Images
Recommend Products

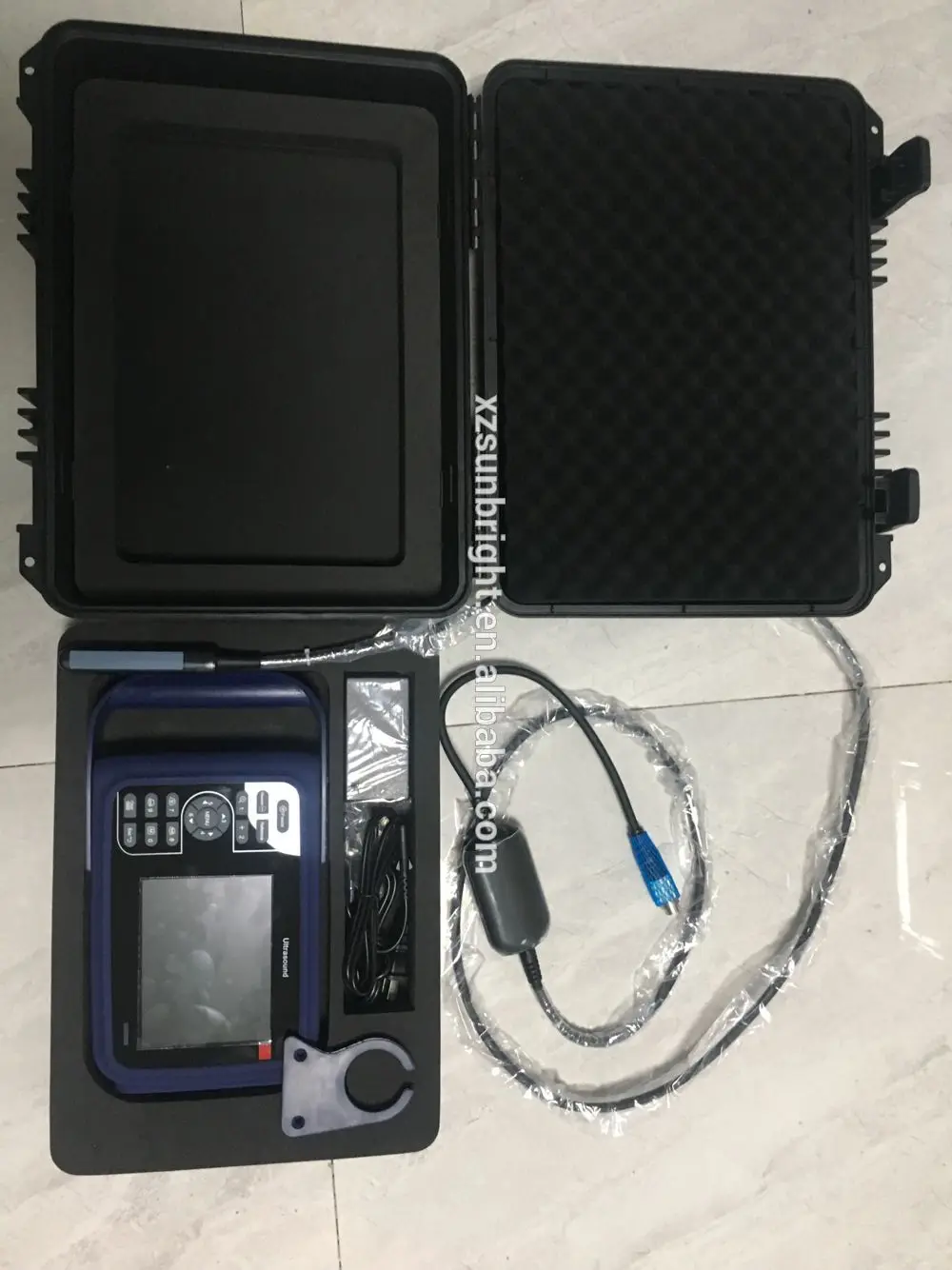

Packing & Delivery

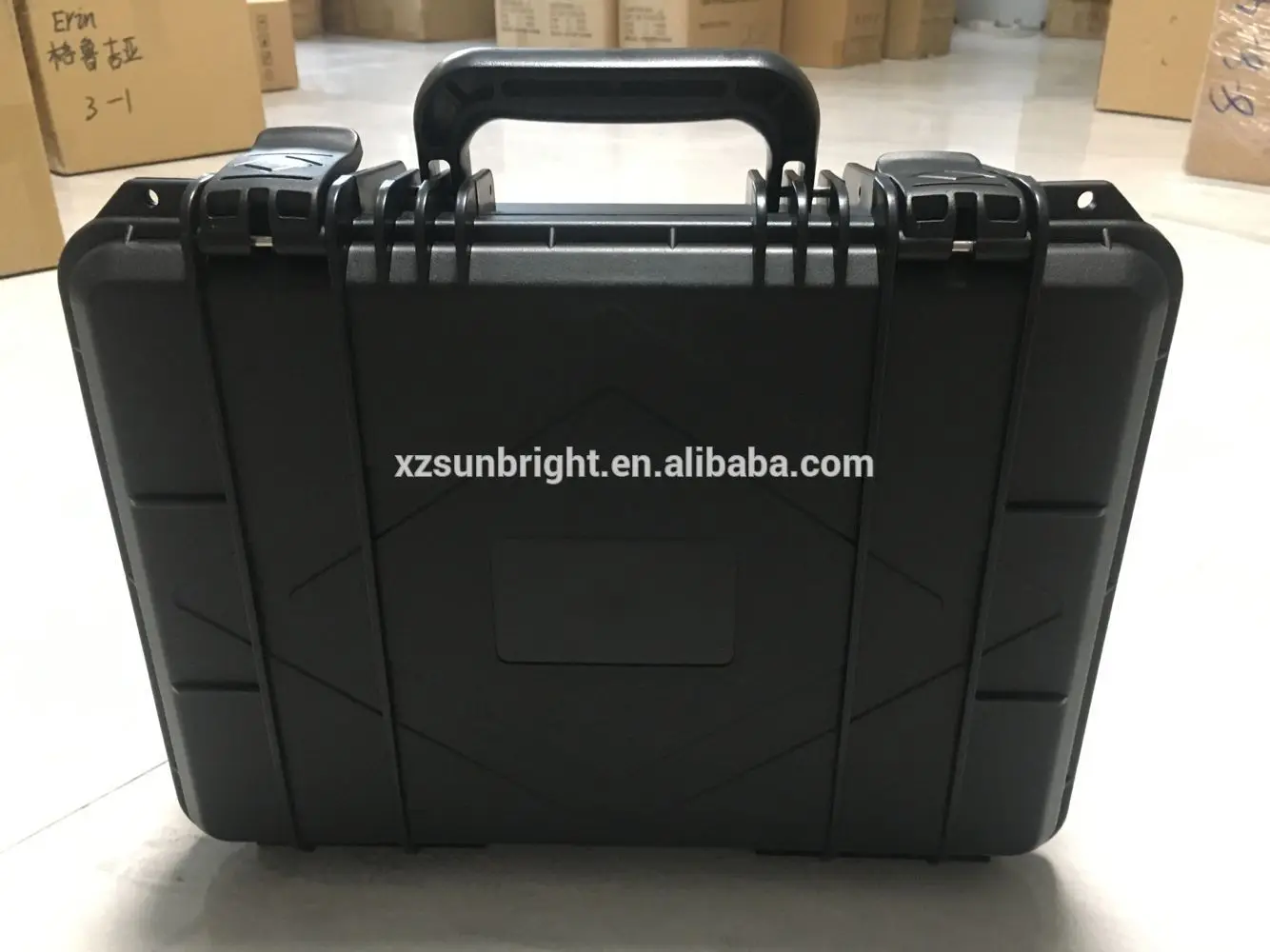

1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
